Page 31 of 232

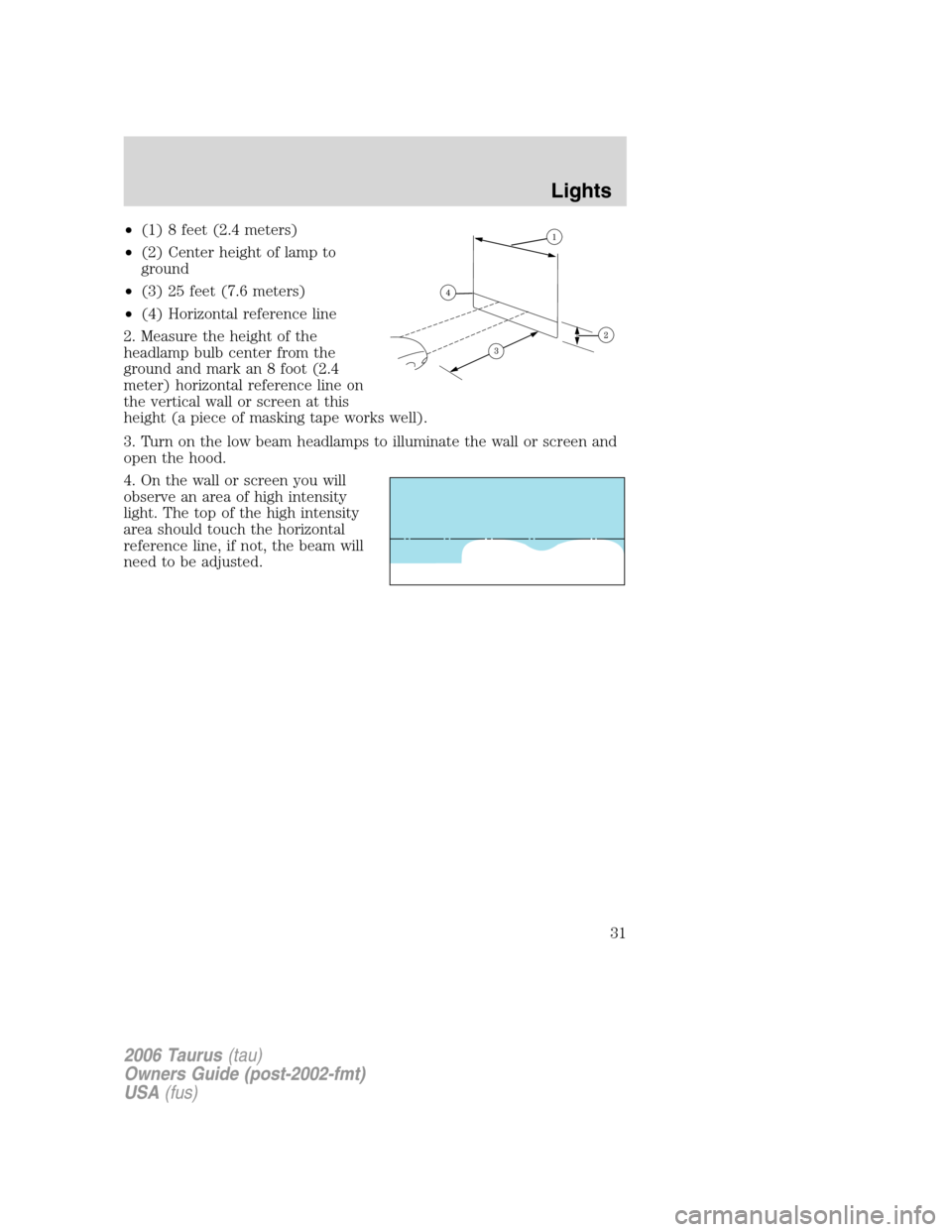

•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot (2.4
meter) horizontal reference line on
the vertical wall or screen at this
height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe an area of high intensity
light. The top of the high intensity
area should touch the horizontal
reference line, if not, the beam will
need to be adjusted.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
31
Page 32 of 232

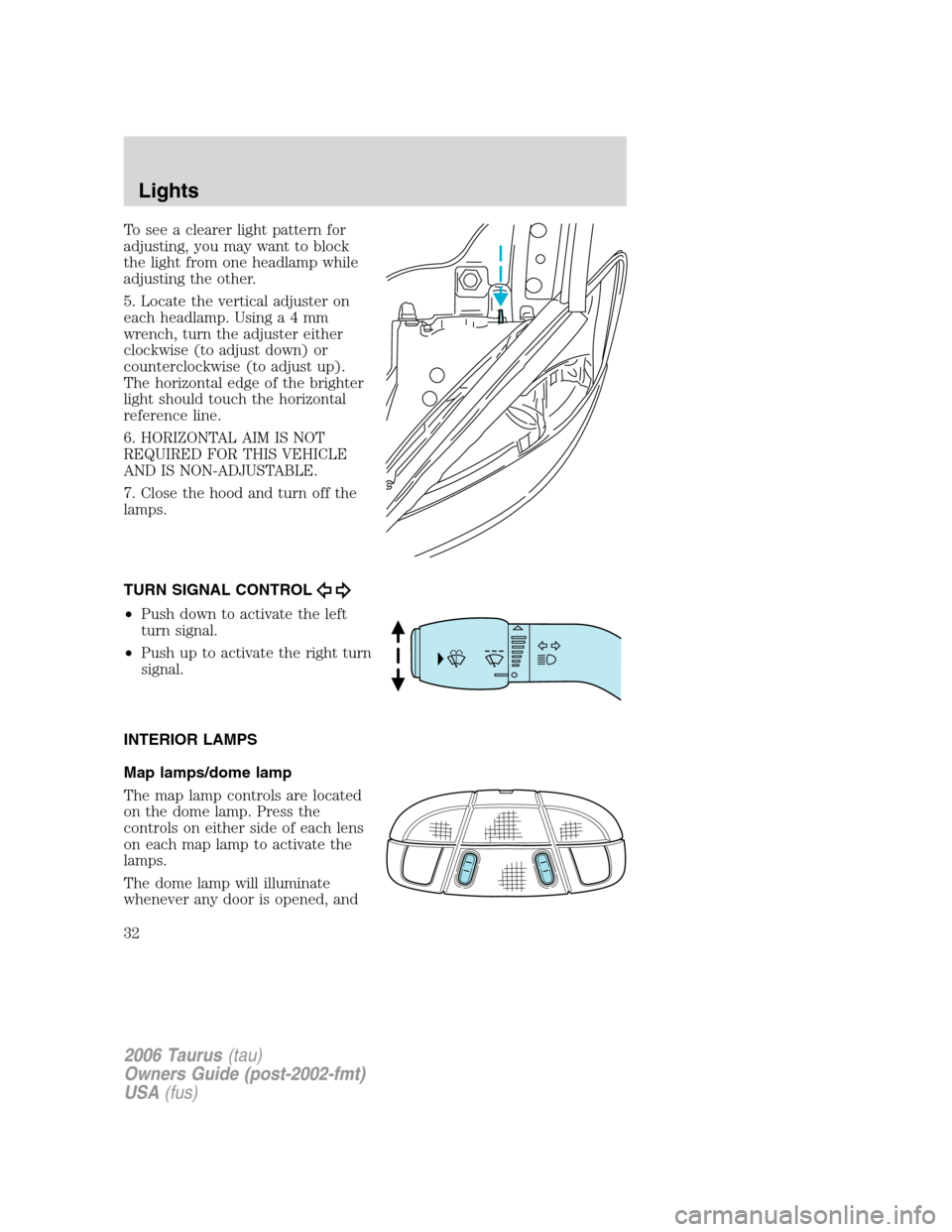

To see a clearer light pattern for
adjusting, you may want to block
the light from one headlamp while
adjusting the other.
5. Locate the vertical adjuster on
each headlamp. Usinga4mm
wrench, turn the adjuster either
clockwise (to adjust down) or
counterclockwise (to adjust up).
The horizontal edge of the brighter
light should touch the horizontal
reference line.
6. HORIZONTAL AIM IS NOT
REQUIRED FOR THIS VEHICLE
AND IS NON-ADJUSTABLE.
7. Close the hood and turn off the
lamps.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Map lamps/dome lamp
The map lamp controls are located
on the dome lamp. Press the
controls on either side of each lens
on each map lamp to activate the
lamps.
The dome lamp will illuminate
whenever any door is opened, and
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
32
Page 33 of 232

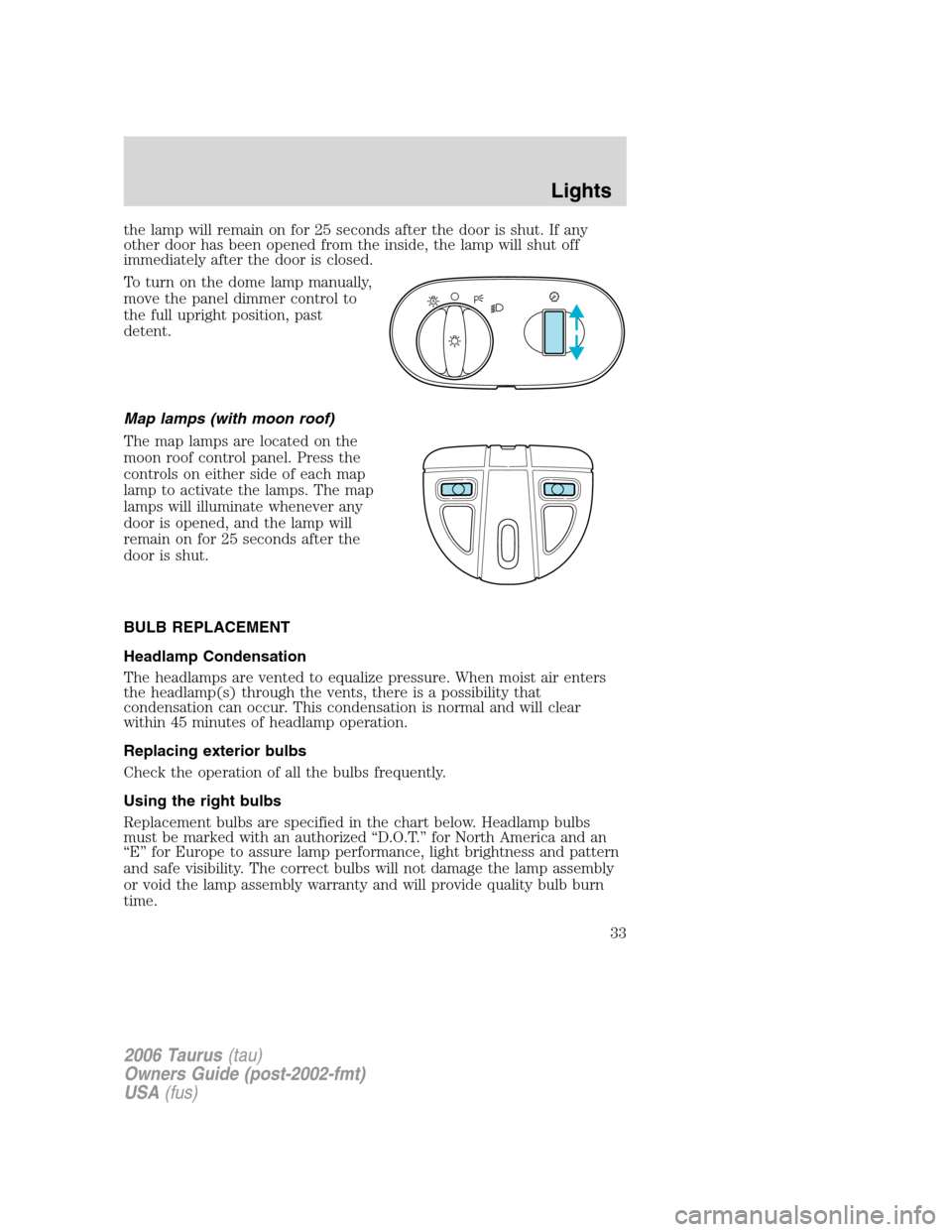

the lamp will remain on for 25 seconds after the door is shut. If any
other door has been opened from the inside, the lamp will shut off
immediately after the door is closed.
To turn on the dome lamp manually,
move the panel dimmer control to
the full upright position, past
detent.
Map lamps (with moon roof)
The map lamps are located on the
moon roof control panel. Press the
controls on either side of each map
lamp to activate the lamps. The map
lamps will illuminate whenever any
door is opened, and the lamp will
remain on for 25 seconds after the
door is shut.
BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
A
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
33
Page 34 of 232

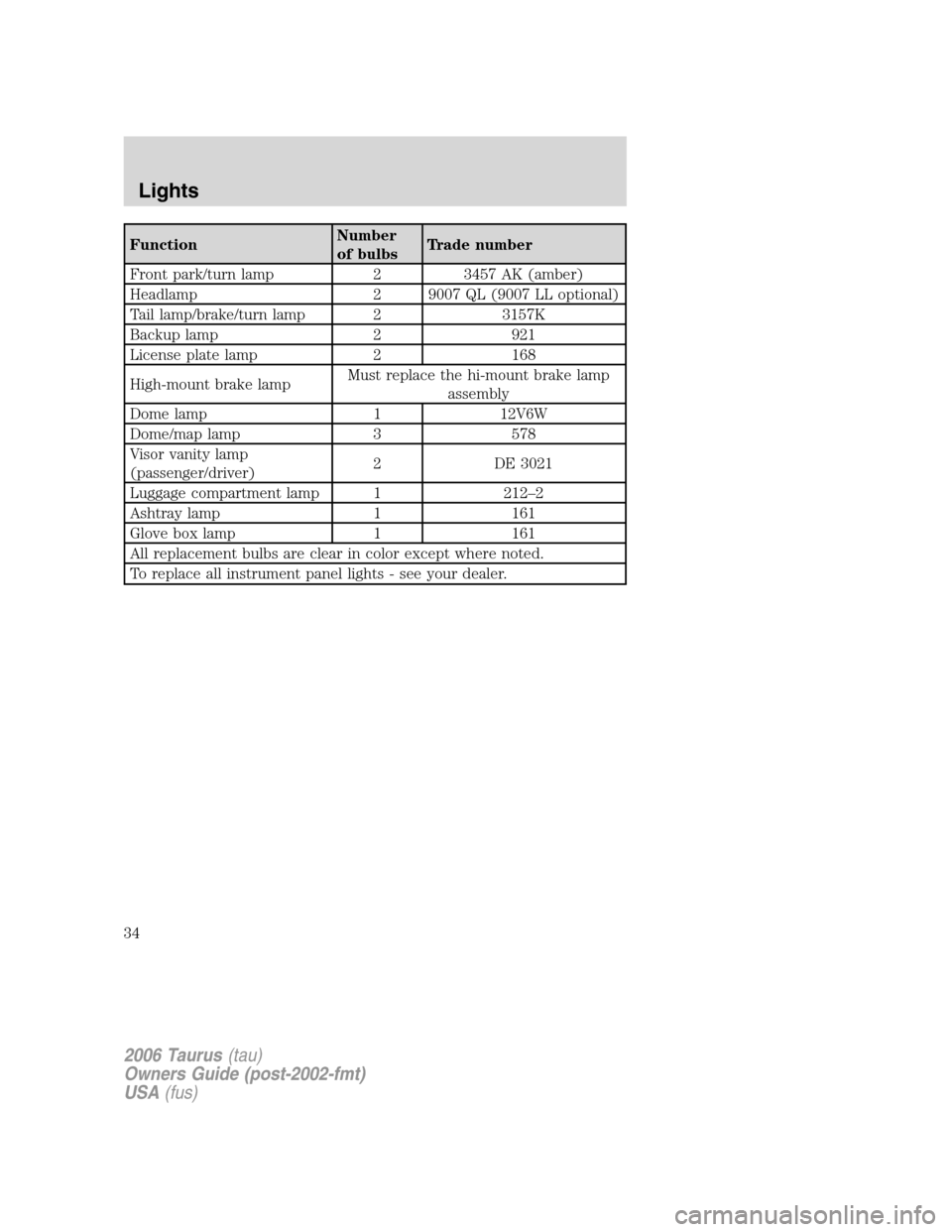

FunctionNumber
of bulbsTrade number
Front park/turn lamp 2 3457 AK (amber)
Headlamp 2 9007 QL (9007 LL optional)
Tail lamp/brake/turn lamp 2 3157K
Backup lamp 2 921
License plate lamp 2 168
High-mount brake lampMust replace the hi-mount brake lamp
assembly
Dome lamp 1 12V6W
Dome/map lamp 3 578
Visor vanity lamp
(passenger/driver)2 DE 3021
Luggage compartment lamp 1 212–2
Ashtray lamp 1 161
Glove box lamp 1 161
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
34
Page 35 of 232

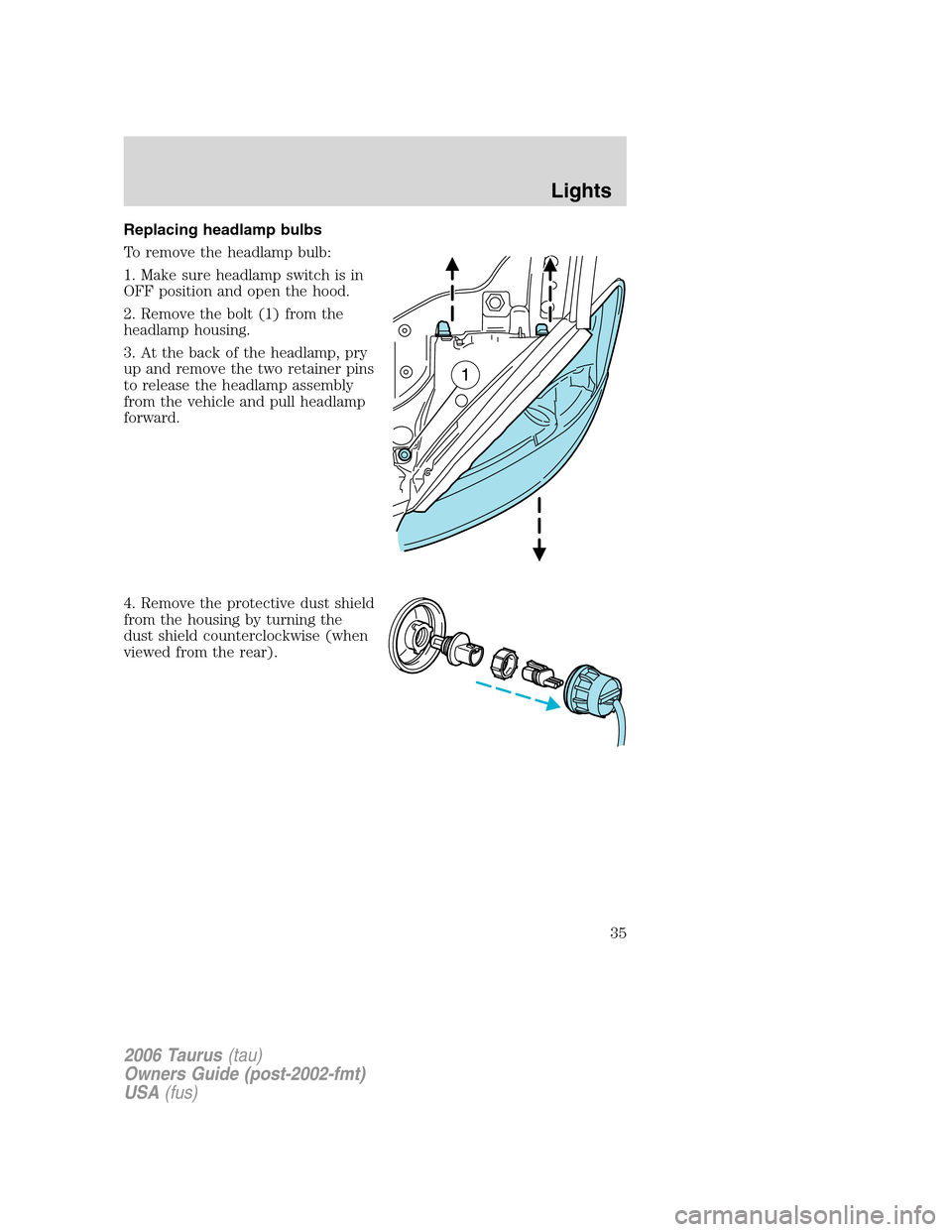

Replacing headlamp bulbs
To remove the headlamp bulb:
1. Make sure headlamp switch is in
OFF position and open the hood.
2. Remove the bolt (1) from the
headlamp housing.
3. At the back of the headlamp, pry
up and remove the two retainer pins
to release the headlamp assembly
from the vehicle and pull headlamp
forward.
4. Remove the protective dust shield
from the housing by turning the
dust shield counterclockwise (when
viewed from the rear).
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
35
Page 36 of 232

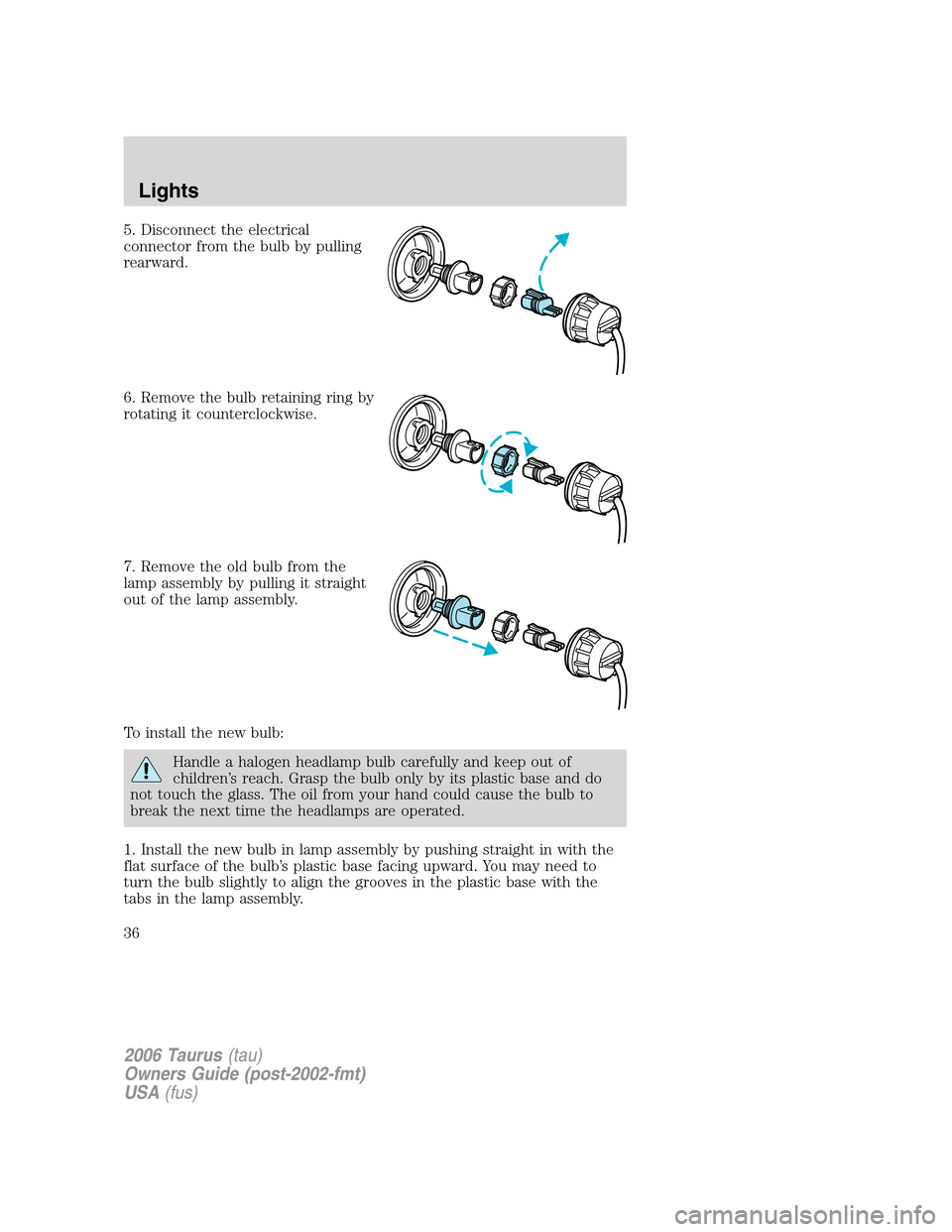

5. Disconnect the electrical
connector from the bulb by pulling
rearward.
6. Remove the bulb retaining ring by
rotating it counterclockwise.
7. Remove the old bulb from the
lamp assembly by pulling it straight
out of the lamp assembly.
To install the new bulb:
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
1. Install the new bulb in lamp assembly by pushing straight in with the
flat surface of the bulb’s plastic base facing upward. You may need to
turn the bulb slightly to align the grooves in the plastic base with the
tabs in the lamp assembly.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
36
Page 37 of 232

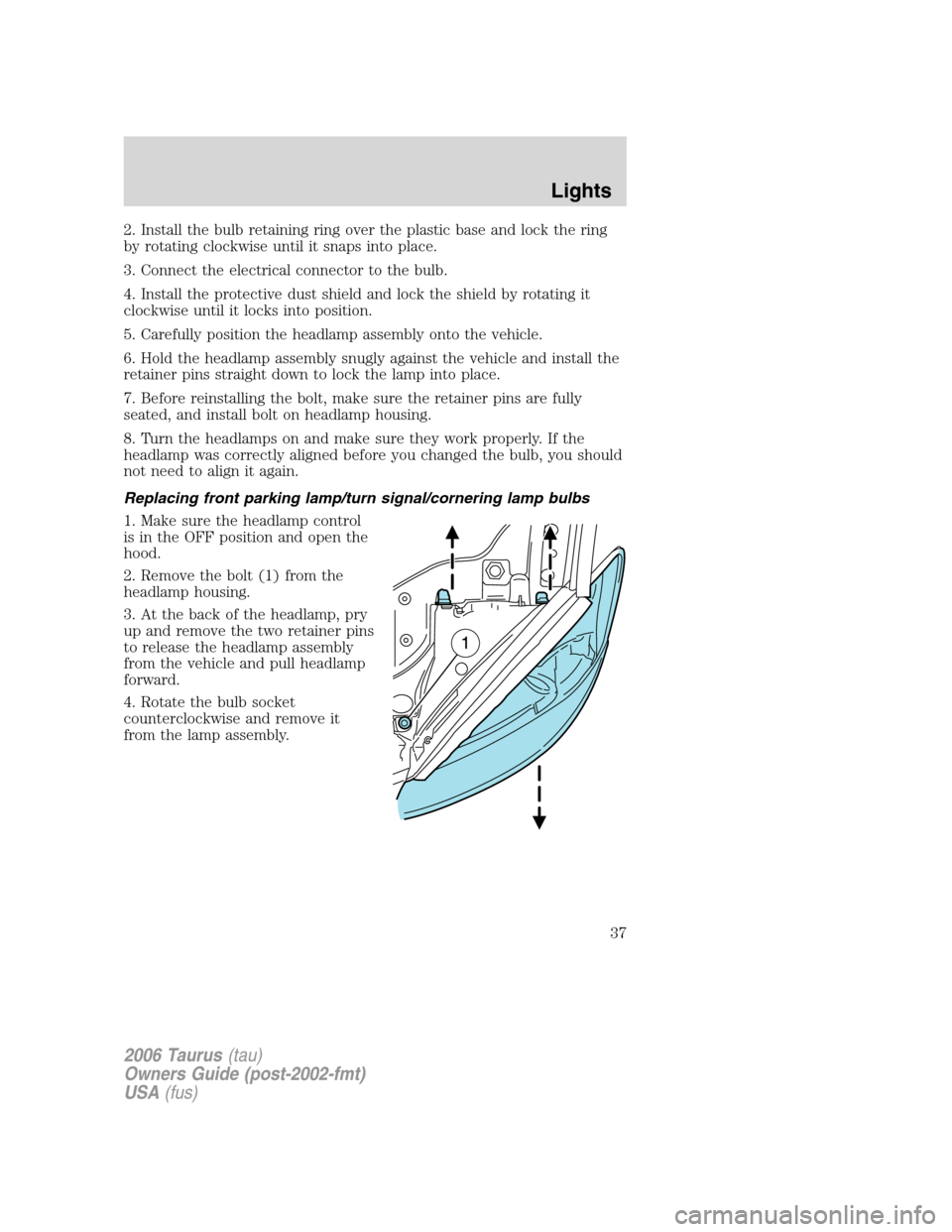

2. Install the bulb retaining ring over the plastic base and lock the ring
by rotating clockwise until it snaps into place.
3. Connect the electrical connector to the bulb.
4. Install the protective dust shield and lock the shield by rotating it
clockwise until it locks into position.
5. Carefully position the headlamp assembly onto the vehicle.
6. Hold the headlamp assembly snugly against the vehicle and install the
retainer pins straight down to lock the lamp into place.
7. Before reinstalling the bolt, make sure the retainer pins are fully
seated, and install bolt on headlamp housing.
8. Turn the headlamps on and make sure they work properly. If the
headlamp was correctly aligned before you changed the bulb, you should
not need to align it again.
Replacing front parking lamp/turn signal/cornering lamp bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. Remove the bolt (1) from the
headlamp housing.
3. At the back of the headlamp, pry
up and remove the two retainer pins
to release the headlamp assembly
from the vehicle and pull headlamp
forward.
4. Rotate the bulb socket
counterclockwise and remove it
from the lamp assembly.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
37
Page 38 of 232

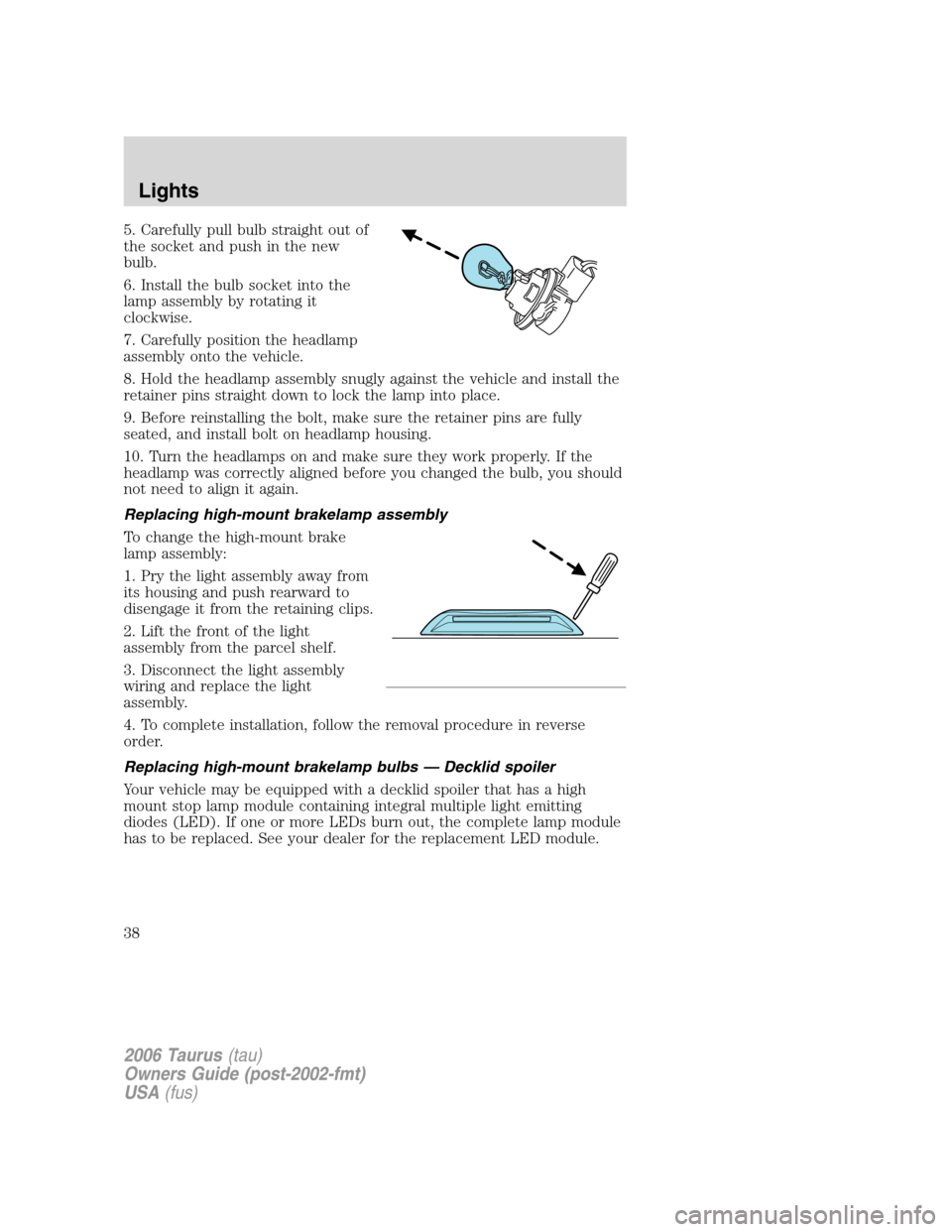

5. Carefully pull bulb straight out of
the socket and push in the new
bulb.
6. Install the bulb socket into the
lamp assembly by rotating it
clockwise.
7. Carefully position the headlamp
assembly onto the vehicle.
8. Hold the headlamp assembly snugly against the vehicle and install the
retainer pins straight down to lock the lamp into place.
9. Before reinstalling the bolt, make sure the retainer pins are fully
seated, and install bolt on headlamp housing.
10. Turn the headlamps on and make sure they work properly. If the
headlamp was correctly aligned before you changed the bulb, you should
not need to align it again.
Replacing high-mount brakelamp assembly
To change the high-mount brake
lamp assembly:
1. Pry the light assembly away from
its housing and push rearward to
disengage it from the retaining clips.
2. Lift the front of the light
assembly from the parcel shelf.
3. Disconnect the light assembly
wiring and replace the light
assembly.
4. To complete installation, follow the removal procedure in reverse
order.
Replacing high-mount brakelamp bulbs — Decklid spoiler
Your vehicle may be equipped with a decklid spoiler that has a high
mount stop lamp module containing integral multiple light emitting
diodes (LED). If one or more LEDs burn out, the complete lamp module
has to be replaced. See your dealer for the replacement LED module.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
38
Page 39 of 232

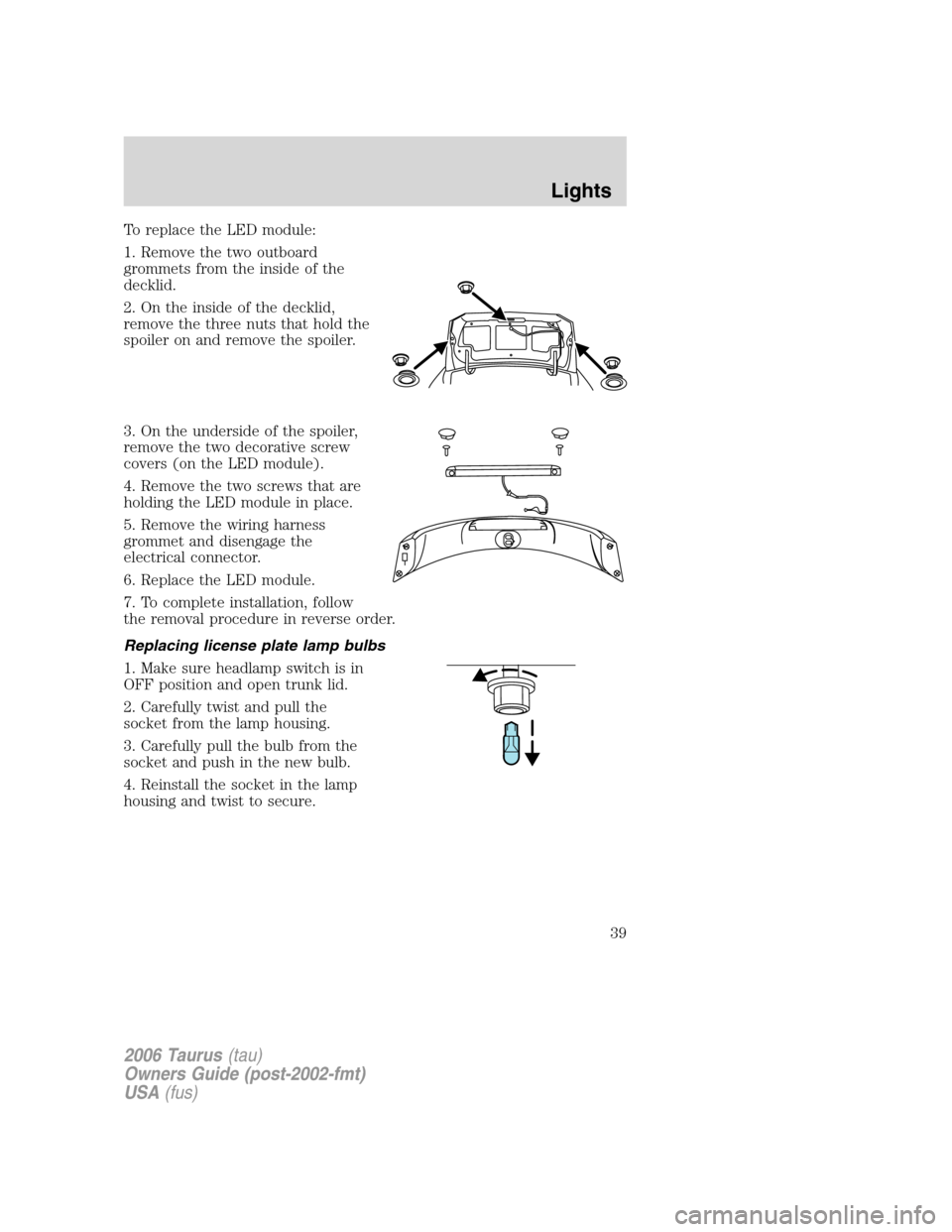

To replace the LED module:
1. Remove the two outboard
grommets from the inside of the
decklid.
2. On the inside of the decklid,
remove the three nuts that hold the
spoiler on and remove the spoiler.
3. On the underside of the spoiler,
remove the two decorative screw
covers (on the LED module).
4. Remove the two screws that are
holding the LED module in place.
5. Remove the wiring harness
grommet and disengage the
electrical connector.
6. Replace the LED module.
7. To complete installation, follow
the removal procedure in reverse order.
Replacing license plate lamp bulbs
1. Make sure headlamp switch is in
OFF position and open trunk lid.
2. Carefully twist and pull the
socket from the lamp housing.
3. Carefully pull the bulb from the
socket and push in the new bulb.
4. Reinstall the socket in the lamp
housing and twist to secure.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
39
Page 40 of 232

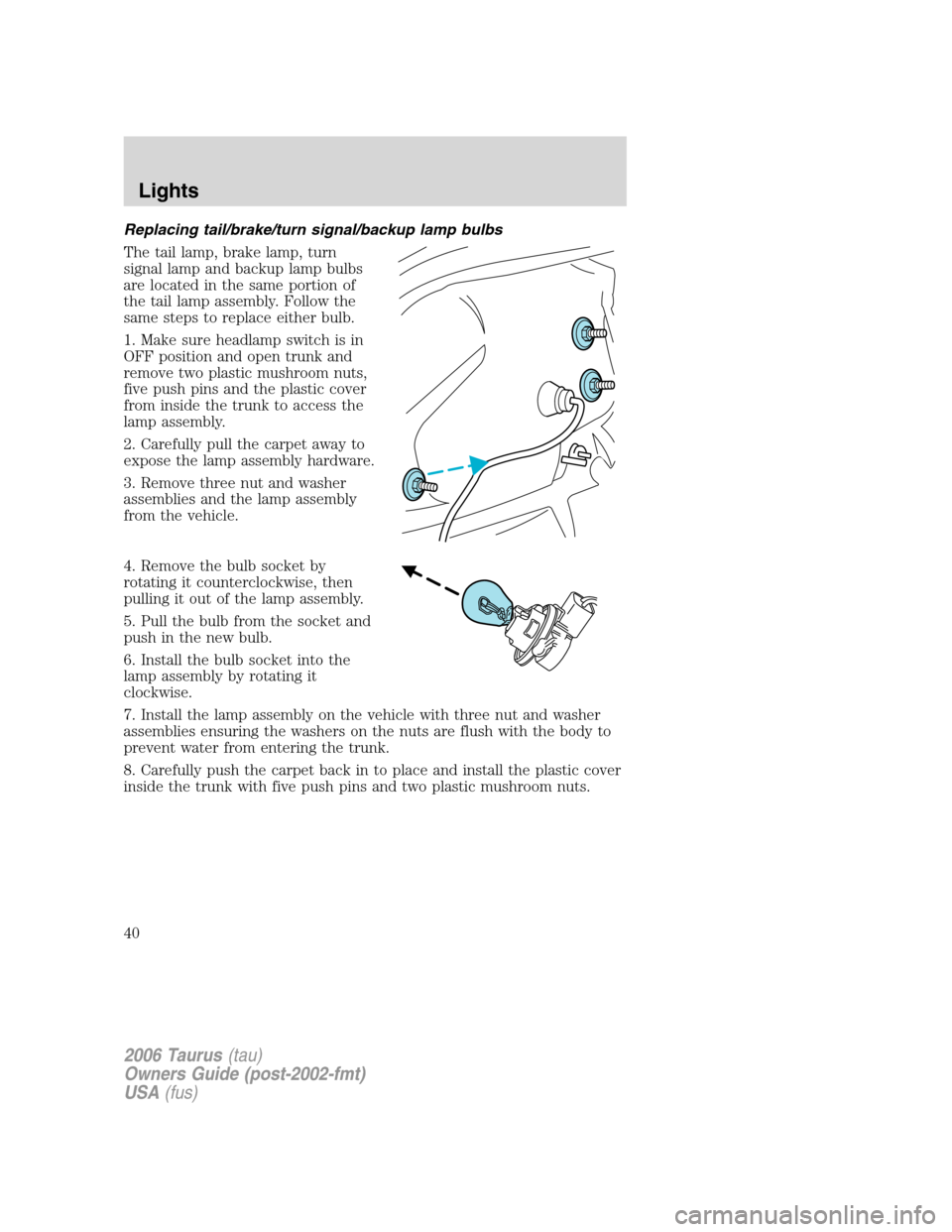

Replacing tail/brake/turn signal/backup lamp bulbs
The tail lamp, brake lamp, turn
signal lamp and backup lamp bulbs
are located in the same portion of
the tail lamp assembly. Follow the
same steps to replace either bulb.
1. Make sure headlamp switch is in
OFF position and open trunk and
remove two plastic mushroom nuts,
five push pins and the plastic cover
from inside the trunk to access the
lamp assembly.
2. Carefully pull the carpet away to
expose the lamp assembly hardware.
3. Remove three nut and washer
assemblies and the lamp assembly
from the vehicle.
4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb from the socket and
push in the new bulb.
6. Install the bulb socket into the
lamp assembly by rotating it
clockwise.
7. Install the lamp assembly on the vehicle with three nut and washer
assemblies ensuring the washers on the nuts are flush with the body to
prevent water from entering the trunk.
8. Carefully push the carpet back in to place and install the plastic cover
inside the trunk with five push pins and two plastic mushroom nuts.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
40
