Page 128 of 277
Playing a T ape (U.S. Vehicles)
Features
127
PWR/VOL KNOBUPPER
DISPLAY
AUDIO
DISPLAY
BUTTON
SEEK BAR
CD/AUX
BUTTON
SEEK BAR RPT INDICATOR TAPE DIRECTION
INDICATOR
RPT
BUTTON
PWR/VOL
KNOBRPT INDICATOR TAPE DIRECTION INDICATOR
CH/DISC
BAR
PRESET BARS
Without Navigation System With Navigation System
(U.S. model shown) (U.S. model shown)
REPEAT
ICONTAPE
DIRECTION
ICONS
NR ICON
CD/AUX XM
BUTTON
— — y
y
('
y
y
Page 129 of 277
Î
Î
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.Dolby noise reduction turns on
when you insert a tape. The
indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
Preset 4 (NR) side of the preset bar
or touching the NR icon. Dolby
remains of f until you press the
preset bar or the icon again.
The tape direction indicator will
show you which side of the tape is
playing. If you want to play the other
side, press the Preset 3 (PLAY/
PROG) side of the preset bar, or
press the AUDIO DISPLAY button
and then touch the appropriate tape
direction icon. When the player
reaches the end of the tape, it will
automatically reverse direction and
play the other side. To remove the tape, press the eject
button. If you want to turn the player
of f , press the PWR/VOL knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f .
To switch to the AM/FM radio,
Satellite Radio, or CD changer while
a tape is playing, press the AM/FM
or CD/AUX (XM) button. To change
back to the tape player, push the
CD/AUX (XM) button.
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D
symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Optional on all U.S. models
To Play a Tape To Stop Playing a Tape
Playing a T ape (U.S. Vehicles)
128
— — y
y
('
y
y
Page 130 of 277
µ
µ
µ Û
Ý µ
Press the side to f ind
the beginning of the current song or
passage. Press the side to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it. If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
To rewind the tape,
push the preset 1 (REW) side of the
preset bar. You will see REW in the
display. To f ast f orward the tape,
push the preset 2 (FF) side of the
preset bar. You will see FF displayed.
Press the preset 1, 2, or 3 side of the
bars to take the system out of rewind
or fast forward.
To fast forward the
tape, push the upper side ( ) of the
CH/DISC bar, or touch the FF icon
on the audio display. You will see FF
in the upper display. To rewind the
tape, push the lower side ( ) of the
CH/DISC bar, or touch the REW
icon. You will see REW displayed.
Pressthebarortouchtheiconagain
to take the system out of rewind or
fast forward. Press the RPT button
or touch the REPEAT icon on the
audio display to continuously play a
song or passage. You will see RPT
displayed. The track will repeat until
you press the button or touch the
icon again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
For vehicles with Navigation System For vehicles with Navigation System
T ape Search Functions
SK IP
FF/REW
FF/REW REPEAT
Playing a T ape (U.S. Vehicles)
Features
129
NOTE:
— — y
y
('
y
y
Page 132 of 277
Your vehicle is capable of receiving
XM Satellite Radio anywhere in the
United States except Hawaii, Alaska,
and Canada.
XM
is a registered trademark of
XM Satellite Radio, Inc.
Satellite radio is available in U.S.
models only. Satellite Digital Radio
Playing the XM Satellite Radio
Features
131
DISP
BUTTON
SAT RADIO
BUTTON
SCAN
BUTTON SCAN
BUTTON
TUNE
KNOB
TUNE
BAR
CATEGORY/CHANNEL
MODE INDICATOR
CATEGORY/CHANNEL
MODE INDICATOR
PWR/VOL
KNOB
SAT RADIO
BUTTON
PWR/VOL KNOB AUDIO
DISPLAY
BUTTON
PRESET
BARS PRESET
ICONS
Without Navigation System
With Navigation System
SEEK/
SKIP
BAR SEEK/
SKIP
BAR
SCAN ICON
MODE ICON
TM
TM
— — y
y
('
y
y
Page 135 of 277

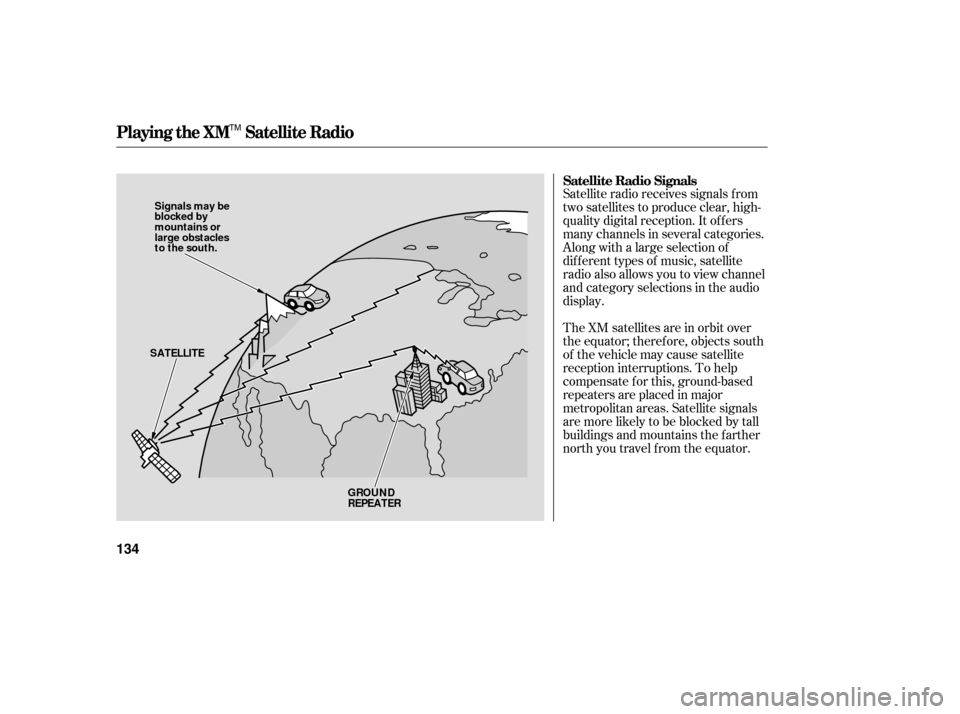

Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals
aremorelikelytobeblockedbytall
buildings and mountains the f arther
north you travel f rom the equator. Satellite Radio Signals
Playing the XM Satellite Radio
134
SATELLITEGROUND
REPEATER
Signals may be
blocked by
mountains or
large obstacles
to the south.
TM
— — y
y
('
y
y
Page 137 of 277
While awaiting activation, make sure
your vehicle remains in an open area
with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display
and you will be able to listen to XM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from activation request. If the
service has not been activated after
36 hours, contact XM Radio.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number.
Turn the TUNE knob until ‘‘0’’
appears in the display. Your I.D. will
appear in the display.
Af ter you have registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
www.xmradio.com
To get your XM Satellite radio ID
number:
Playing the XM Satellite Radio
136
TM
— — y
y
('
y
y
Page 138 of 277
ÛÝ´µ
´
µ
´
µ
The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button, hold it until
the desired volume is reached, then
release it.
If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it twice to return to the previous
track. You will see the disc and track
numbers in the display.
If youareplayingatapeinthe
optional tape player, press the top
( ) of the CH button to advance to
the next selection. Press the bottom
( ) to go back to the previous
selection. The system senses a silent
period, then resumes playing.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
XM1, XM2, CD, or a tape.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station.
Three controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel.
Steering Wheel Controls
Features
137
CH BUTTON
VOL BUTTON MODE BUTTON
— — y
y
('
y
y
Page 139 of 277
µ
If your vehicle’s battery is discon-
nected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘CODE’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
Thecodeisontheradiocodecard
included in your owner’s manual kit.
When it is entered correctly, the
radio will start playing.
If ‘‘0’’ is the f irst digit in your code,
press and release the TUNE knob to
store it. If your vehicle is equipped with a
navigation system, press and release
the TUNE knob; the number ‘‘0’’
appears on the display.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessf ul in 10 attempts, you
must then leave the system on for 1
hour bef ore trying again.
If thecodecardislost,adealercan
access your code with your radio’s
serial number. To access the serial
number, turn the radio on. It must
display ‘‘CODE’’, then turn the radio
of f . Push the preset 1, preset 6, and
power buttons at the same time, then
quickly release.
You will have to store your favorite
stations on each side of the preset
bars (1 6) af ter the system begins
working. Your original settings were
lost when power was disconnected.
If ‘‘0’’ is not the f irst digit in your
code, turn the TUNE knob lef t or
right until the f irst digit is displayed.
Press and release the TUNE knob to
store it. Enter the remaining three digits the same way.
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code using
the preset bars or the TUNE knob.
Because there are hundreds of
number combinations possible f rom
the f ive digits, making the system
work without knowing the exact
code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.
Radio T hef t Protection
138
— — y
y
('
y
y
Page 140 of 277
If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.You can quickly set the time to the
nearest hour. Pressing and holding
the SOUND button, then pressing
theR(Preset6)sideof thebarsets
the clock back to the previous hour.
If the displayed time is after the half
hour, the clock sets the clock
f orward to the beginning of the next
hour.For example:
1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
Ref er to the Navigation System
Owner’s Manual to set up the time.
Press and hold the SOUND button
until you hear a beep. The displayed
time begins to blink. Press on the H
(Preset 4) side of the bar until the
numbers advance to the desired time.
Change the minutes by pressing the
M (Preset 5) side of the bar until the
numbers advance to the desired time.
When you are f inished, press the
SOUND button again to set the time.
For vehicles without Navigation System
For vehicles with Navigation System
Setting the Clock
Features
139
DIGITAL CLOCKSOUND BUTTON PRESET BARS
(U.S. model shown) Without Navigation System
— — y
y
('
y
y
Page 141 of 277
Once the security system is set,
opening any door (without using the
key or the remote transmitter), the
hood, or the trunk will cause it to
sound. It also sounds if the radio is
removed f rom the dashboard or the
wiring is cut.Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or two minutes,
then the system resets. To reset an
alarming system before the two
minutes have elapsed, unlock either
f ront door with the key or the
remote transmitter.
With the system set, you can still
open the trunk with the remote
transmitter without triggering the
alarm. The alarm will sound if the
trunk lock is f orced, or the trunk is
opened with the trunk release lever
or the emergency trunk opener.
The security system will not set if
the hood, trunk, or any door is not
f ully closed. If the system will not set,
check the door and trunk open
monitor on the instrument panel (see
page ) to see if the doors and
trunk are f ully closed. Since it is not
part of the monitor display, manually
check the hood.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and trunk. For the
system to activate, you must lock the
doors f rom the outside with the key,
lock tab, door lock switch, or remote
transmitter. The security system
indicator on the instrument panel
starts blinking immediately to show
you the system is setting itself . 56
Security System
140
SECURITY SYSTEM INDICATOR
— — y
y
('
y
y
