Page 11 of 719
Visual Index
10
Quick Reference Guide
❚Door Mirror Controls (P204)
❚Hood Release Handle (P612)
❚Driver’s Front Airbag (P62)
❚Rearview Mirror (P203)
❚Knee Airbags (P67)
❚Passenger Airbag Off Indicator
(P76)
❚Interior Fuse Box (P685)
❚Passenger’s Front Airbag (P62)
❚Knee Airbags (P67)
❚Wireless Charger* (P225)
❚USB Ports (P239)
❚Drive Mode Switch (P470)
❚Automatic Brake Hold Button (P577)
❚Electric Parking Brake Switch (P572)
❚ (Hill Decent Control) Button (P475)
❚Power Window Switches (P180)
❚Master Door Lock Switch (P163)
❚Glove Box (P218)
❚Accessory Power Socket (P224)
❚Shift Lever (P464)
❚SET Button* (P201)
❚Memory Buttons* (P201)
Page 684 of 719
683Continued
Handling the Unexpected

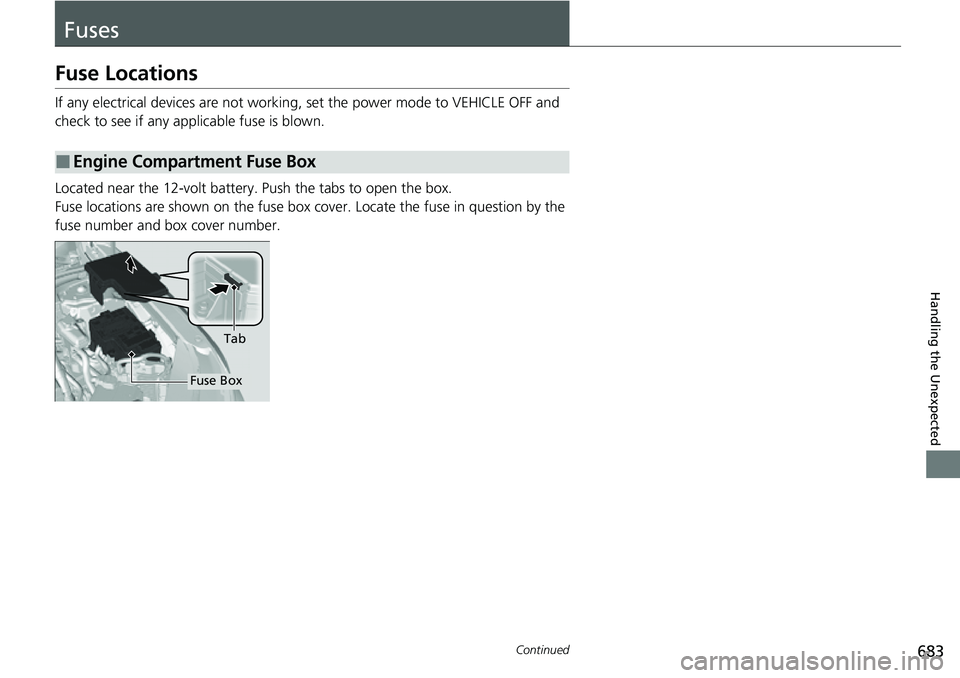

Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.
Located near the 12-volt battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box co ver. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab
Fuse Box
Page 685 of 719
684
uuFuses uFuse Locations
Handling the Unexpected

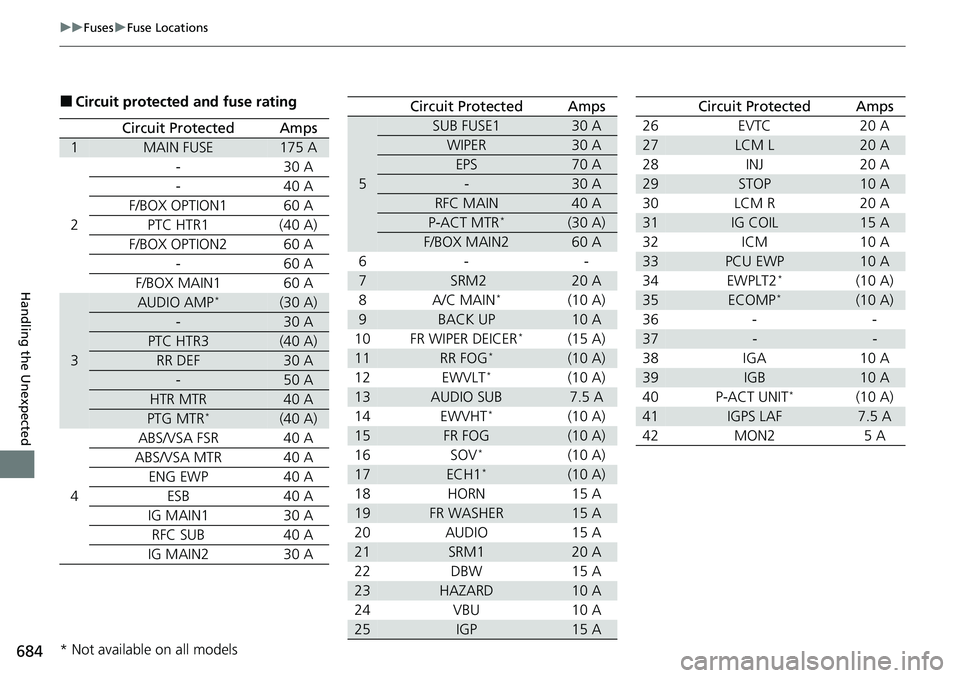

■Circuit protected and fuse rating
Circuit ProtectedAmps
1MAIN FUSE175 A
2 - 30 A
- 40 A
F/BOX OPTION1 60 A PTC HTR1 (40 A)
F/BOX OPTION2 60 A - 60 A
F/BOX MAIN1 60 A
3
AUDIO AMP*(30 A)
-30 A
PTC HTR3(40 A)
RR DEF30 A
-50 A
HTR MTR40 A
PTG MTR*(40 A)
4 ABS/VSA FSR 40 A
ABS/VSA MTR 40 A ENG EWP 40 A ESB 40 A
IG MAIN1 30 A RFC SUB 40 A
IG MAIN2 30 A
5
SUB FUSE130 A
WIPER30 A
EPS70 A
-30 A
RFC MAIN40 A
P-ACT MTR*(30 A)
F/BOX MAIN260 A
6- -
7 SRM220 A
8A/C MAIN*(10 A)
9BACK UP10 A
10 FR WIPER DEICER*(15 A)
11RR FOG*(10 A)
12 EWVLT*(10 A)
13AUDIO SUB7.5 A
14 EWVHT*(10 A)
15FR FOG(10 A)
16 SOV*(10 A)
17ECH1*(10 A)
18 HORN 15 A
19FR WASHER15 A
20 AUDIO 15 A
21SRM120 A
22 DBW 15 A
23HAZARD10 A
24 VBU 10 A
25IGP15 A
Circuit ProtectedAmps
26 EVTC 20 A
27LCM L20 A
28 INJ 20 A
29STOP10 A
30 LCM R 20 A
31IG COIL15 A
32 ICM 10 A
33PCU EWP10 A
34 EWPLT2*(10 A)
35ECOMP*(10 A)
36 - -
37--
38 IGA 10 A
39IGB10 A
40 P-ACT UNIT*(10 A)
41IGPS LAF7.5 A
42 MON2 5 A
Circuit ProtectedAmps
* Not available on all models
Page 686 of 719
685
uuFuses uFuse Locations
Continued
Handling the Unexpected

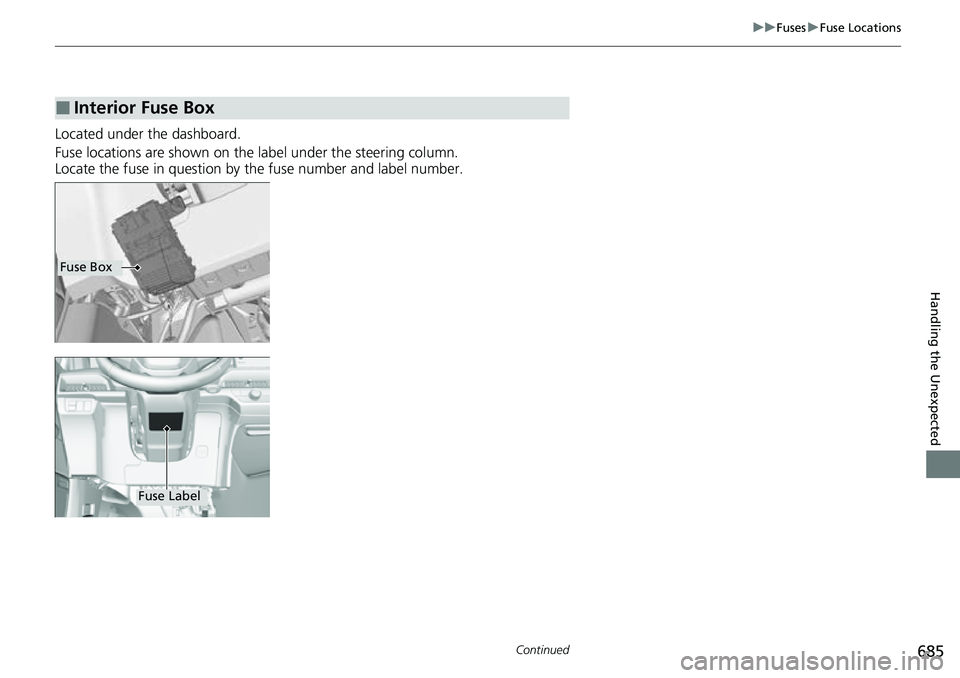

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Box
Fuse Label
Page 688 of 719
687
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected

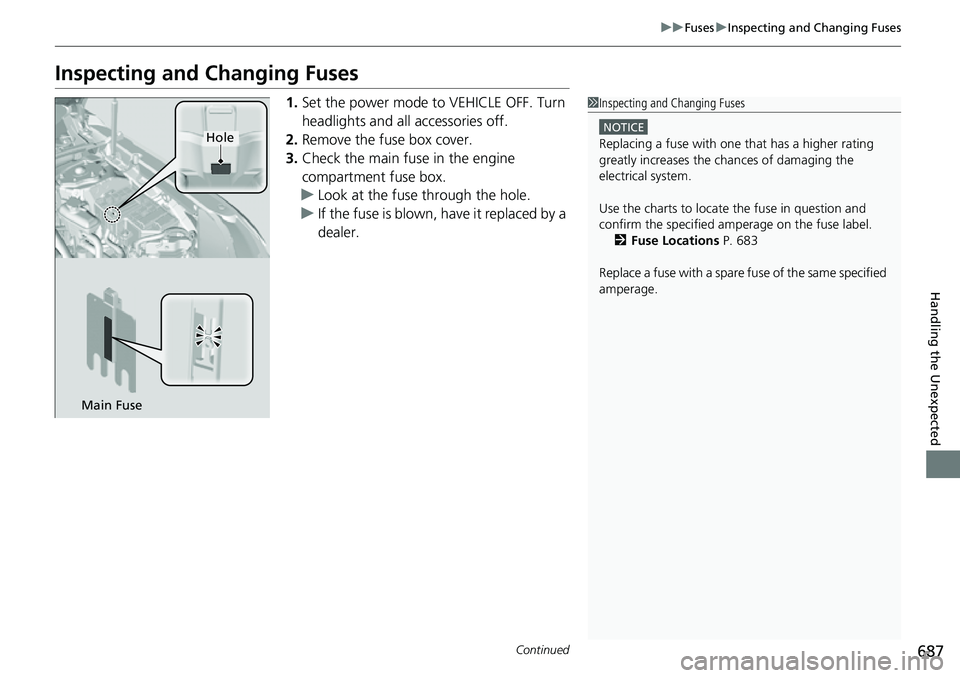

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 683
Replace a fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
Page 689 of 719
uuFuses uInspecting and Changing Fuses
688
Handling the Unexpected

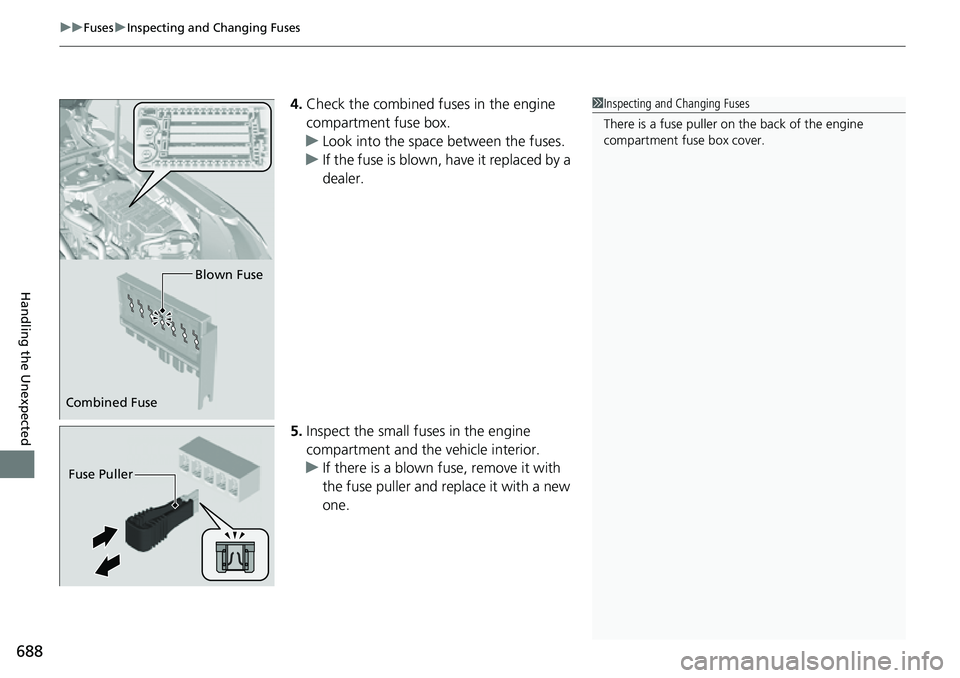

4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
Page 712 of 719
711
Index
EV Indicator.............................................. 100
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 92
Exterior Care (Cleaning) .......................... 646
Exterior Mirrors ........................................ 204
F
Features.................................................... 237
Filters
Dust and Pollen....................................... 643
Oil .......................................................... 616
Flat Tire ..................................................... 653
Floor Mats ................................................ 645
Fluids Brake ...................................................... 621
Engine Coolant ....................................... 618
Transmission ........................................... 620
Windshield Washer ................................. 622
FM/AM Radio ................................... 249, 296
Folding Down the Rear Seats .................. 210
Foot Brake ................................................ 576
Front Airbags (SRS) .................................... 62
Front Seat Heaters ................................... 230
Front Seats ................................................ 205
Adjusting ................................................ 205
Front Sensor Camera ............................... 568
Fuel ..................................................... 34, 595
Average Fuel Economy ............................ 122
Economy................................................. 598
Gauge .................................................... 114 Instant Fuel Economy ............................... 122
Low Fuel Indicator (Amber) ...................... 103
Range ...................................................... 122
Recommendation .................................... 595
Refueling ................................................. 595
Fuel Economy ............................................ 598
Fuel Fill Door ....................................... 34, 596
Fuses .......................................................... 683
Inspecting and Changing ......................... 687
Locations ......................................... 683, 685
