Page 2 of 641
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assi st in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howeve r, other parties, such as law
enforcement, could co mbine the EDR data with the type of
personally identifying data rout inely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
22 HR-V HDMC-31T7A6600.book 0 ページ 2021年4月12日 月曜日 午前10時50分
Page 10 of 641
Visual Index
8
Quick Reference Guide
❚Electric Parking Brake Switch (P507)
❚Hood Release Handle (P534)
❚Fuel Fill Door Release Handle (P518)
❚Passenger’s Front Airbag (P55)
❚Interior Fuse Boxes (P610)
❚Driver’s Front Airbag (P55)
❚Power Window Switches (P166)
❚Power Door Lock Master Switch (P154)
❚Door Mirror Controls (P193)
❚Automatic Brake Hold Button (P510)
❚Seat Heater Icons* (P215)
❚Glove Box (P207)
❚Accessory Power Socket (P211)
❚USB Port(s) (P233)
❚Shift Lever
Continuously Variable
Transmission
(P444, 446)
22 HR-V HDMC-31T7A6600.book 8 ページ 2021年4月12日 月曜日 午前10時50分
Page 12 of 641
Visual Index
10
Quick Reference Guide
❚Power Door Mirrors (P193)
❚Maintenance Under the Hood (P533)
❚Windshield Wipers (P183, 555)
❚Tires (P559, 586)
❚Fog Lights* (P178, 549)
❚Rear Wiper (P185, 557)
❚How to Refuel (P518)
❚Multi-View Rear Camera (P515)
❚Back-Up Lights (P552)
❚Brake/Tail/Rear Side Marker Lights (P553)
❚Rear Turn Signal Lights (P551)
❚Rear License Plate Lights (P554)
❚High-Mount Brake Light (P553)
❚Side Turn Signal Lights* (P174, 550)
❚Door Lock/Unlock Control (P143)
❚Opening/Closing the Tailgate (P160)
❚Tailgate Release Button (P161)
❚Lock Button* (P144)
❚Headlights (P175, 545)
❚Front Turn Signal Lights (P174, 547)
❚Front Side Marker Lights (P175, 548)
❚Parking/Daytime Running Lights (P548)
22 HR-V HDMC-31T7A6600.book 10 ページ 2021年4月12日 月曜日 午前10時50分
Page 15 of 641
13
Quick Reference Guide
Instrument Panel (P83)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
IndicatorAnti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
TM
(VSA® ) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator Supplemental Restraint
System Indicator
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator/
Transmission System Indicator
Low Fuel Indicator
Indicators (P84)/Gauges (P117)/Information Display* (P119)/Multi-Information
Display
*(P122)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)/Low
Temperature Indicator
(Blue)
System Indicators
System Indicators
Brake System Indicator
(Red)
CRUISE CONTROL
Indicator
System Indicators
Charging System
Indicator
ECON Mode Indicator Maintenance Minder
Indicator Fog Light Indicator
*
Brake System Indicator
(Amber)
M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
Information Display
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator All-Wheel Drive (
AWD)
System Indicator
*
Brake Depressing
Indicator
Models with information display
Low Tire Pressure/
TPMS Indicator
* Not available on all models
22 HR-V HDMC-31T7A6600.book 13 ページ 2021年4月12日 月曜日 午前10時50分
Page 16 of 641
14
Quick Reference Guide
002300
Lights On Indicator
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
TM
(VSA ®) System Indicator
VSA ® OFF Indicator
Low Tire Pressure/TPMS
Indicator
*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Supplemental
Restraint System
Indicator
Tachometer Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator/
Transmission Sy
stem Indicator
Immobilizer System
Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with multi-information display
Brake System Indicator
(Amber)
System Indicators
Lights Indicators
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC)
Indicator (Amber/
Green)
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (
LKAS)
Indicator (Amber/
Green)
Keyless Access System
Indicator
*
U.S.
Canada
Canada U.S.
High Temperature
Indicator (Red)/Low
Temperature Indicator
(Blue)Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
IndicatorU.S.
Canada
Auto High-Beam
Indicator
All-Wheel Drive (
AWD)
System Indicator*
M (7-speed manual shift mode ) Indicator/Shift Indicator*
Multi-Information Display
Brake System Indicator
(Red)
22 HR-V HDMC-31T7A6600.book 14 ページ 2021年4月12日 月曜日 午前10時50分
Page 27 of 641
25
Quick Reference Guide
Driving (P427)
Depress the brake pedal and press
the release button to move out of
(P.
Continuously Variable Transmission
(P444, 446)
●Shift to (P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
7-speed mode can be used
temporarily. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further increase engine braking●Used when going up or down hills
Models without paddle shifters
Drive (S)
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P448)●Allows you to manually shift the transmission up or
down without removing yo
ur hands from the steering
wheel.
When the shift lever is in (S●Pulling a paddle shifter changes the mode from
continuously variable trans mission to 7-speed manual
shift mode.
●The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D●Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
M
Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
* Not available on all models
22 HR-V HDMC-31T7A6600.book 25 ページ 2021年4月12日 月曜日 午前10時50分
Page 30 of 641
28
Quick Reference Guide
Honda Sensing®* (P 464)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Front Sensor
Camera The camera is located
behind the rearview
mirror.
Radar Sensor The radar sensor is in
the front grille.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 467)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle or a
pedestrian detected in front of your vehicle.
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC)
(P 477)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P 490)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 499)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
22 HR-V HDMC-31T7A6600.book 28 ページ 2021年4月12日 月曜日 午前10時50分
Page 31 of 641
29
Quick Reference Guide
Maintenance (P521)
Under the Hood (P533)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P545)
●Inspect all lights regularly.
Wiper Blades (P555)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P559)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
* Not available on all models
22 HR-V HDMC-31T7A6600.book 29 ページ 2021年4月12日 月曜日 午前10時50分

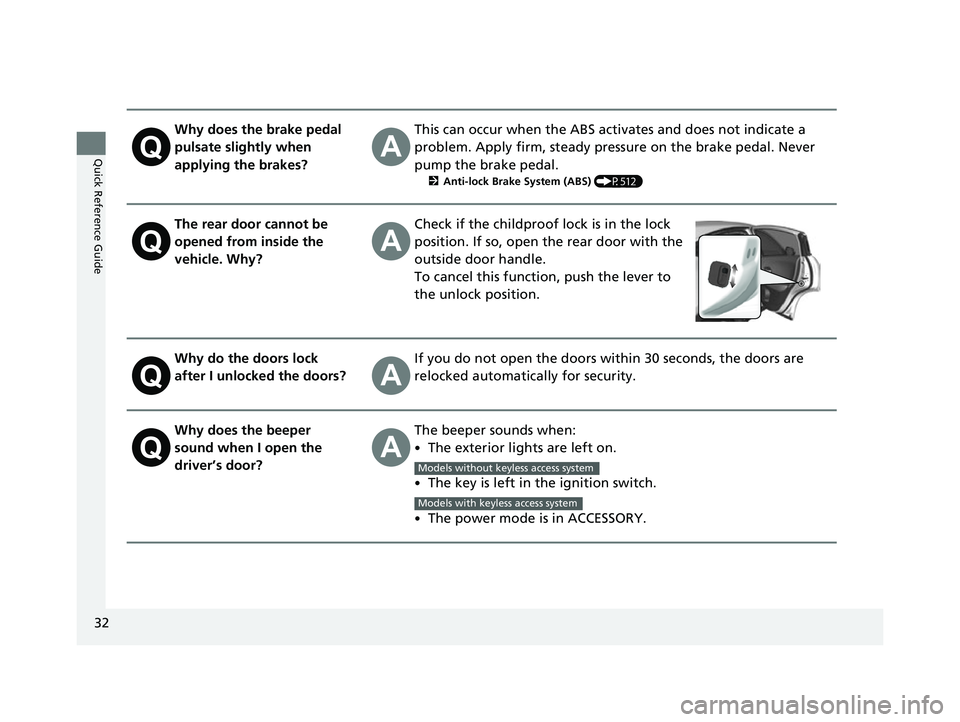

Page 34 of 641
32
Quick Reference Guide
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P512)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the lock
position. If so, open the rear door with the
outside door handle.
To cancel this function, push the lever to
the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
•The exterior lights are left on.
•The key is left in the ignition switch.
•The power mode is in ACCESSORY.
Models without keyless access system
Models with keyless access system
22 HR-V HDMC-31T7A6600.book 32 ページ 2021年4月12日 月曜日 午前10時50分
Page 35 of 641
33

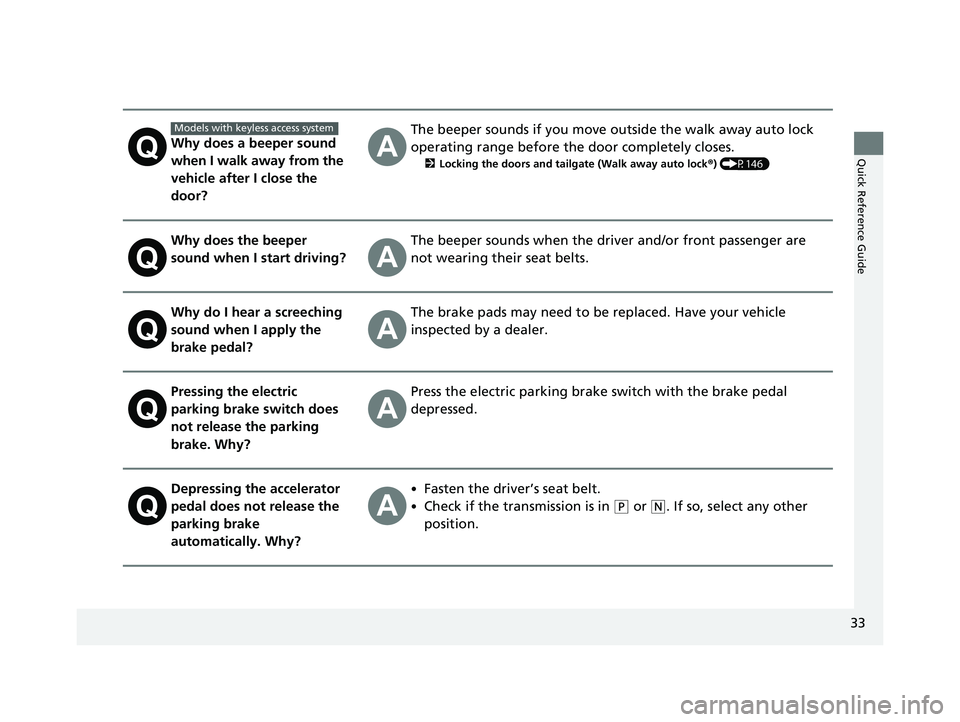

Quick Reference GuideWhy does a beeper sound
when I walk away from the
vehicle after I close the
door?
The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P146)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?•Fasten the driver’s seat belt.
•Check if the tran smission is in (P or (N. If so, select any other
position.
Models with keyless access system
22 HR-V HDMC-31T7A6600.book 33 ページ 2021年4月12日 月曜日 午前10時50分
