display HONDA PILOT 2014 2.G Quick Guide

AUDIOp.\b6
REAR ENTERTAINMENT
SYSTEM p.\b4
Rear Entertainment System (RES)* ....................................................................14
\bluetooth
®Audio ......................................................................................................16
iPod
®or USB Flash Drive .....................................................................................17
CD Library ...............................................................................................................18
Honda Owners .......................................................................................................19
Safety Reminder ......................................................................................................19
Fuel Recommendation........................................................................................... 2\f
*if equipped
Instrument Panel Indicators ...................................................................................2
Information Display ..................................................................................................4
Tire Pressure Monitoring System (TPMS)...........................................................5
Auto Door Locks .....................................................................................................6
Rearview Camera .....................................................................................................8
HomeLink
®*..............................................................................................................9
\bluetooth
®HandsFreeLink®(HFL)........................................................................1\f
T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you
get acquainted with your 2\f14 Honda Pilot LX\b EX\b EXL\b or
EXL with Rear Entertainment System and provide basic
instructions on some of its technology and convenience
features.
This guide is not intended to be a substitute \1for the
Owner’s Manual. For more detailed information on vehicle
controls and operation\b please refer to the respective
sections in the Owner’s Manual.
Pilot EX\f shown throughout guide
BLUETOOTH®
HANDSFREELINK®p. \b0
INSTRUMENT
PANEL p. 2
14 Pilot TRG_LX EX E\AXL EXLRES_ATG_NEW S\ATYLE 8/12/2013 8\f5\A3 AM Page 2

I N F O R M A T I O N D I S P L A Y
Consists of several displays that provide you with useful information.
45
What to Do
How It Works
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Monitors the vehicle’s tire pressures.
1. Visually inspect the tires for damage.
2. Check the information display to see which tire(s) have low pressure.
3. Inflate the tire(s)\b if necessary\b to the recommended pressures listed on
the label on the driver’s doorjamb.
I N F O R M A T I O N D I S P L A Y
Consists of several displays that provide you with useful information.
Accessing the Information Display
Information Displays
OdometerFuel range
Engine oil lifeTrip meter
A or B\b
Average and
instant fuel
economy
To toggle between the different
displays\b press and release the
select/reset knob repeatedly.When you start the engine\b the
display shows your last active
selection from the previous drive
cycle.
Note: Outside temperature indicator not available on LX.
When the tire pressure drops
significantly below recommended
levels\b the low tire pressure
indicator comes on.
The specific tire with low pressure
is indicated on the information
display.
14 Pilot TRG_LX EX E\AXL EXLRES_ATG_NEW S\ATYLE 8/12/2013 8\f5\A4 AM Page 4

9\b
H O M E L I N K® ( i f e q u i p p e d )
Program your vehicle to operate up to three remotecontrolled devices around your
home\b such as garage doors\b lighting\b or home security systems.
P re ss a nd h old th e b utto n o n th e
r e m ote a nd th e H om eLin k b utto n a t
t h e s a m e tim e. T hen, w hile
c o ntin uin g to h old th e H om eLin k
b utto n, p re ss a nd r e le ase th e b utto n
o n th e r e m ote e ve ry 2 s e co nds.
D oes th e L E D b lin k a t a fa ste r r a te w it h in 2 0
s e co nds?
Press and hol d
the HomeLink
button agai n. T
raining
complete
YES
NO
H om eL in k in dic ato r
f la sh es f o r 2 s eco nds,
t h en r e m ain s o n. H
om eL in k L E D
r e m ain s o n.YES
NO
YES
NO
Position the remote transmitter you
wish to link 1–3 inches from the
H om eLin k b utto n y o u w ant to p ro gra m .1
Pre ss a nd h old th e d esir e d H om eLin k
button and the button on the remote
transmitter.
D oes th e H om eLin k in dic a to r ( L E D ) b lin k a t a
f a ste r r a te a fte r a bout 1 0 s e co nds?
2
a
The remote has a rolling code.
Press the “lear n” button on the
remote-contr olled device (e.g.,
garage door opener).
Press the progr ammed HomeLi nk
button agai n; the remote-controlled
devi ce should op erate.
Within 30 seconds, press and hold
the programmed HomeLink button
for 2 seconds.a
Press and hol d the programmed
HomeLi nk button for about a
second.
D oes th e d evic e ( g ara ge d oor o pener) w ork ?
3
b
4
5
Training a Button
If you have any problems programming HomeLink\b see the owner’s manual included
with the device you are trying to program\b call HomeLink at (8\f\f) 35535\115\b or
visit www.homelink.com.
How It Works
Press and hold RETURN for
about 3 seconds.
R E A R V I E W C A M E R A
For added convenience\b the area behind your vehicle is displayed to help you navigate
while backing up.
Turning the Guidelines On or Off
• When you shift into Reverse (R)\b a realtime image of the area behind your vehicle is shown in the center display.
• Yellow parking guidelines also appear to help you judge distance.
• The rearview display turns off when you shift out of Reverse.
14 Pilot TRG_LX EX E\AXL EXLRES_ATG_NEW S\ATYLE 8/12/2013 8\f5\A4 AM Page \b

Use the selector knob to make and enter selections.
Use the selector knob to make and enter selections.
191\b

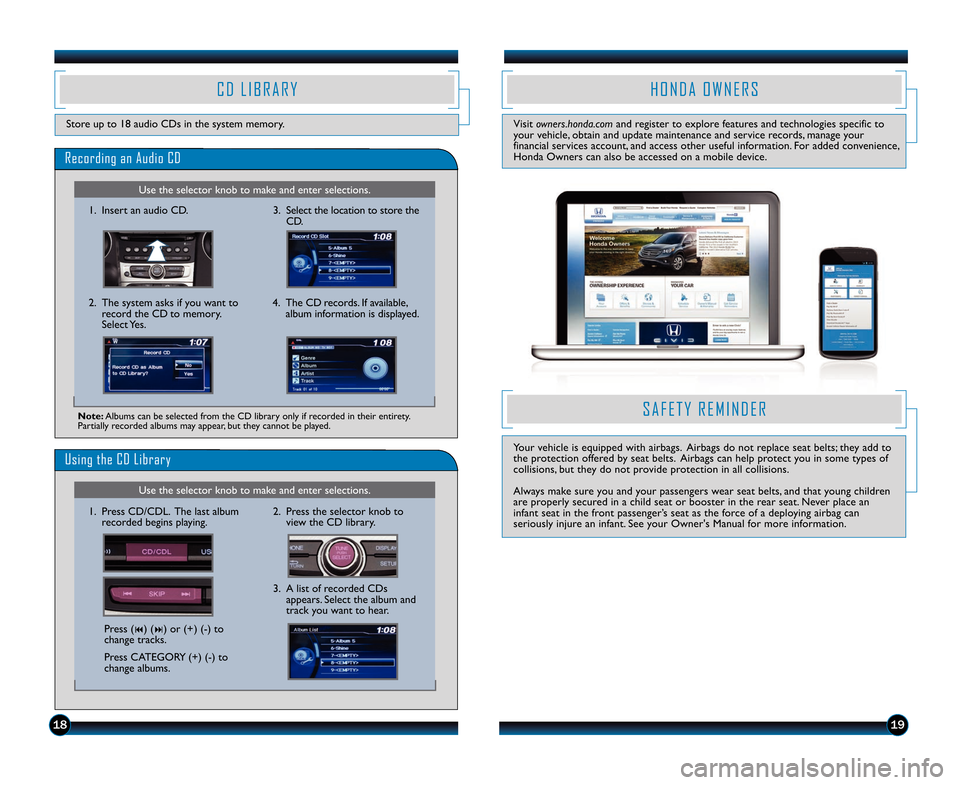

C D L I B R A R Y
Store up to 18 audio CDs in the system \1memory.
Recording an Audio CD
1. Insert an audio CD.3. Select the location to store the
CD.
2. The system asks if you want torecord the CD to memory.
Select Yes. 4. The CD records. If available\b
album information is displayed.
Using the CD Library
2. Press the selector knob toview the CD library.
3. A list of recorded CDsappears. Select the album and
track you want to hear.
Press (9) (:) or (+) () to
change tracks.
Press CATEGORY (+) () to
change albums.
1. Press CD/CDL. The last album
recorded begins playing.
Note: Albums can be selected from the CD library only if recorded in their entirety.
Partially recorded albums may appear\b but they cannot be played.
H O N D A O W N E R S
Visit owners.honda.com and register to explore features and technologies specific to
your vehicle\b obtain and update maintenance and service records\b manage your
financial services account\b and access other useful information. For added convenience\b
Honda Owners can also be accessed on a mobile device.
S A F E T Y R E M I N D E R
Your vehicle is equipped with airbags. Airbags do not replace seat belts; they add to
the protection offered by seat belts. Airbags can help protect you in some types of
collisions\b but they do not provide protection in all collisions.
Always make sure you and your passengers wear seat belts\b and that young children
are properly secured in a child seat or booster in the rear seat. Never place an
infant seat in the front passenger’s seat as the force of a deploying airbag can
seriously injure an infant. See your Owner's Manual for more information.
