check engine HONDA PILOT 2020 Owner's Manual (in English)

Contents
Child Safety P. 60Exhaust Gas Hazard P. 76Safety Labels P. 77
Opening and Closing the Tailgate P. 153 Security System P. 163 Opening and Closing the Windows P. 166
Operating the Switches Around the Steering Wheel P. 171 Adjusting the Mirrors P. 192
Heating and Cooling
* P. 230 Climate Control System* P. 235
Audio System Basic Operation P. 251, 269 Audio Error Messages P. 348
Blu-ray/DVD Rear Entertainment System* P. 378 Customized Features P. 426, 433
CabinTalkTM * P. 506
Off-Highway Driving Guidelines P. 524 When Driving P. 526 Honda Sensing ® P. 565 Braking P. 610
Refueling P. 627 Fuel Economy and CO
2 Emissions P. 630
Maintenance Under the Hood P. 641 Replacing Light Bulbs P. 653
Checking and Maintaining Tires P. 662 Battery P. 671 Remote Transmitter Care P. 673
Heating and Cooling System
*/Climate Control System* Maintenance P. 676 Cleaning P. 678
Engine Does Not Start P. 695 Shift Lever Does Not Move* P. 699 Jump Starting P. 700
Fuses P. 709 Emergency Towing P. 714
Refueling P. 716 When You Cannot Open the Tailgate P. 717
Devices that Emit Radio Waves P. 723 Reporting Safety Defects P. 724
Authorized Manuals P. 729 Customer Service Information P. 730
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 79
ControlsP. 135
FeaturesP. 243
DrivingP. 507
MaintenanceP. 631
Handling the UnexpectedP. 685
InformationP. 719
IndexP. 731
20 PILOT-31TG76401.book 3 ページ ２０１９年７月２４日　水曜日　午後３時３２分

11
Quick Reference Guide
Safe Driving (P33)
Airbags (P47)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P76)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P508)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P39)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 PILOT-31TG76401.book 11 ページ ２０１９年７月２４日　水曜日　午後３時３２分

27
Quick Reference Guide
Maintenance (P631)
Under the Hood (P641)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P653)
● Inspect all lights regularly.
Wiper Blades (P658)
● Replace blades if they leave streaks
across the windshield.
Tires (P662)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
20 PILOT-31TG76401.book 27 ページ ２０１９年７月２４日　水曜日　午後３時３２分

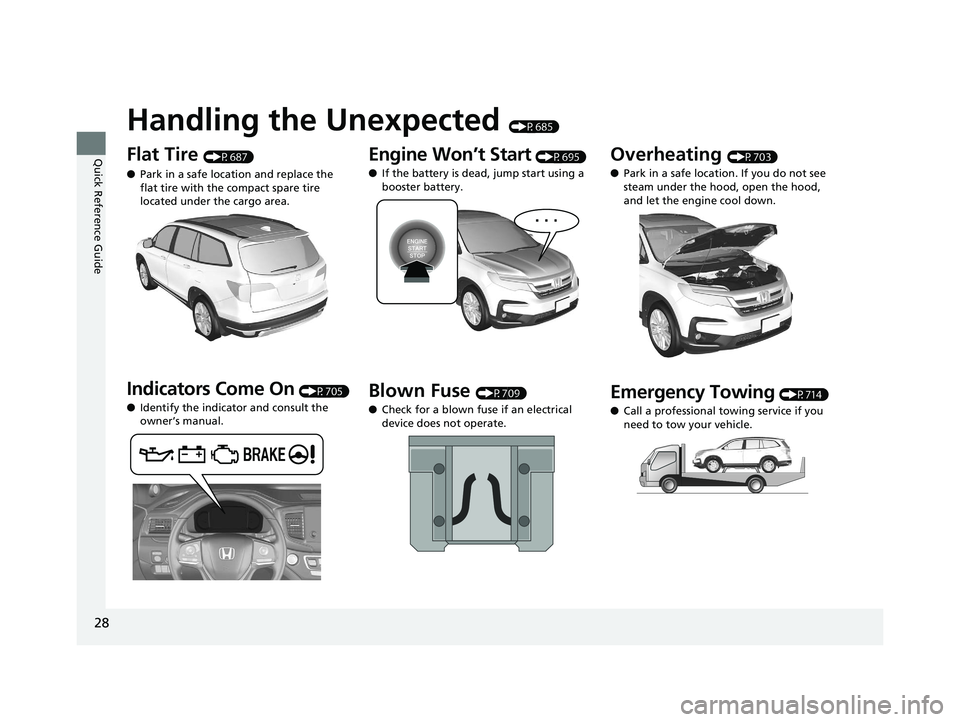

28
Quick Reference Guide
Handling the Unexpected (P685)
Flat Tire (P687)
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P705)
● Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P695)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P709)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P703)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P714)
● Call a professional towing service if you
need to tow your vehicle.
20 PILOT-31TG76401.book 28 ページ ２０１９年７月２４日　水曜日　午後３時３２分

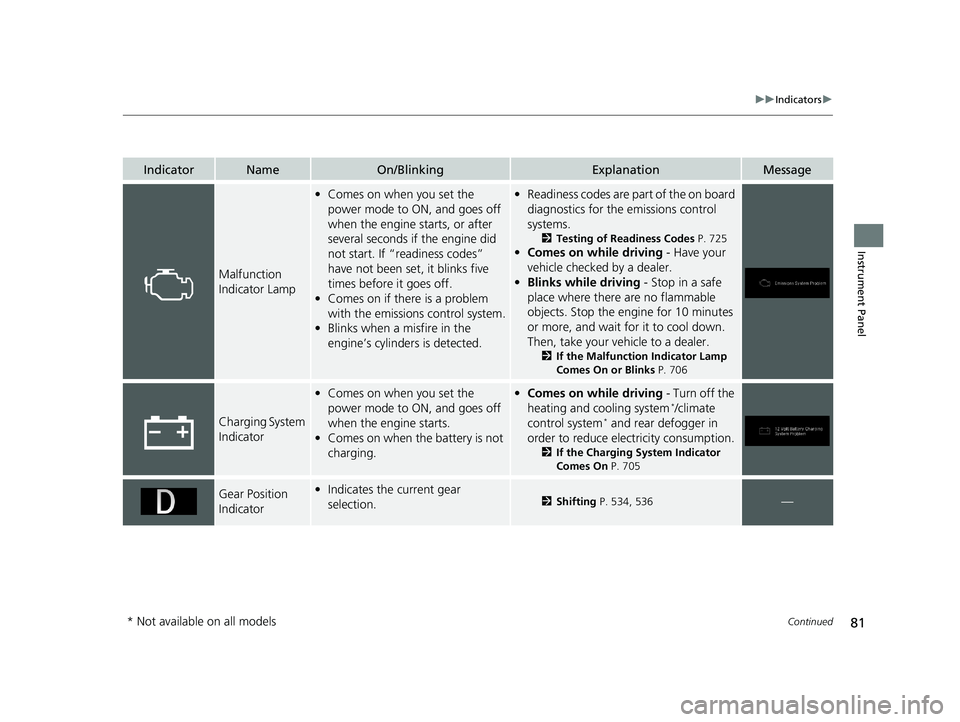

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
•Comes on when you set the
power mode to ON, and goes off
when the engine starts, or after
several seconds if the engine did
not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
• Comes on if there is a problem
with the emissions control system.
• Blinks when a misfire in the
engine’s cylinders is detected.•Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 725
•Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 706
Charging System
Indicator
•Comes on when you set the
power mode to ON, and goes off
when the engine starts.
• Comes on when the battery is not
charging.•Comes on while driving - Turn off the
heating and cooling system*/climate
control system* and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator
Comes On P. 705
Gear Position
Indicator•Indicates the current gear
selection.2 Shifting P. 534, 536—
* Not available on all models
20 PILOT-31TG76401.book 81 ページ ２０１９年７月２４日　水曜日　午後３時３２分

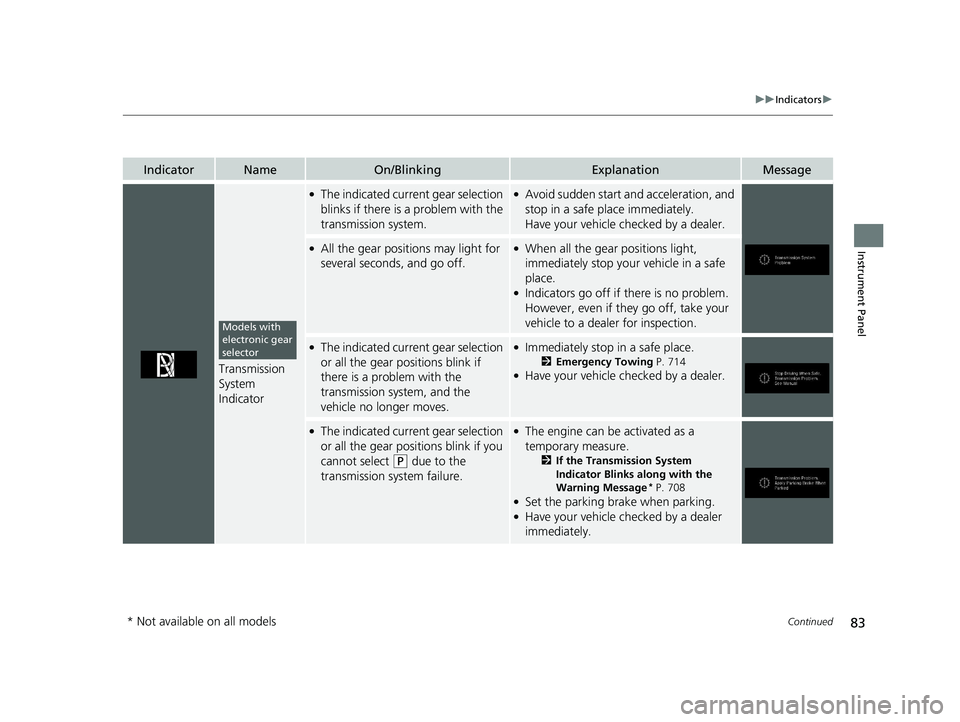

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System
Indicator
●The indicated current gear selection
blinks if there is a problem with the
transmission system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light for
several seconds, and go off.●When all the gear positions light,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
●The indicated current gear selection
or all the gear positions blink if
there is a problem with the
transmission system, and the
vehicle no longer moves.●Immediately stop in a safe place.
2Emergency Towing P. 714●Have your vehicle checked by a dealer.
●The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
●The engine can be activated as a
temporary measure.
2 If the Transmission System
Indicator Blinks along with the
Warning Message
* P. 708●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Models with
electronic gear
selector
* Not available on all models
20 PILOT-31TG76401.book 83 ページ ２０１９年７月２４日　水曜日　午後３時３２分

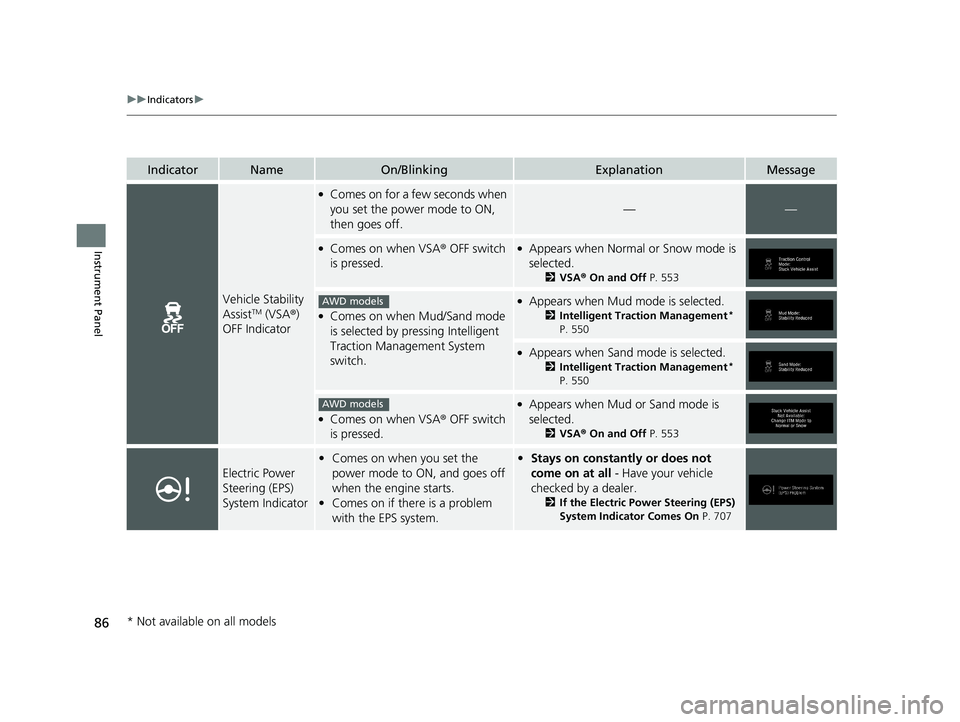

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
——
●Comes on when VSA ® OFF switch
is pressed.●Appears when Normal or Snow mode is
selected.
2 VSA ® On and Off P. 553
●Comes on when Mud/Sand mode
is selected by pressing Intelligent
Traction Management System
switch.
●Appears when Mud mode is selected.
2Intelligent Traction Management*
P. 550
●Appears when Sand mode is selected.
2 Intelligent Traction Management*
P. 550
●Comes on when VSA ® OFF switch
is pressed.
●Appears when Mud or Sand mode is
selected.
2 VSA ® On and Off P. 553
Electric Power
Steering (EPS)
System Indicator
•Comes on when you set the
power mode to ON, and goes off
when the engine starts.
• Comes on if there is a problem
with the EPS system.•Stays on constantly or does not
come on at all - Have your vehicle
checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 707
AWD models
AWD models
* Not available on all models
20 PILOT-31TG76401.book 86 ページ ２０１９年７月２４日　水曜日　午後３時３２分

88
uuIndicators u
Instrument Panel
*1:Canadian models only: Apply and hold the brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Fog Light
Indicator*
•Comes on when the fog lights are
on.——
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks if the immobilizer system
cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 163—
Indicator
Indicator
* Not available on all models
20 PILOT-31TG76401.book 88 ページ ２０１９年７月２４日　水曜日　午後３時３２分

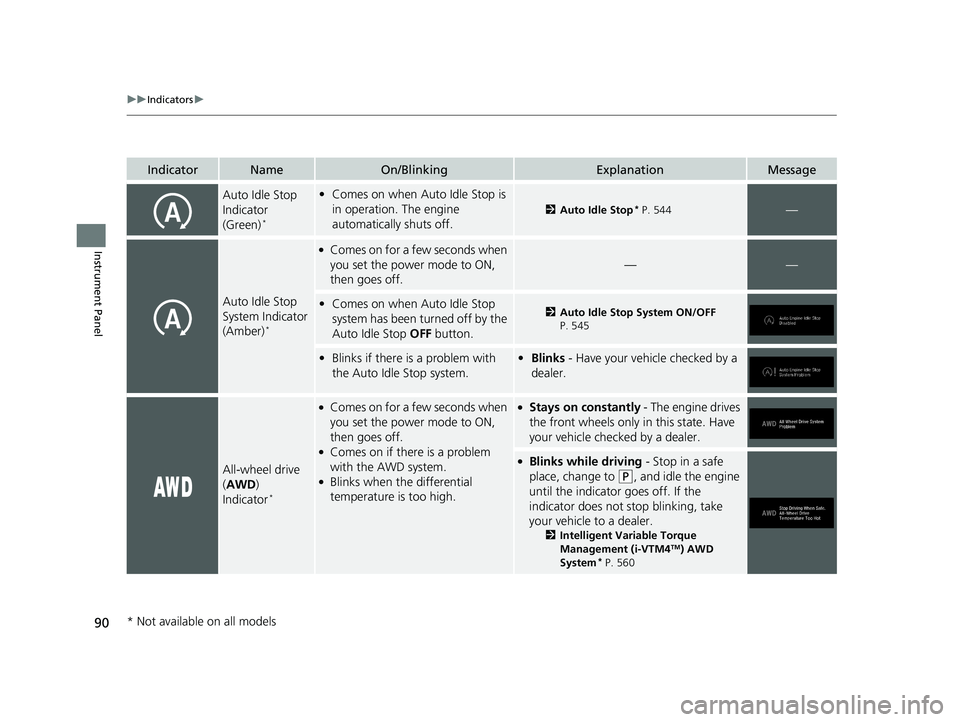

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator
(Green)
*
•Comes on when Auto Idle Stop is
in operation. The engine
automatically shuts off.
2 Auto Idle Stop* P. 544—
Auto Idle Stop
System Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
——
•Comes on when Auto Idle Stop
system has been turned off by the
Auto Idle Stop OFF button.2Auto Idle Stop System ON/OFF
P. 545
• Blinks if there is a problem with
the Auto Idle Stop system.•Blinks - Have your vehicle checked by a
dealer.
All-wheel drive
( AWD )
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the AWD system.
●Blinks when the differential
temperature is too high.
●Stays on constantly - The engine drives
the front wheels only in this state. Have
your vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place, change to
(P, and idle the engine
until the indicator goes off. If the
indicator does not stop blinking, take
your vehicle to a dealer.
2 Intelligent Variable Torque
Management (i-VTM4TM) AWD
System* P. 560
* Not available on all models
20 PILOT-31TG76401.book 90 ページ ２０１９年７月２４日　水曜日　午後３時３２分

97
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears if the battery charge becomes low.•Charge the battery.
•Appears when there is a pr oblem with the sensor on
the battery.• Have your vehicle checked by a dealer.
2 Checking the Battery P. 671
•Appears along with the ch arging system indicator
when the battery is not charging.• Turn off the heating and cooling system*/climate
control system* and rear defogger to reduce electricity
consumption.
2 If the Charging System Indicator Comes On P. 705
•Appears when the scheduled maintenance is due
soon.
• Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 637
•Appears when the engine coolant temperature gets
abnormally high.2 Overheating P. 703
* Not available on all models
20 PILOT-31TG76401.book 97 ページ ２０１９年７月２４日　水曜日　午後３時３２分
