INSTRUMENT PANEL
Illustrated table of contents0-11
Page 19 of 468
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-10)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-18)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
0-12Illustrated table of contents
Page 77 of 468
2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Compass (if so equipped) .......................... 2-7
Zone variation change procedure ................ 2-9
Warning/indicator lights and audible reminders .....2-10
Checking bulbs ............................... 2-10
Warning lights ................................. 2-11
Indicator lights ................................. 2-15
Audible reminders .............................. 2-17
Dot matrix liquid crystal display ...................2-18
Indicators for operation ........................ 2-20
Indicators for maintenance .....................2-22
Trip computer ................................. 2-24
Security systems ................................. 2-26
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............2-28
Windshield wiper and washer switch ...............2-29
Rain-sensing auto wiper system (if so
equipped) .................................... 2-30Rear window and outside mirror defroster switch . . . 2-31
Headlight and turn signal switch
..................2-32
Xenon headlights ............................. 2-32
Headlight switch .............................. 2-32
Turn signal switch ............................. 2-36
Fog light switch ............................... 2-36
Hazard warning flasher switch .....................2-36
Horn ............................................ 2-37
Heated seats (if so equipped) .....................2-37
SNOW mode switch (if so equipped) ...............2-39
Vehicle Dynamic Control (VDC) OFF switch ..........2-39
Clock ............................................ 2-39
Adjusting the time ............................. 2-39
Power outlet ..................................... 2-40
Cigarette lighter and ashtrays (if so equipped) ......2-41
Front ......................................... 2-41
Rear ......................................... 2-41
Storage ......................................... 2-42
Cup holders
.................................. 2-42
Sunglasses
holder............................. 2-44
Glove box .................................... 2-44
Console box .................................. 2-44
Card holder (if so equipped) ...................2-46
Storage box (if so equipped) ...................2-46
Page 80 of 468
1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-38)
5. Clock (P. 2-39)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-84, P. 4-95) — Audio system (P. 4-38)
7. Center display (P. 4-2)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P. 2-36)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-21)
11. Parking brake (for Automatic Transmis- sion models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-8)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-41) or storage box (if so
equipped) (P. 2-46)
— Power outlet (if so equipped) (P. 2-40)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-37)
17. SNOW mode switch (if so equipped) (P. 2-39)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)
20. Trunk release power cancel switch (P. 3-19)
*: Refer to the separate Navigation SystemOwner’s Manual.
SSI0671
INSTRUMENT PANEL
Instruments and controls2-3
Page 81 of 468
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-10)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-18)
6. Fuel gauge (P. 2-7)
*: The needle indicators in the speedometer, ta- chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the
ignition switch is pushed to the LOCK posi-
tion. This is not a malfunction.
SIC4288
METERS AND GAUGES
2-4Instruments and controls
Page 82 of 468
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display :
Pushing the TRIP A/B RESET switch
3at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer :
Pushing the TRIP A/B RESET switch
3for more
than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
Speedometer
SIC4289
Odometer/twin trip odometer
SIC3259
Instruments and controls2-5
Page 84 of 468

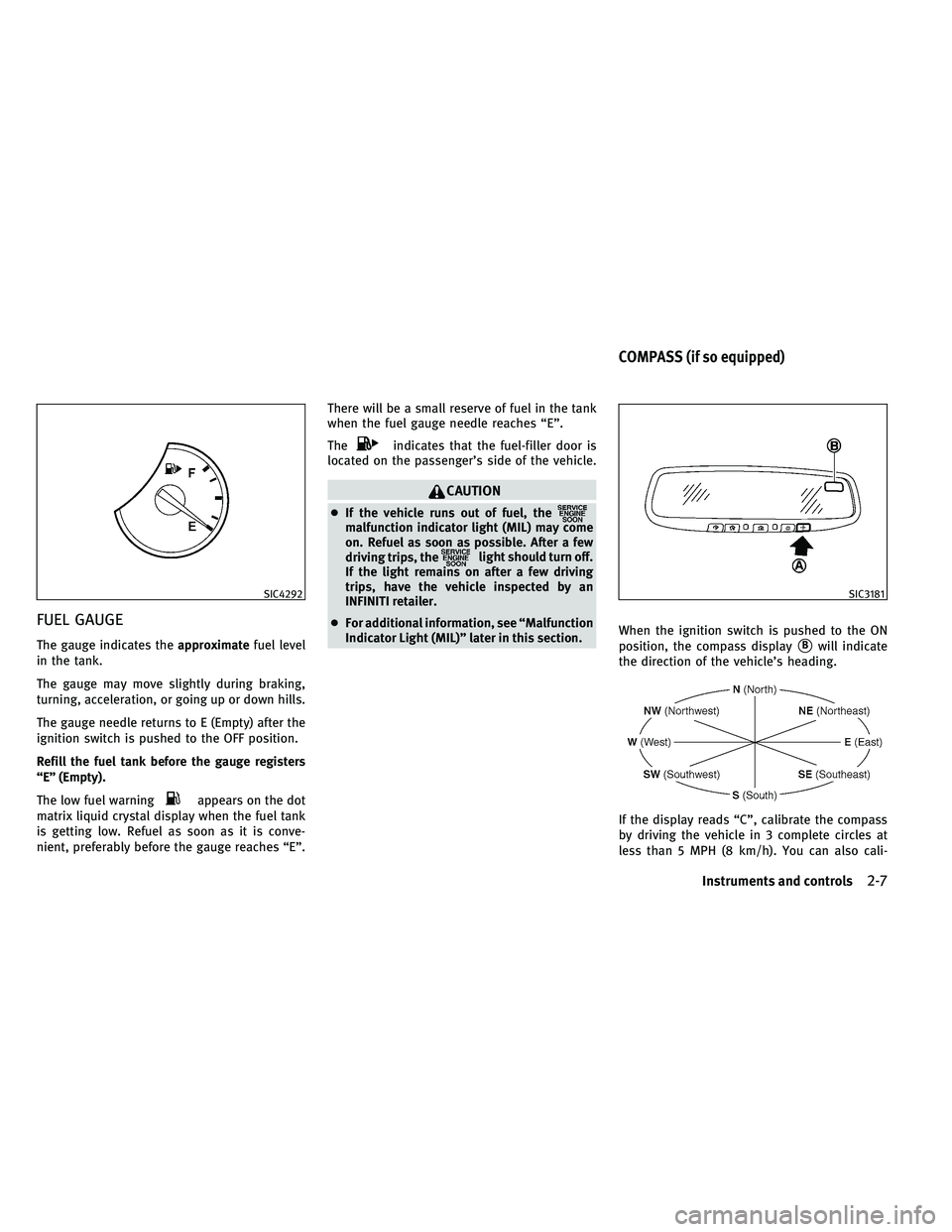

FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge registers
“E” (Empty).
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel tank
is getting low. Refuel as soon as it is conve-
nient, preferably before the gauge reaches “E”. There will be a small reserve of fuel in the tank
when the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
● If the vehicle runs out of fuel, themalfunction indicator light (MIL) may come
on. Refuel as soon as possible. After a few
driving trips, the
light should turn off.
If the light remains on after a few driving
trips, have the vehicle inspected by an
INFINITI retailer.
● For additional information, see “Malfunction
Indicator Light (MIL)” later in this section. When the ignition switch is pushed to the ON
position, the compass display
Bwill indicate
the direction of the vehicle’s heading.
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also cali-
SIC4292SIC3181
COMPASS (if so equipped)
Instruments and controls2-7
Page 86 of 468

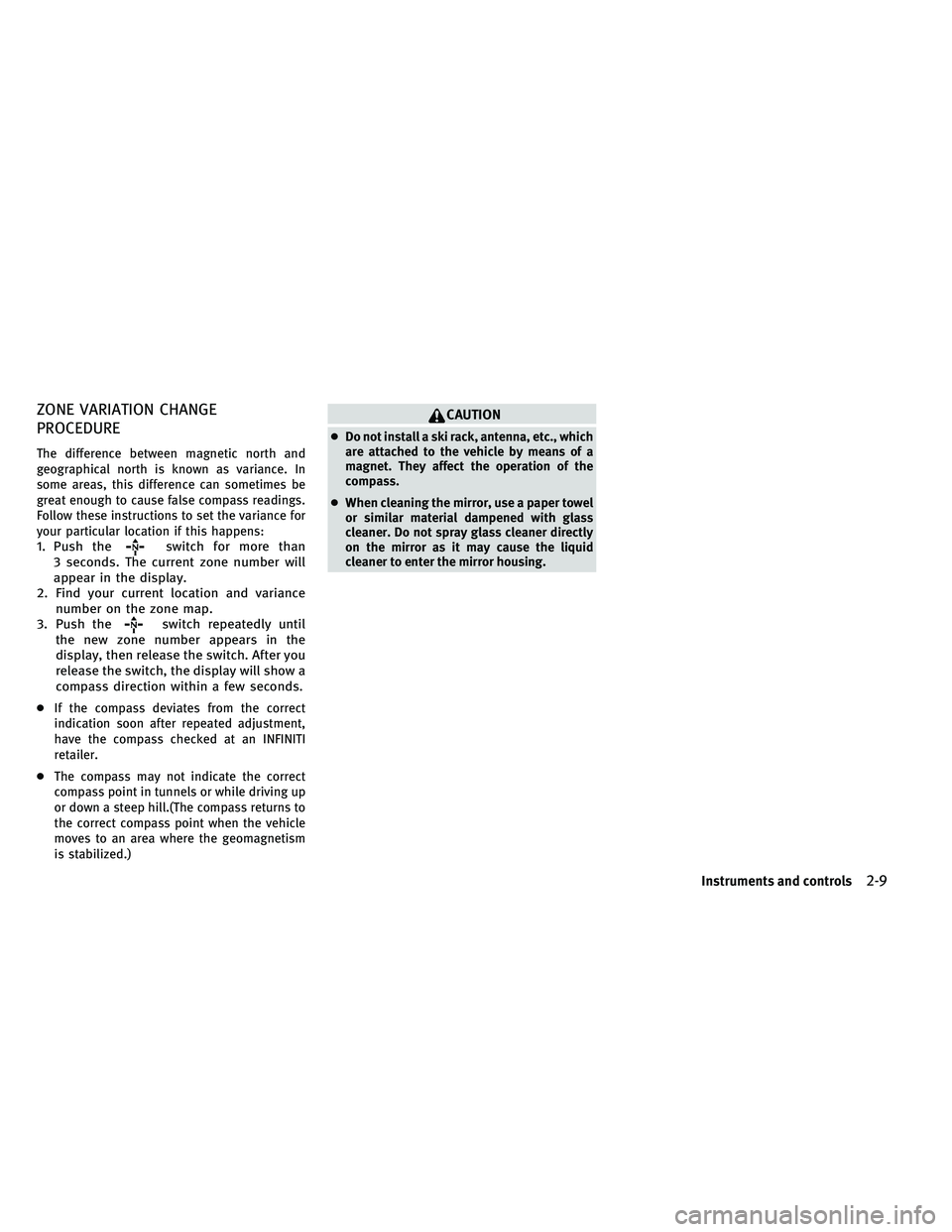

ZONE VARIATION CHANGE
PROCEDURE
The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:
1. Push theswitch for more than
3 seconds. The current zone number will
appear in the display.
2. Find your current location and variance number on the zone map.
3. Push the
switch repeatedly until
the new zone number appears in the
display, then release the switch. After you
release the switch, the display will show a
compass direction within a few seconds.
● If the compass deviates from the correct
indication soon after repeated adjustment,
have the compass checked at an INFINITI
retailer.
● The compass may not indicate the correct
compass point in tunnels or while driving up
or down a steep hill.(The compass returns to
the correct compass point when the vehicle
moves to an area where the geomagnetism
is stabilized.)
CAUTION
●Do not install a ski rack, antenna, etc., which
are attached to the vehicle by means of a
magnet. They affect the operation of the
compass.
● When cleaning the mirror, use a paper towel
or similar material dampened with glass
cleaner. Do not spray glass cleaner directly
on the mirror as it may cause the liquid
cleaner to enter the mirror housing.
Instruments and controls2-9
Page 87 of 468
All-Wheel Drive (AWD) warning light
(AWD models)*Intelligent Key warning lightFront passenger air bag status light
Anti-lock Braking System (ABS)
warning light
Low tire pressure warning
lightHigh beam indicator light
Master warning lightMalfunction Indicator Light
(MIL)
Automatic transmission check warn-
ing lightPreview Function warning light (or-
ange)*Security indicator light
Brake warning lightSeat belt warning lightLow beam indicator light
Supplemental air bag warning
lightTurn signal/hazard indicator lights
Charge warning lightVehicle Dynamic Control (VDC) warn-
ing lightVehicle Dynamic Control (VDC) off
indicator light
Engine oil pressure warning lightAutomatic transmission position in-
dicator light**: if so equipped
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Front fog light indicator light
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,
,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,
,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the electrical system. Have the system checked by
an INFINITI retailer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-10Instruments and controls
Page 90 of 468
Intelligent Key warning light
After the ignition switch is pushed to the ON
position, this light comes on for about 2 sec-
onds and then turns off.
This light warns of a malfunction with the
electrical steering lock system (if so equipped)
or the Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock (if so equipped) or to start the
engine. If the light comes on while the engine is
running, you can drive the vehicle. However in
these cases, contact an INFINITI retailer for
repair as soon as possible.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.Low tire pressure warning :
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also appears
on the dot matrix liquid crystal display.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning is active as
long as the low tire pressure warning light
remains illuminated.
For additional information, see “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section,
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “5. Starting and driving” section and
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “6. In case of emergency” section.TPMS malfunction :
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by an INFINITI
retailer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunc-
tion.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
WARNING
●
If the light does not illuminate with the igni-
tion switch pushed ON, have the vehicle
checked by an INFINITI retailer as soon as
possible.
Instruments and controls2-13
