JEEP GRAND CHEROKEE 2009 WK / 3.G Owner's Guide
Manufacturer: JEEP, Model Year: 2009, Model line: GRAND CHEROKEE, Model: JEEP GRAND CHEROKEE 2009 WK / 3.GPages: 521, PDF Size: 17.85 MB
Page 31 of 521
DOOR LOCKS
Manual Door Locks
Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the key
is not inside the vehicle before closing the door.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.
•When leaving the vehicle always remove the key
from the ignition, and lock your vehicle. Do not
leave unattended children in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal in-
juries and death.
Power Door Locks
The power door lock switch is located on each front door
panel. Press the switch to lock or unlock the doors.
If the plunger is down when the door is closed, the door
will lock. Therefore, make sure the key is not inside the
vehicle before closing the door.
Power Door Lock Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Page 32 of 521

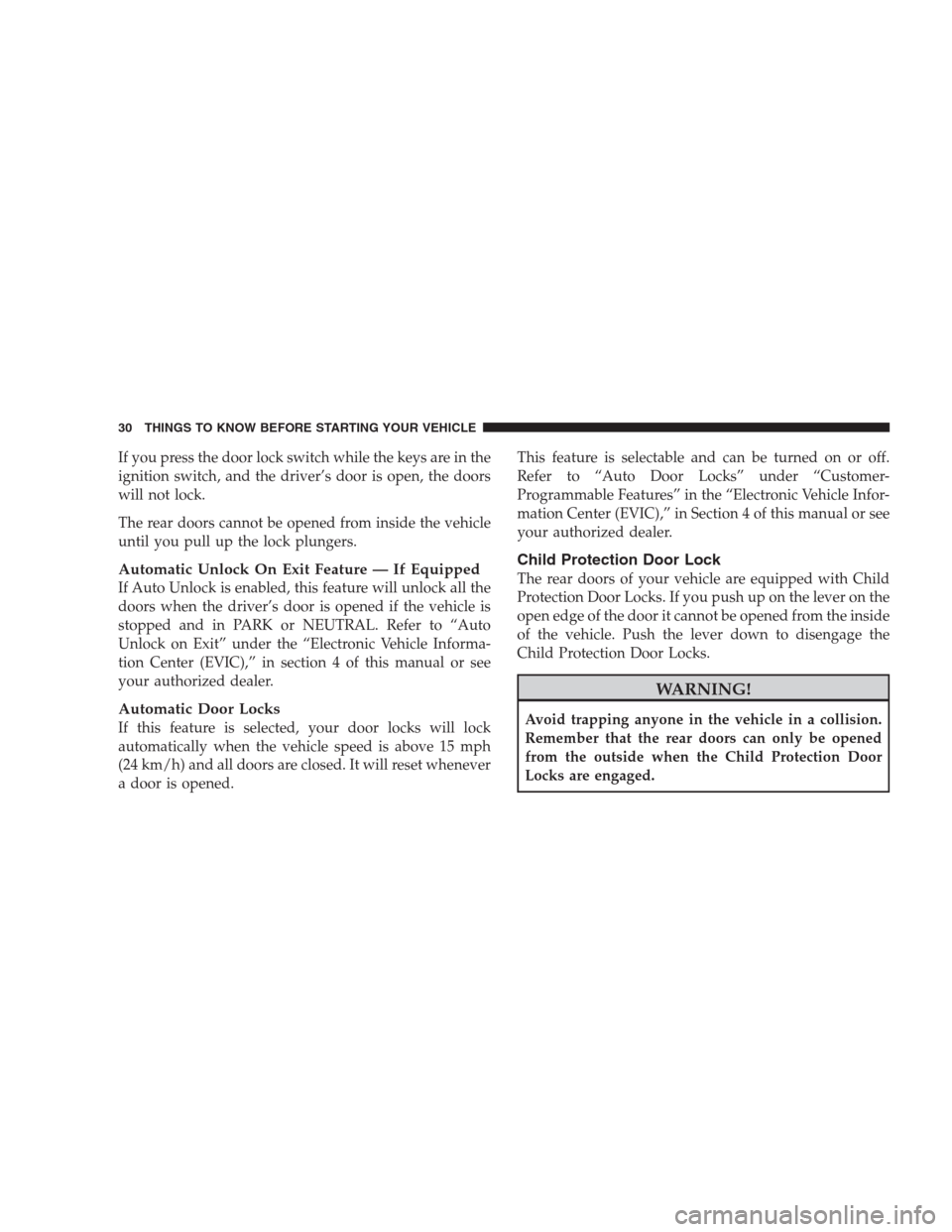

If you press the door lock switch while the keys are in the
ignition switch, and the driver’s door is open, the doors
will not lock.
The rear doors cannot be opened from inside the vehicle
until you pull up the lock plungers.
Automatic Unlock On Exit Feature — If Equipped
If Auto Unlock is enabled, this feature will unlock all the
doors when the driver’s door is opened if the vehicle is
stopped and in PARK or NEUTRAL. Refer to “Auto
Unlock on Exit” under the “Electronic Vehicle Informa-
tion Center (EVIC),” in section 4 of this manual or see
your authorized dealer.
Automatic Door Locks
If this feature is selected, your door locks will lock
automatically when the vehicle speed is above 15 mph
(24 km/h) and all doors are closed. It will reset whenever
a door is opened.This feature is selectable and can be turned on or off.
Refer to “Auto Door Locks” under “Customer-
Programmable Features” in the “Electronic Vehicle Infor-
mation Center (EVIC),” in Section 4 of this manual or see
your authorized dealer.
Child Protection Door Lock
The rear doors of your vehicle are equipped with Child
Protection Door Locks. If you push up on the lever on the
open edge of the door it cannot be opened from the inside
of the vehicle. Push the lever down to disengage the
Child Protection Door Locks.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child Protection Door
Locks are engaged.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 521

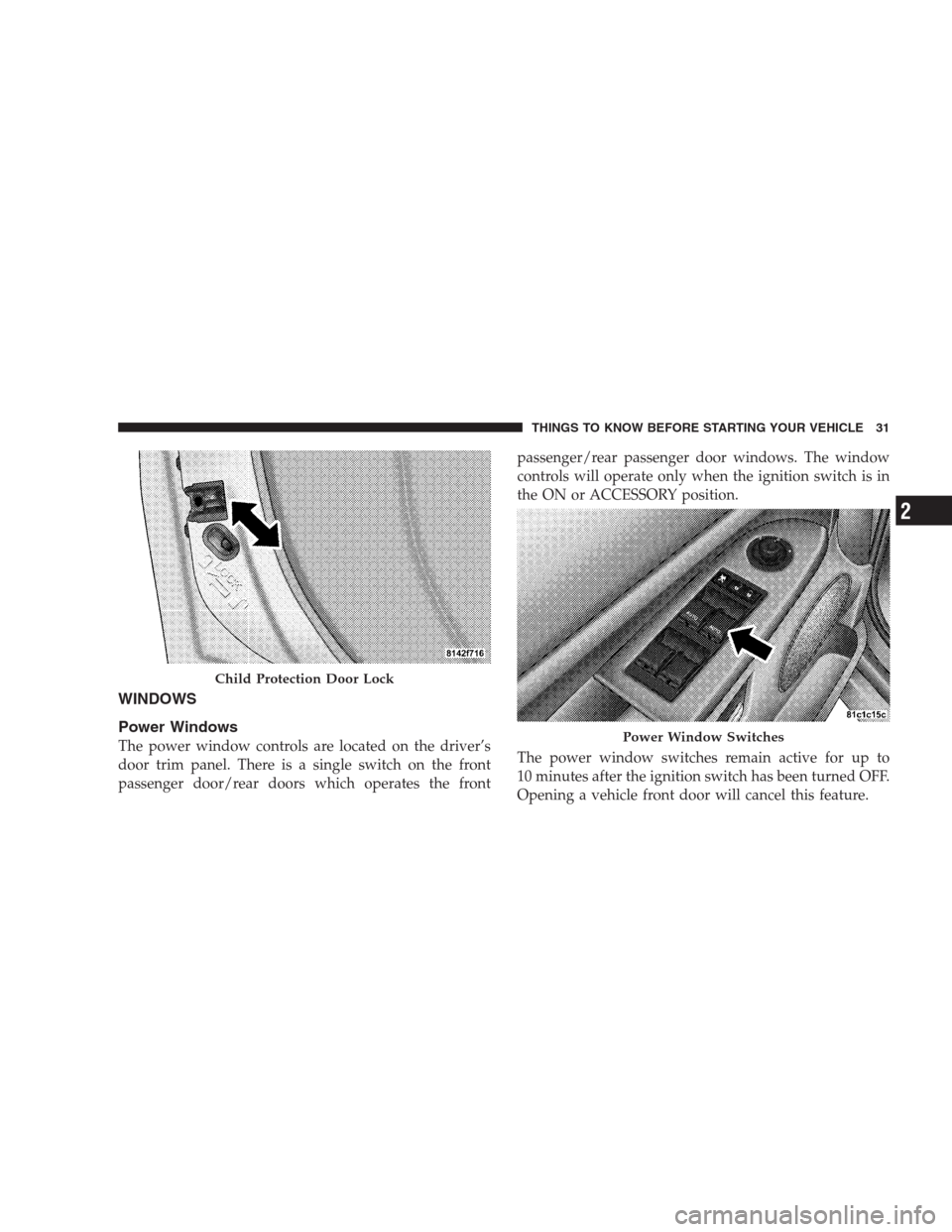

WINDOWS
Power Windows
The power window controls are located on the driver’s
door trim panel. There is a single switch on the front
passenger door/rear doors which operates the frontpassenger/rear passenger door windows. The window
controls will operate only when the ignition switch is in
the ON or ACCESSORY position.
The power window switches remain active for up to
10 minutes after the ignition switch has been turned OFF.
Opening a vehicle front door will cancel this feature.
Child Protection Door Lock
Power Window Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 34 of 521

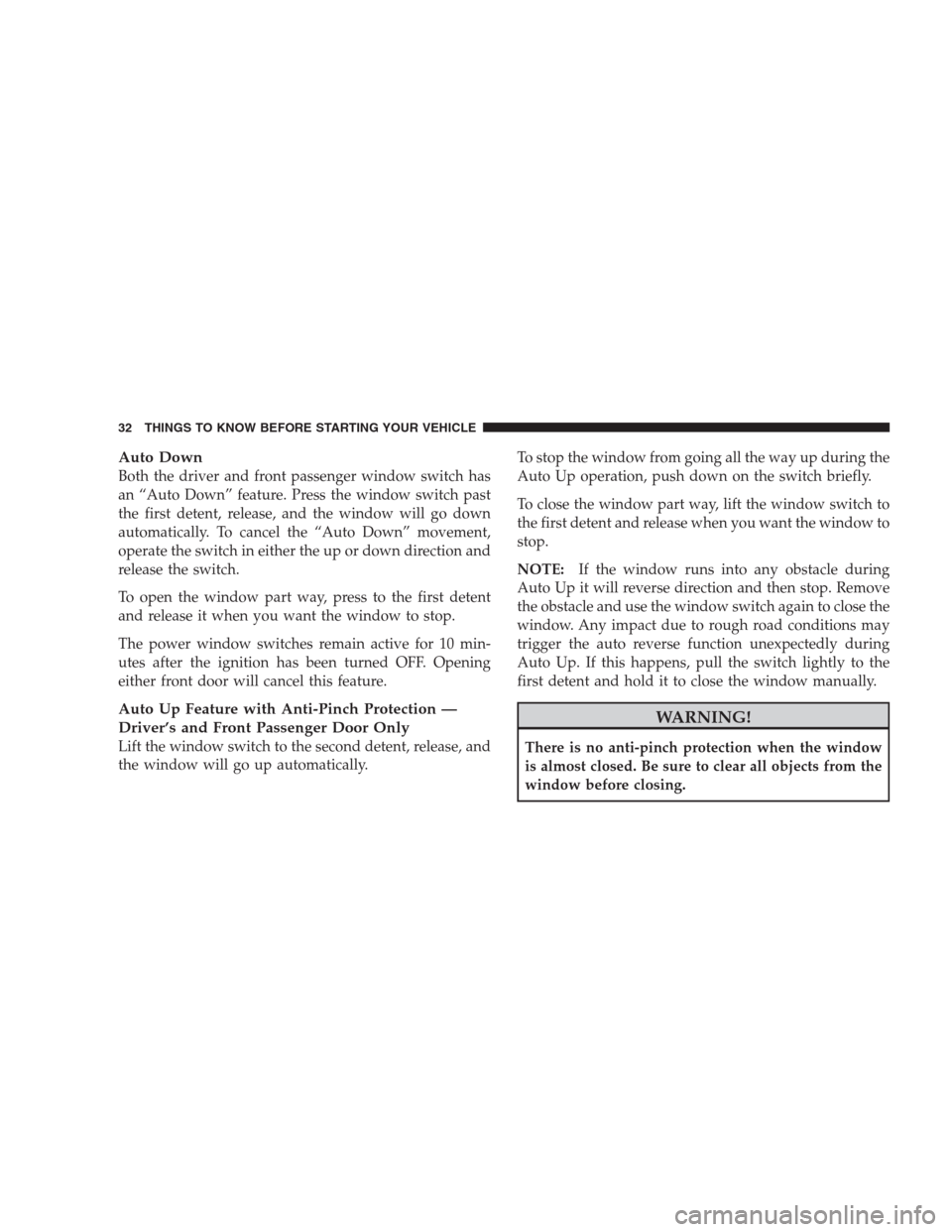

Auto Down
Both the driver and front passenger window switch has
an “Auto Down” feature. Press the window switch past
the first detent, release, and the window will go down
automatically. To cancel the “Auto Down” movement,
operate the switch in either the up or down direction and
release the switch.
To open the window part way, press to the first detent
and release it when you want the window to stop.
The power window switches remain active for 10 min-
utes after the ignition has been turned OFF. Opening
either front door will cancel this feature.
Auto Up Feature with Anti-Pinch Protection —
Driver’s and Front Passenger Door Only
Lift the window switch to the second detent, release, and
the window will go up automatically.To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:If the window runs into any obstacle during
Auto Up it will reverse direction and then stop. Remove
the obstacle and use the window switch again to close the
window. Any impact due to rough road conditions may
trigger the auto reverse function unexpectedly during
Auto Up. If this happens, pull the switch lightly to the
first detent and hold it to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 521

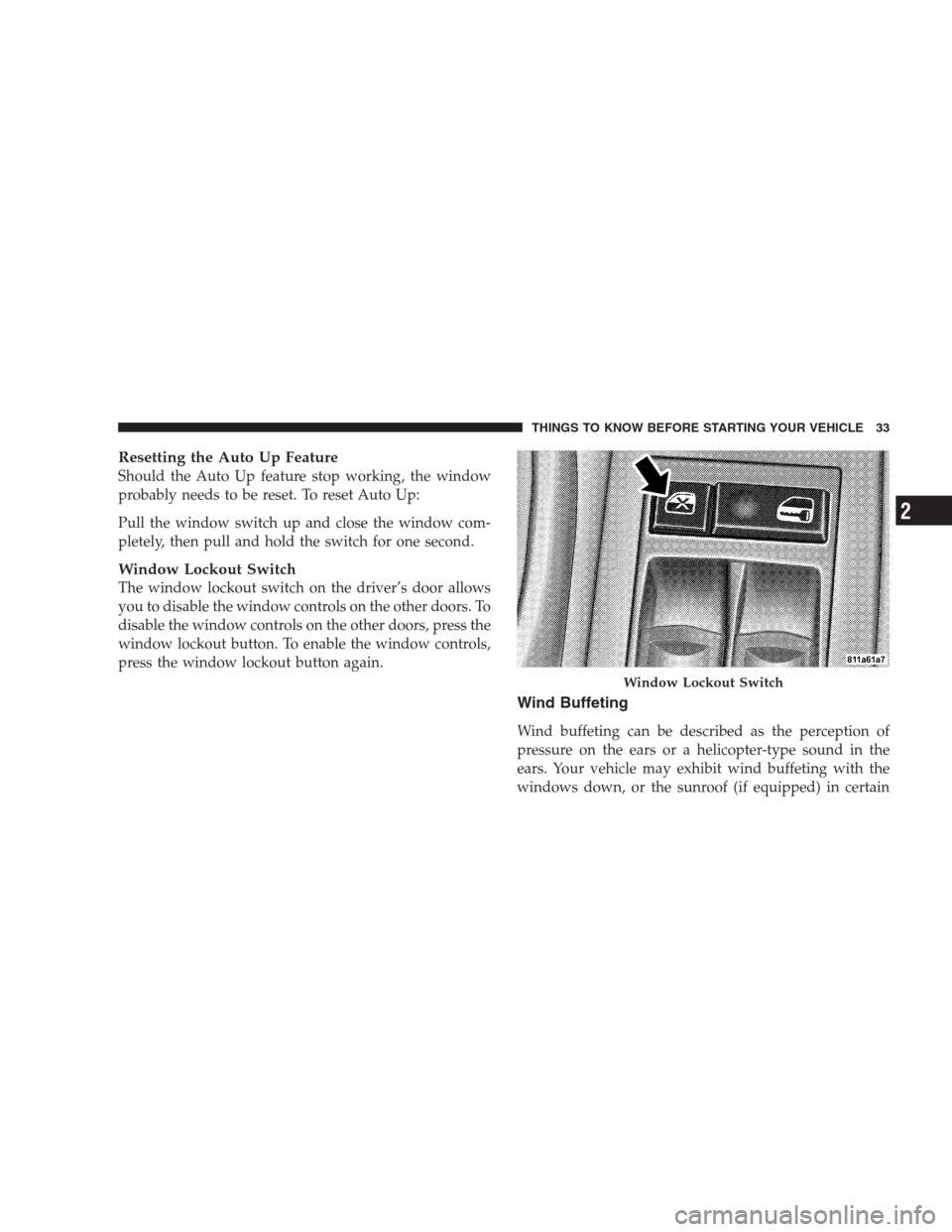

Resetting the Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up:
Pull the window switch up and close the window com-
pletely, then pull and hold the switch for one second.
Window Lockout Switch
The window lockout switch on the driver’s door allows
you to disable the window controls on the other doors. To
disable the window controls on the other doors, press the
window lockout button. To enable the window controls,
press the window lockout button again.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
Window Lockout Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Page 36 of 521
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting.
LIFTGATE
To open the liftgate, pull up (squeeze) on the handle and
lift. Manually unlocking the vehicle doors with the
plunger or a key in the lock cylinder will not unlock the
liftgate.
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Liftgate Release
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 521

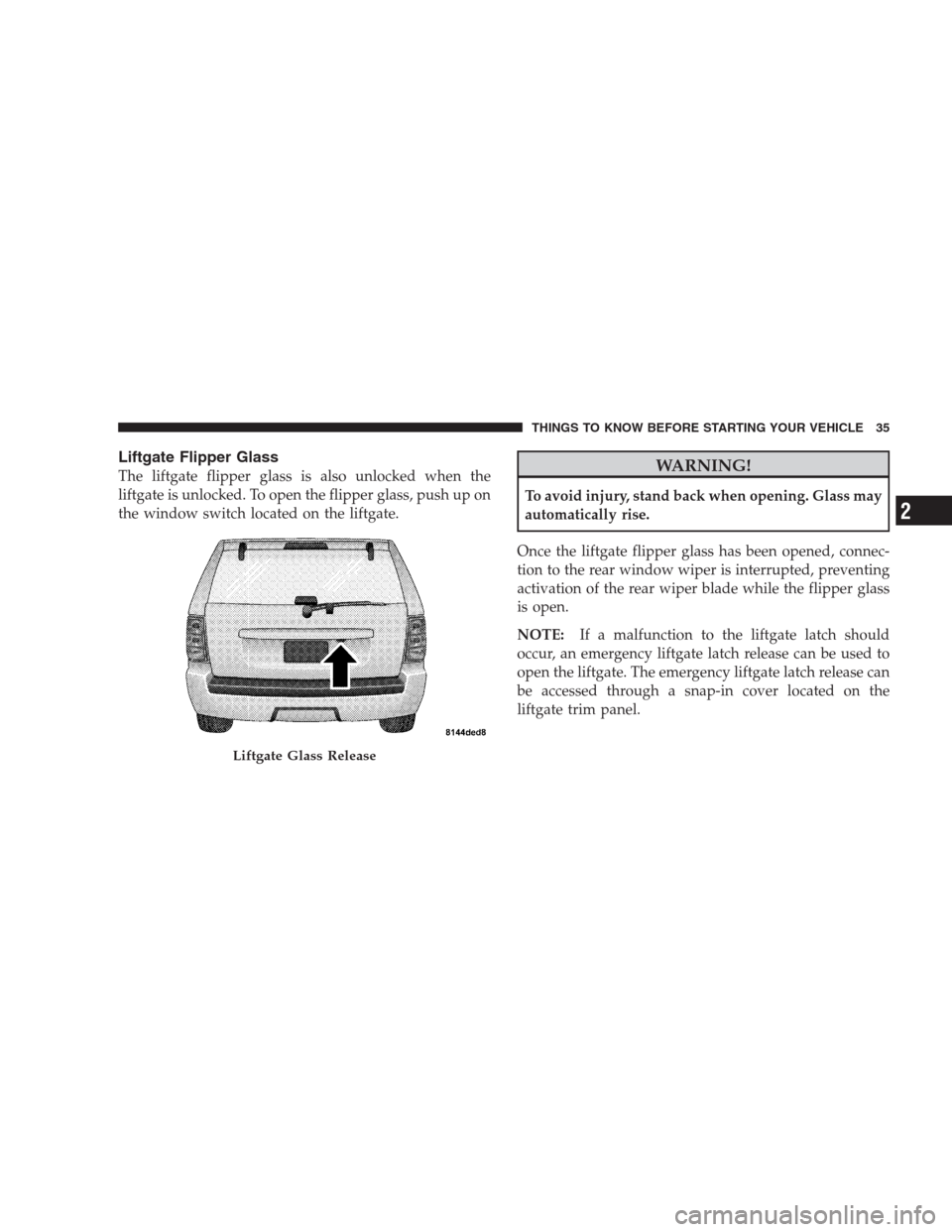

Liftgate Flipper Glass
The liftgate flipper glass is also unlocked when the
liftgate is unlocked. To open the flipper glass, push up on
the window switch located on the liftgate.WARNING!
To avoid injury, stand back when opening. Glass may
automatically rise.
Once the liftgate flipper glass has been opened, connec-
tion to the rear window wiper is interrupted, preventing
activation of the rear wiper blade while the flipper glass
is open.
NOTE:If a malfunction to the liftgate latch should
occur, an emergency liftgate latch release can be used to
open the liftgate. The emergency liftgate latch release can
be accessed through a snap-in cover located on the
liftgate trim panel.
Liftgate Glass Release
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 38 of 521

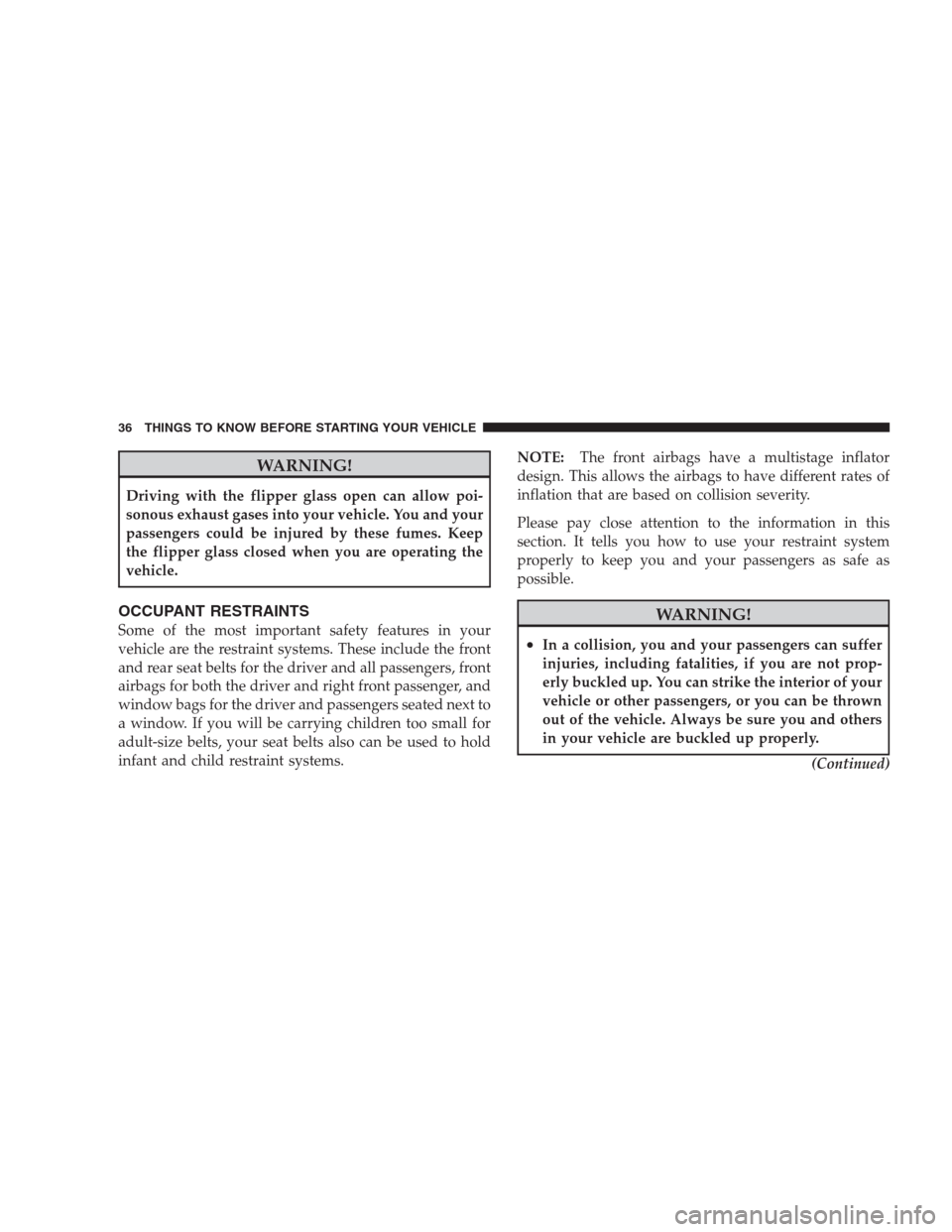

WARNING!
Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and right front passenger, and
window bags for the driver and passengers seated next to
a window. If you will be carrying children too small for
adult-size belts, your seat belts also can be used to hold
infant and child restraint systems.NOTE:The front airbags have a multistage inflator
design. This allows the airbags to have different rates of
inflation that are based on collision severity.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.WARNING!
•In a collision, you and your passengers can suffer
injuries, including fatalities, if you are not prop-
erly buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.
(Continued)
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 521

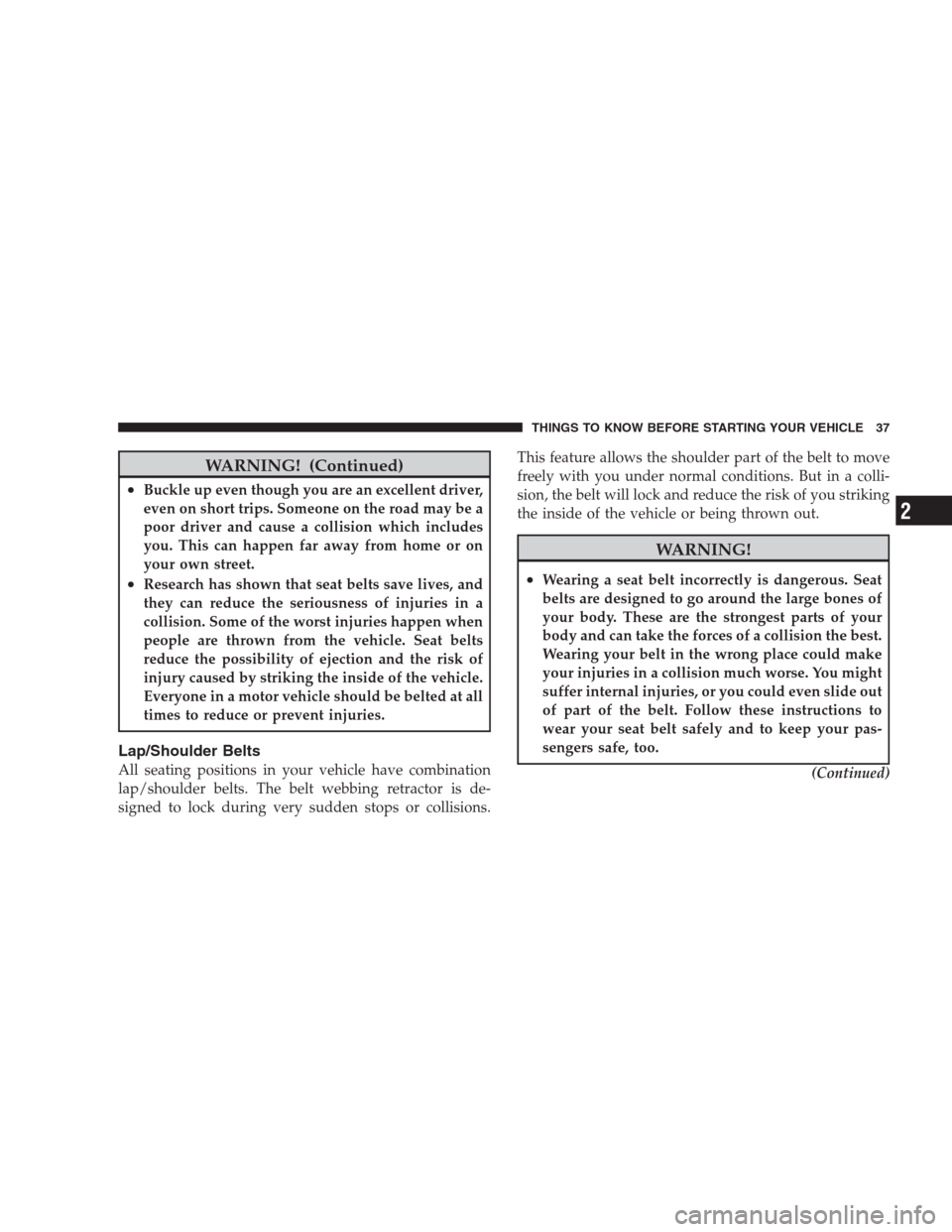

WARNING! (Continued)
•Buckle up even though you are an excellent driver,
even on short trips. Someone on the road may be a
poor driver and cause a collision which includes
you. This can happen far away from home or on
your own street.
•Research has shown that seat belts save lives, and
they can reduce the seriousness of injuries in a
collision. Some of the worst injuries happen when
people are thrown from the vehicle. Seat belts
reduce the possibility of ejection and the risk of
injury caused by striking the inside of the vehicle.
Everyone in a motor vehicle should be belted at all
times to reduce or prevent injuries.
Lap/Shoulder Belts
All seating positions in your vehicle have combination
lap/shoulder belts. The belt webbing retractor is de-
signed to lock during very sudden stops or collisions.This feature allows the shoulder part of the belt to move
freely with you under normal conditions. But in a colli-
sion, the belt will lock and reduce the risk of you striking
the inside of the vehicle or being thrown out.
WARNING!
•Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.
Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas-
sengers safe, too.
(Continued)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
Page 40 of 521

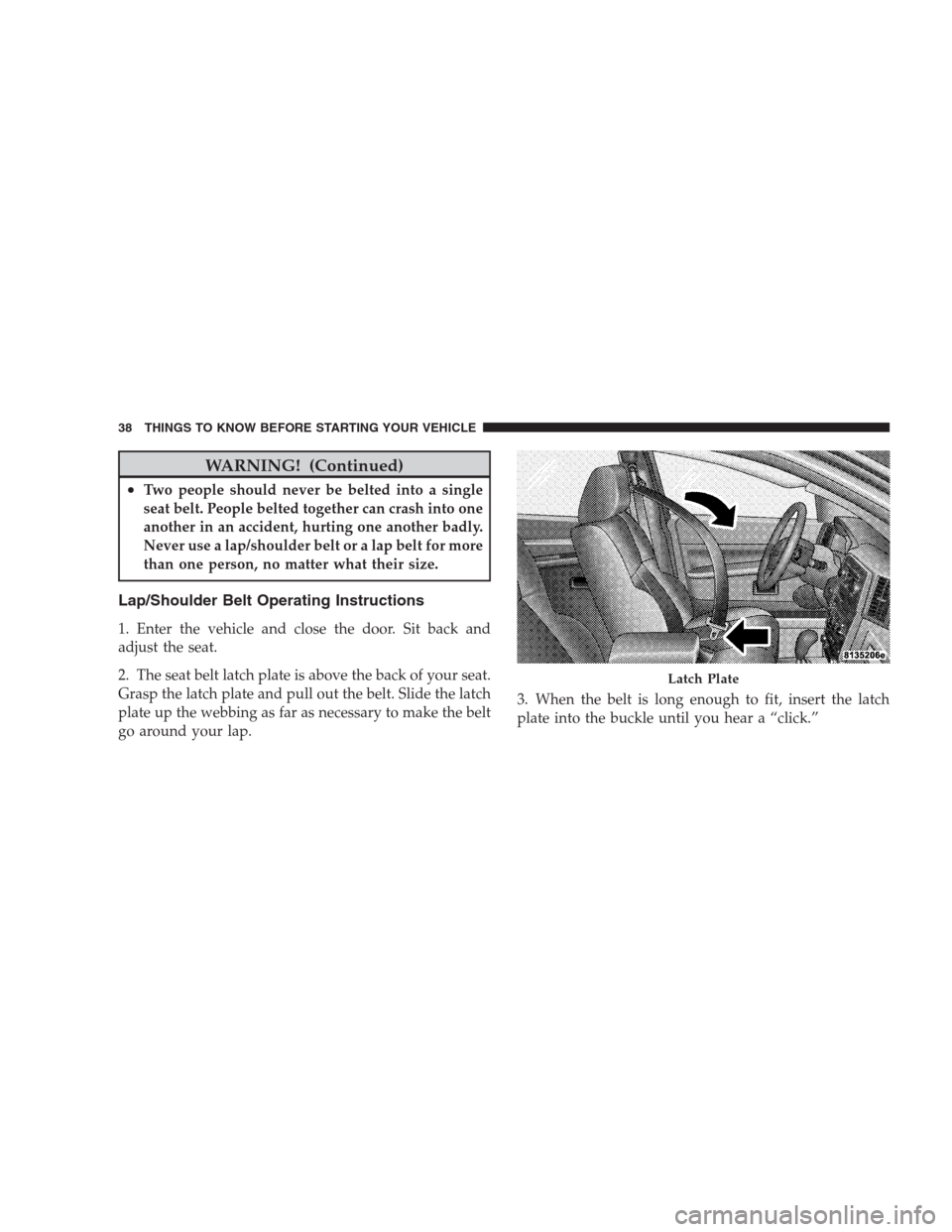

WARNING! (Continued)
•Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.
Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and
adjust the seat.
2. The seat belt latch plate is above the back of your seat.
Grasp the latch plate and pull out the belt. Slide the latch
plate up the webbing as far as necessary to make the belt
go around your lap.3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”
Latch Plate
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
