660
ES350 300h_OM_OM33A01U_(U)
6-2. Maintenance
General maintenance
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Warranty and Service Guide”
or “Owner’s Manual Supplement”. It is recommended that any prob-
lem you notice should be brought to the attention of your Lexus dealer
or qualified service shop for advice.
Engine compartment
ItemsCheck points
12-volt battery (gasoline vehicles)Check the battery fluid level and
connections. ( P. 6 8 5 )
Brake fluidIs the brake fluid at the correct level?
( P. 6 8 4 )
Engine coolant (gasoline vehicles)Is the engine coolant at the correct
level? ( P. 6 8 1 )
Engine/power control unit coolant
(hybrid vehicles)Is the engine/power control unit coolant
at the correct level? ( P. 6 8 1 )
Engine oilIs the engine oil at the correct level?
( P. 6 76 )
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenserThe radiator and condenser should be
free from foreign objects. ( P. 6 8 3 )
Wa s h e r f l u i dIs there sufficient washer fluid?
( P. 6 8 9 )
Luggage compartment
ItemsCheck points
12-volt battery (hybrid vehicles)Check the connections. ( P. 6 9 0 )

830
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is expl ained here as an example):
• The 0W in 0W-20 indicates the ch aracteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better su ited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certifica-
tion Mark is added to some oil
containers to help you select the
oil you should use.
Outside temperature

ES350 300h_OM_OM33A01U_(U)
8478-1. Specifications
8
Vehicle specifications

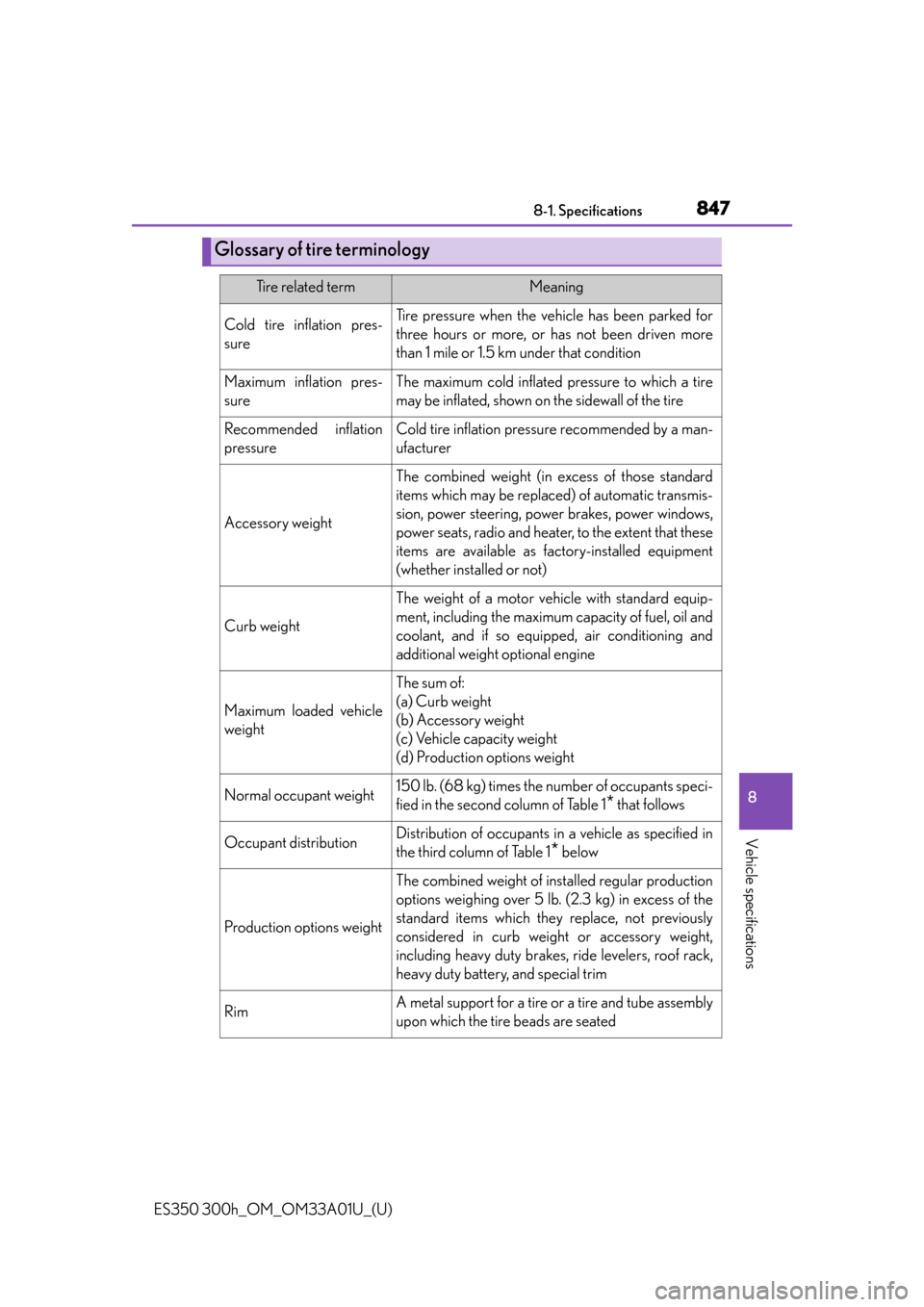

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

908
ES350 300h_OM_OM33A01U_(U)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 669 P. 144 P. 241
Hood lock release leverFuel filler door openerTire inflation pressure
P. 6 6 9 P. 2 4 1 P. 8 3 5
Fuel tank capacity
(Reference) 17.0 gal. (64.35 L, 14.2 Imp.gal.)
Fuel type
Unleaded gasoline only P. 828
Cold tire inflation
pressure P. 8 3 5
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
2GR-FE 2AR-FXE
With filter 6.4 (6.1, 5.4) 4.6 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 8 2 9
