Lexus ES350 2014 Owner's Manual

101
ES350_QG_OM33A70U_(U)

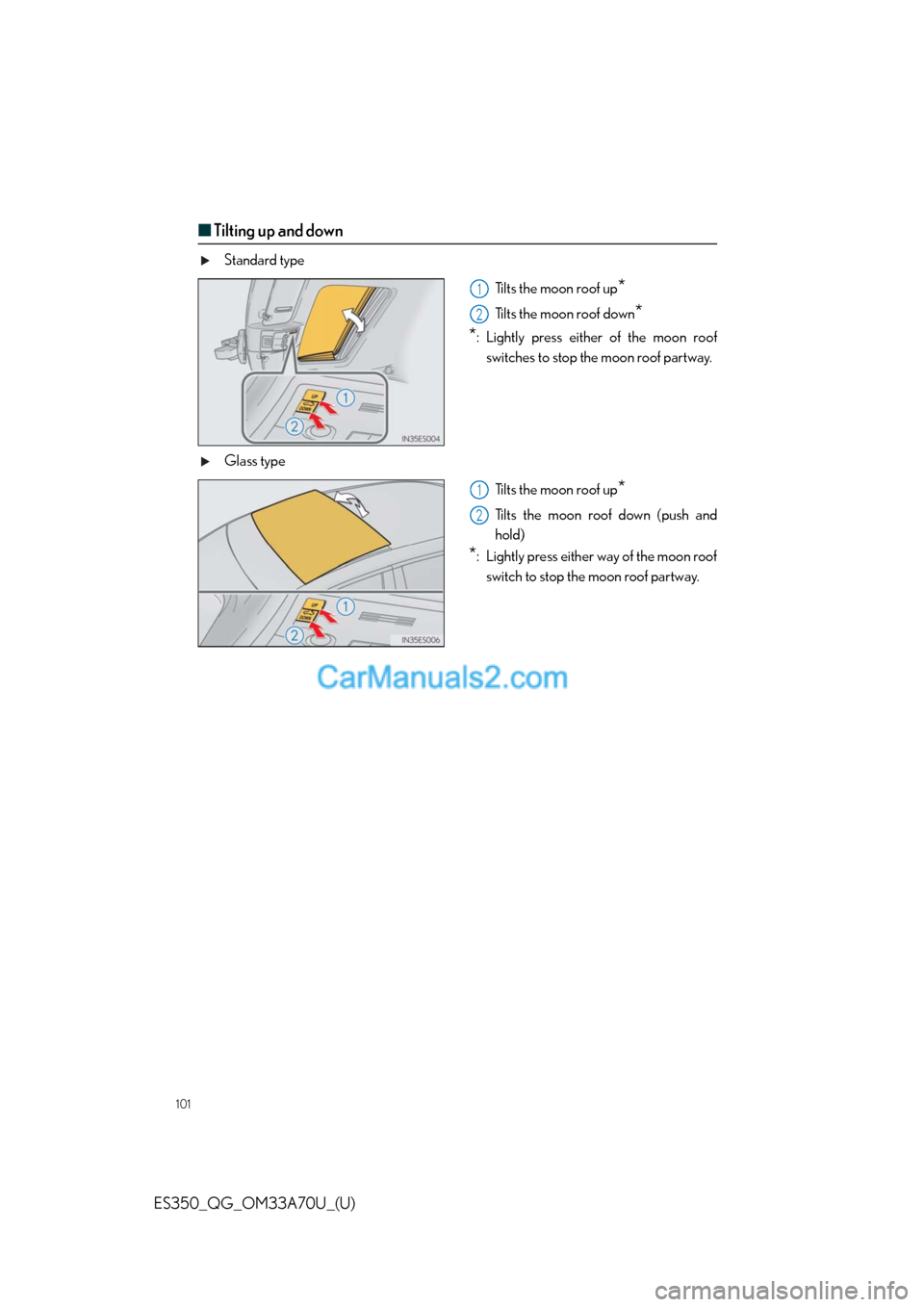

■Tilting up and down
Standard type
Tilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either of the moon roof
switches to stop the moon roof partway.
Glass type
Tilts the moon roof up
*
Tilts the moon roof down (push and
hold)
*: Lightly press either way of the moon roof
switch to stop the moon roof partway.
1
2
1
2

102
ES350_QG_OM33A70U_(U)
Fuel Tank Cap
■Before refueling the vehicle
●Close all the doors and windows, and turn the “START STOP ENGINE” switch off.
●Confirm the type of fuel.
■Opening the fuel tank cap
Press the opener switch to open the
fuel filler door.
Turn the fuel tank cap slowly to open.
Hang the fuel tank cap on the back of
the fuel filler door.1
2
3

103
ES350_QG_OM33A70U_(U)

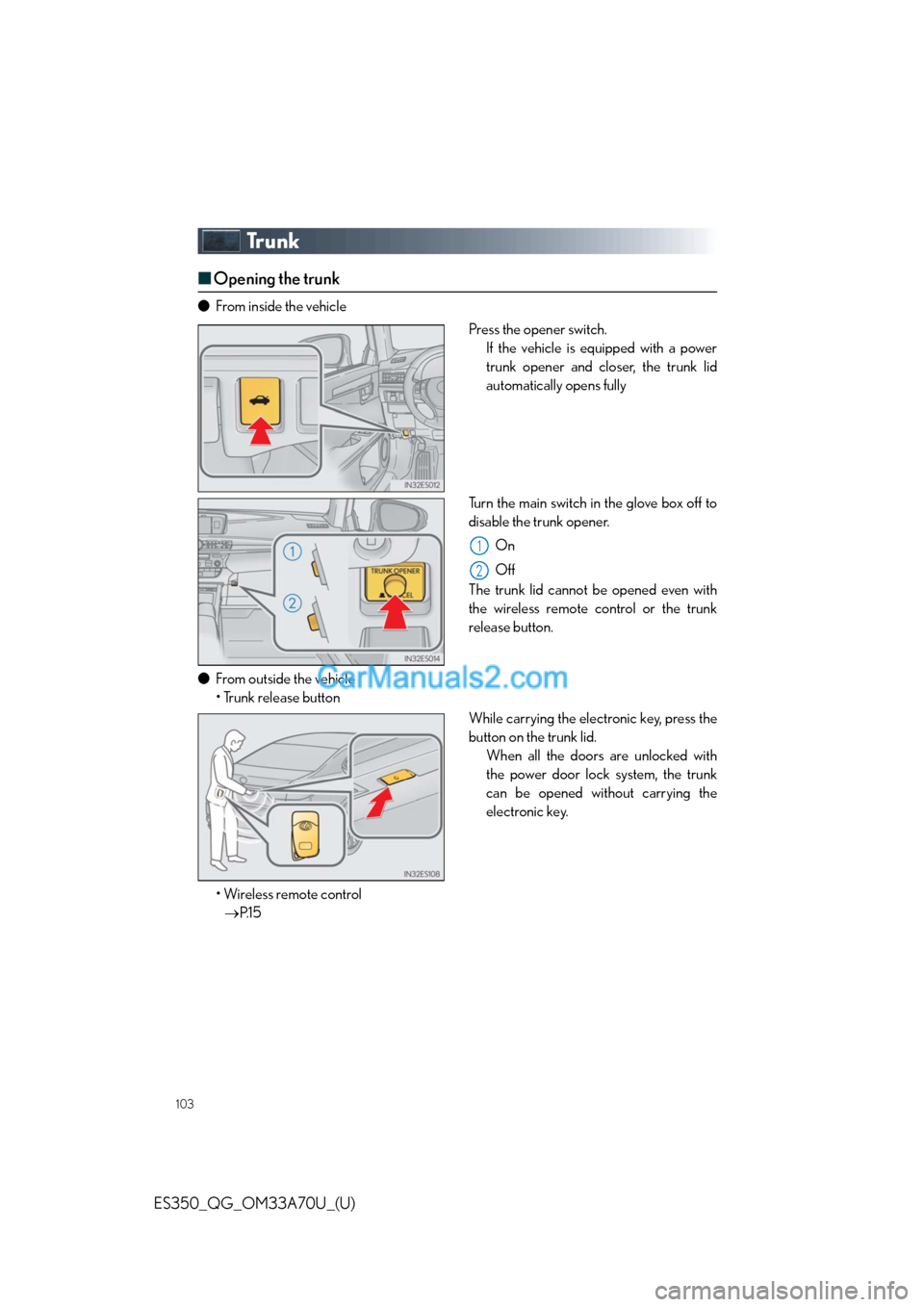

Tr u n k
■Opening the trunk
●From inside the vehicle
Press the opener switch.
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully
Turn the main switch in the glove box off to
disable the trunk opener.
On
Off
The trunk lid cannot be opened even with
the wireless remote control or the trunk
release button.
●From outside the vehicle
• Trunk release button
While carrying the electronic key, press the
button on the trunk lid.
When all the doors are unlocked with
the power door lock system, the trunk
can be opened without carrying the
electronic key.
• Wireless remote control
P.1 5
1
2

104
ES350_QG_OM33A70U_(U)

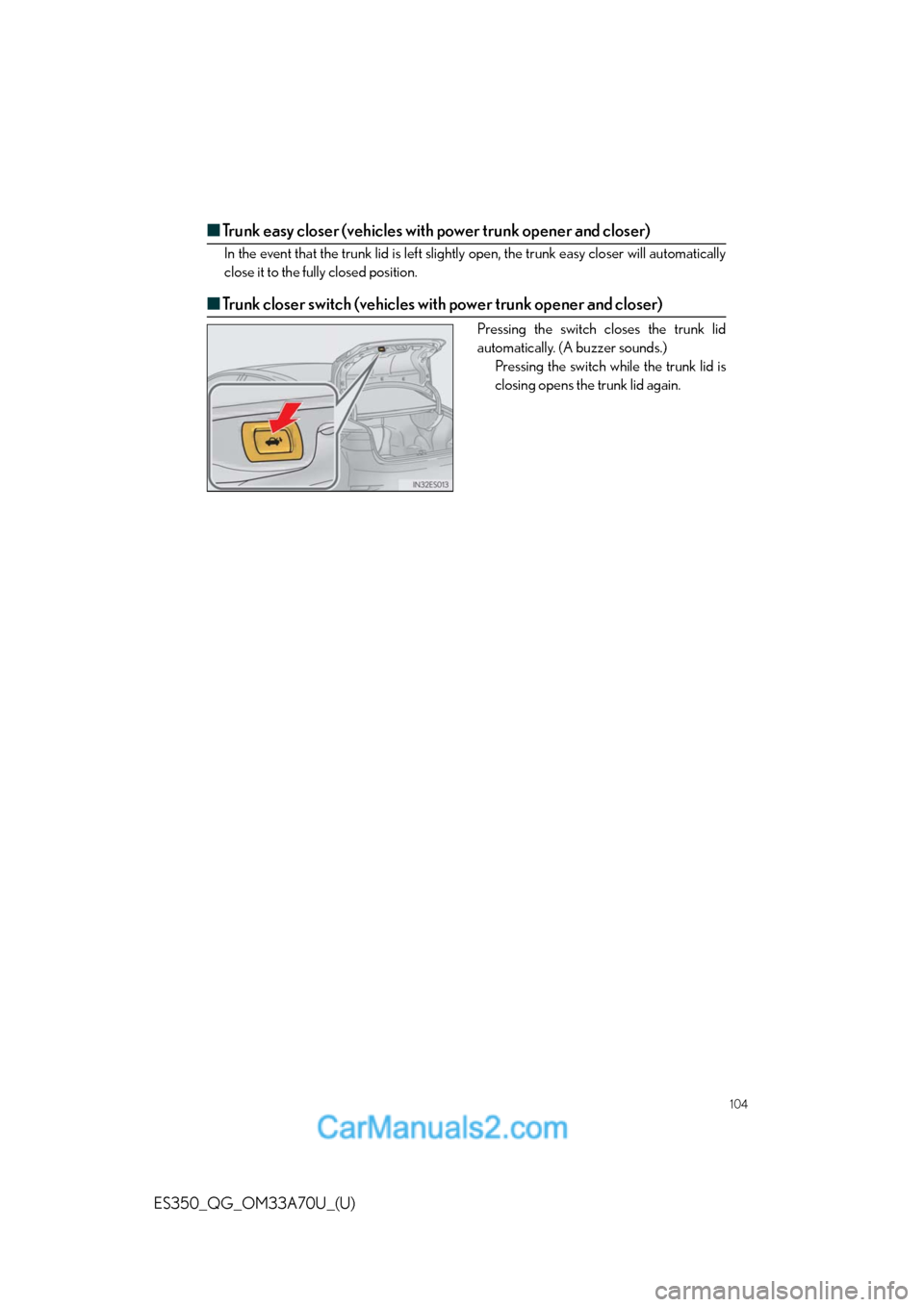

■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automatically
close it to the fully closed position.
■Trunk closer switch (vehicles with power trunk opener and closer)
Pressing the switch closes the trunk lid
automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid is
closing opens the trunk lid again.

What to do if...
105
ES350_QG_OM33A70U_(U)

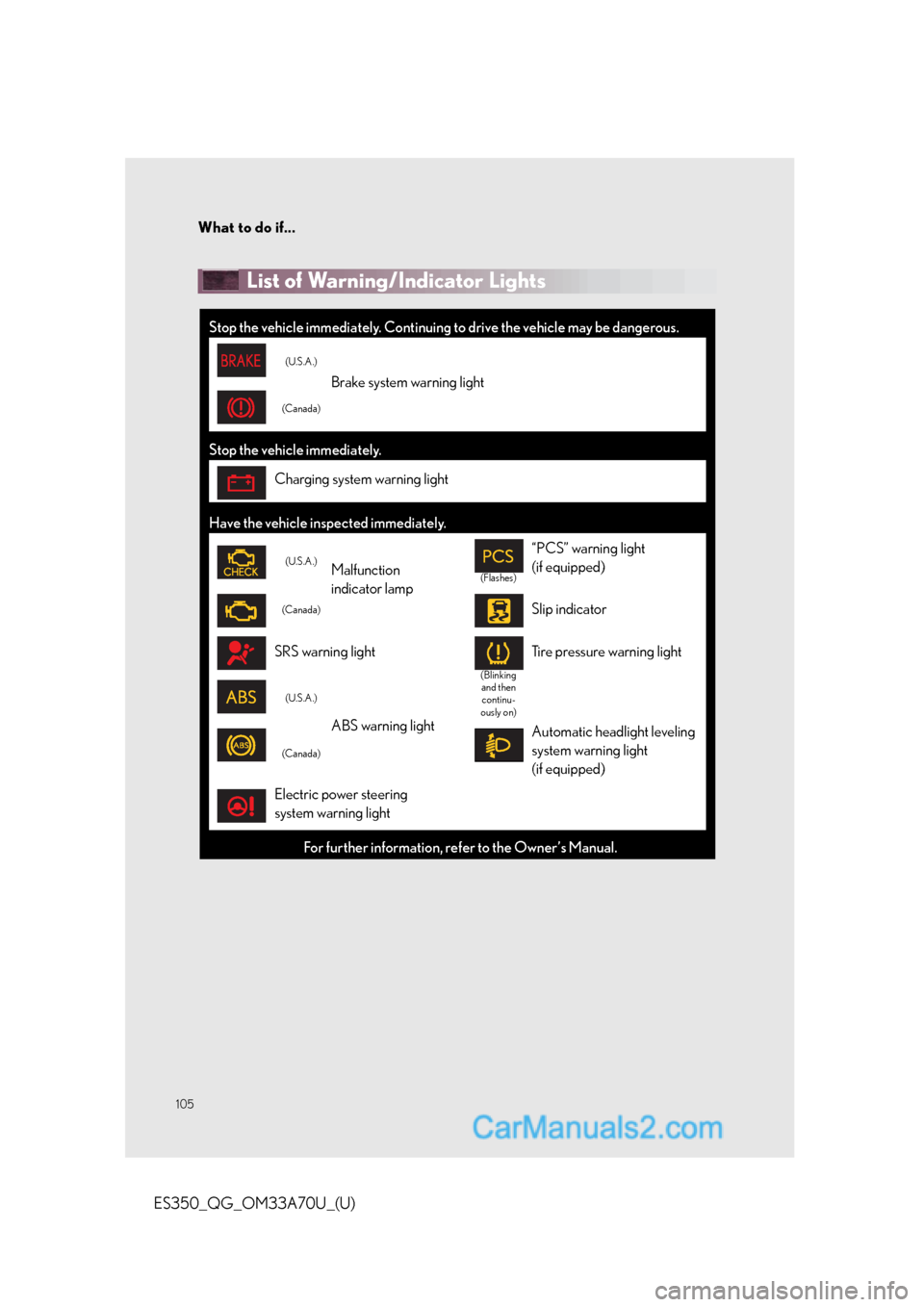

List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lamp(Flashes)
“PCS” warning light
(if equipped)
(Canada)Slip indicator
SRS warning light
(Blinking
and then
continu-
ously on)
Tire pressure warning light
(U.S.A.)
ABS warning light
(Canada)
Automatic headlight leveling
system warning light
(if equipped)
Electric power steering
system warning light
For further information, refer to the Owner’s Manual.

106
What to do if...
ES350_QG_OM33A70U_(U)
*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.

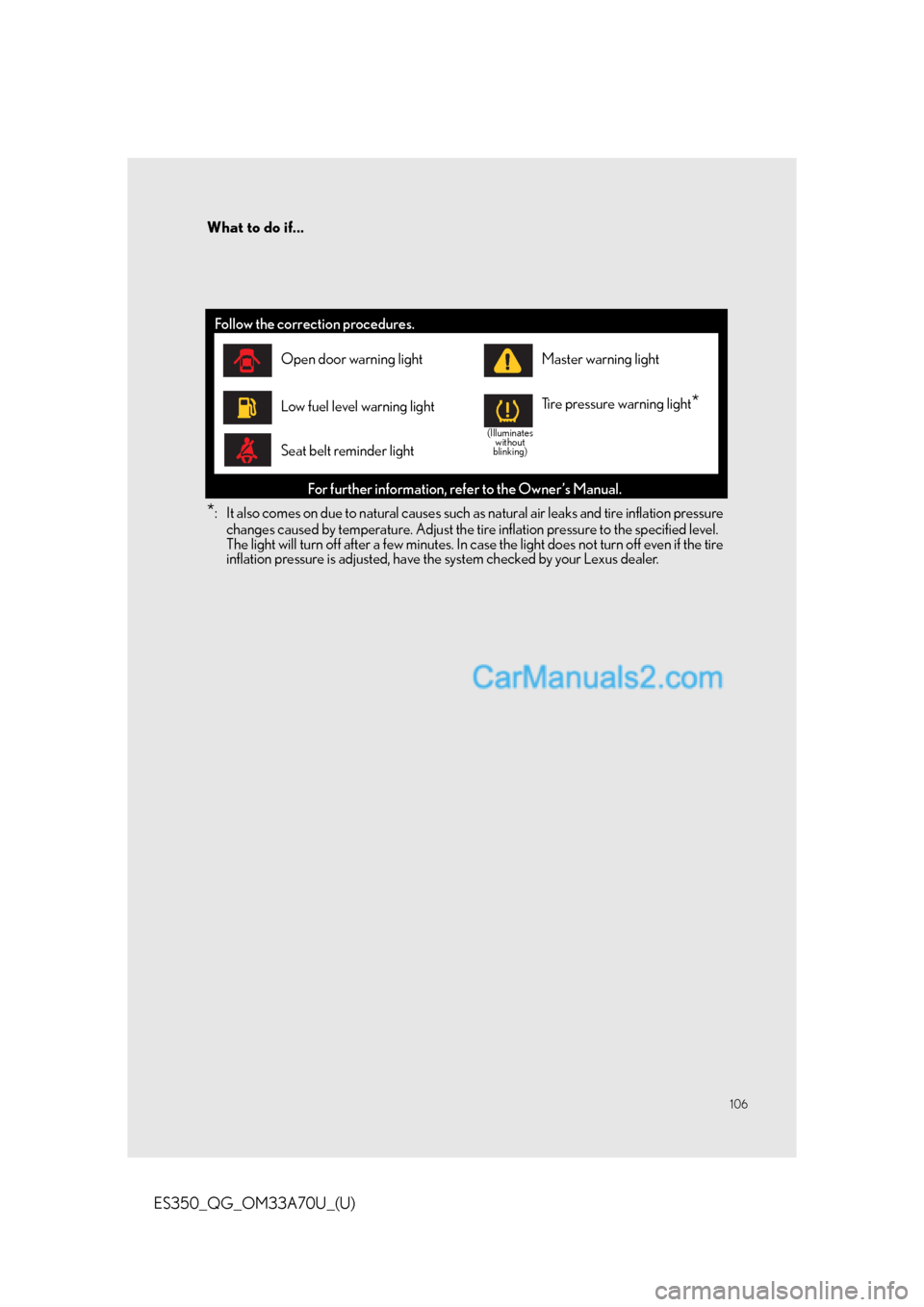

Follow the correction procedures.
Open door warning lightMaster warning light
Low fuel level warning light
(Illuminates
without
blinking)
Tire pressure warning light*
Seat belt reminder light
For further information, refer to the Owner’s Manual.

What to do if...
107
ES350_QG_OM33A70U_(U)

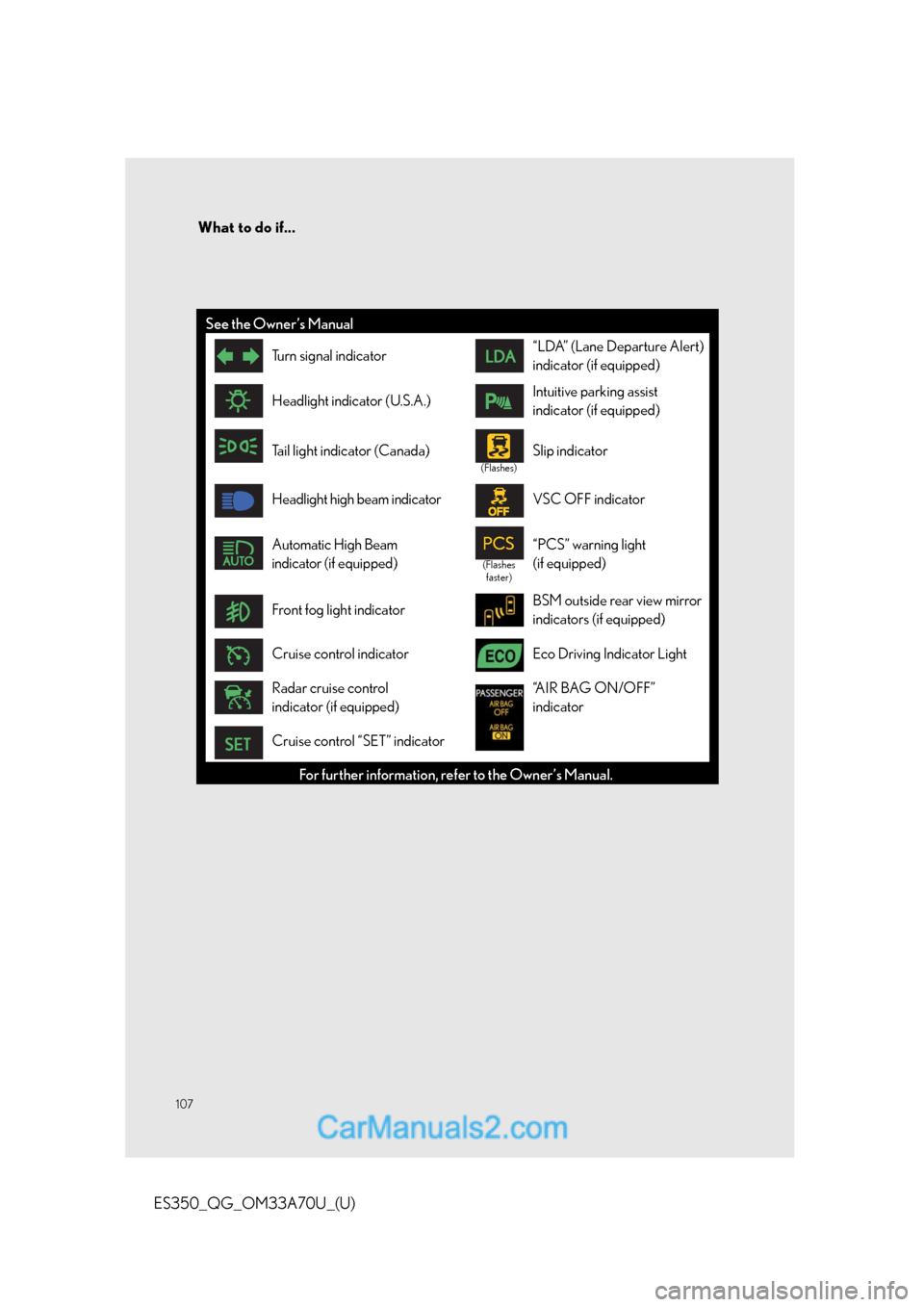

See the Owner’s Manual
Turn signal indicator“LDA” (Lane Departure Alert)
indicator (if equipped)
Headlight indicator (U.S.A.)Intuitive parking assist
indicator (if equipped)
Tail light indicator (Canada)
(Flashes)
Slip indicator
Headlight high beam indicatorVSC OFF indicator
Automatic High Beam
indicator (if equipped)
(Flashes
faster)
“PCS” warning light
(if equipped)
Front fog light indicatorBSM outside rear view mirror
indicators (if equipped)
Cruise control indicatorEco Driving Indicator Light
Radar cruise control
indicator (if equipped)“AIR BAG ON/OFF”
indicator
Cruise control “SET” indicator
For further information, refer to the Owner’s Manual.

108
What to do if...
ES350_QG_OM33A70U_(U)

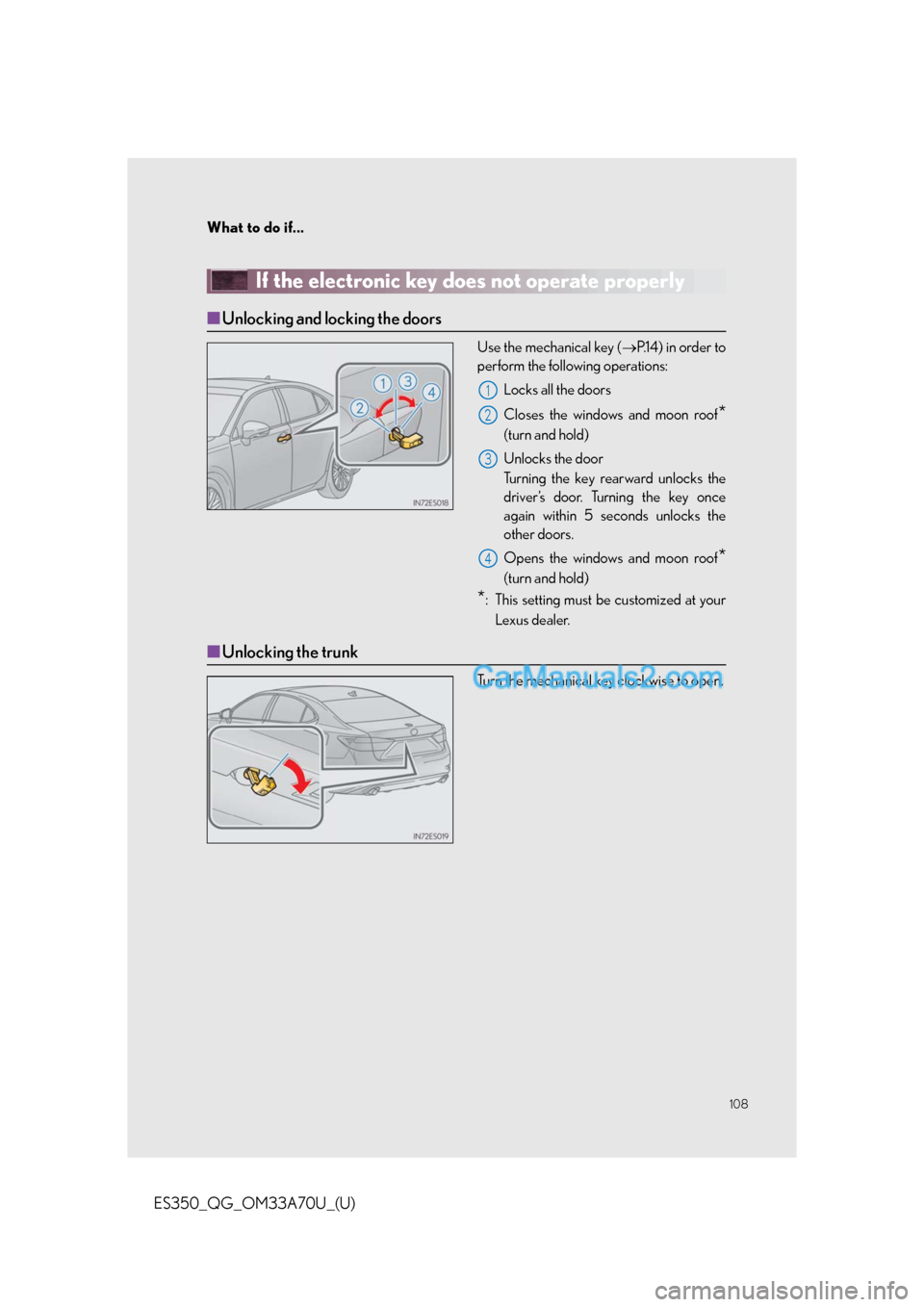

If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key (P.14) in order to
perform the following operations:
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof
*
(turn and hold)
*: This setting must be customized at your
Lexus dealer.
■Unlocking the trunk
Turn the mechanical key clockwise to open.
1
2
3
4

What to do if...
109
ES350_QG_OM33A70U_(U)
■Starting the engine
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the “START STOP
ENGINE” switch.
The “START STOP ENGINE” switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the “START STOP
ENGINE” switch will turn to ACCES-
SORY mode.
Firmly depress the brake pedal and
check that is shown on the
multi-information display.
Press the “START STOP ENGINE”
switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
If the engine doesn’t start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
engine. (P. 2 4 )
1
2
3
4
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner’s Manual. If you need further assistance,
contact your Lexus dealer.
Brake pedal
If the engine still does not start, see the Owner’s Manual for more information or contact
your Lexus dealer.

110
ES350_QG_OM33A70U_(U)

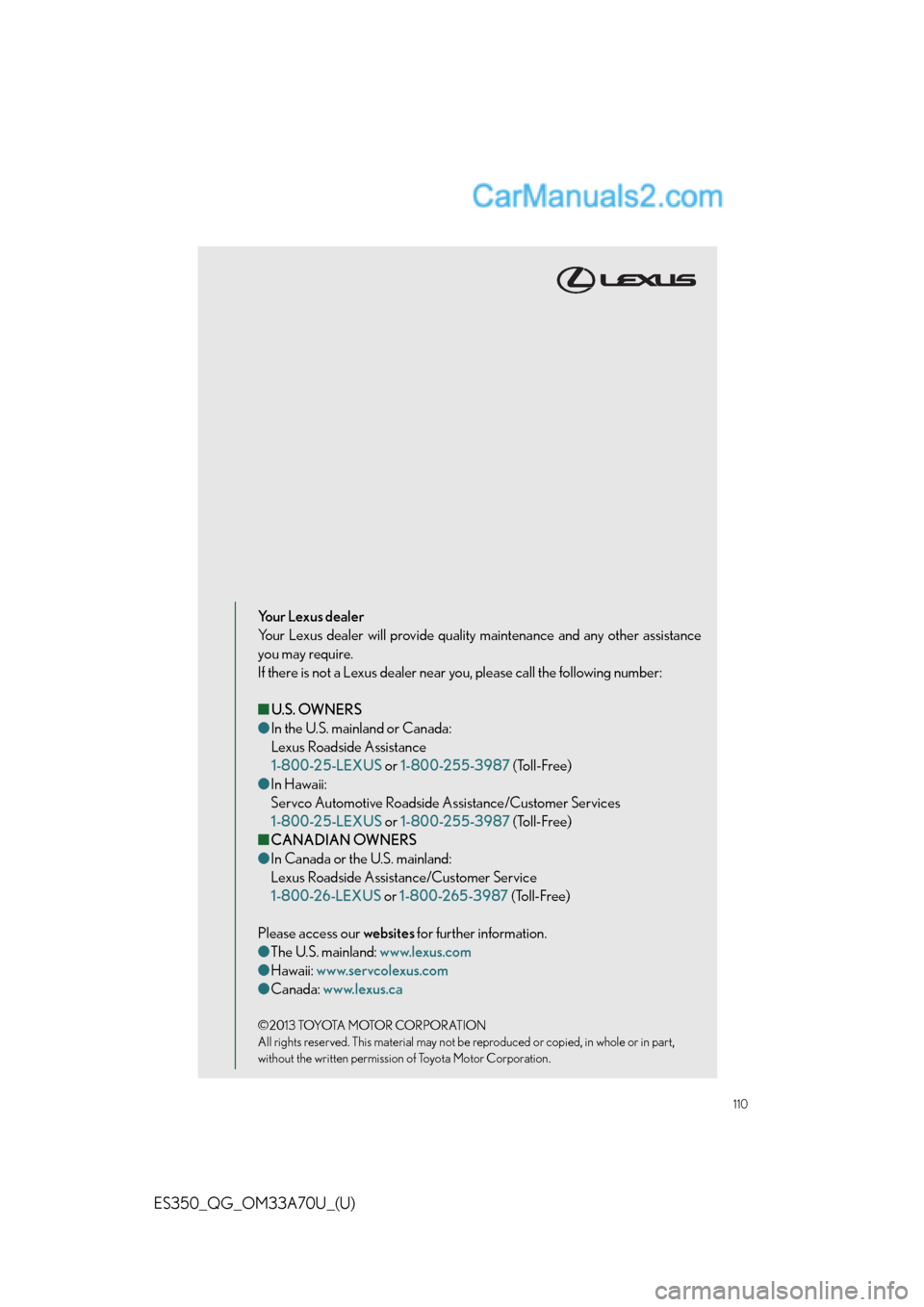

Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■U.S. OWNERS
●In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
●In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■CANADIAN OWNERS
●In Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
●The U.S. mainland: www.lexus.com
●Hawaii: www.servcolexus.com
●Canada: www.lexus.ca
© 2 0 1 3 TOYOTA M OTO R CO R P O R AT I O N
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
