Page 3 of 688
3
1
8 7
6
5
4
3
2
GS350_250_OM_OM30E16E_(EE)
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 195
Inside rear view mirror .............. 196
Outside rear view mirrors ....... 199
3-5. Opening, closing the windows and moon roof
Power windows ...........................204
Moon roof .................................... 208
4-1. Before driving Driving the vehicle ...................... 214
Cargo and luggage ...................225
Trailer towing (vehicles without towing package) ..... 226
Trailer towing (vehicles with towing package) ...................... 227
4-2. Driving procedures Engine (ignition) switch ........... 237
Automatic transmission ........... 244
Turn signal lever ..........................253
Parking brake ...............................255
Horn................................................ 258 4-3. Operating the lights
and wipers
Headlight switch ......................... 259
Automatic High Beam ............. 264
Fog light switch............................ 270
Windshield wipers and washer................................. 272
Headlight cleaner switch ........ 279
4-4. Refueling Opening the fuel tank cap..... 280
4-5. Using the driving support systems
Cruise control .............................285
Dynamic radar cruise control..........................................289
LKA (Lane-Keeping Assist) ......... 305
Driving mode select switch..... 315
Driving assist systems ...............320
Hill-start assist control..............328
PCS (Pre-Crash Safety system).........................................330
BSM (Blind Spot Monitor) ...... 341 •The Blind Spot Monitor function.................................... 348
• The Rear Crossing Traffic Alert function .......................... 351
4-6. Driving tips Winter driving tips .....................354
4Driving
GS350_250_OM_OM30E16E_(EE).book Page 3 Tuesday, July 8, 2014 7:11 PM
Page 15 of 688
15Pictorial index
GS350_250_OM_OM30E16E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . . . . . . . . . . P. 397
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 438
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 280
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 645
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
Checking/rotation/tire pressure warning system
*1. . . . . . . . . . . . . . . . . . P. 466
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 577, 592
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 3 5
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 625
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
Headlights/front position lights/daytime ru nning lights . . . . . . . . . . . . P. 259
Front fog lights
*1/rear fog light*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Back-up light
*2
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 514, Watts: P. 647)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
GS350_250_OM_OM30E16E_(EE).book Page 15 Tuesday, July 8, 2014 7:11 PM
Page 213 of 688
213
4Driving
GS350_250_OM_OM30E16E_(EE)
4-1. Before drivingDriving the vehicle ...................... 214
Cargo and luggage ................... 225
Trailer towing (vehicles without towing package) ..... 226
Trailer towing (vehicles with towing package)...................... 227
4-2. Driving procedures Engine (ignition) switch ........... 237
Automatic transmission ........... 244
Turn signal lever ..........................253
Parking brake...............................255
Horn................................................ 258
4-3. Operating the lights and wipers
Headlight switch ......................... 259
Automatic High Beam ............. 264
Fog light switch............................ 270
Windshield w ipers and washer................................. 272
Headlight cleaner switch ........ 279 4-4. Refueling
Opening the fuel tank cap .....280
4-5. Using the driving support systems
Cruise control ............................. 285
Dynamic radar cruise control ......................................... 289
LKA (Lane-Keeping Assist) ..........305
Driving mode select switch .... 315
Driving assist systems...............320
Hill-start assist control ............. 328
PCS (Pre-Crash Safety system) ........................................330
BSM (Blind Spot Monitor) ...... 341 •The Blind Spot Monitor function ....................................348
• The Rear Crossing Traffic Alert function...........................351
4-6. Driving tips Winter driving tips ..................... 354
GS350_250_OM_OM30E16E_(EE).book Page 213 Tuesday, July 8, 201 4 7:11 PM
Page 227 of 688
227
4
4-1. Before driving
Driving
GS350_250_OM_OM30E16E_(EE)
Trailer towing (vehicles with towing package)
◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible draw
bar load before towing. (
→P. 6 3 2 )
◆Towing hitch/bracket
Lexus recommends the use of the Lexus hitch/bracket for your vehicle.
Other products of a suitable nature and comparable quality may also
be used.
Your vehicle is designed primaril y as a passenger carrying vehicle.
Towing a trailer will have an adve rse effect on handling, performance,
braking, durability, and fuel consum ption. Your safety and satisfaction
depend on the proper use of correct equipment and cautious driving
habits. For your safety and the safety of others, do not overload the
vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in accor-
dance with the trailer’s character istics and operating conditions.
Lexus warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Ask your local authorized Lexus dealer or repairer, or another duly
qualified and equipped professional for further details before towing,
as there are additional legal re quirements in some countries.
GS350_250_OM_OM30E16E_(EE).book Page 227 Tuesday, July 8, 201 4 7:11 PM
Page 280 of 688
2804-4. Refueling
GS350_250_OM_OM30E16E_(EE)
Opening the fuel tank cap
●Close all the doors and windows, and turn the engine switch off.
●Confirm the type of fuel.
■Fuel types
EU area:
Unleaded gasoline conforming to European standard EN228, Research Octane
Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to
10%. Make sure that the ethanol blended gasoline to be used has a Research
Octane Number that follows the above.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
GS350_250_OM_OM30E16E_(EE).book Page 280 Tuesday, July 8, 201 4 7:11 PM
Page 281 of 688
2814-4. Refueling
4
Driving
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted
metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle’s painted
surface.
GS350_250_OM_OM30E16E_(EE).book Page 281 Tuesday, July 8, 2014 7:11 PM
Page 282 of 688
2824-4. Refueling
GS350_250_OM_OM30E16E_(EE)
With the doors unlocked, press
the center of the rear edge of the
fuel filler door.
Push until you hear a click and take
your hand away to slightly open the
fuel filler door. Then open the door
fully by hand.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
Opening the fuel tank cap
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 282 Tuesday, July 8, 2014 7:11 PM
Page 284 of 688
2844-4. Refueling
GS350_250_OM_OM30E16E_(EE)
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Close the fuel filler door, and
press the center of the rear edge
of the fuel filler door until you
hear a click.
When you lock the doors, the fuel filler
door will lock also.
■Fuel filler door lock condition
The fuel filler door may not be locked even when the vehicle’s doors are locked in the
following conditions:
●When operating the door lock button inside the vehicle
●When the fuel filler door is closed after the vehicle’s doors are locked
Closing the fuel tank cap
1
2
CAUTION
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
GS350_250_OM_OM30E16E_(EE).book Page 284 Tuesday, July 8, 2014 7:11 PM
Page 388 of 688
3885-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)
■Operation of the air conditioning system in Eco drive mode
In the Eco drive mode, the air conditioning system is controlled as follows to priori-
tize fuel efficiency:
●Engine speed and compressor operation controlled to restrict heating/cooling
capacity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode
■When the S-FLOW mode operates
If air flows to the driver’s seat only, the temperature setting for the front passenger’s
seat is not displayed.
■When the outside temperature falls to nearly 0 °C (32 °F)
The dehumidification function may not operate even when “A/C” on the option con-
trol screen is selected.
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi- ately after the air conditioning system is started in automatic mode.
GS350_250_OM_OM30E16E_(EE).book Page 388 Tuesday, July 8, 201 4 7:11 PM

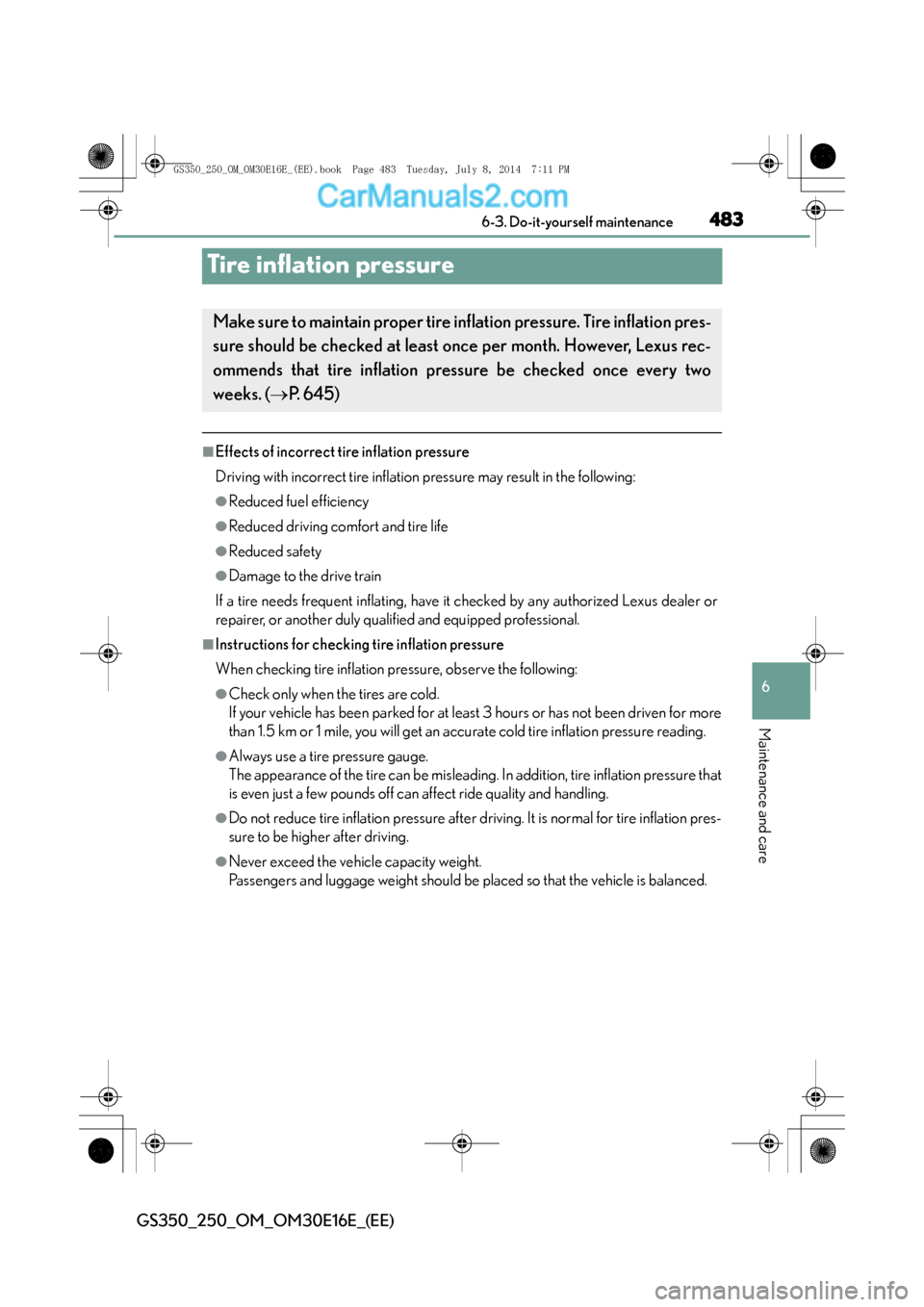

Page 483 of 688
483
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
Tire inflation pressure
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel efficiency
●Reduced driving comfort and tire life
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more
than 1.5 km or 1 mile, you will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation pressure that
is even just a few pounds off can affect ride quality and handling.
●Do not reduce tire inflation pressure after driving. It is normal for tire inflation pres-
sure to be higher after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.
Make sure to maintain proper tire i nflation pressure. Tire inflation pres-
sure should be checked at least once per month. However, Lexus rec-
ommends that tire inflation pressure be checked once every two
weeks. ( →P. 645)
GS350_250_OM_OM30E16E_(EE).book Page 483 Tuesday, July 8, 201 4 7:11 PM
