Lexus IS300h 2014 Owner's Guide

31Pictorial index
IS300h_EE(OM53C61E)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Personal lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Moon roof switches
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Intrusion sensor cancel switch
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 99
Intrusion sensor and tilt sensor cancel switch
*3. . . . . . . . . . . . . . . . . . . . . . P. 99
1
2
3
4
5
6
*1: NEVER use a rearward facing child re-
straint on a seat protected by an AC-
TIVE AIRBAG in front of it, DEATH or
SERIOUS INJURY to the CHILD can
occur. (→P. 76 )
*2: The illustration shows the front, but they are also equipped in the rear.
*3: If equipped
IS300h_EE_OM53C61E.book 31 ページ ２０１４年５月２０日　火曜日　午後５時４０分

32Pictorial index
IS300h_EE(OM53C61E)
IS300h_EE_OM53C61E.book 32 ページ ２０１４年５月２０日　火曜日　午後５時４０分

33
1For safety and security
IS300h_EE(OM53C61E)
1-1. For safe use
Before driving................................. 34
For safety drive............................... 36
Seat belts ..........................................38
SRS airbags ..................................... 43
Airbag manual on-off
system ............................................. 54
Pop Up Hood ................................. 56
Safety information for
children .......................................... 59
Child restraint systems ............... 60
Installing child restraints............. 69
Exhaust gas precautions ............ 78
1-2. Hybrid system
Hybrid system features............... 79
Hybrid system precautions .......83
1-3. Theft deterrent system
Immobilizer system ...................... 90
Double locking system ............... 95
Alarm ................................................. 96
IS300h_EE_OM53C61E.book 33 ページ ２０１４年５月２０日　火曜日　午後５時４０分

34
IS300h_EE(OM53C61E)1-1. For safe use

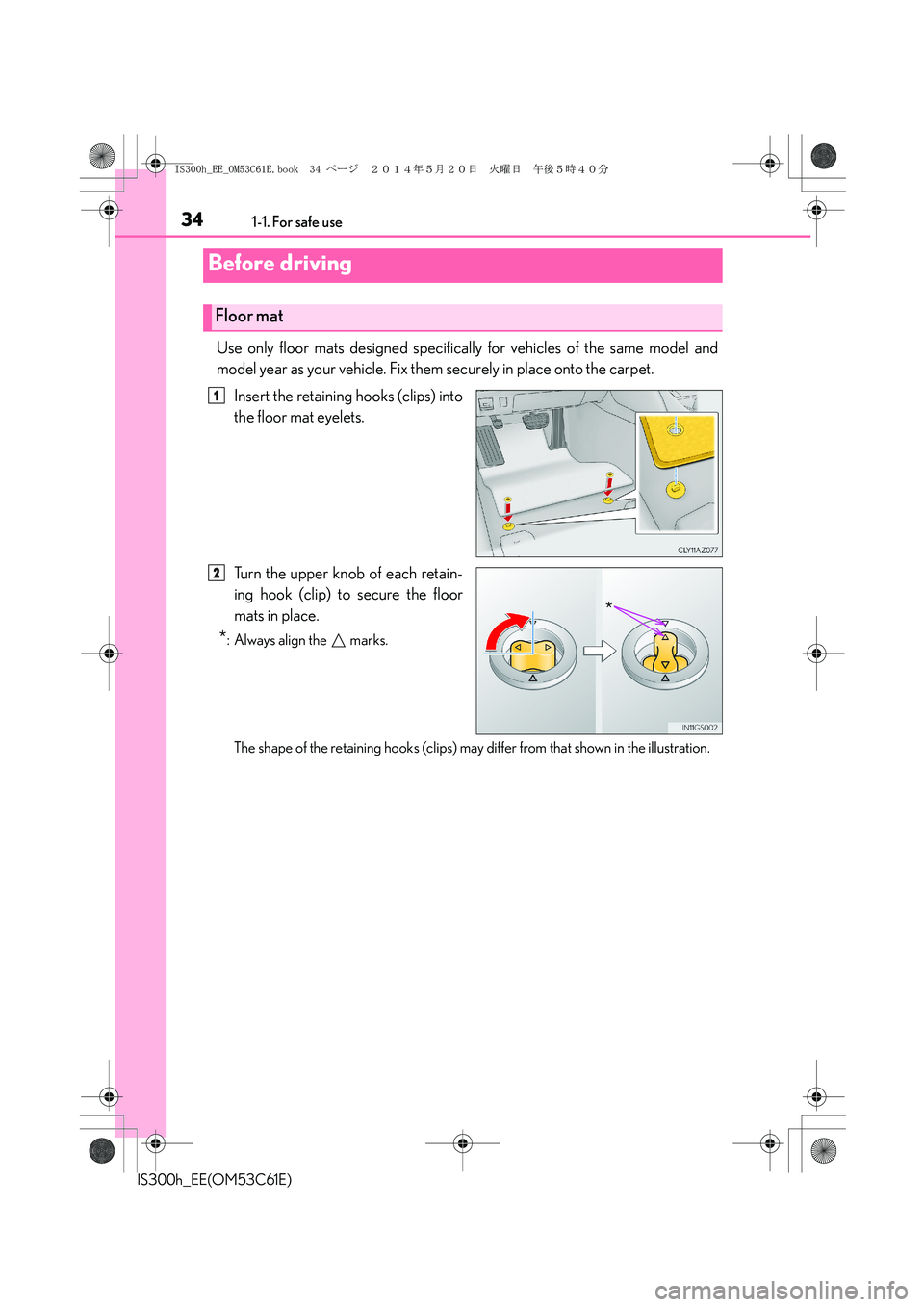

Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
Before driving
Floor mat
1
*
2
IS300h_EE_OM53C61E.book 34 ページ ２０１４年５月２０日　火曜日　午後５時４０分

351-1. For safe use
1
For safety and security
IS300h_EE(OM53C61E)

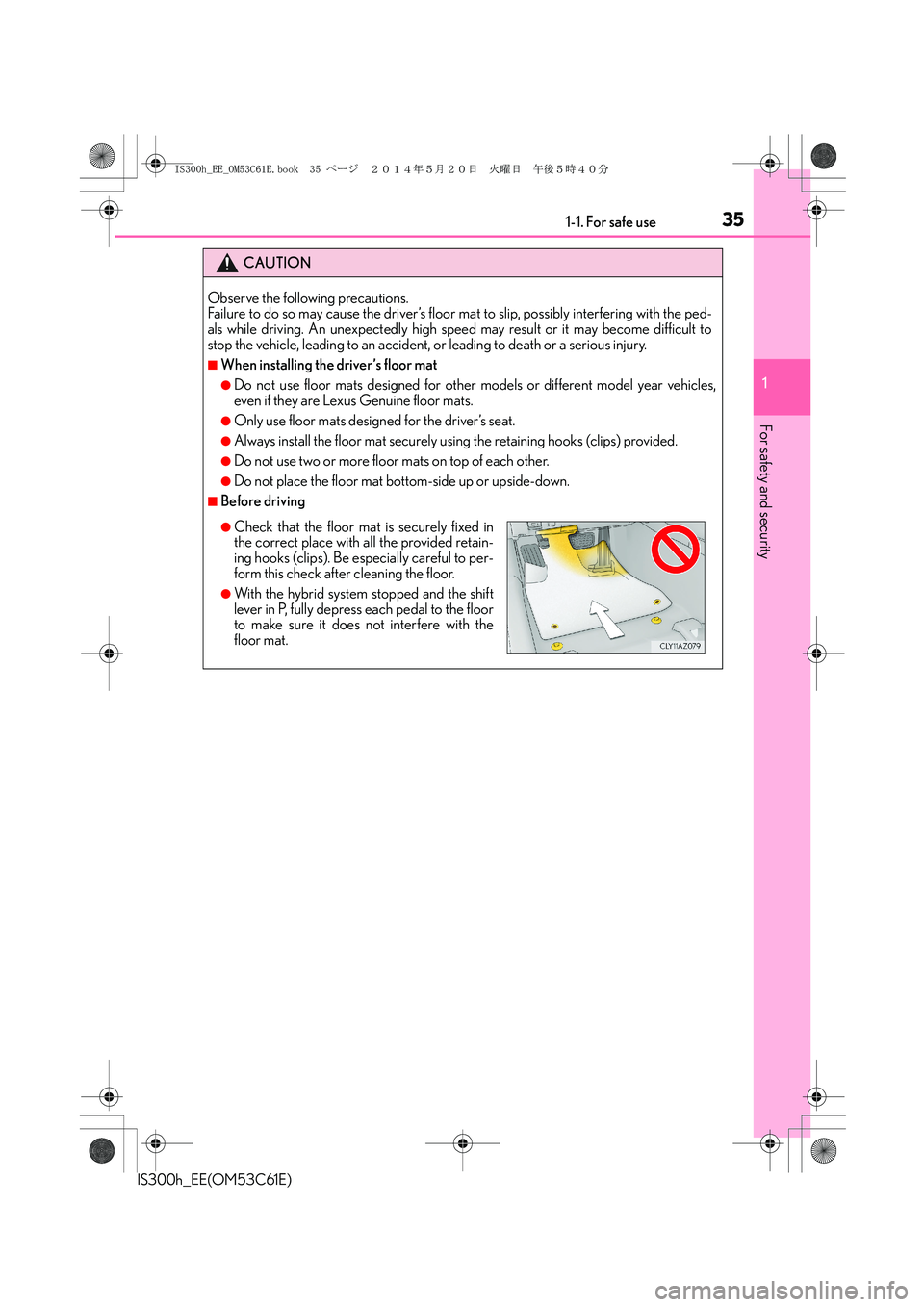

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpectedly high speed may result or it may become difficult to
stop the vehicle, leading to an accident, or leading to death or a serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor.
●With the hybrid system stopped and the shift
lever in P, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.
IS300h_EE_OM53C61E.book 35 ページ ２０１４年５月２０日　火曜日　午後５時４０分

361-1. For safe use
IS300h_EE(OM53C61E)
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (→P. 1 6 4 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
(→P. 1 6 4 )
Lock the head restraint in place with the center of the head restraint closest to
the top of your ears. (→P. 1 7 3 )
Wear the seat belt correctly. (→P. 3 8 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. (→P. 3 8 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. (→P. 6 0 )
For safety drive
For safe driving, adjust the seat and mirror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
IS300h_EE_OM53C61E.book 36 ページ ２０１４年５月２０日　火曜日　午後５時４０分

371-1. For safe use
1
For safety and security
IS300h_EE(OM53C61E)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. (→P. 178, 180)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving
and take a break immediately.
IS300h_EE_OM53C61E.book 37 ページ ２０１４年５月２０日　火曜日　午後５時４０分

381-1. For safe use
IS300h_EE(OM53C61E)
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
●Position the lap belt as low as possi-
ble over the hips.
●Adjust the position of the seatback.
Sit up straight and well back in the
seat.
●Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
IS300h_EE_OM53C61E.book 38 ページ ２０１４年５月２０日　火曜日　午後５時４０分

391-1. For safe use
1
For safety and security
IS300h_EE(OM53C61E)
Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor
up.
Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat belts to
quickly restrain the occupant by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision.
The seat belt pretensioners also activate
when the vehicle is subjected to certain
types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt pretensioners (front seats)
IS300h_EE_OM53C61E.book 39 ページ ２０１４年５月２０日　火曜日　午後５時４０分

401-1. For safe use
IS300h_EE(OM53C61E)
■After the rear center seat belt has been used
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. (→P. 6 0 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regarding seat belt usage. (→P. 3 8 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional for
seat belt replacement or installation. Stow the buckle as shown.
IS300h_EE_OM53C61E.book 40 ページ ２０１４年５月２０日　火曜日　午後５時４０分
