Page 10 of 384
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
10
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

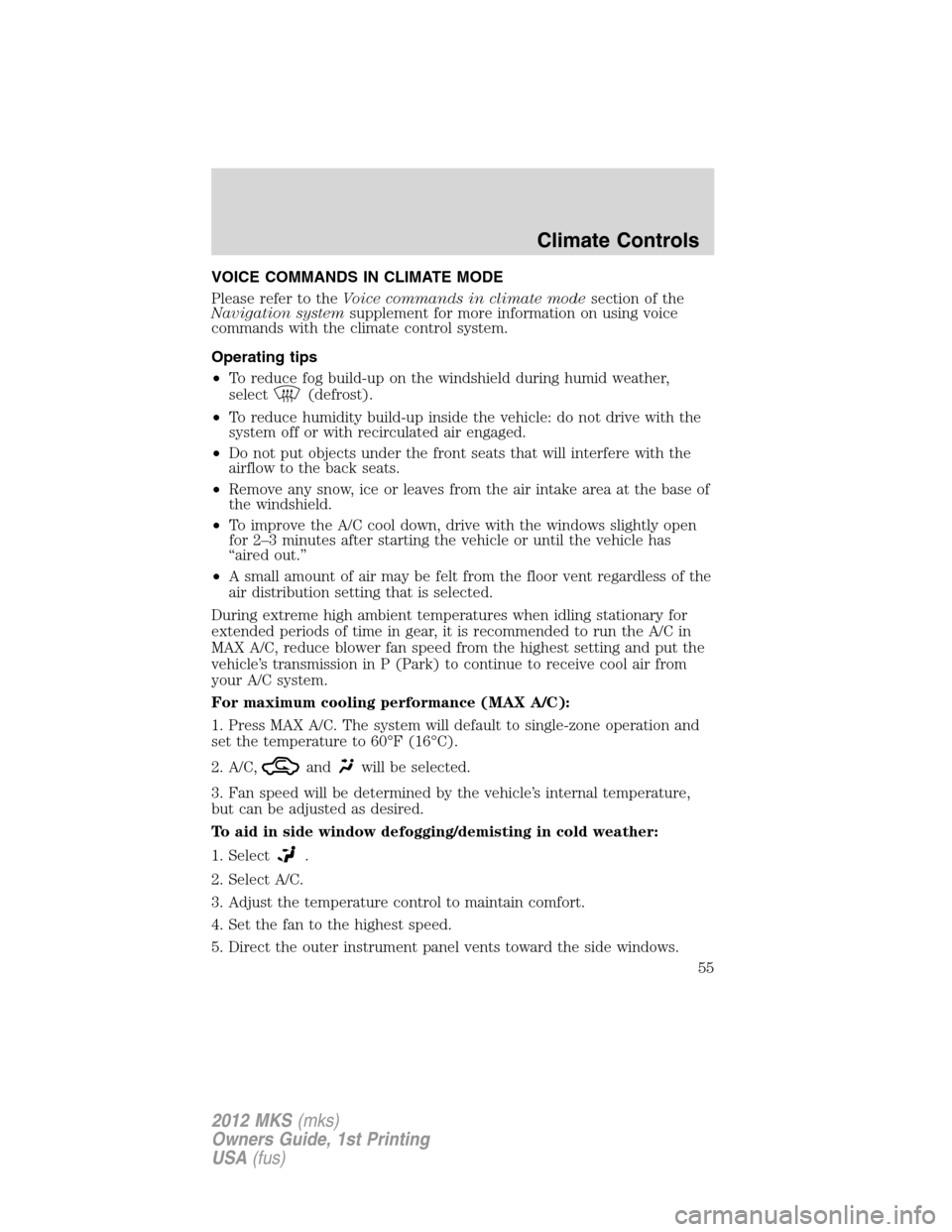

Page 55 of 384
VOICE COMMANDS IN CLIMATE MODE
Please refer to theVoice commands in climate modesection of the
Navigation systemsupplement for more information on using voice
commands with the climate control system.
Operating tips
•To reduce fog build-up on the windshield during humid weather,
select
(defrost).
•To reduce humidity build-up inside the vehicle: do not drive with the
system off or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
•A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
MAX A/C, reduce blower fan speed from the highest setting and put the
vehicle’s transmission in P (Park) to continue to receive cool air from
your A/C system.
For maximum cooling performance (MAX A/C):
1. Press MAX A/C. The system will default to single-zone operation and
set the temperature to 60°F (16°C).
2. A/C,
andwill be selected.
3. Fan speed will be determined by the vehicle’s internal temperature,
but can be adjusted as desired.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan to the highest speed.
5. Direct the outer instrument panel vents toward the side windows.
Climate Controls
55
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

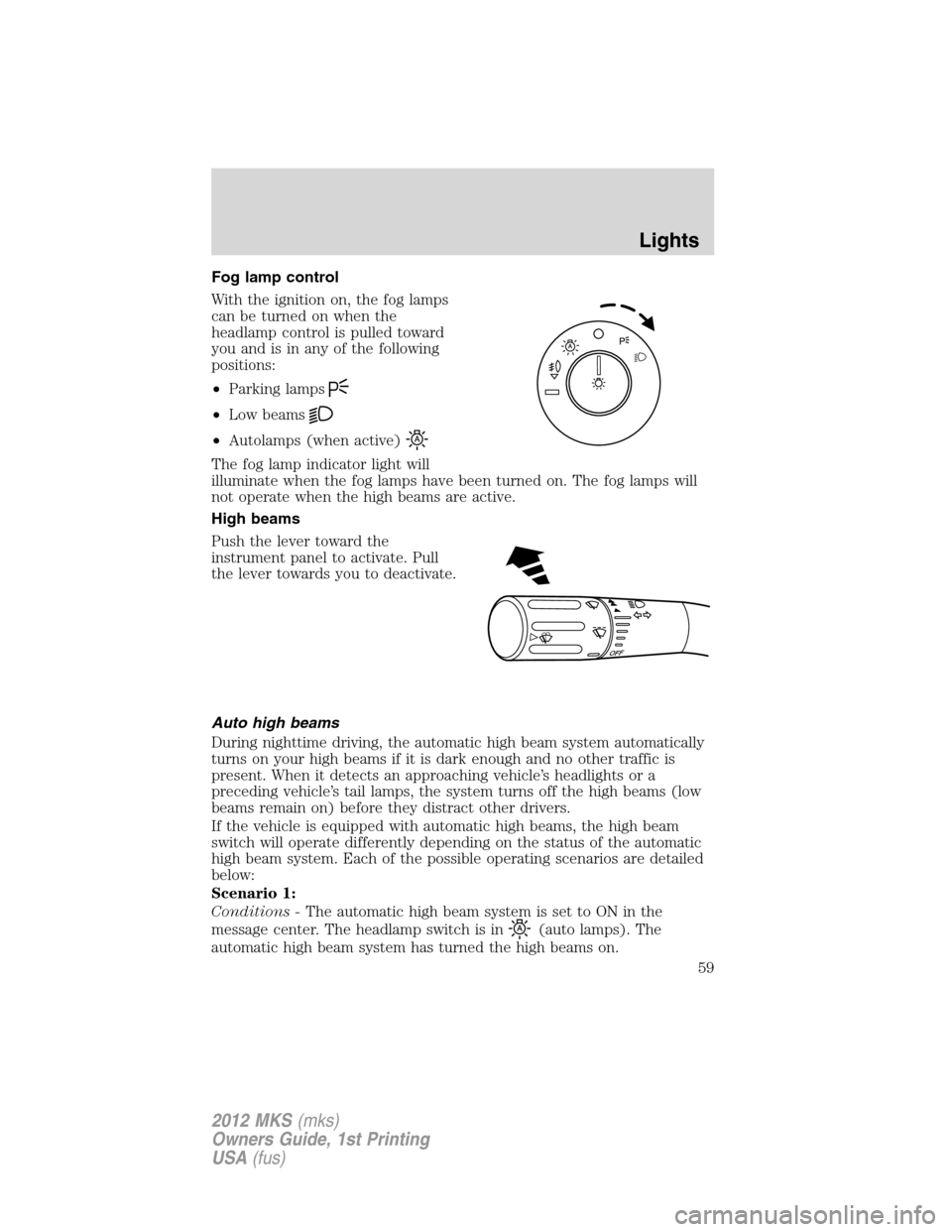

Page 59 of 384
Fog lamp control
With the ignition on, the fog lamps
can be turned on when the
headlamp control is pulled toward
you and is in any of the following
positions:
•Parking lamps
•Low beams
•Autolamps (when active)
The fog lamp indicator light will
illuminate when the fog lamps have been turned on. The fog lamps will
not operate when the high beams are active.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Auto high beams
During nighttime driving, the automatic high beam system automatically
turns on your high beams if it is dark enough and no other traffic is
present. When it detects an approaching vehicle’s headlights or a
preceding vehicle’s tail lamps, the system turns off the high beams (low
beams remain on) before they distract other drivers.
If the vehicle is equipped with automatic high beams, the high beam
switch will operate differently depending on the status of the automatic
high beam system. Each of the possible operating scenarios are detailed
below:
Scenario 1:
Conditions -The automatic high beam system is set to ON in the
message center. The headlamp switch is in
(auto lamps). The
automatic high beam system has turned the high beams on.
O
F
F
Lights
59
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

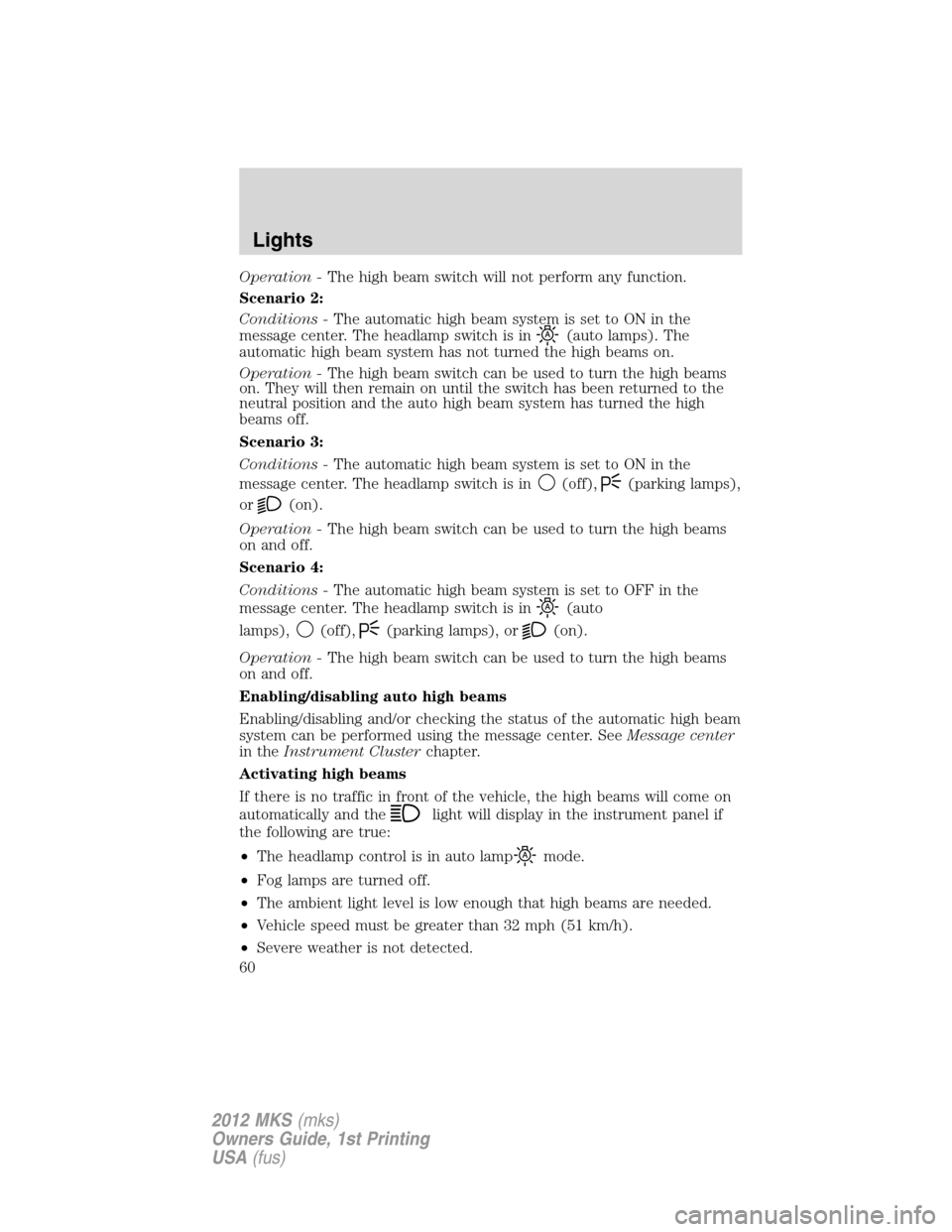

Page 60 of 384
Operation -The high beam switch will not perform any function.
Scenario 2:
Conditions -The automatic high beam system is set to ON in the
message center. The headlamp switch is in
(auto lamps). The
automatic high beam system has not turned the high beams on.
Operation -The high beam switch can be used to turn the high beams
on. They will then remain on until the switch has been returned to the
neutral position and the auto high beam system has turned the high
beams off.
Scenario 3:
Conditions -The automatic high beam system is set to ON in the
message center. The headlamp switch is in
(off),(parking lamps),
or
(on).
Operation -The high beam switch can be used to turn the high beams
on and off.
Scenario 4:
Conditions -The automatic high beam system is set to OFF in the
message center. The headlamp switch is in
(auto
lamps),
(off),(parking lamps), or(on).
Operation -The high beam switch can be used to turn the high beams
on and off.
Enabling/disabling auto high beams
Enabling/disabling and/or checking the status of the automatic high beam
system can be performed using the message center. SeeMessage center
in theInstrument Clusterchapter.
Activating high beams
If there is no traffic in front of the vehicle, the high beams will come on
automatically and the
light will display in the instrument panel if
the following are true:
•The headlamp control is in auto lamp
mode.
•Fog lamps are turned off.
•The ambient light level is low enough that high beams are needed.
•Vehicle speed must be greater than 32 mph (51 km/h).
•Severe weather is not detected.
Lights
60
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

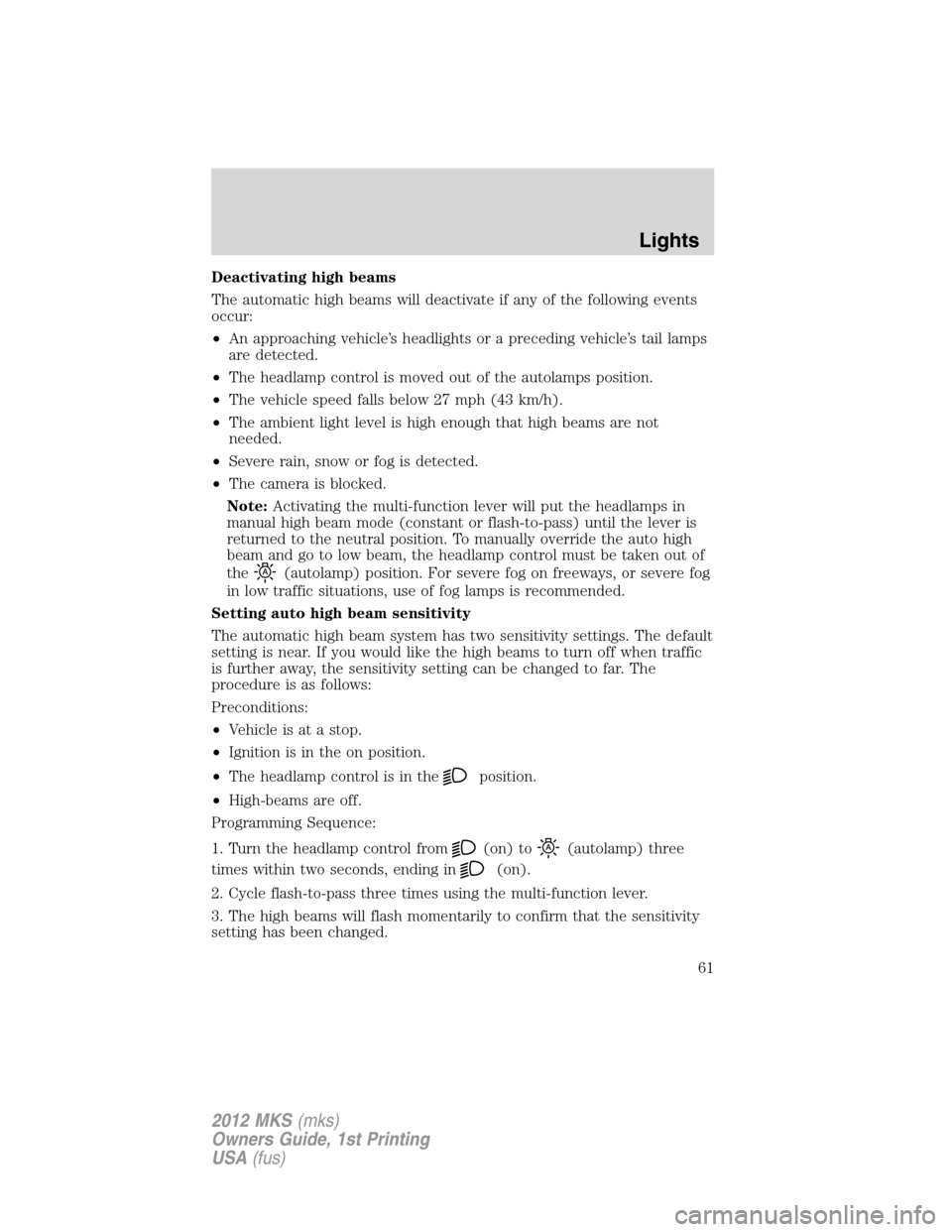

Page 61 of 384
Deactivating high beams
The automatic high beams will deactivate if any of the following events
occur:
•An approaching vehicle’s headlights or a preceding vehicle’s tail lamps
are detected.
•The headlamp control is moved out of the autolamps position.
•The vehicle speed falls below 27 mph (43 km/h).
•The ambient light level is high enough that high beams are not
needed.
•Severe rain, snow or fog is detected.
•The camera is blocked.
Note:Activating the multi-function lever will put the headlamps in
manual high beam mode (constant or flash-to-pass) until the lever is
returned to the neutral position. To manually override the auto high
beam and go to low beam, the headlamp control must be taken out of
the
(autolamp) position. For severe fog on freeways, or severe fog
in low traffic situations, use of fog lamps is recommended.
Setting auto high beam sensitivity
The automatic high beam system has two sensitivity settings. The default
setting is near. If you would like the high beams to turn off when traffic
is further away, the sensitivity setting can be changed to far. The
procedure is as follows:
Preconditions:
•Vehicle is at a stop.
•Ignition is in the on position.
•The headlamp control is in the
position.
•High-beams are off.
Programming Sequence:
1. Turn the headlamp control from
(on) to(autolamp) three
times within two seconds, ending in
(on).
2. Cycle flash-to-pass three times using the multi-function lever.
3. The high beams will flash momentarily to confirm that the sensitivity
setting has been changed.
Lights
61
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

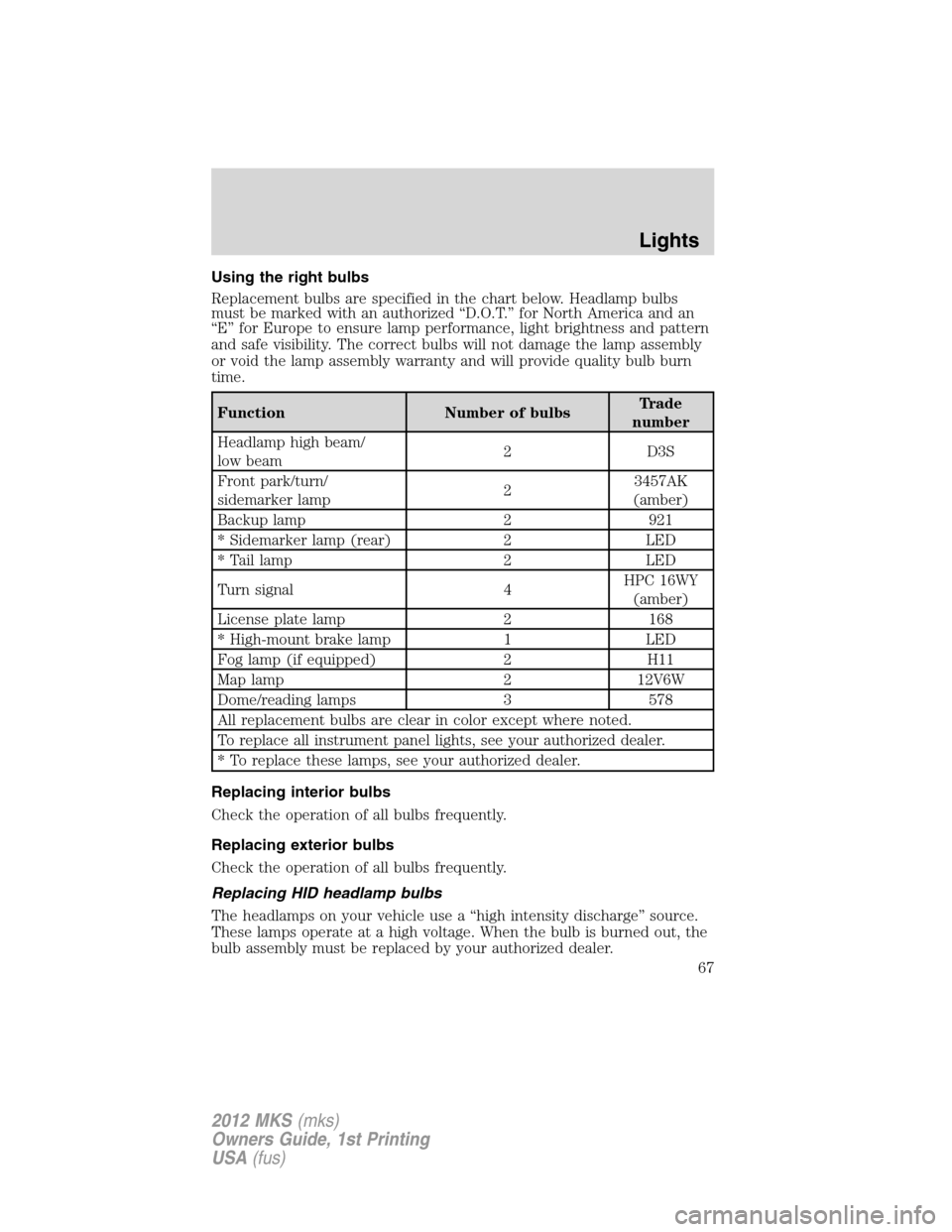

Page 67 of 384
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbsTrade
number
Headlamp high beam/
low beam2 D3S
Front park/turn/
sidemarker lamp23457AK
(amber)
Backup lamp 2 921
* Sidemarker lamp (rear) 2 LED
* Tail lamp 2 LED
Turn signal 4HPC 16WY
(amber)
License plate lamp 2 168
* High-mount brake lamp 1 LED
Fog lamp (if equipped) 2 H11
Map lamp 2 12V6W
Dome/reading lamps 3 578
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights, see your authorized dealer.
* To replace these lamps, see your authorized dealer.
Replacing interior bulbs
Check the operation of all bulbs frequently.
Replacing exterior bulbs
Check the operation of all bulbs frequently.
Replacing HID headlamp bulbs
The headlamps on your vehicle use a “high intensity discharge” source.
These lamps operate at a high voltage. When the bulb is burned out, the
bulb assembly must be replaced by your authorized dealer.
Lights
67
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)
Page 69 of 384
5. Pull the bulb straight from the socket.
Note:The turn bulb is a socket/bulb assembly and the bulb cannot be
removed separately.
Install the new bulb(s) in reverse order.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position.
2. Remove the two screws from the
license plate lamp assembly.
3. Remove bulb socket by turning
counterclockwise.
4. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
Replacing fog lamp bulbs
1. Make sure the fog lamp switch is in the off position.
2. Rotate the harness/bulb assembly
counterclockwise, to remove from
the fog lamp.
3. Carefully disconnect the bulb
from the harness assembly via the
two snap clips.
Install the new bulb in reverse order.
Lights
69
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

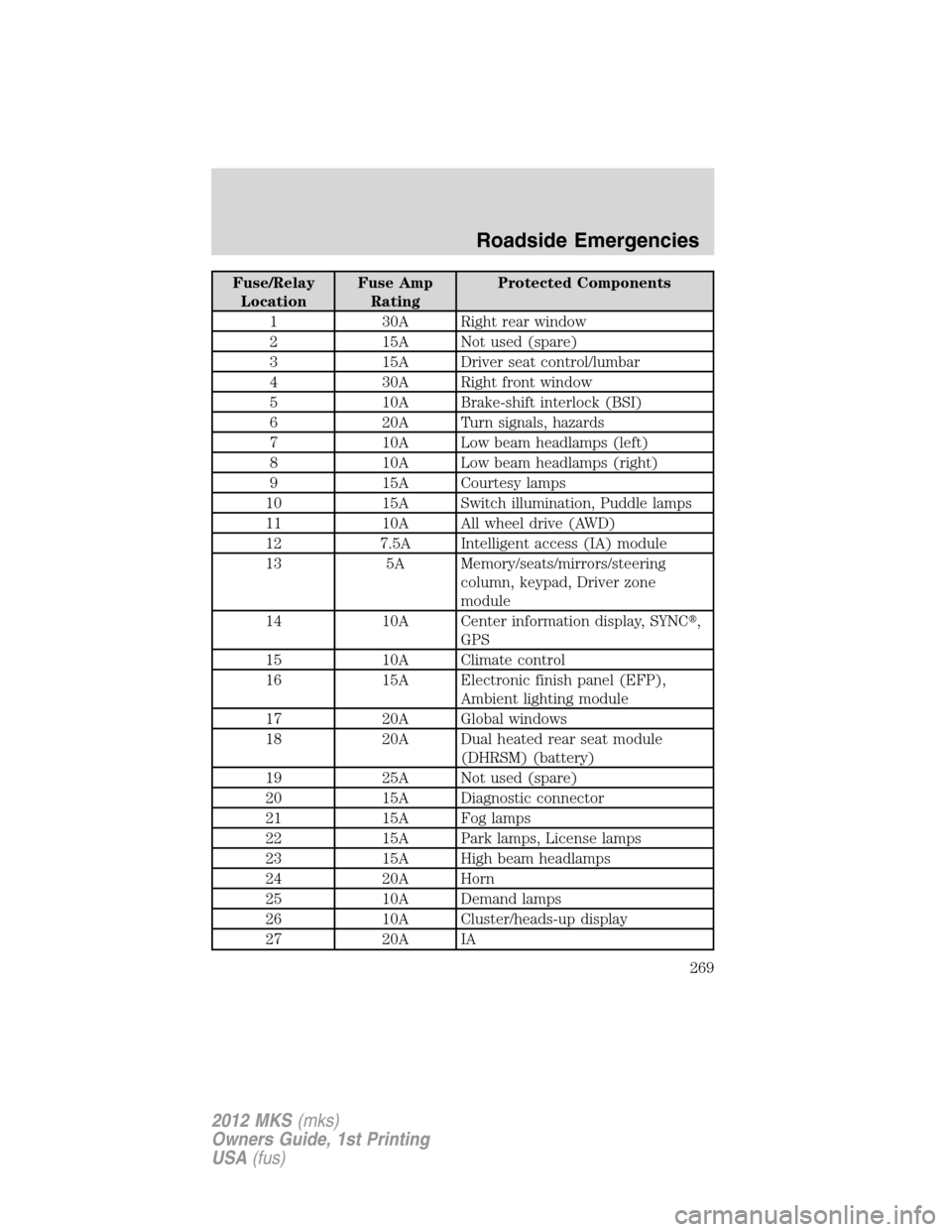

Page 269 of 384
Fuse/Relay
LocationFuse Amp
RatingProtected Components
1 30A Right rear window
2 15A Not used (spare)
3 15A Driver seat control/lumbar
4 30A Right front window
5 10A Brake-shift interlock (BSI)
6 20A Turn signals, hazards
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lamps
10 15A Switch illumination, Puddle lamps
11 10A All wheel drive (AWD)
12 7.5A Intelligent access (IA) module
13 5A Memory/seats/mirrors/steering
column, keypad, Driver zone
module
14 10A Center information display, SYNC,
GPS
15 10A Climate control
16 15A Electronic finish panel (EFP),
Ambient lighting module
17 20A Global windows
18 20A Dual heated rear seat module
(DHRSM) (battery)
19 25A Not used (spare)
20 15A Diagnostic connector
21 15A Fog lamps
22 15A Park lamps, License lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps
26 10A Cluster/heads-up display
27 20A IA
Roadside Emergencies
269
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)
Page 380 of 384
cleaning ...................................299
coolant .....................................316
fail-safe cooling .......................320
lubrication specifications .......345
refill capacities ........................345
service points ..................307–308
Engine block heater .................222
Engine oil ..................................310
checking and adding ..............310
dipstick ....................................310
filter, specifications ................344
refill capacities ........................345
specifications ..........................345
Event data recording ....................7
Exhaust fumes ..........................222
F
Fail safe cooling ........................320
Fleet MyKey programming ......101
Floor mats .............................98–99
Fluid capacities .........................345
Fog lamps ....................................59
Four-Wheel Drive vehicles
driving off road .......................259
Fuel ............................................322
calculating fuel
economy ............................20, 328
cap ...........................................324
capacity ...................................345
choosing the right fuel ...........325
detergent in fuel .....................326
filler funnel .............................327
filling your vehicle with
fuel ...........................322, 324, 328
filter, specifications ........322, 344
fuel pump shut-off ..................266
improving fuel economy ........328
octane rating ...................326, 349quality ......................................326
running out of fuel .........282, 327
safety information relating to
automotive fuels .....................322
Fuses ..........................................267
G
Garage door opener ....................94
Gas cap (see Fuel cap) ............324
Gas mileage
(see Fuel economy) .................328
Gauges .........................................17
H
Hazard flashers .........................266
Headlamps ...................................57
aiming ........................................63
autolamp system .......................58
bulb specifications ....................67
daytime running lights .............63
flash to pass ..............................62
high beam .................................59
turning on and off ....................57
Heated Seats .....................133–134
Heating
heating and air conditioning
system .................................49, 52
Homelink wireless control
system ..........................................94
Hood ..........................................306
I
Ignition ...............................218, 349
Illuminated visor mirror .............72
Index
380
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)
Page 381 of 384
Infant seats
(see Safety seats) .....................173
Inspection/maintenance (I/M)
testing ........................................333
Instrument panel
cleaning ...................................301
cluster ........................................12
lighting up panel and
interior .......................................63
Intelligent Access Key ..............100
Intelligent Access with push
button start ...............................113
J
Jack ............................................274
positioning ...............................274
storage .....................................274
Jump-starting your vehicle ......282
K
Keyless entry system
autolock ...................................108
keypad .....................................120
locking and unlocking doors ..122
programming entry code .......120
Keys ...........................................100
positions of the ignition .........218
L
Lamps
autolamp system .......................58
bulb replacement
specifications chart ..................67
daytime running light ...............63
fog lamps ...................................59
headlamps .................................57
headlamps, flash to pass ..........62instrument panel, dimming .....63
interior lamps .....................65, 67
LATCH anchors .........................177
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........225
Load limits .................................206
Locks
autolock ...................................108
childproof ................................111
doors ........................................107
Lubricant specifications ...........345
Lug nuts ....................................281
Lumbar support, seats .............132
M
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors .........................................79
automatic dimming rearview
mirror ........................................79
heated ............................49, 52, 80
programmable memory ..........116
side view mirrors (power) .......79
Moon roof ....................................92
Motorcraftparts ..............303, 344
MyKey ........................................101
N
Navigation system .......................48
O
Octane rating ............................326
Oil (see Engine oil) ..................310
Index
381
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)
