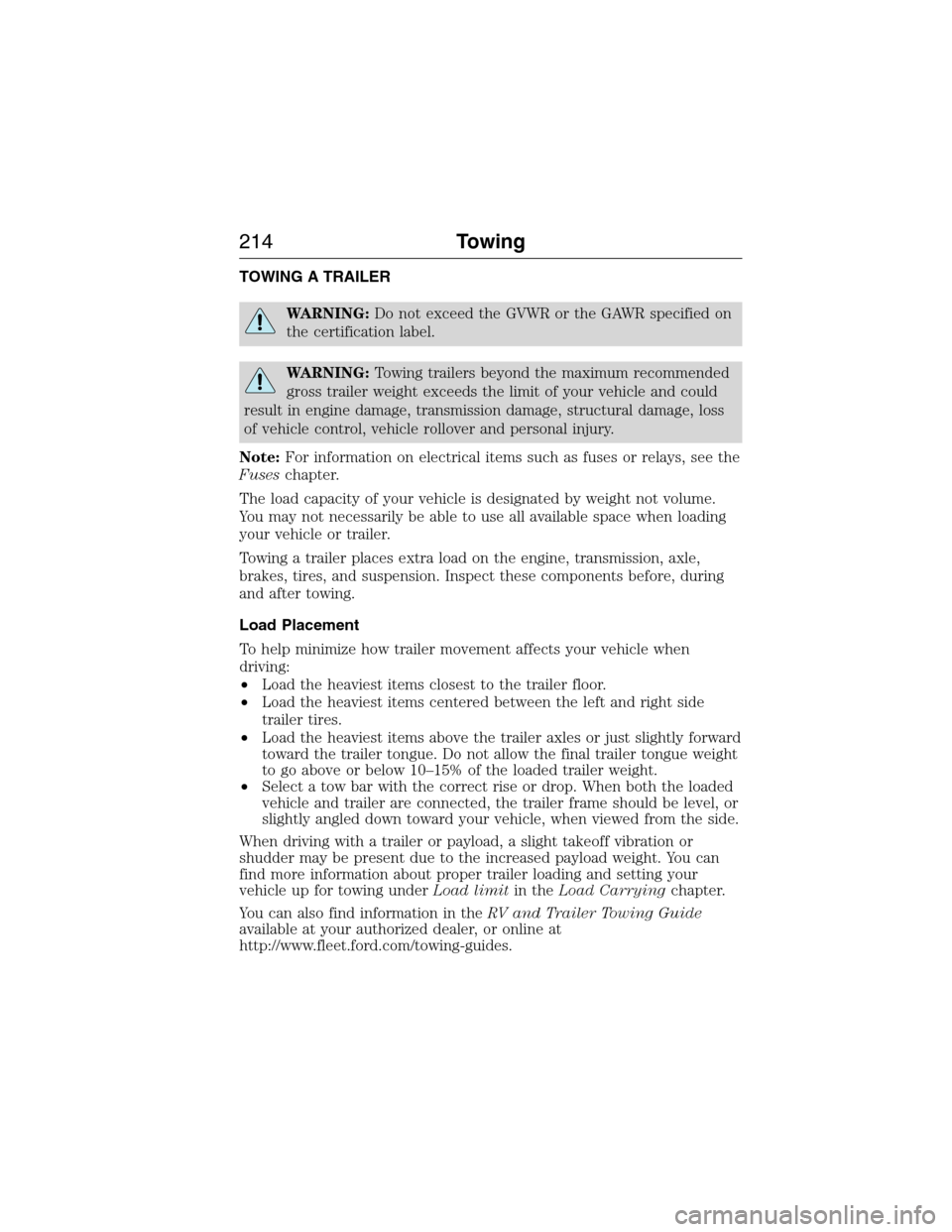

TOWING A TRAILER
WARNING:Do not exceed the GVWR or the GAWR specified on
the certification label.
WARNING:Towing trailers beyond the maximum recommended
gross trailer weight exceeds the limit of your vehicle and could
result in engine damage, transmission damage, structural damage, loss
of vehicle control, vehicle rollover and personal injury.
Note:For information on electrical items such as fuses or relays, see the
Fuseschapter.
The load capacity of your vehicle is designated by weight not volume.
You may not necessarily be able to use all available space when loading
your vehicle or trailer.
Towing a trailer places extra load on the engine, transmission, axle,
brakes, tires, and suspension. Inspect these components before, during
and after towing.
Load Placement
To help minimize how trailer movement affects your vehicle when
driving:
•Load the heaviest items closest to the trailer floor.
•Load the heaviest items centered between the left and right side
trailer tires.
•Load the heaviest items above the trailer axles or just slightly forward
toward the trailer tongue. Do not allow the final trailer tongue weight
to go above or below 10–15% of the loaded trailer weight.
•Select a tow bar with the correct rise or drop. When both the loaded
vehicle and trailer are connected, the trailer frame should be level, or
slightly angled down toward your vehicle, when viewed from the side.
When driving with a trailer or payload, a slight takeoff vibration or
shudder may be present due to the increased payload weight. You can
find more information about proper trailer loading and setting your
vehicle up for towing underLoad limitin theLoad Carryingchapter.
You can also find information in theRV and Trailer Towing Guide
available at your authorized dealer, or online at
http://www.fleet.ford.com/towing-guides.
214Towing
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
Fuse or relay
numberFuse amp
ratingProtected components
1 — Not used
2 — Not used
3 — Not used
4 30A** Wipers
9798 77
96
95
94 93 92 91 90 89 88 66 44
78 5639 26 18 16 173 12 456789
19 20 21 22 23 24
27 28 29 30 31
40 41 42 43
5557 58 59 60 61 62 63 64 65
79 80 81 82 83 84 85 86 8767 45 32 10 11
1213
33 34 35
46 47 48 49 50 51
68 69 70 71 72
74 73
76 7553 37 36
54 38 25 15
14
52
Fuses243
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

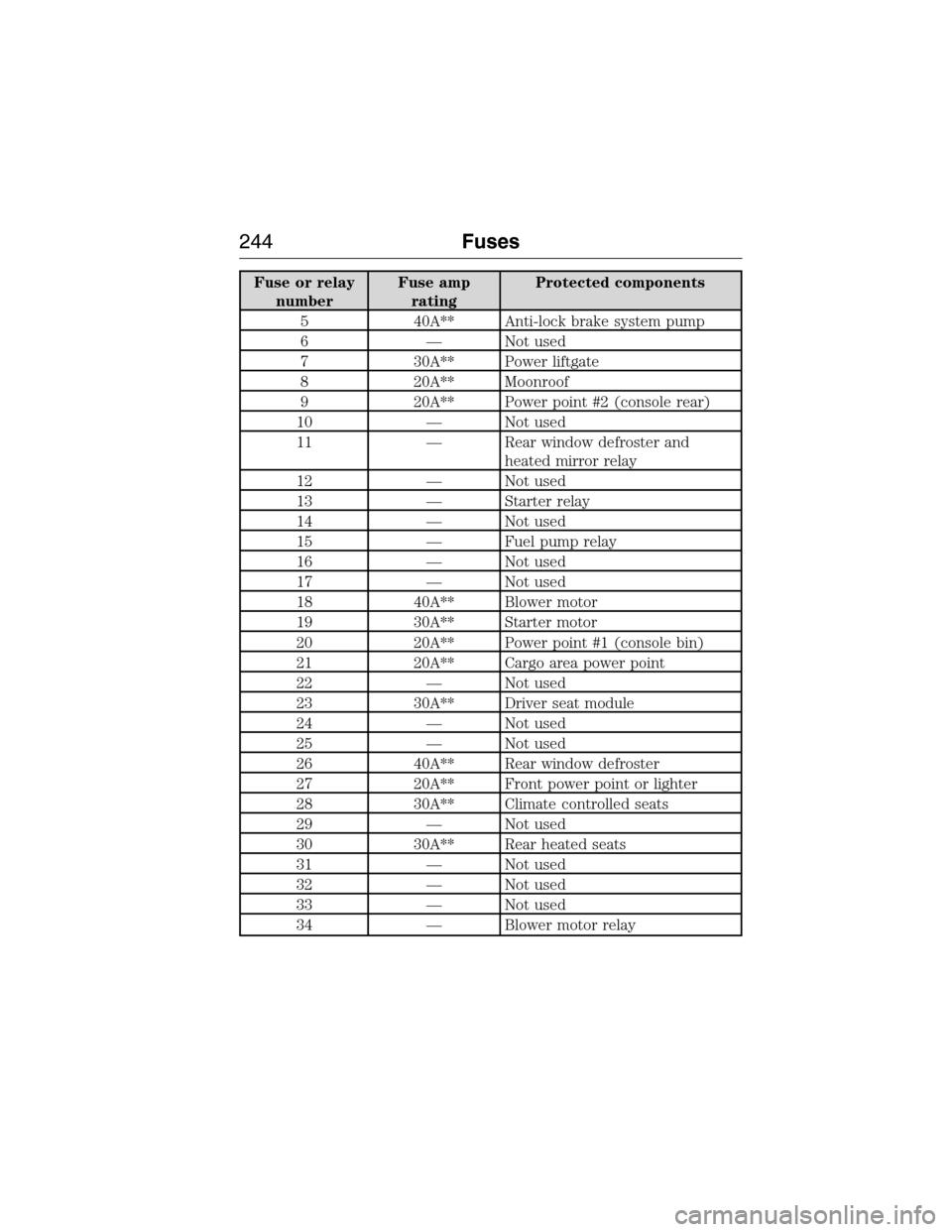

Fuse or relay
numberFuse amp
ratingProtected components
5 40A** Anti-lock brake system pump
6 — Not used
7 30A** Power liftgate
8 20A** Moonroof
9 20A** Power point #2 (console rear)
10 — Not used
11 — Rear window defroster and
heated mirror relay
12 — Not used
13 — Starter relay
14 — Not used
15 — Fuel pump relay
16 — Not used
17 — Not used
18 40A** Blower motor
19 30A** Starter motor
20 20A** Power point #1 (console bin)
21 20A** Cargo area power point
22 — Not used
23 30A** Driver seat module
24 — Not used
25 — Not used
26 40A** Rear window defroster
27 20A** Front power point or lighter
28 30A** Climate controlled seats
29 — Not used
30 30A** Rear heated seats
31 — Not used
32 — Not used
33 — Not used
34 — Blower motor relay
244Fuses
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
35 — Not used
36 — Rear seat relay
37 — Right trailer tow stop/turn lamps
relay
38 — Not used
39 40A** Cooling fan (vehicles with trailer
tow)
60A** Cooling fan (vehicles without
trailer tow)
40 40A** Cooling fan (trailer tow only)
41 — Not used
42 30A** Passenger seat
43 25A** Anti-lock brake system valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Not used
53 — Left trailer tow stop/turn lamps
relay
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge
headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 — Not used
Fuses245
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
61 10A* Rear seat release
62 10A* Air conditioner clutch
63 15A* Trailer tow stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module relay
67 20A* Vehicle power #2
68 15A* Vehicle power #4
69 15A* Vehicle power #1
70 10A* Air conditioner relay, All-wheel
drive module
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — Air conditioner clutch diode
76 — Not used
77 — Trailer tow park lamps relay
78 20A* Right high-intensity discharge
headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* Trailer tow park lamps
85 — Not used
86 7.5A* Powertrain control module
keep-alive, Powertrain control
module relay
87 5A* Run/start relay
88 — Run/start relay
246Fuses
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

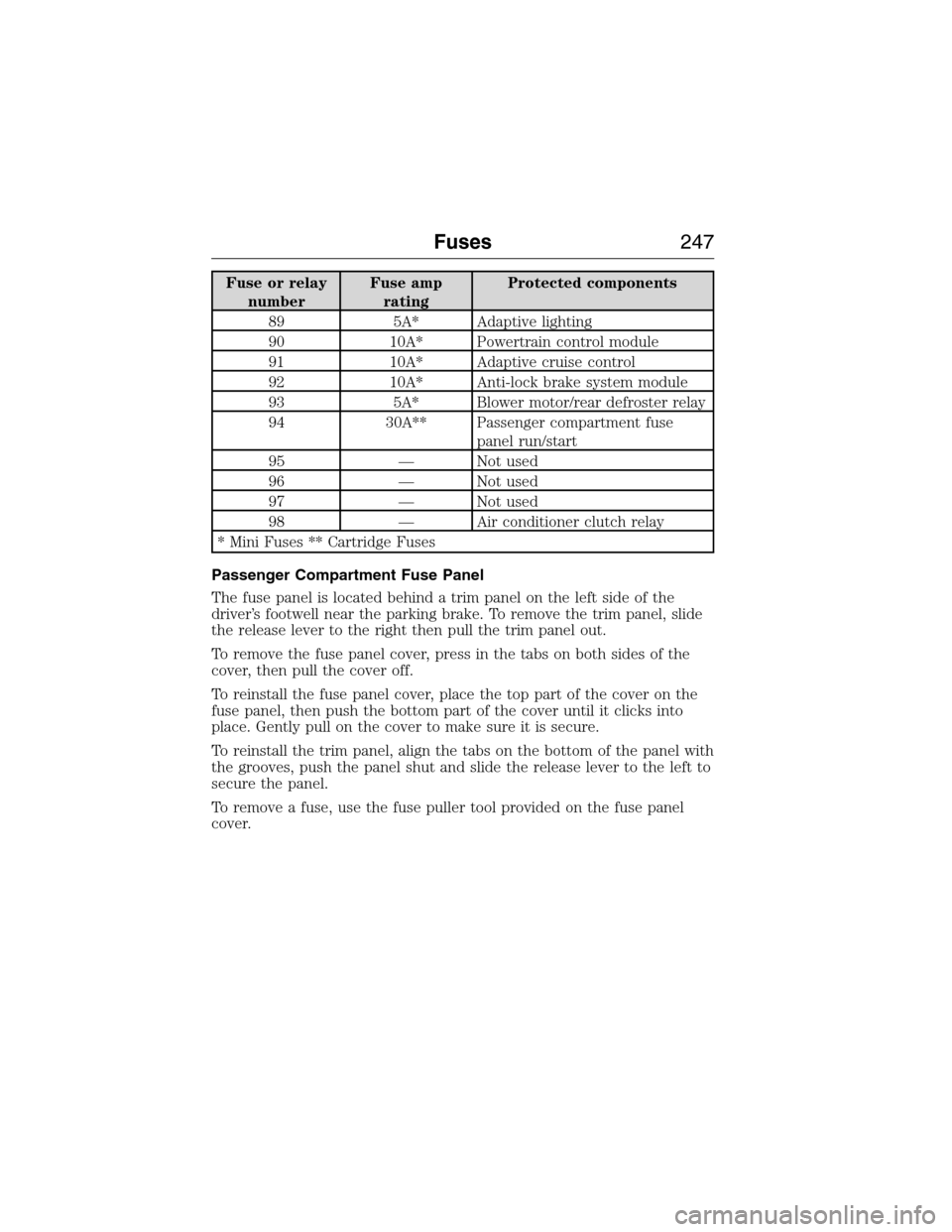

Fuse or relay
numberFuse amp
ratingProtected components
89 5A* Adaptive lighting
90 10A* Powertrain control module
91 10A* Adaptive cruise control
92 10A* Anti-lock brake system module
93 5A* Blower motor/rear defroster relay
94 30A** Passenger compartment fuse
panel run/start
95 — Not used
96 — Not used
97 — Not used
98 — Air conditioner clutch relay
* Mini Fuses ** Cartridge Fuses
Passenger Compartment Fuse Panel
The fuse panel is located behind a trim panel on the left side of the
driver’s footwell near the parking brake. To remove the trim panel, slide
the release lever to the right then pull the trim panel out.
To remove the fuse panel cover, press in the tabs on both sides of the
cover, then pull the cover off.
To reinstall the fuse panel cover, place the top part of the cover on the
fuse panel, then push the bottom part of the cover until it clicks into
place. Gently pull on the cover to make sure it is secure.
To reinstall the trim panel, align the tabs on the bottom of the panel with
the grooves, push the panel shut and slide the release lever to the left to
secure the panel.
To remove a fuse, use the fuse puller tool provided on the fuse panel
cover.
Fuses247
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

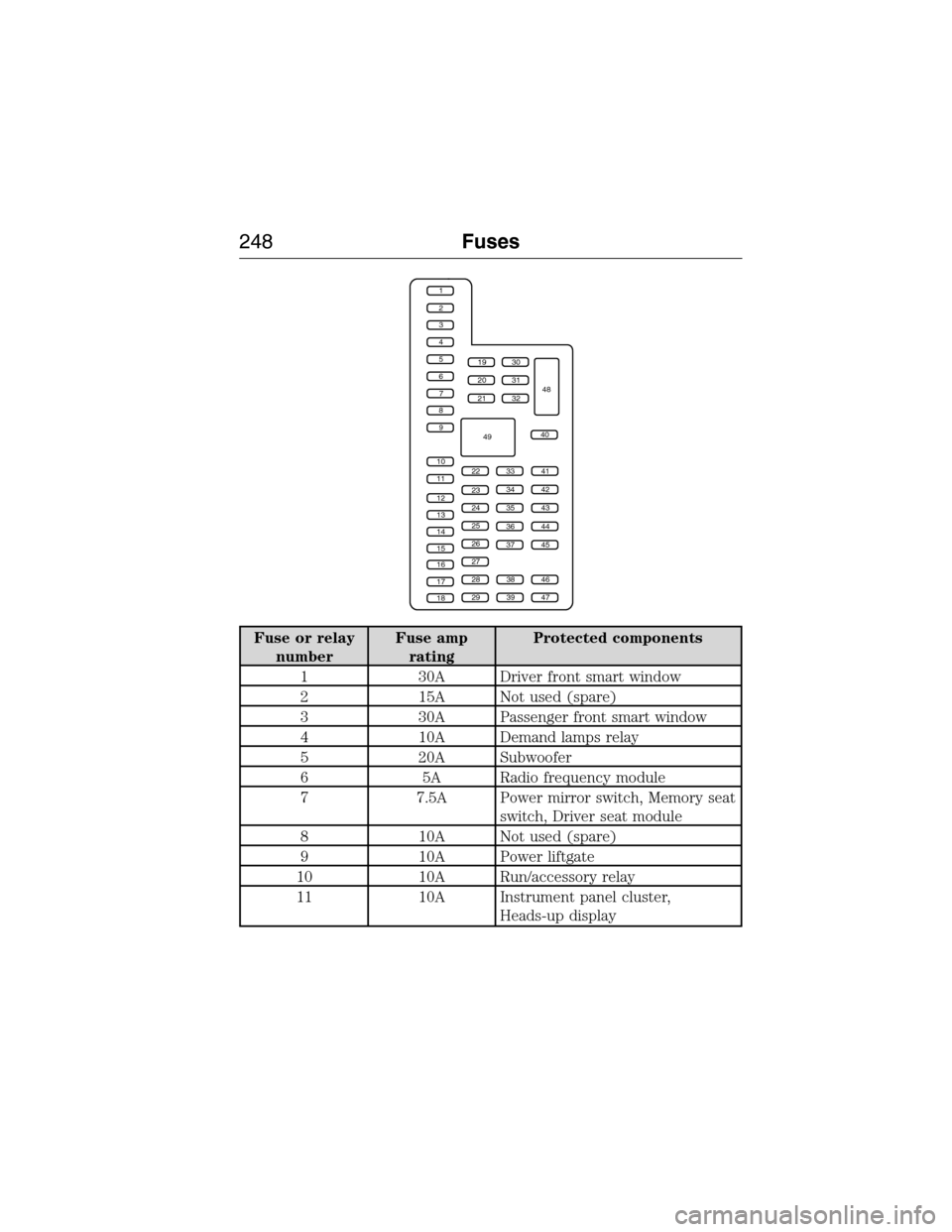

Fuse or relay
numberFuse amp
ratingProtected components
1 30A Driver front smart window
2 15A Not used (spare)
3 30A Passenger front smart window
4 10A Demand lamps relay
5 20A Subwoofer
6 5A Radio frequency module
7 7.5A Power mirror switch, Memory seat
switch, Driver seat module
8 10A Not used (spare)
9 10A Power liftgate
10 10A Run/accessory relay
11 10A Instrument panel cluster,
Heads-up display
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
223341
42
43
44
45
34
35
36
37
23
24
25
26
27
283846
394729
32
40
31
30
48
49
248Fuses
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
12 15A Interior lighting, Puddle lamps,
Backlighting
13 15A Right turn/stop lamps and turn
signals
14 15A Left turn/stop lamps and turn
signals
15 15A Reverse lamps, High-mounted
stop lamps
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Keypad illumination, Brake shift
interlock, Start button LED,
Passive anti-theft system,
Powertrain control module
wake-up, Second row power
enable
19 20A Audio amplifier
20 20A Lock/unlock relays – vehicles
without intelligent access
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control, Intelligent
access, Headlamp switch
24 15A Power tilt/telescope steering
column, On-board diagnostics
25 15A Liftgate release
26 5A Global positioning system module
27 20A Intelligent access
28 15A Ignition switch (without
intelligent access), Key inhibit
solenoid, Push button start (with
intelligent access)
Fuses249
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
29 20A Radio, Electronic finish panel,
SYNC module
30 15A Front park lamps
31 5A Not used (spare)
32 15A Moonroof, Power windows (front),
Compass/auto-dimming rear view
mirror
33 10A Not used (spare)
34 10A Reverse sensing system, Rearview
camera, Blind spot monitor, Rear
heated seat module
35 5A Heads-up display
36 10A Heated steering wheel
37 10A Climate control
38 10A Not used (spare)
39 15A High beam headlamps
40 10A Rear park lamps, License plate
lamps
41 7.5A Occupant classification sensor,
Restraints control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control
47 15A Fog lamps relay, LED signal
mirrors
48 30A Circuit
BreakerRear power windows
49 — Delayed accessory relay
250Fuses
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

P
Pairing other phones ................366
Pairing your phone ...................366
Pairing your phone for the
first time ....................................366
Parental MyKey programming ...62
Parking brake ............................173
Parts
(see Motorcraft® parts) ..........320
Passenger Occupant
Classification Sensor ...................47
Phone settings ..................370, 392
Phone voice commands ............371
POI categories ...........................401
Point of Interest (POI) .............401
Power distribution box
(see Fuses) ...............................243
Power door locks ........................66
Power liftgate ..............................70
Power mirrors .............................95
Powerpoint ................................142
Power steering ..........................202
fluid, checking and adding ....261
fluid, refill capacity ................316
fluid, specifications .................316
Power Windows ...........................93
Privacy information ..................338
Push button start system .........144
Q
Quick touch buttons .................408
R
Radio ..........................................330AM/FM .....................................346
Single CD ................................330
Radio reception .........................328
Radio voice commands .............351
Rear heated seats .....................135
Rear view camera
display ................................180, 387
Rear window defroster .............121
Receiving a text message .........369
Recommendations for
attaching safety restraints for
children ........................................19
Relays ................................242–243
Remote entry system
illuminated entry ......................69
locking/unlocking doors ...........66
opening the trunk .....................67
replacing the batteries .............57
Reverse sensing system ...........179
Roadside assistance ..................227
Roll stability control .................177
Roof rack ...................................205
Route preferences ....................403
S
Safety Belt Maintenance ............41
Safety belts
(see Safety restraints) .........34, 38
Safety defects, reporting ..240–241
Safety information ....................336
Safety restraints ..............34–36, 38
Belt-Minder® ............................38
Belt-Minder®,
deactivating/activating .............40
extension assembly ..................37
450Index
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)
