Page 2 of 272
Seating and Safety Restraints 100
Seating 100
Safety restraints 107
Airbags 121
Child restraints 136
Tires, Wheels and Loading 148
Tire information 148
Vehicle loading 163
Trailer towing 168
Recreational towing 168
Driving 170
Starting 170
Brakes 173
Traction Control™/AdvanceTrac175
Transmission operation 177
Roadside Emergencies 187
Getting roadside assistance 187
Hazard flasher switch 189
Fuel pump shut-off switch 189
Fuses and relays 190
Changing tires 195
Lug nut torque 201
Jump starting 202
Wrecker towing 207
Customer Assistance 208
Reporting safety defects (U.S. only) 214
Reporting safety defects (Canada only) 214
Cleaning 215
Table of Contents
2
2007 Zephyr(378)
Owners Guide (post-2002-fmt)
USA(fus)
Page 187 of 272
ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the New Vehicle Limited Warranty period of five years or 60,000
miles (100,000 km), whichever occurs first on Ford and Mercury
vehicles, and six years or 70,000 miles (110,000 km) on Lincoln
vehicles.
Roadside assistance will cover:
•a flat tire change with a good spare (except Ford GT which has a tire
inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $100 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
187
Page 202 of 272
When a wheel is installed, always remove any corrosion, dirt or
foreign materials present on the mounting surfaces of the wheel
or the surface of the wheel hub, brake drum or brake disc that
contacts the wheel. Ensure that any fasteners that attach the rotor to
the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal
contact at the wheel mounting surfaces can cause the wheel nuts to
loosen and the wheel to come off while the vehicle is in motion,
resulting in loss of control.
JUMP STARTING
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
202

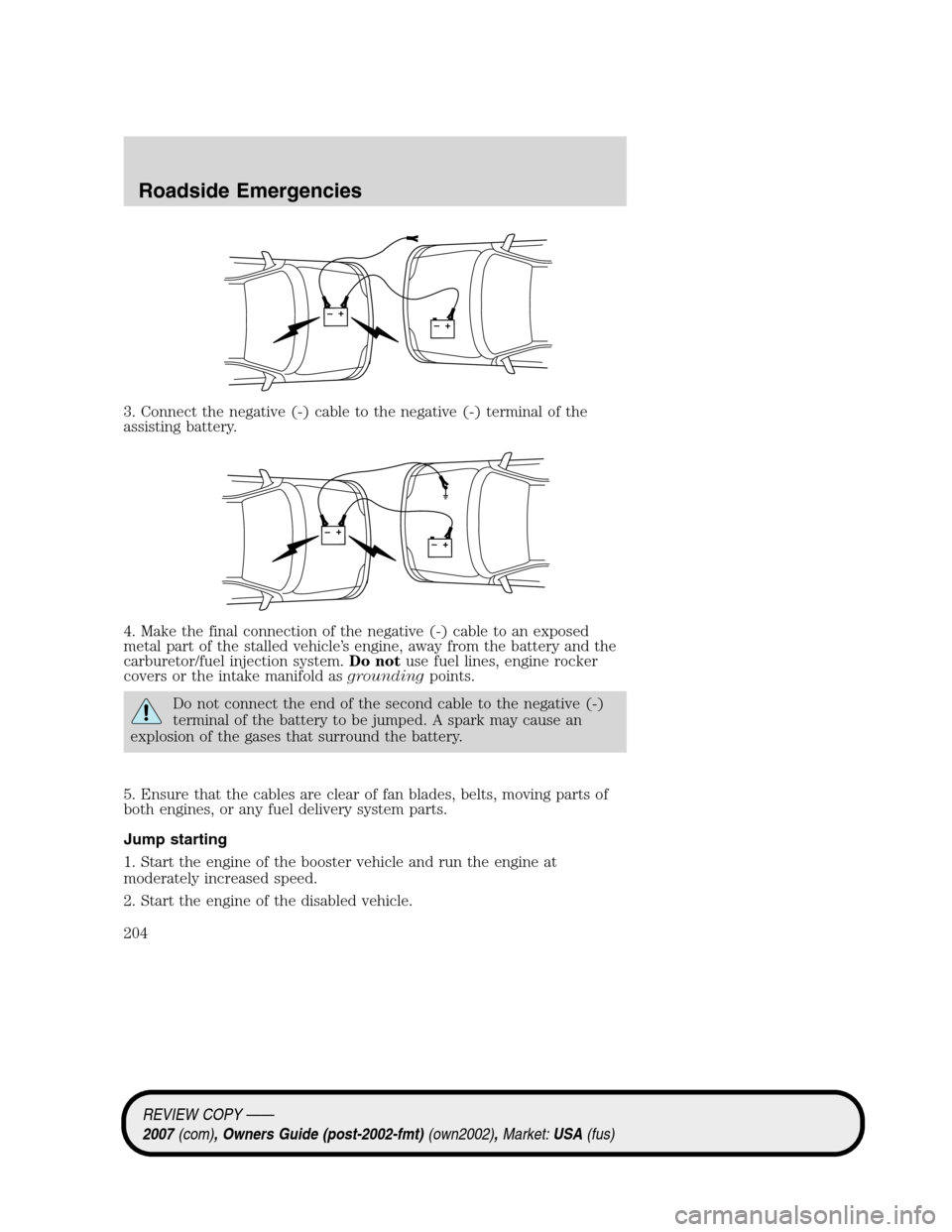

Page 204 of 272
3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
+–+–
+–+–
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
204

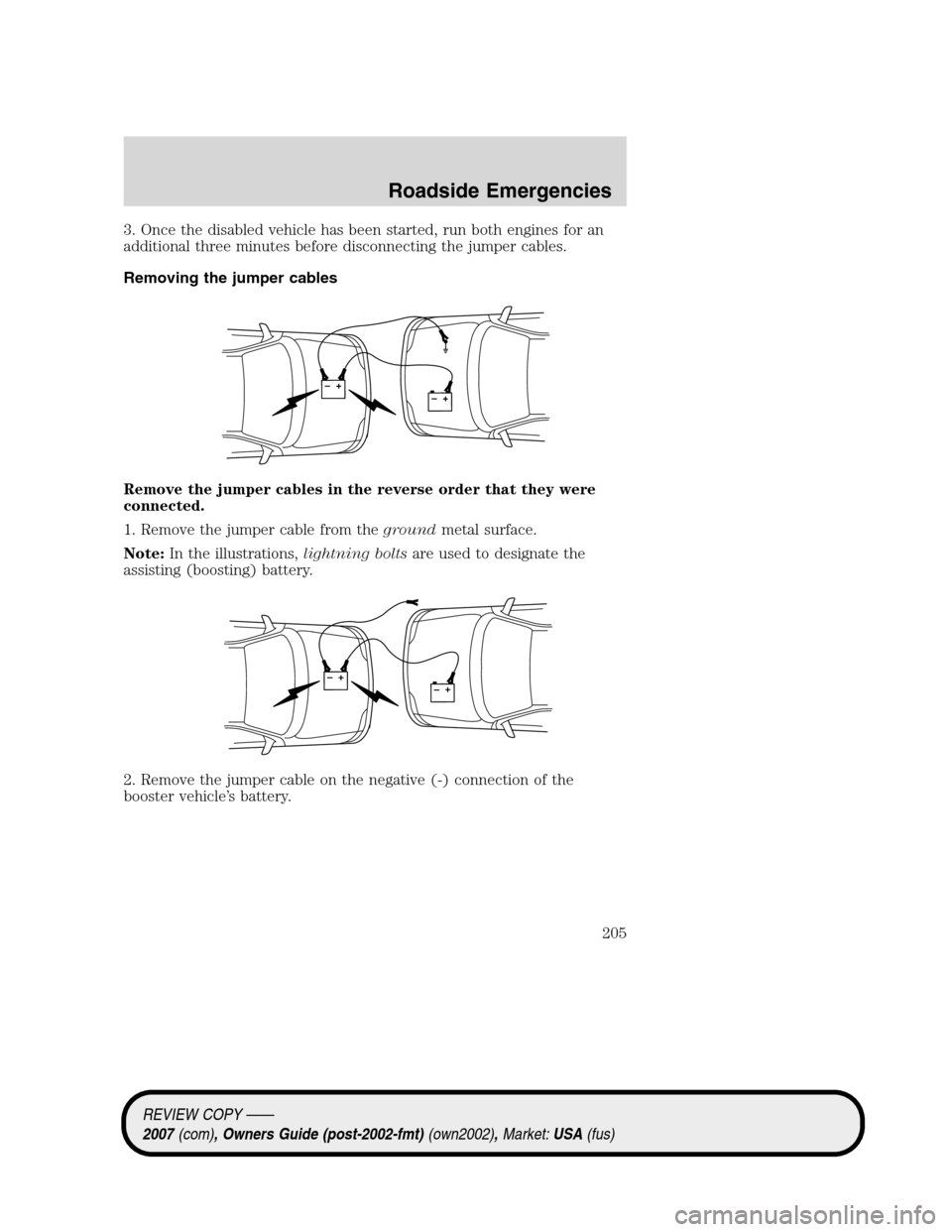

Page 205 of 272
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
205

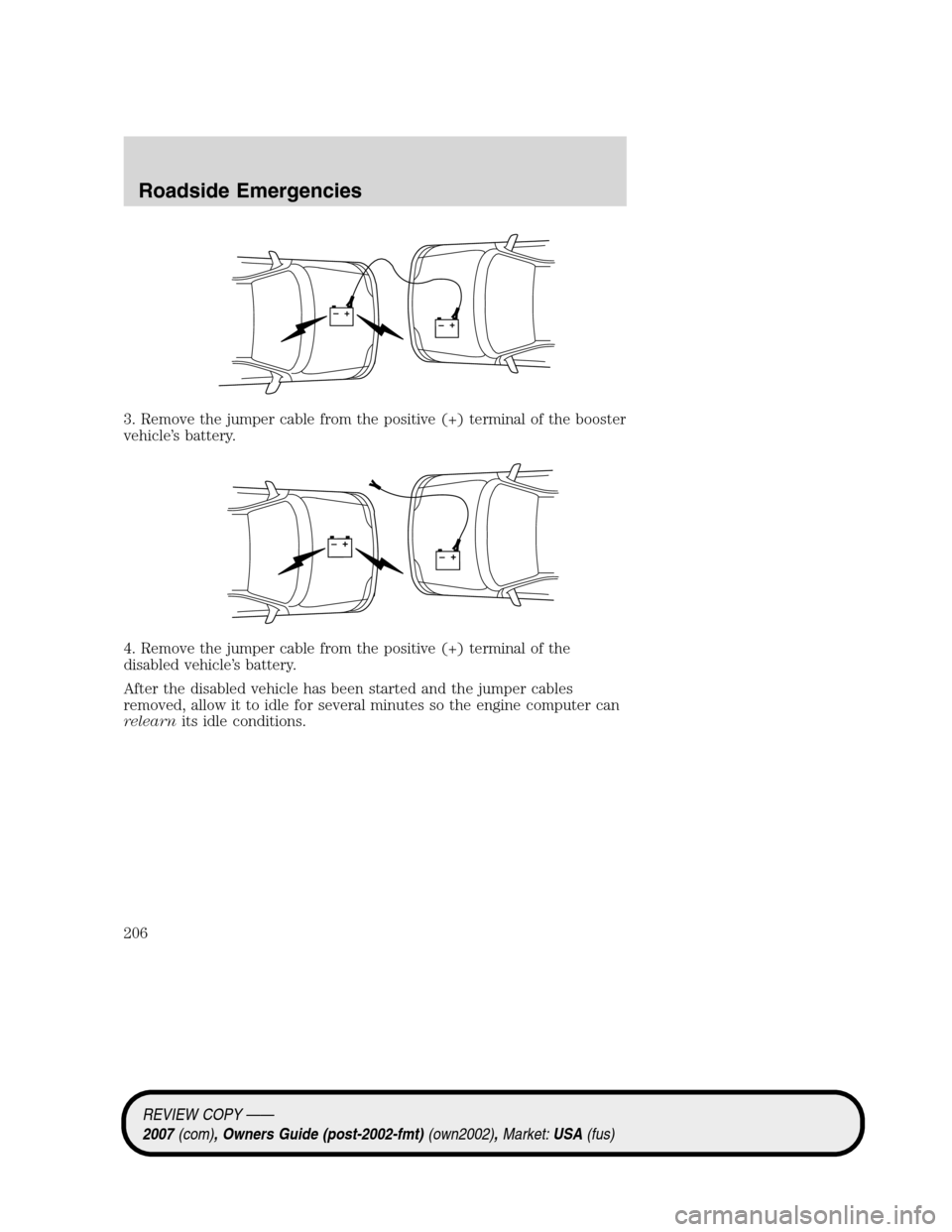

Page 206 of 272
3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
206
Page 262 of 272
wheels ......................................216
wiper blades ............................218
Climate control (see Air
conditioning or Heating) ......29, 31
Clock ............................................54
Compass, electronic
set zone adjustment .................70
Console
overhead ....................................53
Controls
power seat ...............................101
steering column ........................61
Coolant
checking and adding ..............232
refill capacities ................236, 253
specifications ..........................253
Cruise control
(see Speed control) ....................58
Cupholder(s) .............................107
Customer Assistance ................187
Ford Extended Service
Plan ..........................................212
Getting assistance outside
the U.S. and Canada ..............213
Getting roadside assistance ...187
Getting the service you
need .........................................208
Ordering additional
owner’s literature ...................213
Utilizing the Mediation/
Arbitration Program ...............211
D
Daytime running lamps
(see Lamps) ................................37
Dipstick
automatic transmission
fluid ..........................................249
engine oil .................................226Driving under special
conditions ..................180, 182, 184
sand .........................................183
snow and ice ...........................185
through water .................183, 186
E
Electronic message center .........68
Emergencies, roadside
jump-starting ..........................202
Emission control system ..........245
Engine ........................................256
cleaning ...................................217
coolant .....................................232
fail-safe cooling .......................236
idle speed control ...................230
lubrication specifications .......253
refill capacities ........................253
service points ..........................224
starting after a collision .........189
Engine block heater .................173
Engine oil ..................................226
change oil soon warning,
message center .......................226
checking and adding ..............226
dipstick ....................................226
filter, specifications ........229, 252
recommendations ...................229
refill capacities ........................253
specifications ..........................253
Exhaust fumes ..........................173
F
Fail safe cooling ........................236
Fluid capacities .........................253
Foglamps .....................................37
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Index
262
Page 263 of 272
Four-Wheel Drive vehicles
driving off road .......................181
Fuel ............................................238
calculating fuel
economy ............................69, 242
cap ...........................................240
capacity ...................................253
choosing the right fuel ...........241
comparisons with EPA fuel
economy estimates .................245
detergent in fuel .....................242
filling your vehicle
with fuel ..................238, 240, 242
filter, specifications ........237, 252
fuel pump shut-off switch .....189
improving fuel economy ........242
octane rating ...................241, 256
quality ......................................241
running out of fuel .................242
safety information relating
to automotive fuels ................238
Fuel pump shut-off switch .......189
Fuses ..........................................190
G
Gas cap (see Fuel cap) ............240
Gas mileage
(see Fuel economy) .................242
Gauges .........................................14
H
Hazard flashers .........................189
Head restraints .........................100
Headlamps ...................................36
aiming ........................................39
autolamp system .......................36
bulb specifications ....................41
daytime running lights .............37flash to pass ..............................38
high beam .................................38
replacing bulbs .........................42
turning on and off ....................36
Heating
heating and air conditioning
system .................................29, 31
Homelink wireless control
system ..........................................64
Hood ..........................................223
I
Ignition ...............................170, 256
Illuminated visor mirror .............52
Infant seats
(see Safety seats) .....................140
Inspection/maintenance (I/M)
testing ........................................247
Instrument panel
cleaning ...................................218
cluster ........................................10
lighting up panel and
interior .......................................38
J
Jack ............................................195
positioning ...............................195
storage .....................................195
Jump-starting your vehicle ......202
K
Keyless entry system .................92
autolock .....................................80
keypad .......................................92
locking and unlocking doors ....93
programming entry code .........92
Keys .......................................77, 95
positions of the ignition .........170
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Index
263
Page 265 of 272
opening the trunk .....................88
opening the windows ...............87
panic alarm ...............................88
replacement/additional
transmitters ...............................90
replacing the batteries .............89
Roadside assistance ..................187
S
Safety Belt Maintenance ..........115
Safety belts (see Safety
restraints) ..........107, 110, 112–115
Safety Canopy ...........................130
Safety defects, reporting ..........214
Safety
restraints ...........107, 110, 112–115
BeltMinder............................116
extension assembly ................115
for adults .........................112–114
for children .............................136
Occupant Classification
Sensor ......................................108
safety belt maintenance .........115
warning light and chime ........116
Safety seats for children ..........140
Safety Compliance
Certification Label ....................257
Satellite Radio Information ........24
Seat belts
(see Safety restraints) .............107
Seats ..........................................100
child safety seats ....................140
climate control ........................104
front seats ...............................100
heated ........................................29
memory seat .............................88SecuriLock passive anti-theft
system ..........................................94
Servicing your vehicle ..............222
Side air curtain .........................133
Spark plugs,
specifications .....................252, 256
Specification chart,
lubricants ...................................253
Speed control ..............................58
Starting your vehicle ........170–172
jump starting ..........................202
Steering
speed sensitive .......................177
Steering wheel
controls ......................................61
tilting .........................................52
T
Tilt steering wheel ......................52
Tires ...........................148–149, 195
alignment ................................156
care ..........................................152
changing ..........................195, 198
checking the pressure ............152
inflating ...................................150
label .........................................162
replacing ..................................154
rotating ....................................156
safety practices .......................155
sidewall information ...............157
snow tires and chains ............163
spare tire .................................196
terminology .............................149
tire grades ...............................149
treadwear ........................148, 153
Towing .......................................168
recreational towing .................168
trailer towing ..........................168
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Index
265
