SNOW TIRES AND CHAINS
The original equipment tires on your vehicle have an all-weather tread
design to provide traction, handling, and braking performance in
year-round driving. You may installsnowtires for improved traction
when driving in areas with sustained periods of snow or icy driving
conditions.
If you choose to install snow tires on your vehicle, they must be
the same size, construction, and load range as the original tires
listed on the tire placard, and they must be installed on all four wheels.
Mixing tires of different size or construction on your vehicle can
adversely affect your vehicle’s handling and braking, and may lead to
loss of vehicle control.
Do not use snow chains or cables on this vehicle as they may
cause damage to your vehicle which may lead to loss of vehicle
control.
VEHICLE LOADING
This section will guide you in the proper loading of your vehicle to keep
your loaded vehicle weight within its design rating capability. Properly
loading your vehicle will provide maximum return of vehicle design
performance. Before loading your vehicle, familiarize yourself with the
following terms for determining your vehicle’s weight ratings from the
vehicle’s Tire Label or Safety Compliance Certification Label:
Base Curb Weight– is the weight of the vehicle including a full tank of
fuel and all standard equipment. It does not include passengers, cargo, or
optional equipment.
Vehicle Curb Weight– is the weight of your new vehicle when you
picked it up from your authorized dealer plus any aftermarket
equipment.
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Tires, Wheels and Loading
163

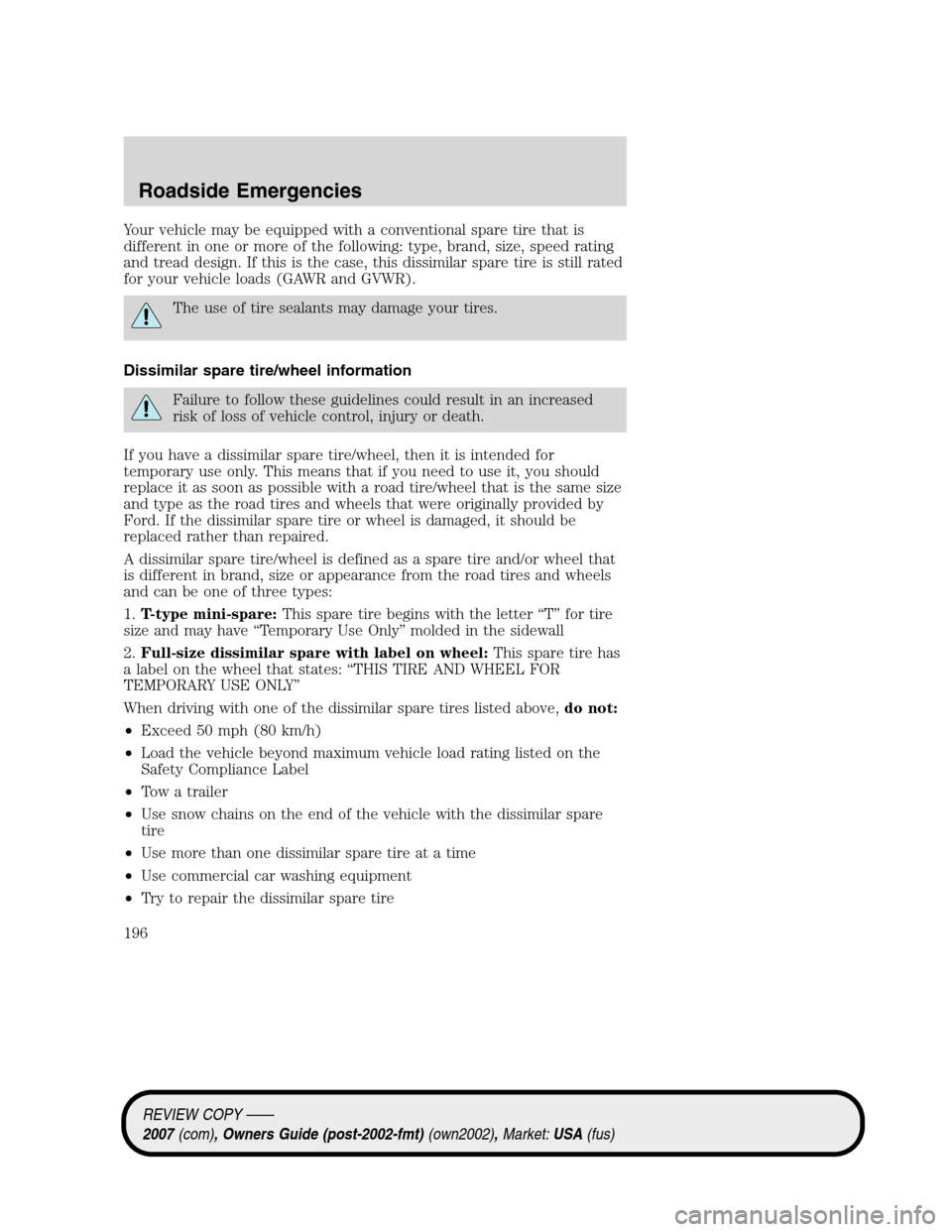

Page 196 of 272
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR).
The use of tire sealants may damage your tires.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
196
Page 197 of 272
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
For vehicles equipped with 4WD, it is not recommended that the vehicle
be operated in 4WD modes with a temporary emergency spare tire. If
4WD operation is necessary, do not operate above speeds of 10 mph (16
km/h) or for distances above 50 miles (80 km).
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-Wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Roadside Emergencies
197
Page 265 of 272
opening the trunk .....................88
opening the windows ...............87
panic alarm ...............................88
replacement/additional
transmitters ...............................90
replacing the batteries .............89
Roadside assistance ..................187
S
Safety Belt Maintenance ..........115
Safety belts (see Safety
restraints) ..........107, 110, 112–115
Safety Canopy ...........................130
Safety defects, reporting ..........214
Safety
restraints ...........107, 110, 112–115
BeltMinder............................116
extension assembly ................115
for adults .........................112–114
for children .............................136
Occupant Classification
Sensor ......................................108
safety belt maintenance .........115
warning light and chime ........116
Safety seats for children ..........140
Safety Compliance
Certification Label ....................257
Satellite Radio Information ........24
Seat belts
(see Safety restraints) .............107
Seats ..........................................100
child safety seats ....................140
climate control ........................104
front seats ...............................100
heated ........................................29
memory seat .............................88SecuriLock passive anti-theft
system ..........................................94
Servicing your vehicle ..............222
Side air curtain .........................133
Spark plugs,
specifications .....................252, 256
Specification chart,
lubricants ...................................253
Speed control ..............................58
Starting your vehicle ........170–172
jump starting ..........................202
Steering
speed sensitive .......................177
Steering wheel
controls ......................................61
tilting .........................................52
T
Tilt steering wheel ......................52
Tires ...........................148–149, 195
alignment ................................156
care ..........................................152
changing ..........................195, 198
checking the pressure ............152
inflating ...................................150
label .........................................162
replacing ..................................154
rotating ....................................156
safety practices .......................155
sidewall information ...............157
snow tires and chains ............163
spare tire .................................196
terminology .............................149
tire grades ...............................149
treadwear ........................148, 153
Towing .......................................168
recreational towing .................168
trailer towing ..........................168
REVIEW COPY ——
2007(com), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
Index
265
