remote start LINCOLN NAVIGATOR 2016 Owners Manual
[x] Cancel search | Manufacturer: LINCOLN, Model Year: 2016, Model line: NAVIGATOR, Model: LINCOLN NAVIGATOR 2016Pages: 419, PDF Size: 3.59 MB
Page 4 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual Introduction
About This Manual............................................7
Symbols Glossary
..............................................7
Data Recording
............................................ LINCOLN NAVIGATOR 2016 Owners Manual Introduction
About This Manual............................................7
Symbols Glossary
..............................................7
Data Recording
............................................](/img/15/7037/w960_7037-3.png)
Introduction
About This Manual............................................7
Symbols Glossary
..............................................7
Data Recording
..................................................9
California Proposition 65................................11
Perchlorate.........................................................11
Lincoln Automotive Financial Services..........................................................11
Replacement Parts Recommendation........12
Special Notices
.................................................13
Mobile Communications Equipment...........13
Export Unique Options...................................14
Environment
Protecting the Environment
..........................15
Child Safety
General Information........................................16
Installing Child Restraints
..............................18
Booster Seats
..................................................26
Child Restraint Positioning
...........................29
Child Safety Locks..........................................30 Seatbelts
Principle of Operation...................................32
Fastening the Seatbelts
................................33
Seatbelt Height Adjustment.........................35
Seatbelt Warning Lamp and Indicator Chime.............................................................37
Seatbelt Reminder
..........................................38
Child Restraint and Seatbelt Maintenance................................................39
Supplementary Restraints System
Principle of Operation
.....................................41
Driver and Passenger Airbags....................43
Side Airbags
.....................................................44
Safety Canopy™...............................................45
Crash Sensors and Airbag Indicator..........47
Airbag Disposal...............................................48
Keys and Remote Controls
General Information on Radio Frequencies.................................................49
Remote Control
...............................................50 Replacing a Lost Key or Remote
Control...........................................................53
MyKey™
Principle of Operation...................................54

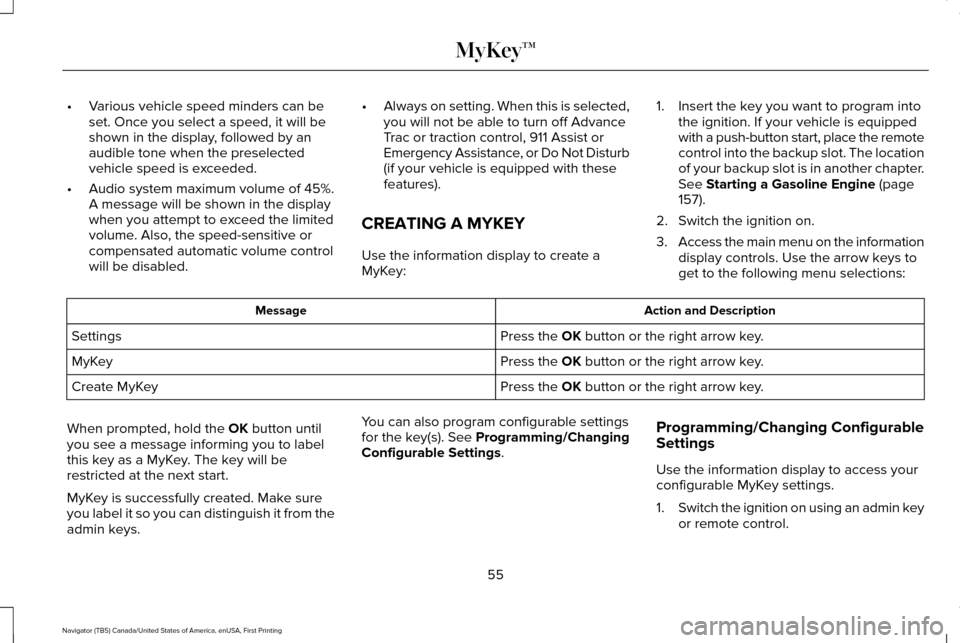

Creating a MyKey...........................................55
Clearing All MyKeys.......................................56
Checking MyKey System Status.................58

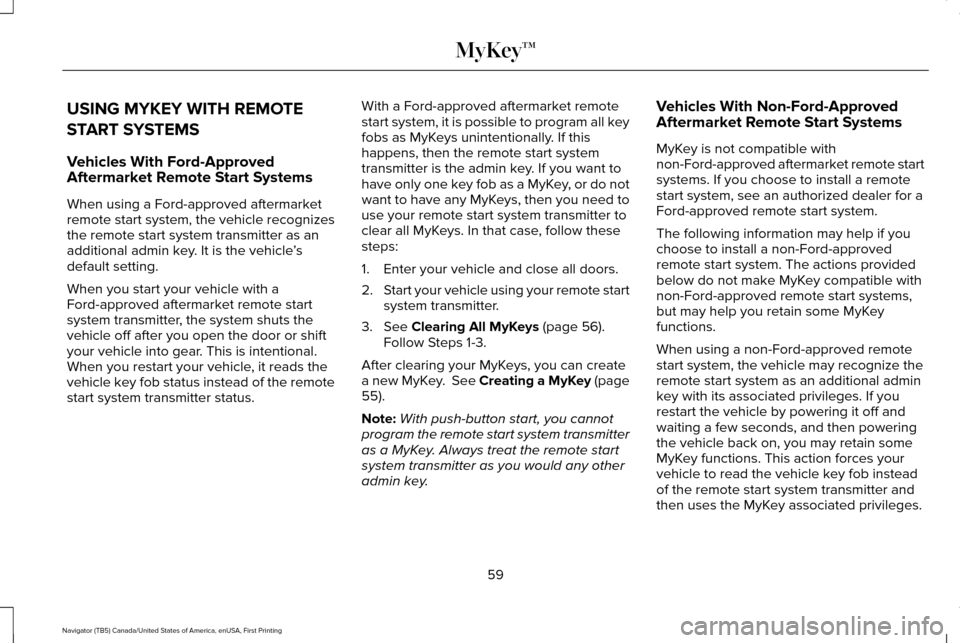

Using MyKey With Remote Start Systems........................................................59

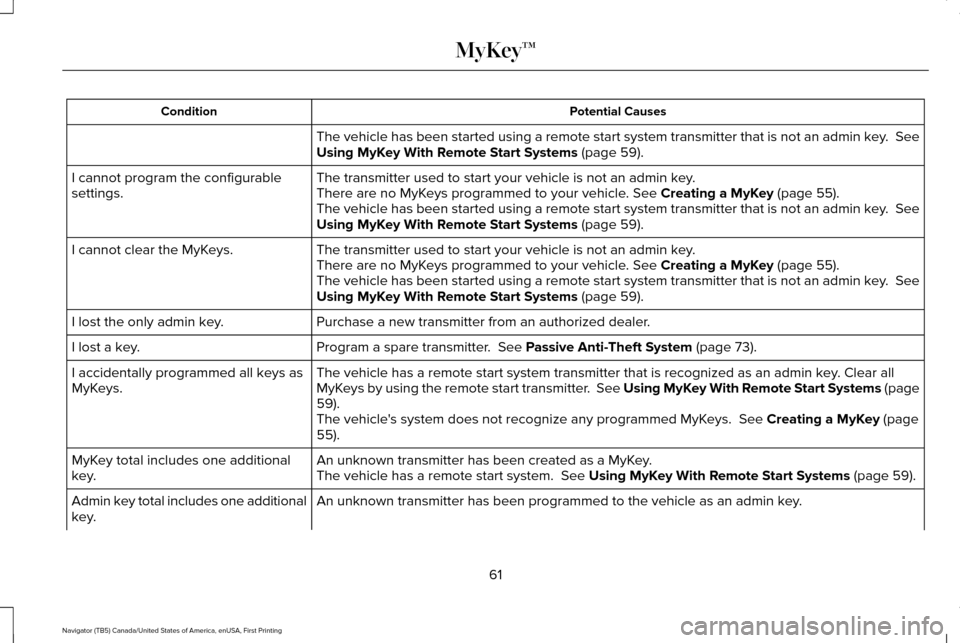

MyKey Troubleshooting................................60
Locks
Locking and Unlocking
.................................63
Power Liftgate
.................................................66
Keyless Entry
....................................................70
Security
Passive Anti-Theft System............................73
Anti-Theft Alarm..............................................74
Power Running Boards
Using Power Running Boards
......................75
1
Navigator (TB5) Canada/United States of America, enUSA, First Printing Table of Contents
Page 5 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual Steering Wheel
Adjusting the Steering Wheel......................77
Audio Control...................................................78
Voice Control
................................................... LINCOLN NAVIGATOR 2016 Owners Manual Steering Wheel
Adjusting the Steering Wheel......................77
Audio Control...................................................78
Voice Control
...................................................](/img/15/7037/w960_7037-4.png)
Steering Wheel
Adjusting the Steering Wheel......................77
Audio Control...................................................78
Voice Control
....................................................81
Cruise Control.................................................82
Information Display Control
.........................82
Heated Steering Wheel
................................82
Pedals
Adjusting the Pedals
......................................83
Wipers and Washers
Windshield Wipers
..........................................84
Autowipers.......................................................84
Windshield Washers
......................................85
Rear Window Wiper and Washers..............85
Lighting
General Information
.......................................87
Lighting Control
...............................................87
Autolamps.........................................................88
Instrument Lighting Dimmer........................89
Daytime Running Lamps...............................89 Adaptive Headlamps
.....................................90
Direction Indicators.........................................91
Welcome Lighting
............................................91
Interior Lamps
...................................................91
Ambient Lighting
............................................92
Windows and Mirrors
Power Windows
..............................................93
Exterior Mirrors
................................................94
Interior Mirror...................................................95
Childminder Mirror
.........................................95
Rear Quarter Windows
..................................96
Sun Visors
.........................................................96
Moonroof...........................................................97
Instrument Cluster
Gauges..............................................................99
Warning Lamps and Indicators...................101
Audible Warnings and Indicators
..............104
Information Displays
General Information.....................................105
Information Messages....................................111 Climate Control
Automatic Climate Control
.........................125
Hints on Controlling the Interior Climate.........................................................127
Rear Passenger Climate Controls.............129
Heated Windows and Mirrors....................130
Remote Start
...................................................130
Seats
Sitting in the Correct Position....................132
Head Restraints.............................................132
Power Seats....................................................134
Memory Function
..........................................135
Rear Seats
.......................................................137
Heated Seats
..................................................144
Climate Controlled Seats
............................145
Universal Garage Door Opener
Universal Garage Door Opener
................148
Auxiliary Power Points
Auxiliary Power Points.................................153
2
Navigator (TB5) Canada/United States of America, enUSA, First Printing Table of Contents
Page 52 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two condition LINCOLN NAVIGATOR 2016 Owners Manual GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two condition](/img/15/7037/w960_7037-51.png)
GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met. The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of the
following could cause a decrease in
operating range:
•
Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones, battery
chargers and alarm systems. If the
frequencies are jammed, you will not be able
to use your remote control. You can lock and
unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Intelligent Access
(If Equipped)
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
• You press any button on the keyless
entry keypad within 3 ft (1 m) proximity of
an intelligent access key.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation.
See Remote Control (page 50).
49
Navigator (TB5) Canada/United States of America, enUSA, First Printing Keys and Remote Controls
Page 53 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual REMOTE CONTROL
Intelligent Access Key
The intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to use the
push button start. The intelligent ac LINCOLN NAVIGATOR 2016 Owners Manual REMOTE CONTROL
Intelligent Access Key
The intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to use the
push button start. The intelligent ac](/img/15/7037/w960_7037-52.png)

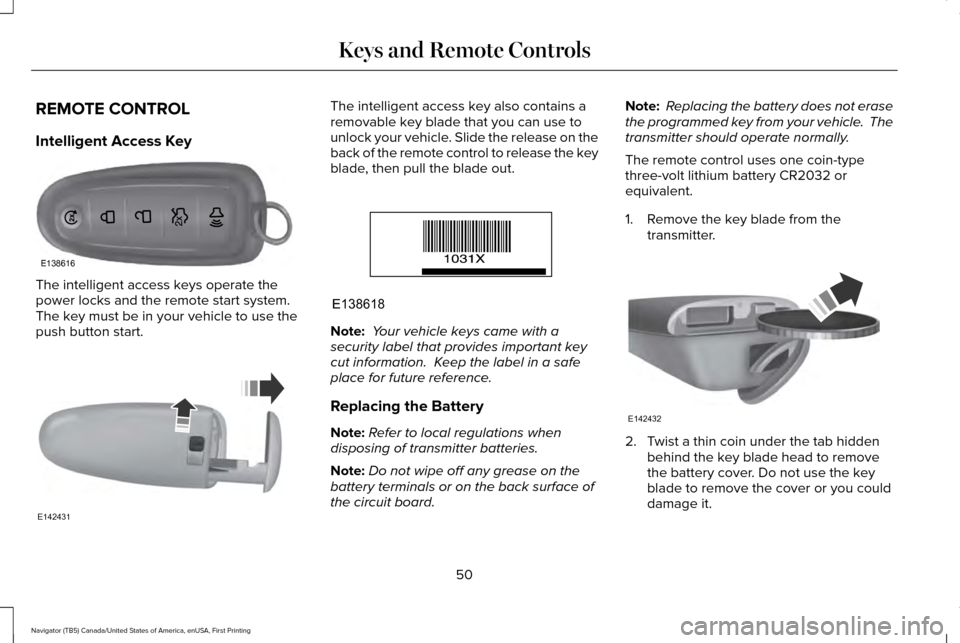

REMOTE CONTROL
Intelligent Access Key
The intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to use the
push button start. The intelligent access key also contains a
removable key blade that you can use to
unlock your vehicle. Slide the release on the
back of the remote control to release the key
blade, then pull the blade out.
Note:
Your vehicle keys came with a
security label that provides important key
cut information. Keep the label in a safe
place for future reference.
Replacing the Battery
Note: Refer to local regulations when
disposing of transmitter batteries.
Note: Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board. Note:
Replacing the battery does not erase
the programmed key from your vehicle. The
transmitter should operate normally.
The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent.
1. Remove the key blade from the transmitter. 2. Twist a thin coin under the tab hidden
behind the key blade head to remove
the battery cover. Do not use the key
blade to remove the cover or you could
damage it.
50
Navigator (TB5) Canada/United States of America, enUSA, First Printing Keys and Remote ControlsE138616 E142431 E138618 E142432
Page 54 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual 3. Remove the old battery.
4. Insert a new battery with the + facing
downward. Press the battery down to
make sure it is fully in the housing.
5. Reinstall the battery housing cover onto the transmitt LINCOLN NAVIGATOR 2016 Owners Manual 3. Remove the old battery.
4. Insert a new battery with the + facing
downward. Press the battery down to
make sure it is fully in the housing.
5. Reinstall the battery housing cover onto the transmitt](/img/15/7037/w960_7037-53.png)
3. Remove the old battery.
4. Insert a new battery with the + facing
downward. Press the battery down to
make sure it is fully in the housing.
5. Reinstall the battery housing cover onto the transmitter and install the key blade.
Car Finder Press the button twice within three
seconds.
The horn sounds and the direction indicators
flash. We recommend you use this method
to locate your vehicle, rather than using the
panic alarm. Note:
If any door or the liftgate is open, or if
the hood is open on vehicles with an
anti-theft alarm or remote start, the horn will
sound twice and the direction indicators will
not flash.
Sounding the Panic Alarm Press the button to sound the
panic alarm. Press the button
again or switch the ignition on to
turn it off.
Note: The panic alarm only operates when
the ignition is off.
Remote Start
(If Equipped) WARNING
To avoid exhaust fumes, do not use
remote start if your vehicle is parked
indoors or in areas that are not well
ventilated. Note:
Do not use remote start if your fuel
level is low. The remote start button is on the
transmitter.This feature allows you to start your vehicle
from the outside. The transmitter has an
extended operating range.
Vehicles with automatic climate control can
be configured to operate when the vehicle
is remote started.
See Automatic Climate
Control (page 125).
Many states and provinces have restrictions
for the use of remote start. Check your local
and state or provincial laws for specific
requirements regarding remote start
systems.
The remote start system does not work if any
of the following occur:
• The ignition is on.
• The anti-theft alarm triggers.
• You switch off the feature.
• The hood is open.
• The transmission is not in park (P).
• The battery voltage is below the
minimum operating voltage.
• The service engine soon indicator was
on the last time your vehicle was driven.
51
Navigator (TB5) Canada/United States of America, enUSA, First Printing Keys and Remote ControlsE138622 E138623 E138624 E138625
Page 55 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual Remote Starting your Vehicle
Note:
You must press each button within
three seconds of each other. If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators d LINCOLN NAVIGATOR 2016 Owners Manual Remote Starting your Vehicle
Note:
You must press each button within
three seconds of each other. If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators d](/img/15/7037/w960_7037-54.png)
Remote Starting your Vehicle
Note:
You must press each button within
three seconds of each other. If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators do
not flash twice and the horn does not sound. The label on your transmitter details the
starting procedure.
To start your vehicle remotely:
1. Press the lock button to lock all the
doors.
2. Press the remote start button twice. The
exterior lamps flash twice. The horn sounds if the system fails to start,
unless quiet start is on. Quiet start runs the
blower fan at a slower speed to reduce
noise. You can switch this feature on or off
in the information display. See General
Information (page 105).
Note: You must press the push button
ignition switch on the instrument panel once
while applying the brake pedal before
driving your vehicle.
The power windows do not work during
remote start and the radio does not turn on
automatically.
The parking lamps remain on and the vehicle
runs for 5, 10 or 15 minutes, depending on
the setting. Extending the Engine Running Time
To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running. If
the duration is set to 10 minutes, the duration
extends by another 10 minutes. For example,
if your vehicle had been running from the
first remote start for 5 minutes, your vehicle
continues to run now for a total of 20
minutes. You can extend the remote start
up to a maximum of 35 minutes.
Wait at least five seconds before remote
starting after the engine stops running.
Turning Your Vehicle Off After Remote
Starting
Press the button once. The
parking lamps turn off.
You may have to be closer to your vehicle
to remotely switch off your vehicle after
remote starting. This is due to the added
noise of your running vehicle.
You can switch this feature on or off in the
information display.
See General
Information (page 105).
52
Navigator (TB5) Canada/United States of America, enUSA, First Printing Keys and Remote ControlsE138626 E138625
Page 58 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual •
Various vehicle speed minders can be
set. Once you select a speed, it will be
shown in the display, followed by an
audible tone when the preselected
vehicle speed is exceeded.
• Audio system max LINCOLN NAVIGATOR 2016 Owners Manual •
Various vehicle speed minders can be
set. Once you select a speed, it will be
shown in the display, followed by an
audible tone when the preselected
vehicle speed is exceeded.
• Audio system max](/img/15/7037/w960_7037-57.png)
•
Various vehicle speed minders can be
set. Once you select a speed, it will be
shown in the display, followed by an
audible tone when the preselected
vehicle speed is exceeded.
• Audio system maximum volume of 45%.
A message will be shown in the display
when you attempt to exceed the limited
volume. Also, the speed-sensitive or
compensated automatic volume control
will be disabled. •
Always on setting. When this is selected,
you will not be able to turn off Advance
Trac or traction control, 911 Assist or
Emergency Assistance, or Do Not Disturb
(if your vehicle is equipped with these
features).
CREATING A MYKEY
Use the information display to create a
MyKey: 1. Insert the key you want to program into
the ignition. If your vehicle is equipped
with a push-button start, place the remote
control into the backup slot. The location
of your backup slot is in another chapter.
See Starting a Gasoline Engine (page
157).
2. Switch the ignition on.
3. Access the main menu on the information
display controls. Use the arrow keys to
get to the following menu selections: Action and Description
Message
Press the
OK button or the right arrow key.
Settings
Press the
OK button or the right arrow key.
MyKey
Press the
OK button or the right arrow key.
Create MyKey
When prompted, hold the
OK button until
you see a message informing you to label
this key as a MyKey. The key will be
restricted at the next start.
MyKey is successfully created. Make sure
you label it so you can distinguish it from the
admin keys. You can also program configurable settings
for the key(s). See Programming/Changing
Configurable Settings
.
Programming/Changing Configurable
Settings
Use the information display to access your
configurable MyKey settings.
1.
Switch the ignition on using an admin key
or remote control.
55
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™
Page 62 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual USING MYKEY WITH REMOTE
START SYSTEMS
Vehicles With Ford-Approved
Aftermarket Remote Start Systems
When using a Ford-approved aftermarket
remote start system, the vehicle recognizes
the remote start s LINCOLN NAVIGATOR 2016 Owners Manual USING MYKEY WITH REMOTE
START SYSTEMS
Vehicles With Ford-Approved
Aftermarket Remote Start Systems
When using a Ford-approved aftermarket
remote start system, the vehicle recognizes
the remote start s](/img/15/7037/w960_7037-61.png)
USING MYKEY WITH REMOTE
START SYSTEMS
Vehicles With Ford-Approved
Aftermarket Remote Start Systems
When using a Ford-approved aftermarket
remote start system, the vehicle recognizes
the remote start system transmitter as an
additional admin key. It is the vehicle
’s
default setting.
When you start your vehicle with a
Ford-approved aftermarket remote start
system transmitter, the system shuts the
vehicle off after you open the door or shift
your vehicle into gear. This is intentional.
When you restart your vehicle, it reads the
vehicle key fob status instead of the remote
start system transmitter status. With a Ford-approved aftermarket remote
start system, it is possible to program all key
fobs as MyKeys unintentionally. If this
happens, then the remote start system
transmitter is the admin key. If you want to
have only one key fob as a MyKey, or do not
want to have any MyKeys, then you need to
use your remote start system transmitter to
clear all MyKeys. In that case, follow these
steps:
1. Enter your vehicle and close all doors.
2.
Start your vehicle using your remote start
system transmitter.
3. See Clearing All MyKeys (page 56).
Follow Steps 1-3.
After clearing your MyKeys, you can create
a new MyKey. See Creating a MyKey (page
55
).
Note: With push-button start, you cannot
program the remote start system transmitter
as a MyKey. Always treat the remote start
system transmitter as you would any other
admin key. Vehicles With Non-Ford-Approved
Aftermarket Remote Start Systems
MyKey is not compatible with
non-Ford-approved aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for a
Ford-approved remote start system.
The following information may help if you
choose to install a non-Ford-approved
remote start system. The actions provided
below do not make MyKey compatible with
non-Ford-approved remote start systems,
but may help you retain some MyKey
functions.
When using a non-Ford-approved remote
start system, the vehicle may recognize the
remote start system as an additional admin
key with its associated privileges. If you
restart the vehicle by powering it off and
waiting a few seconds, and then powering
the vehicle back on, you may retain some
MyKey functions. This action forces your
vehicle to read the vehicle key fob instead
of the remote start system transmitter and
then uses the MyKey associated privileges.
59
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™
Page 63 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual Note:
The MyKey system status menu
display may include the remote start system
as an additional key in the total count of
programmed keys. See Checking MyKey
System Status (page 58). With a non-Ford- LINCOLN NAVIGATOR 2016 Owners Manual Note:
The MyKey system status menu
display may include the remote start system
as an additional key in the total count of
programmed keys. See Checking MyKey
System Status (page 58). With a non-Ford-](/img/15/7037/w960_7037-62.png)
Note:
The MyKey system status menu
display may include the remote start system
as an additional key in the total count of
programmed keys. See Checking MyKey
System Status (page 58). With a non-Ford-approved aftermarket
remote start system, it is possible to program
all key vehicle key fobs as MyKeys
unintentionally. If this happens, then the
remote start system transmitter is the admin
key. If you want to have only one vehicle key
fob as a MyKey, or do not want to have any
MyKeys, then you need to use your remote
start system transmitter to clear all MyKeys.
In that case, follow these steps:
1. Enter your vehicle and close all doors. 2. Start your vehicle using your
non-Ford-approved remote start system
transmitter.
3. See Clearing All MyKeys (page 56).
Follow Steps 1-3.
After clearing your MyKeys, you can create
a new MyKey. See Creating a MyKey (page
55
).
Note: With push-button start, you cannot
program the remote start system transmitter
as a MyKey. Always treat the remote start
system transmitter as you would any other
admin key.
MYKEY TROUBLESHOOTING Potential Causes
Condition
The transmitter used to start the vehicle is not an admin key.
I cannot create a MyKey.
The transmitter used to start the vehicle is the only admin key. There always has to be at least one
admin key.
The transmitter is not in its backup position.
See Starting a Gasoline Engine (page 157).
The passive anti-theft system is disabled or in unlimited mode.
60
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™
Page 64 of 419
![LINCOLN NAVIGATOR 2016 Owners Manual Potential Causes
Condition
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems (page 59).
The transmitter used t LINCOLN NAVIGATOR 2016 Owners Manual Potential Causes
Condition
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems (page 59).
The transmitter used t](/img/15/7037/w960_7037-63.png)
Potential Causes
Condition
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems (page 59).
The transmitter used to start your vehicle is not an admin key.
I cannot program the configurable
settings. There are no MyKeys programmed to your vehicle.
See Creating a MyKey (page 55).
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems
(page 59).
The transmitter used to start your vehicle is not an admin key.
I cannot clear the MyKeys.
There are no MyKeys programmed to your vehicle.
See Creating a MyKey (page 55).
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems
(page 59).
Purchase a new transmitter from an authorized dealer.
I lost the only admin key.
Program a spare transmitter.
See Passive Anti-Theft System (page 73).
I lost a key.
The vehicle has a remote start system transmitter that is recognized as \
an admin key. Clear all
MyKeys by using the remote start transmitter. See Using MyKey With Remote Start Systems
(page
59).
I accidentally programmed all keys as
MyKeys.
The vehicle's system does not recognize any programmed MyKeys. See Creating a MyKey (page
55).
An unknown transmitter has been created as a MyKey.
MyKey total includes one additional
key. The vehicle has a remote start system.
See Using MyKey With Remote Start Systems (page 59).
An unknown transmitter has been programmed to the vehicle as an admin key.
Admin key total includes one additional
key.
61
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™
