brake MERCEDES-BENZ CLK COUPE 2004 Owners Manual

4 Protection
ofthe environment
Introduction Protection of the environment
H
Enviro nment alno te Dai
mlerChrysl er's declared policy is one of
comprehensive environmental protection.
The objectives are for the natural resources
whi chform the basis of our existen ceon this
pl anet to beused sparingly an din a manner
whi chtakes the requirements of both nature
an d hu manity in to account.
Yo ut oo can make a contribution towards
protecting the environment by operating
your vehicle in an environmentally-responsi-
ble manner.
Fue lconsumption and the rate of en gine,
tra nsmission, brake and tyre wear dep end
on the following:
! the operating conditions of your vehicle
! your driving style
Yo u can influence bothofthese condition s. Therefore, bear the following in
mind:
Operating conditions
! Avoid drivi ngshort dista nces as this
inc reases fuel consumption.
! Make sure that tyre pressures are
alway scorrect.
! Do not carry any unnecessary we ight.
! Keep an eyeonthe vehic le's fuel con-
sumption.
! Remove roof racks once you no longer
need them.
! A regularly serviced vehicle will contrib-
ute to environmental protection. You
should there fore adhere to th eservice
intervals.
! Always have service work carried out at
a qualified specialist workshop, e.g. at a
Mercedes-Benz Service Centre. Style of driving:
!
Do not depress the accelerator pedal
when starting the engine.
! Do not warm up the engine with the
vehicle st ationary.
! Drive carefu lly and maintain sufficient
dista nce from the vehic lein front.
! Avoid frequent ,powerful acce leratio n.
! Change gear ingood timeand use each
gear only up to 2
/ 3 of its maximum
engine speed.
! Switch off the engine in stationary traf-
fic.
Vehicle take-ba ck
Contact Mercedes-Benz on the following
phone numbers if you wish to return your
Me rcedes-Be nzto have it disp osed of in an
environmentally-responsible manner:
Germany: 0080 01777 7777
International: +4 96995307277 209en_d2.boo Seite
4Diens tag, 25. Mai 2004 7:26 19

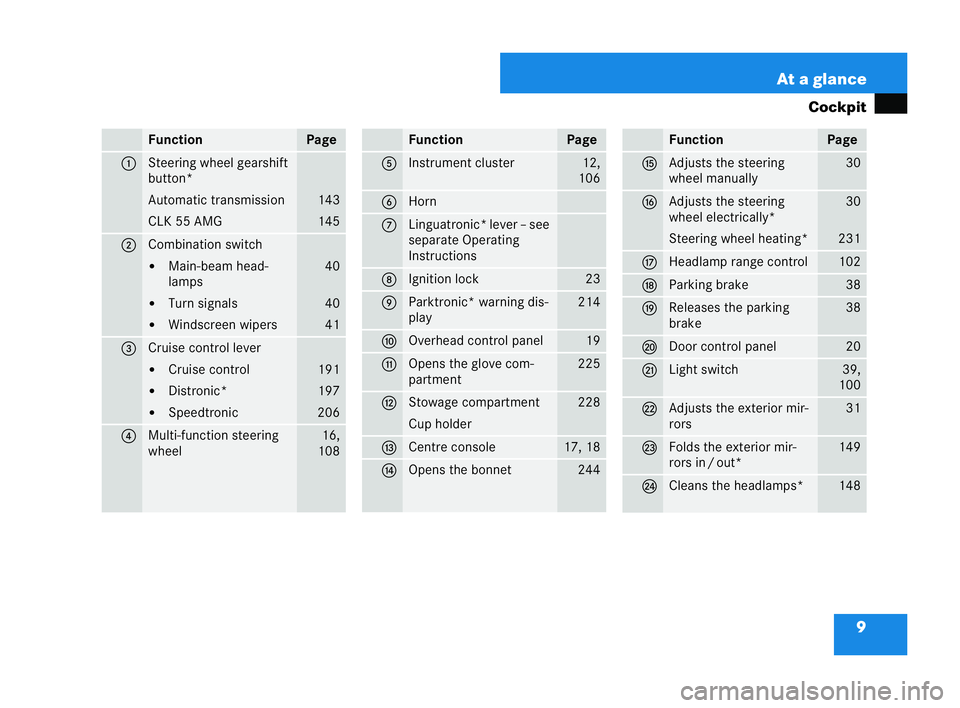

9
At a glance
Cockpit Function Page
1 Steering wheel gearshift
button*
Auto
matic transmission
CLK 55 AMG 143
145
2 Combination switch
!
Main-beam head-
lamps
! Turn signals
! Windscreen wipers 40
40
41
3 Cruise control lever
!
Cruise control
! Distronic*
! Speedtronic 191
197
206
4 Multi-function steering
wheel 16,
108 Fun
ction Page
5 Ins
trument cluster 12,
106 6 Horn
7 Lin
guatronic* lever – see
separate Operating
Ins tructions 8 Ignition lock 23
9 Parkt
ronic* warning dis-
play 214
a Overhead control panel 19
b Opens the glove com-
partment 225
c Stowage compartment
Cup holder 228
d Centre console 17, 18
e Opens the bonnet 244 Fu
nction Page
f Adjusts the steering
wheel manually 30
g Adjusts the steering
wheel electrically*
Steering wheel heating* 30
231 h Headlamp range control 102
j Parkin
g brake 38
k Releases the
parking
brake 38
l Door control panel 20
m Light switch 39,
100 n Adjusts the exterior mir-
rors 31
o Folds the exterior mir-
rors in
/out* 149
p Cleans the headlamps* 148209en_d2.boo Seite
9Diens tag, 25. Mai 2004 7:26 19

11
At a glance
Cockpit Function Page
1 Steering wheel gearshift
button*
Auto
matic transmission
CLK 55 AMG 143
145
2 Combination switch
!
Main-beam head-
lamps
! Turn signals
! Windscreen wipers 40
40
41
3 Cruise control lever
!
Cruise control
! Distronic*
! Speedtronic 191
197
206
4 Multi-function steering
wheel 16,
108 Fun
ction Page
5 Ins
trument cluster 14,
106 6 Horn
7 Lin
guatronic* lever – see
separate Operating
Ins tructions 8 Ignition lock 23
9 Parkt
ronic* warning
display 214
a Overhead control panel 19
b Opens the glove
compartment 225
c Stowage compartment
Cup holder 228
d Centre console 17, 18
e Opens the bonnet 244 Fu
nction Page
f Adjusts the steering
wheel manually 30
g Adjusts the steering
wheel electrically*
Steering wheel heating* 30
231 h Headlamp range control 102
j Parkin
g brake 38
k Releases the
parking
brake 38
l Door control panel 20
m Light switch 39,
100 n Adjusts the exterior
mirrors 31
o Folds the exterior
mirrors
in/o ut* 149
p Cleans the headlamps* 148209en_d2.boo Seite
11Diens tag, 25 .Mai 2004 7:26 19

13
At a glance
Instrument cluster
1O n vehicles without Distronic*, thesy mbol
go es out when the engine is running, but has no
funct ion. Function Page
1 Turn signal indicator
lamp 40
2 ESP
warning lamp 310
3 Segments 106
4 Distance warning lamp
1 19
7,
312 5 Turn signal indicator
lamp 40
6 Restraint systems warn-
ing lamp 312
7 ABS indicator lamp 68,
311 8 Seat belt warning lamp 316
9 Coolant temperature
gauge 107 Fun
ction Page
a Coolant temperature
warning lamp 314
b Main-beam indicator
lamp 102
c Rev
counter 107
d Multi-function display 108
e Trip
meter 106
f Status indicator 113
g Standard display 112
h Automatic transmis-
sion*:
dr
ive program display
CLK 55 AMG:
drive program display,
upsh ift displ ay 138
146
j Total dista
nce rec orde r k Automatic transmis-
sion*:
selector lever position
display 138 Fu
nction Page
l Speedometer 106
m Brake system
indicator
lamp 312
n Engine diagnostic indica-
tor la
mp 315
o Ro
ll-over bar war ning
lamp 315
p Clock 121
q Vehicles with a diesel
eng
ine:
preglow indicator lamp 37
r Reserve fuel warning
lamp 316
s Fuel gauge
t Re
set button 106209en_d2.boo Seite
13Diens tag, 25 .Mai 2004 7:26 19

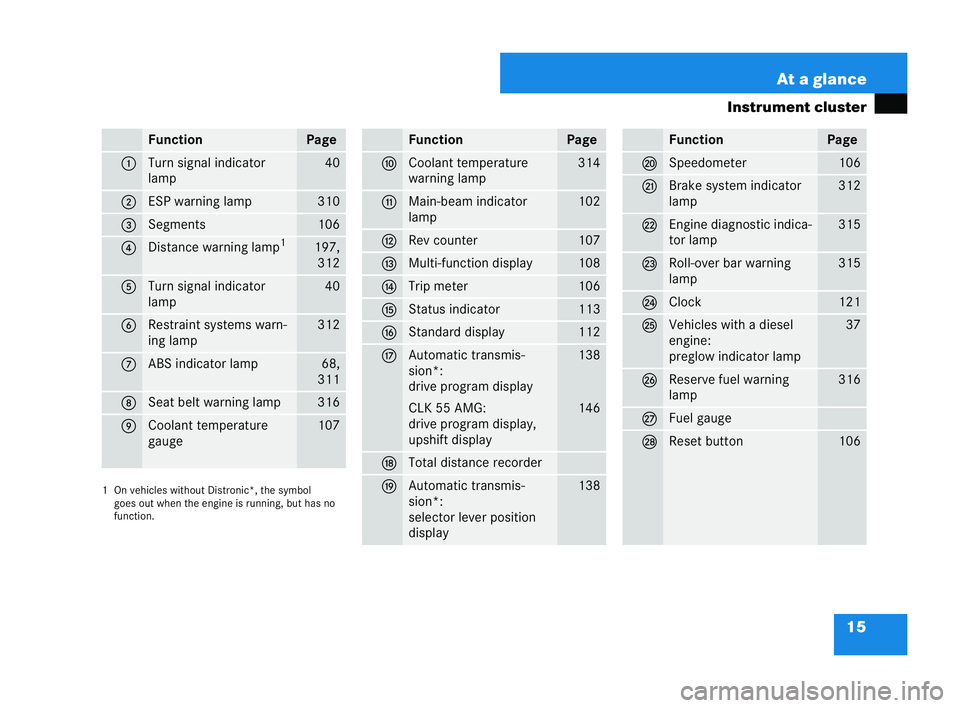

15
At a glance
Instrument cluster
1O n vehicles without Distronic*, thesy mbol
go es out when the engine is running, but has no
funct ion. Function Page
1 Turn signal indicator
lamp 40
2 ESP
warning lamp 310
3 Segments 106
4 Distance warning lamp
1 19
7,
312 5 Turn signal indicator
lamp 40
6 Restraint systems warn-
ing lamp 312
7 ABS indicator lamp 68,
311 8 Seat belt warning lamp 316
9 Coolant temperature
gauge 107 Fun
ction Page
a Coolant temperature
warning lamp 314
b Main-beam indicator
lamp 102
c Rev
counter 107
d Multi-function display 108
e Trip
meter 106
f Status indicator 113
g Standard display 112
h Automatic transmis-
sion*:
dr
ive program display
CLK 55 AMG:
drive program display,
upsh ift displ ay 138
146
j Total dista
nce rec orde r k Automatic transmis-
sion*:
selector lever position
display 138 Fu
nction Page
l Speedometer 106
m Brake system
indicator
lamp 312
n Engine diagnostic indica-
tor la
mp 315
o Ro
ll-over bar war ning
lamp 315
p Clock 121
q Vehicles with a diesel
eng
ine:
preglow indicator lamp 37
r Reserve fuel warning
lamp 316
s Fuel gauge
t Re
set button 106209en_d2.boo Seite
15Diens tag, 25 .Mai 2004 7:26 19

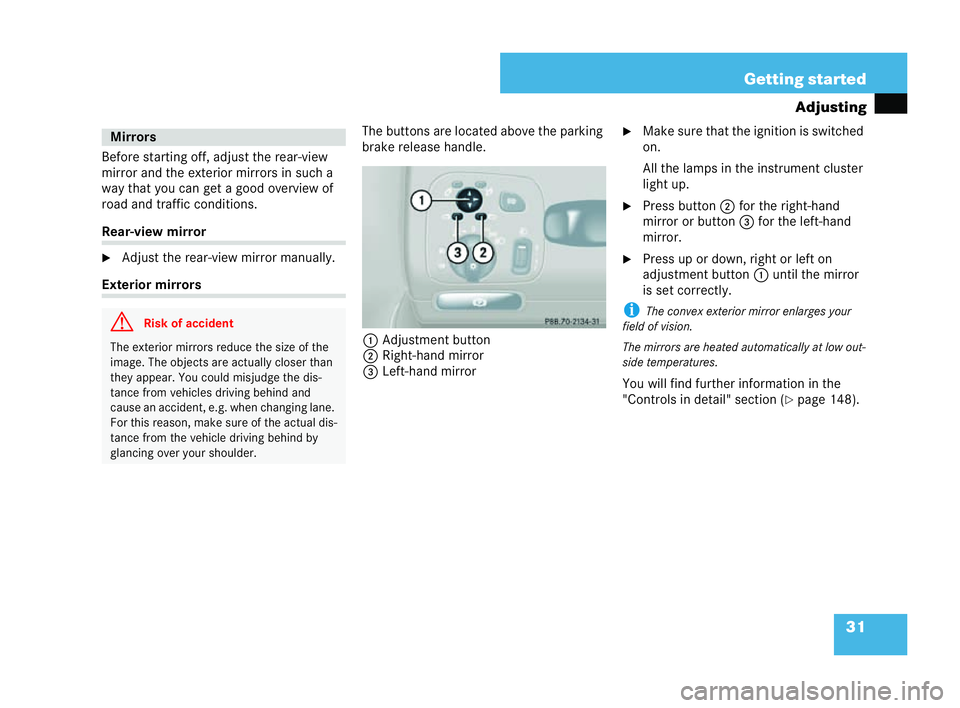

31
Getting started
Adjusting
Before starting off, adjust the rear-view
mirror and the exterior mirrors in such a
way that you can get a good overview of
road and traffic conditions. Rear-vie
wmi rror
6 Adjust the rear-view mirror manually. Exterior mirrors
The buttons are located above the parking
brake release handle.
1 Adjustment button
2 Right-hand mirror
3 Left-hand mirror 6
Make sure that the ignition is switched
on.
All the lamps in the instrument cluster
light up.
6 Press button 2for the right-hand
mirror or button 3for the left-hand
mirror.
6 Press up or down, right or left on
adjustment button 1until the mirror
is set correctly.
i The conve xexterior mirror enlarges your
field of vis ion.
The mirrors are heated automatically at low out-
si de temperatures.
You will find further information in the
"Controls in deta il" se ction (
=page 148). Mirrors
G
Risk of accident The
exterior mirrors reduce the size of the
image. The objects are actuallyclo ser than
they appear .You could misjudge the dis-
tance fro mvehicles driving behind and
ca use an accident, e.g. when changing lane.
For this reason, make sure of the actual dis-
tan cefrom the vehicle driving behind by
glanci ngover your shoulder. P88.70-2134-31209en_d2.boo Seite
31Diens tag, 25 .Mai 2004 7:26 19

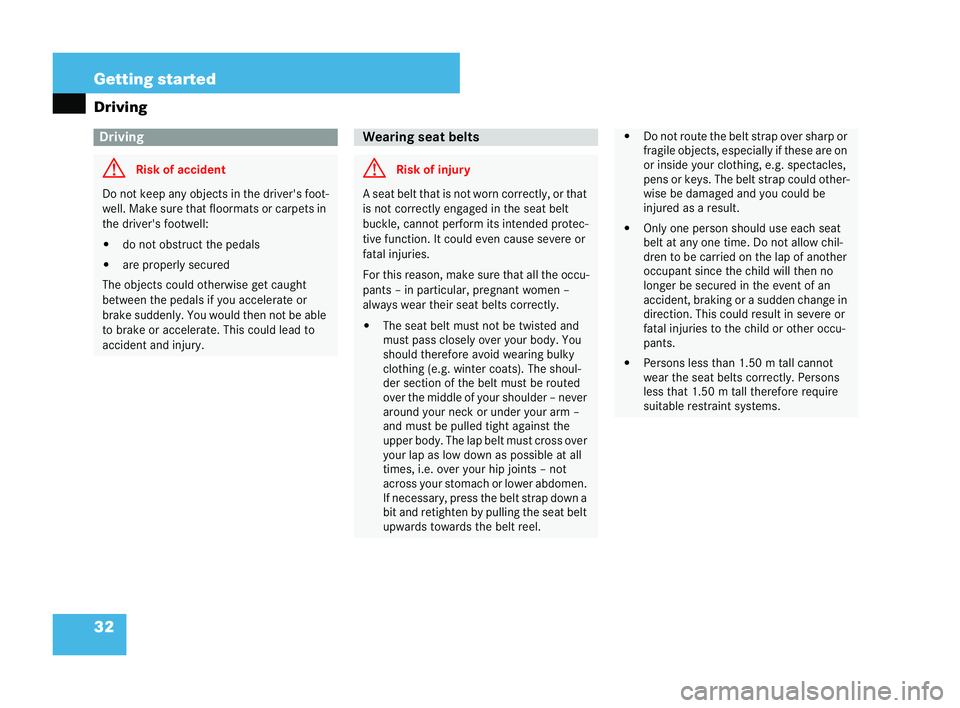

32 Getting started
Driving Dr
iving G
Risk of accident Do not kee
panyobjects in the driver' sfoo t-
well. Make sure that floormats or car pets in
the driver's footwell:
! donot obstruct the pedals
! areproperl ysecured
The objects could otherwise get caught
between the pedal sif you accelerate or
brake suddenly. You would then not be able
to brake or accelerate. This coul dlead to
ac cident and injury. Wearing seat belts
G
Risk of injury A seat belt that is not worn correctl
y,or that
is not correctly engaged in the seat belt
buckle, cannot perform its intende dprotec-
tive function. It could even cause severe or
fatal injuries.
For this reason, make sure that all the occu-
pants – in particular, pregnant women –
always wear their seat belts correctly.
! The se atbelt must not be twisted and
must pass closely over your body. You
should therefore avoid wearing bulky
clot hing (e.g. winter coats). The shoul-
der section of the belt must be routed
over the middle of your shoulder – never
ar ound you rnec kor under your arm –
and must be pulled tight against the
upper body. The lap bel t must crossover
your lap as low down as possibl eat all
times, i.e. over your hip joints – not
across your stomach or lower abdom en.
If necessary, press the belt strap down a
bit and retighten bypulling the seat belt
upwards towards the belt reel. !
Do not route the belt strap over sharp or
fragile objects, especially if these are on
or inside your clothing, e.g. spectacles,
pens or keys. The belt strap could ot her-
wise be damaged and you could be
injured as a result.
! Only one person shou ld use each seat
belt at any one time. Do not allow chil-
dren to be carried on the lap of another
occupant since the child will then no
longer be secured in the event of an
accident, braking or a sudden change in
direction. This could result in severe or
fatal injuries to the child or other occu-
pants.
! Persons less than 1.50 m tall cannot
wear the seat belts correctly. Persons
less that 1.50 m tall therefore require
suitable restraint systems. 209en_d2.boo Seite
32Diens tag, 25 .Mai 2004 7:26 19

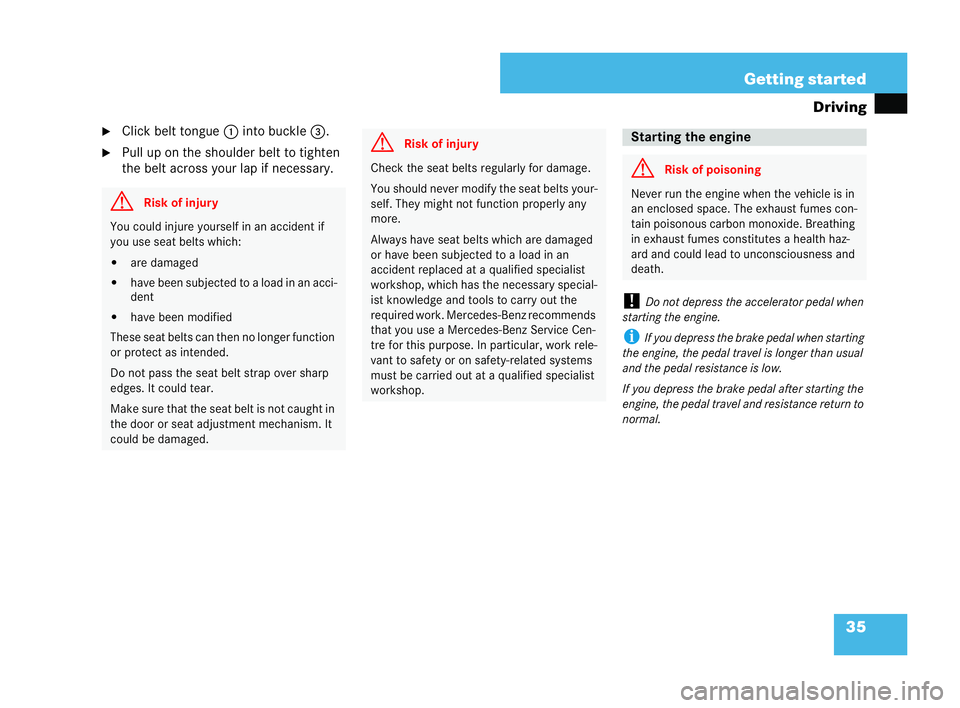

35
Getting started
Driving
6 Click bel ttongue 1into buckle 3.
6 Pull up on the shoulder belt to tighten
the belt across your lap if necessary.
!Do no tdepress the accelerator pedal when
st arting the engine.
i If you depress the brake pedal when starting
the engine, the pedal tra vel is longer than usual
and the pedal resistance is lo w.
If you depress the brake pedal after starting the
en gine, the pedal travel and resistance return to
normal. G
Riskof injury You could injure
yours elfin an accident if
you use seat belts which:
! aredamaged
! have been subjected to a loadin an acci-
dent
! have been modified
These seat belts can then nolong er function
or protect as intended.
Do not pass the seat belt strap over sharp
edges .It could tear.
Ma ke sure that th eseat belt isnot caught in
the door or seat adjustmen tmechanism. It
coul dbe damaged. G
Risk of injury Check the seat
belts regularly for damage.
You should never modify the seat belts your-
self. They might not function properly any
more.
Always have seat belts which are damaged
or have been subjected to a load in an
ac cident replaced ata qualifi edspecialist
workshop, which has the necessary special-
is t knowledge and tools to carry out the
required work. Mercede s-Benz recom mends
that you usea Merced es-Benz Service Cen-
tre for this purpose. In particular ,work rele-
vant to safety or on safety-related systems
must be carried out at a qualified specialist
workshop. Starting the engine
G
Risk of poisoning Never run
the engine wh enthe vehicle is in
an enclo sedsp ace. The exhaust fume scon-
tain poisonous carbon monoxide. Breathing
in exhaust fumes constitu tes a health haz-
ar dand could lead to unconscio usness and
death. 209en_d2.boo Seite
35Diens tag, 25 .Mai 2004 7:26 19

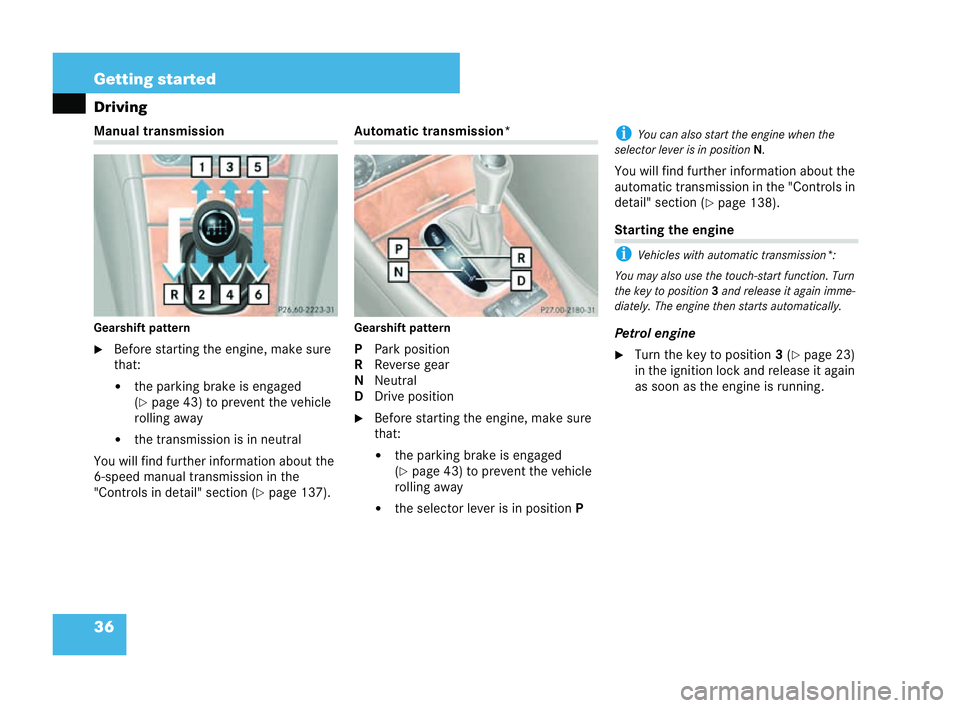

36 Getting started
DrivingManual transmission
Gearshift
pattern
6 Before starting the engine, make sure
that:
! the parking brake is engaged
(
= pag e43) to prevent the vehicle
rolling away
! the transm ission is in neutral
You will find further information about the
6-speed manual transmission in the
"Controls in deta il" section (
=page 137). Automatic
tran smission*
Gearshift pattern
P Park position
R Reverse gear
N Neutral
D Drive position
6 Before starting the engine, make sure
that:
!the parking brake is engaged
(=
page 43) to prevent the vehicle
rolling away
! the selector lever is inposition P i
Youcan also start the engine when the
selector lever is in position N.
You will find further information about the
automatic transmission in the "Controls in
detail" section ( =page 138). Starting the engine
i
Vehicle swith automatic transmission*:
You may also use the touch-start function. Turn
th ekey to position 3and rel ease itagain imme-
diatel y.The engine thenstarts aut omatical ly.
Petrol engine
6 Turn the key to position 3(= page 23)
in theignition lock and re leas eit aga in
as soon as the engine is running. P 26.60-2223-31 P 27.00-2180-31209en_d2.boo Seite
36Diens tag, 25 .Mai 2004 7:26 19

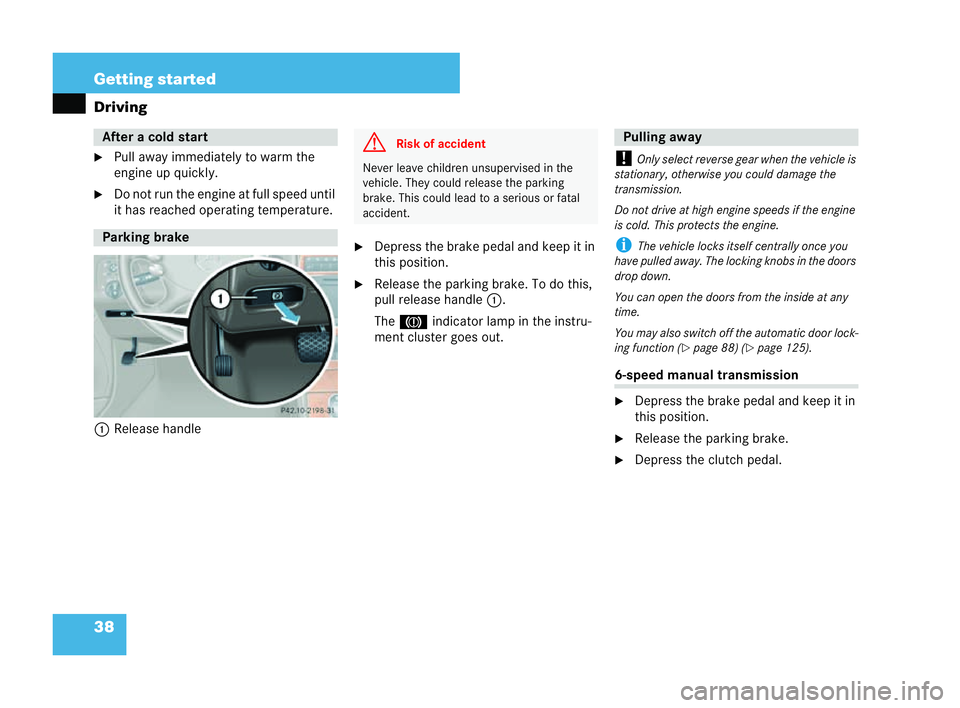

38 Getting started
Driving
6
Pull away immediately towa rm the
engine up qui ckly.
6 Do not run the eng ine at full speed until
it has reached operating temperature.
1 Release handle 6
Depress the brake pedal and keep it in
this position.
6 Release the parking brake. To do this,
pull release handle 1.
The 3 indicator lamp in the instru-
ment cluster goes out. !
Only select reverse gear when the vehicle is
stationary, otherwis eyou could damage the
transmission.
Do no tdrive at high engine speeds ifthe engine
is cold. This protects the engine.
i Thevehicle locks itsel fcentrally once you
have pulled away. The locking knobs in the do ors
drop do wn.
You can open the doors from the inside at any
time.
You may also switch off the automatic door lock-
ing fu nctio n (=
page 88) ( =page 125). 6-speed manual transmission
6
Depress the brake pedal and keep itin
this position.
6 Release the parking brake.
6 Depress the clutc hpe dal. After a cold start
Parking brake
P 42.20-2198-31 neu G
Riskofaccident Never leave children unsupervised in the
vehi
cle. They could release the parking
brake. This could lead to a serious or fatal
accident. Pulling away209en_d2.boo Seite
38Diens tag, 25 .Mai 2004 7:26 19
