Page 26 of 464

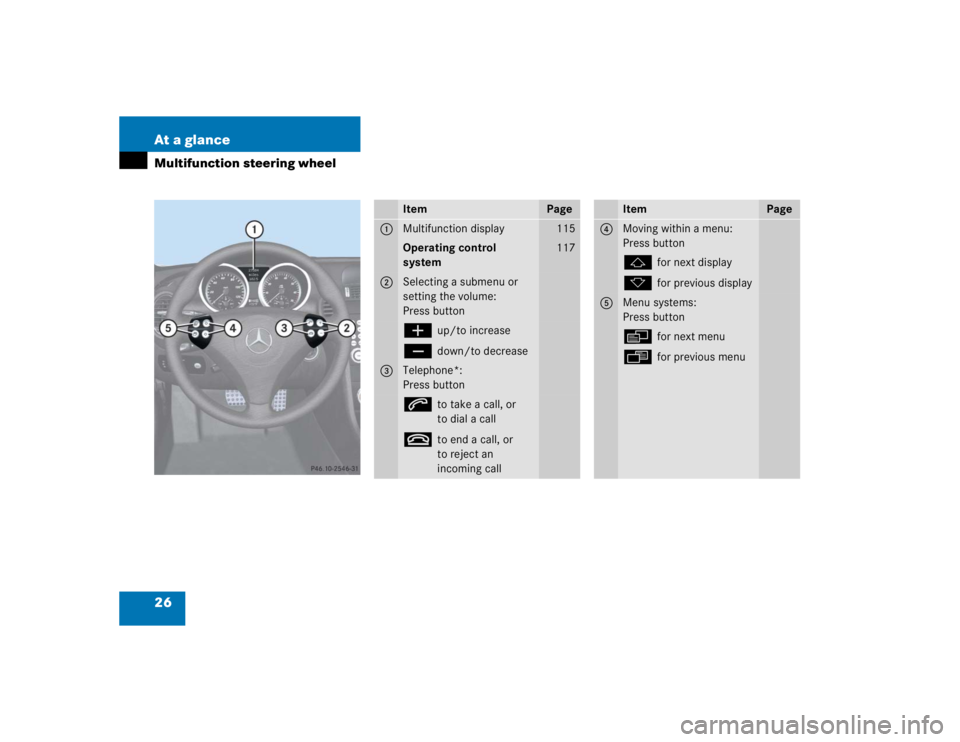

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
115
Operating control
system
117
2
Selecting a submenu or
setting the volume:
Press buttonæ
up/to increase
ç
down/to decrease
3
Telephone*:
Press buttons
to take a call, or
to dial a call
t
to end a call, or
to reject an
incoming call
Item
Page
4
Moving within a menu:
Press buttonj
for next display
k
for previous display
5
Menu systems:
Press buttonè
for next menu
·
for previous menu
Page 92 of 464
92 Controls in detailLocking and unlockingFactory setting
Global unlocking
Press buttonŒ.
All turn signal lamps flash once.
The lock buttons on the doors move up.
The anti-theft alarm system is dis-
armed (
page 85).
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:
neither door nor trunk is opened
the SmartKey is not inserted in the
starter switch
the central locking switch is not
activatedGlobal locking
Press button‹.
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs on the doors
move down.
The anti-theft alarm system is armed
now (
page 85).Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing buttonŒ only unlocks the driver’s
door, the storage compartment under the
armrest, the glove box, and the fuel filler
flap.
Press and hold buttonsŒand‹
simultaneously for about six seconds.
Battery check lamp5 flashes twice.
The SmartKey will then function as fol-
lows:
Unlocking driver’s door and fuel filler
flap
Press buttonŒ once.
All turn signal lamps flash once.
The lock button on the driver’s door
move up. The anti-theft alarm system is
disarmed (
page 85).
iIf the turn signal lamps do not flash
three times, one of the following ele-
ments may not be properly closed:
a door
the trunk lid
the fuel filler flap
the glove box
the storage compartment under the
armrest
Close the respective element and lock
the vehicle again.
Page 93 of 464
93 Controls in detail
Locking and unlocking
Global unlocking
Press buttonŒ twice.
All turn signal lamps flash once.
The lock buttons on the doors move up.
The anti-theft alarm system is dis-
armed (
page 85).
Global locking
Press button‹.
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs on the doors
move down.
The anti-theft alarm system is armed
now (
page 85).
Restoring to factory setting
Press and hold buttonsŒand‹
simultaneously for about six seconds.
Battery check lamp5 flashes twice.
The SmartKey is set to the factory set-
ting again.Unlocking the trunk lid
You can unlock and open the trunk lid sep-
arately.
Press and hold buttonŠ on the
SmartKey until the trunk lid unlocks.
For opening the trunk, see “Opening
the trunk” (
page 95).
Checking the batteries
Press button‹orŒ.
Battery check lamp5 comes on brief-
ly to indicate that the SmartKey batter-
ies are in order.
!If you can no longer lock or unlock the
vehicle with the SmartKey, then the
batteries in the SmartKey are dis-
charged, the SmartKey is malfunction-
ing, or the vehicle battery is drained.
Check the batteries in the
SmartKey and replace them if nec-
essary (
page 378).
Use the mechanical key to lock/un-
lock the driver’s door (
page 374).
Use the mechanical key to lock/un-
lock the trunk lid as required
(page 375).
Have the vehicle battery and the
battery connections checked
(page 396).
If the SmartKey is malfunctioning, con-
tact an authorized Mercedes-Benz
Center.
iIf battery check lamp5 does not
come on briefly during check, then the
SmartKey batteries are discharged.
Replace the batteries (
page 378).
You can obtain the required batteries
at any authorized Mercedes-Benz
Center.
Page 103 of 464
103 Controls in detail
Memory function*
Memory function*
You can store up to three different settings
for each SmartKey.
The following settings are stored when us-
ing the buttons on the outer side of the
driver’s seat:
Driver’s seat and backrest position
Steering wheel position
Exterior rear view mirror positions
These key-dependent memory settings
can be deactivated if desired. For informa-
tion on key-dependent memory settings,
see “Setting key-dependency”
(
page 143).The following settings are not
key-dependent. They are stored when us-
ing the buttons on the outer side of the
passenger seat:
Passenger seat and backrest position.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. See also the
section on air bags for proper seat po-
sitioning (
page 63).
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 255 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.
Page 118 of 464
118 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel.Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display are arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
Audio
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
It is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.
If you press buttonèorÿ re-
peatedly, you will pass through each
menu one after the other.
If you press buttonjork re-
peatedly, you will pass through each
function display, one after the other, in
the current menu.
1
Multifunction displayOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call, or
to dial a calltto end a call, or
to reject an incoming call
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu
Page 147 of 464
147 Controls in detail
Control system
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.
Switch on the telephone and Audio or
COMAND*.
See separate operating instructions.
Press buttonèorÿ repeatedly
until you see the
TEL
menu in the
multifunction display.Which messages will appear in the multi-
function display depends on whether your
telephone is switched on or off:
If the telephone is switched off, the
message in the multifunction display is: PHONE off
.
If the telephone is switched on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network,
READY
is indicated in the mul-
tifunction display.
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will see the
message:
Audio system
COMAND*
Press buttons.
You have answered the call.
The duration of the call appears in the
multifunction display.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
Page 148 of 464
148 Controls in detailControl systemRejecting a call
If you do not wish to receive the call, you
can choose to reject it.
Press buttont.
You have rejected the call.
The caller receives a busy signal.
Ending a call
Press buttont.
You have ended the call.
The standby message appears in the
multifunction display.Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonèorÿ repeatedly
until you see the
TEL
menu and the
standby message in the multifunction
display.
Press buttonjork.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
multifunction display you will see the
message
Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.
Press buttonjork repeatedly
until the desired name appears in the
multifunction display.The stored names are displayed in
ascending or descending alphabetical
order.
1Selected name from phone book
Press buttons.
The control system dials the selected
phone number.iIf you press and hold buttonj
ork for longer than one second,
the system scrolls rapidly through the
list of names until you release the but-
ton again.
Cancel the quick search mode by
pressing buttont.
Page 149 of 464
149 Controls in detail
Control system
If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.
If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.
or
Cancel the call you have intended to
make by pressing buttont.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press buttonèorÿ repeatedly
until you see the
TEL
menu and the
standby message in the multifunction
display.
Press buttons.
In the multifunction display you will see
the first number in the redial memory.
Press buttonjork repeatedly
until the desired number or name ap-
pears in the multifunction display.
Press buttons.
The control system dials the selected
phone number.
If the connection is successful, the du-
ration of the call will appear in the mul-
tifunction display, and
the name of the party if stored in
the phone book
or
instead of it the dialed number
or
Cancel the call you have intended to
make by pressing buttont.
Page 160 of 464
160 Controls in detailAutomatic transmission*Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:
Control the vehicle speed by gradually
releasing the brakes.
Accelerate gently.
Never abruptly step on the accelerator.Working on the vehicle
Steering wheel gearshift control
When driving in the automatic program
modesC orS, or in the manual program
modeM (SLK 55 AMG only), you can
change the gears manually on the steering
wheel or by using the gear selector lever
(page 154).
Warning!
G
When working on the vehicle, set the
parking brake and move gear selector lever
to positionP. Otherwise the vehicle could
roll away.
iTo avoid overrevving the engine when
downshifting with steering wheel
gearshift buttons, the transmission will
not shift to a lower gear if the engine’s
max. speed would be exceeded.
Page 161 of 464
161 Controls in detail
Automatic transmission*
Steering wheel gearshift control*
SLK 350
The steering wheel gearshift buttons are
located to the left and right of the steering
wheel.
1Button, inside: downshift
2Button, outside: upshift
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or parking
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.
iYou cannot shift with the steering
wheel gearshift buttons when the gear
selector lever is in positionP,N orR.
The last selected program
mode (CorS) is switched on when the
engine is restarted.
