Vehicle weight
E01100404900
Single cab Item 2WD 4WD
LHD RHD
Kerb weight Without optional parts
1,565 kg, 1,550 kg *1
1,780 kg 1,770 kg With full optional parts
1,595 kg, 1,600 kg *1
1,840 kg 1,810 kgMaximum gross vehicle weight
2,630 kg2,850 kg2,890 kgMaximum axle weight Front
1,030 kg1,260 kg Rear
1,700 kg1,800 kgMaximum towable weight With brake
1,800 kg *2
2,700 kg Without brake
750 kg *2 Maximum trailer-nose weight
77 kg *2
115 kgMaximum gross combination weight
4,400 kg *2
5,500 kg 5,540 kgMaximum permissible weight of the coupling device
35 kg*2
45 kg*3 Seating capacity (including a driver)
2 persons, 3 persons*4
*1 : Vehicles for Morocco
*2 : Except for vehicles for Morocco
*3 : Crossmember (weight = 10 kg) must be dismounted
*4 : Vehicles equipped with bench seat NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time. Specifications
9-10
9
OCRE12E1
Page 342 of 369

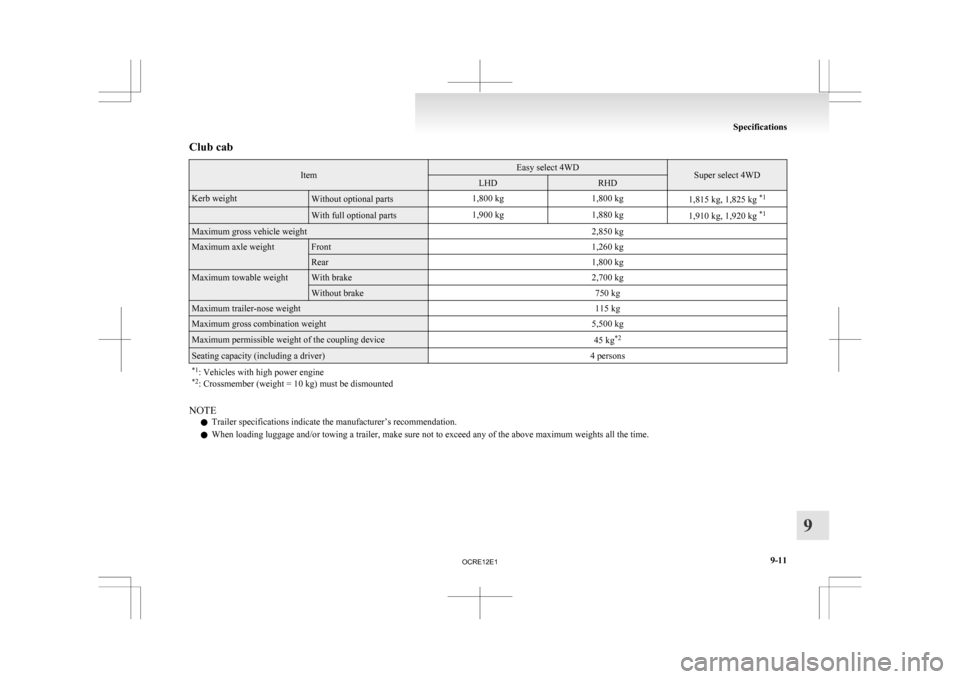

Club cab
Item Easy select 4WD
Super select 4WD
LHD RHD
Kerb weight
Without optional parts
1,800 kg
1,800 kg
1,815 kg, 1,825 kg *1
With full optional parts
1,900 kg
1,880 kg
1,910 kg, 1,920 kg *1Maximum gross vehicle weight
2,850 kgMaximum axle weight Front
1,260 kgRear
1,800 kgMaximum towable weight With brake
2,700 kgWithout brake
750 kgMaximum trailer-nose weight
115 kgMaximum gross combination weight
5,500 kgMaximum permissible weight of the coupling device
45 kg*2 Seating capacity (including a driver)
4 persons
*1 : Vehicles with high power engine
*2 : Crossmember (weight = 10 kg) must be dismounted NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time. Specifications
9-11 9
OCRE12E1
Page 343 of 369

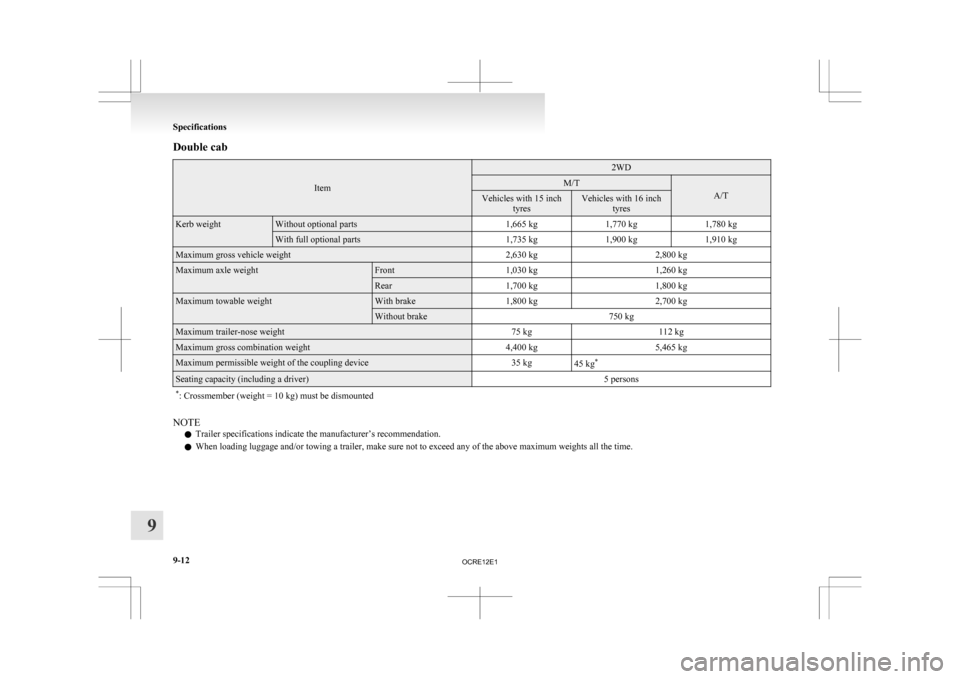

Double cab
Item 2WD
M/T
A/T
Vehicles with 15 inch
tyres Vehicles with 16 inch
tyres Kerb weight Without optional parts
1,665 kg1,770 kg1,780 kg With full optional parts
1,735 kg1,900 kg1,910 kgMaximum gross vehicle weight
2,630 kg2,800 kgMaximum axle weight Front
1,030 kg 1,260 kg Rear
1,700 kg 1,800 kgMaximum towable weight With brake
1,800 kg 2,700 kg Without brake
750 kgMaximum trailer-nose weight
75 kg112 kgMaximum gross combination weight
4,400 kg5,465 kgMaximum permissible weight of the coupling device
35 kg
45 kg* Seating capacity (including a driver)
5 persons
* : Crossmember (weight = 10 kg) must be dismounted NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time. Specifications
9-12
9
OCRE12E1
Page 344 of 369

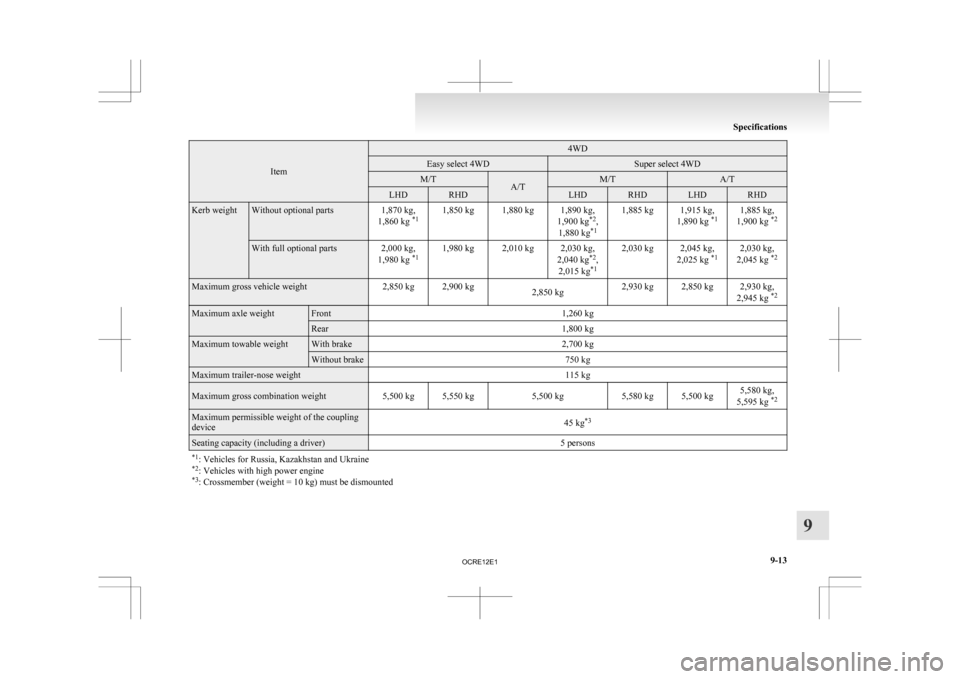

Item 4WD
Easy select 4WD Super select 4WD
M/T
A/T M/T A/T
LHD RHD LHD RHD LHD RHD
Kerb weight Without optional parts
1,870 kg,
1,860 kg *11,850 kg 1,880 kg 1,890 kg,
1,900 kg*2
,
1,880 kg *11,885 kg 1,915 kg,
1,890 kg *11,885 kg,
1,900 kg *2 With full optional parts 2,000 kg,
1,980 kg *11,980 kg 2,010 kg 2,030 kg,
2,040 kg*2
,
2,015 kg *12,030 kg 2,045 kg,
2,025 kg *12,030 kg,
2,045 kg *2 Maximum gross vehicle weight
2,850 kg 2,900 kg
2,850 kg2,930 kg 2,850 kg 2,930 kg,
2,945 kg *2 Maximum axle weight Front
1,260 kgRear
1,800 kgMaximum towable weight With brake
2,700 kgWithout brake
750 kgMaximum trailer-nose weight
115 kgMaximum gross combination weight
5,500 kg 5,550 kg5,500 kg5,580 kg 5,500 kg 5,580 kg,
5,595 kg *2 Maximum permissible weight of the coupling
device
45 kg
*3 Seating capacity (including a driver)
5 persons
*1 : Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles with high power engine
*3 : Crossmember (weight = 10 kg) must be dismounted Specifications
9-13 9
OCRE12E1
Page 345 of 369

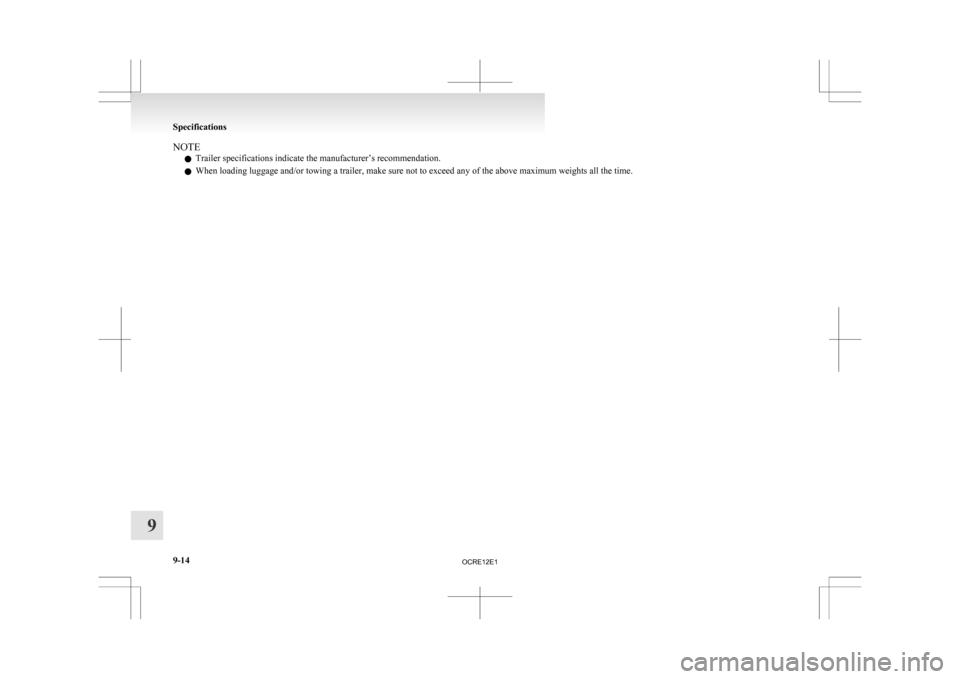

NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time. Specifications
9-14
9
OCRE12E1
Page 346 of 369

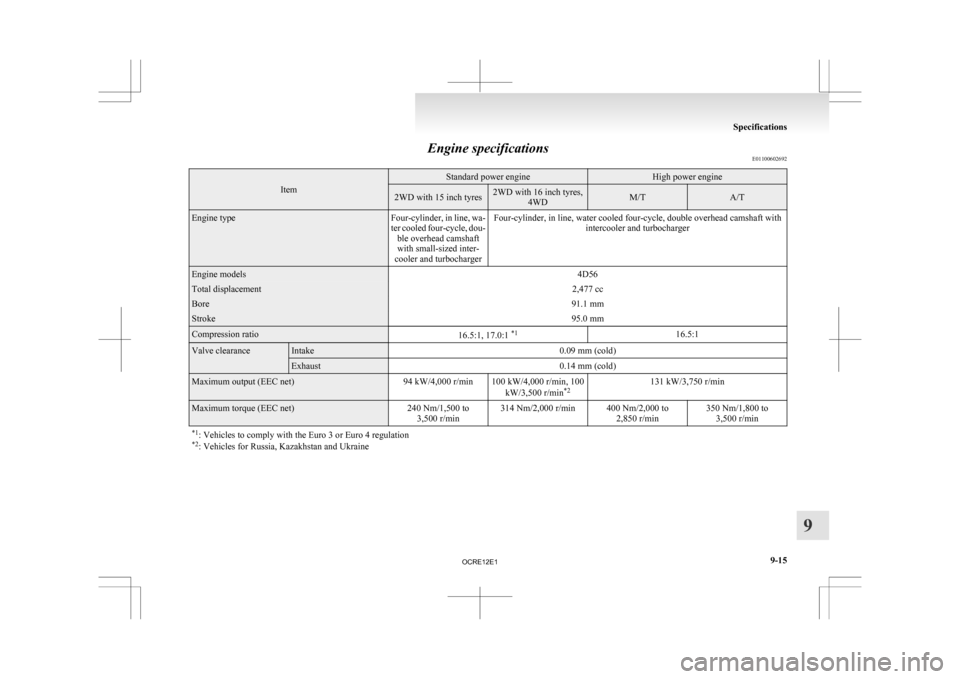

Engine specifications
E01100602692Item Standard power engine High power engine
2WD with 15 inch tyres 2WD with 16 inch tyres,
4WD M/T A/T
Engine type
Four-cylinder, in line, wa-
ter
cooled four-cycle, dou-
ble overhead camshaft
with small-sized inter-
cooler and turbocharger Four-cylinder, in line, water cooled four-cycle, double overhead camshaft with
intercooler and turbochargerEngine models
4D56Total displacement
2,477 ccBore
91.1 mmStroke
95.0 mmCompression ratio
16.5:1, 17.0:1 *1
16.5:1Valve clearance Intake
0.09 mm (cold)Exhaust
0.14 mm (cold)Maximum output (EEC net)
94 kW/4,000 r/min 100 kW/4,000 r/min, 100
kW/3,500 r/min*2 131 kW/3,750 r/minMaximum torque (EEC net)
240 Nm/1,500 to
3,500 r/min 314 Nm/2,000 r/min 400 Nm/2,000 to
2,850 r/min350 Nm/1,800 to
3,500 r/min
*1 : Vehicles to comply with the Euro 3 or Euro 4 regulation
*2 : Vehicles for Russia, Kazakhstan and Ukraine Specifications
9-15 9
OCRE12E1
Page 347 of 369

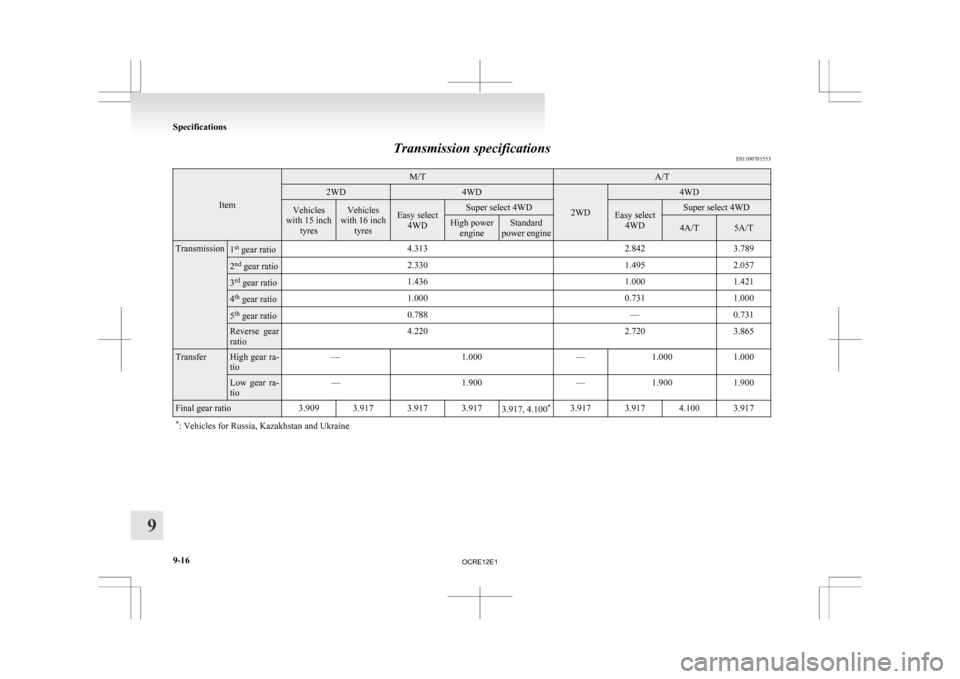

Transmission specifications
E01100701553Item M/T A/T
2WD 4WD
2WD 4WD
Vehicles
with 15 inch tyres Vehicles
with 16 inch tyres Easy select
4WD Super select 4WD
Easy select
4WD Super select 4WD
High power
engine Standard
power engine 4A/T 5A/T
Transmission
1
st
gear ratio 4.313
2.8423.7892
nd
gear ratio 2.330
1.4952.0573
rd
gear ratio 1.436
1.0001.4214
th
gear ratio 1.000
0.7311.0005
th
gear ratio 0.788
—0.731Reverse gear
ratio
4.220
2.7203.865Transfer High gear ra-
tio
—
1.000—1.000 1.000 Low gear ra-
tio
—
1.900—1.900 1.900Final gear ratio
3.909 3.917 3.917 3.917
3.917, 4.100*
3.917 3.917 4.100 3.917
* : Vehicles for Russia, Kazakhstan and Ukraine Specifications
9-16
9
OCRE12E1
Page 348 of 369

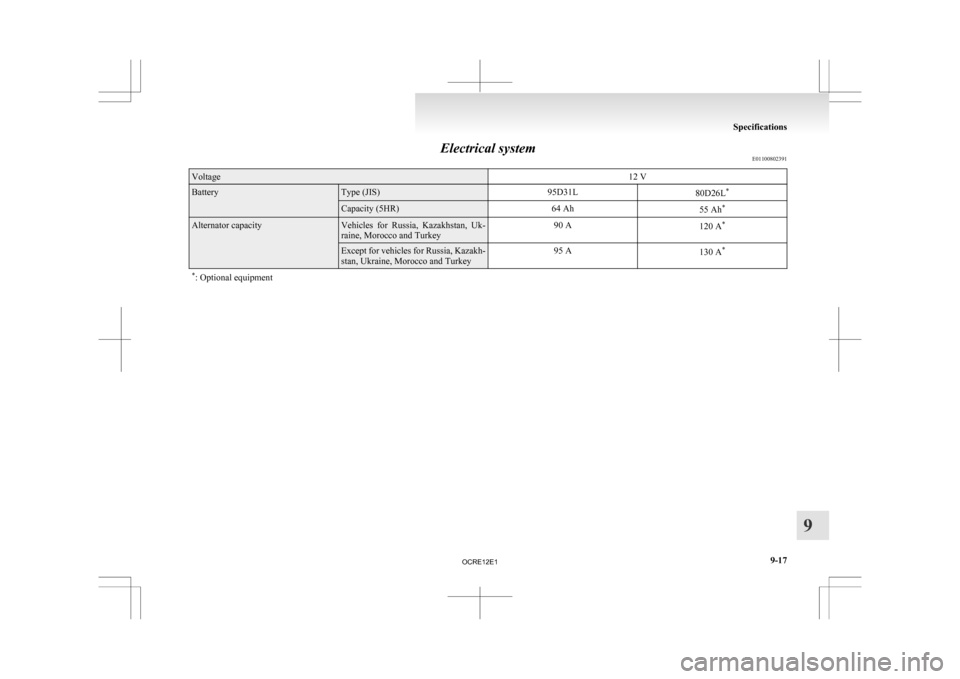

Electrical system
E01100802391Voltage
12 VBattery Type (JIS)
95D31L
80D26L* Capacity (5HR)
64 Ah
55 Ah* Alternator capacity Vehicles for Russia, Kazakhstan, Uk-
raine, Morocco and Turkey
90 A
120 A* Except for vehicles for Russia, Kazakh-
stan, Ukraine, Morocco and Turkey
95 A
130 A*
* : Optional equipment Specifications
9-17 9
OCRE12E1
Page 349 of 369

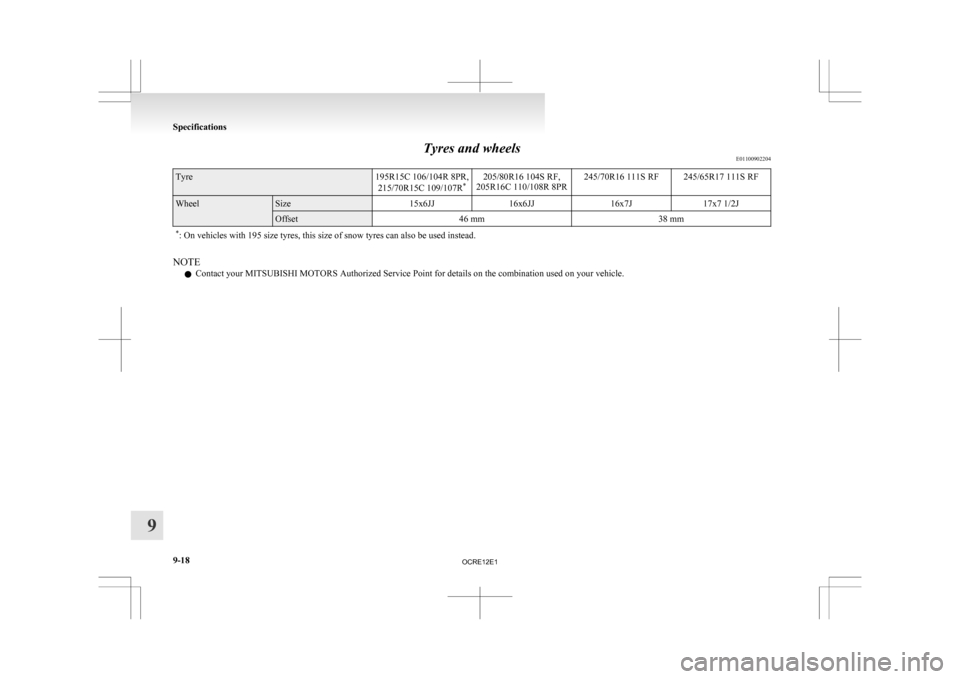

Tyres and wheels
E01100902204Tyre
195R15C 106/104R 8PR,
215/70R15C 109/107R *205/80R16 104S RF,
205R16C 110/108R 8PR 245/70R16 111S RF 245/65R17 111S RFWheel Size
15x6JJ16x6JJ 16x7J17x7 1/2J Offset
46 mm 38 mm
* : On vehicles with 195 size tyres, this size of snow tyres can also be used instead. NOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle. Specifications
9-18
9
OCRE12E1
Page 350 of 369

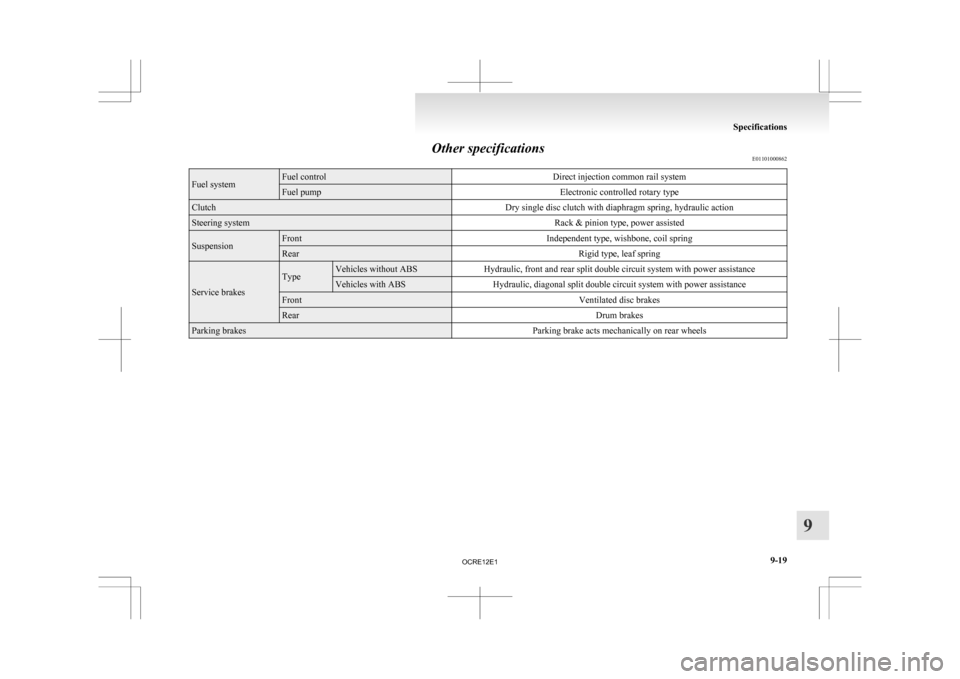

Other specifications
E01101000862Fuel system Fuel control
Direct injection common rail systemFuel pump
Electronic controlled rotary typeClutch
Dry single disc clutch with diaphragm spring, hydraulic actionSteering system
Rack & pinion type, power assistedSuspension Front
Independent type, wishbone, coil springRear
Rigid type, leaf springService brakes Type Vehicles without ABS
Hydraulic, front and rear split double circuit system with power assistance Vehicles with ABS
Hydraulic, diagonal split double circuit system with power assistanceFront
Ventilated disc brakesRear
Drum brakesParking brakes
Parking brake acts mechanically on rear wheels Specifications
9-19 9
