GENERAL – How to Use Troubleshooting/Inspection Service Points00-9
Diagnosis result display method when using a voltmeter
Example of diagnosis code voltage wave pattern for
diagnosis code No. 24Normal voltage wave pattern
12V
0 V
1.5 secs.0.5 sec.0.5 sec.
Pause
time 3
secs.Tens
signalPlace
division
2 secs.Units
signal
12 V
0 V
0.5 sec.
METHOD OF ERASING DIAGNOSIS CODES
WHEN USING THE MUT-II
Connect the MUT-II to the diagnosis connector and erase the diagnosis code.
Caution
Turn off the ignition switch before connecting or disconnecting the MUT-II.
WHEN NOT USING THE MUT-II
(1) Turn the ignition switch to OFF.
(2) After disconnecting the battery cable from the battery (–) terminal for 10 seconds or more, reconnect
the cable.
(3) After the engine has warmed up, run it at idle for about 15 minutes.
INPUT SIGNAL INSPECTION POINTS WITH ETACS-ECU>
WHEN USING THE MUT-II
1. Connect the MUT-II to the diagnosis connector.
Caution
The MUT-II should be connected or disconnected after
turning the ignition switch to the OFF position.
2. If buzzer of the MUT-II sounds once when the each switch
is operated (ON/OFF), the ETACS-ECU input signal for
that switch circuit system is normal.
WHEN USING VOLTMETER
1. Use the special tool to connect a voltmeter between
the earth terminal (No. 4 or 5) and the ETACS terminal
(No. 9) of the diagnosis connector.
2. If the voltmeter indicator deflects once when the each
switch is operated (ON/OFF), the ETACS-ECU input signal
for that switch circuit system is normal.
MUT-II
Earth terminal
ETACS terminal
MB991529

GENERAL – How to Use Troubleshooting/Inspection Service Points00-10
HOW TO USE THE INSPECTION PROCEDURES
The causes of a high frequency of problems occurring in electronic circuitry are generally the connectors,
components, the ECU and the harnesses between connectors, in that order. These inspection procedures
follow this order, and they first try to discover a problem with a connector or a defective component.
Indicator does not turn on or off even if control
mode switch is pressed.
Indicator switch should not be illuminated is
illuminated.Probable cause
OK
OK
OK
Measure at switch connector A-44
Disconnect the connector, and measure at the harness
side.
Voltage between terminal 6 – earth and terminal 8 –
earth
OK:Approx. 5V
OK
NG
Check the following connector. A-44
Repair
OK
Check trouble symptom.
Replace the ECS-ECU.
In the above cases, the ECS switch circuit is defective or the indicator
circuit is defective.

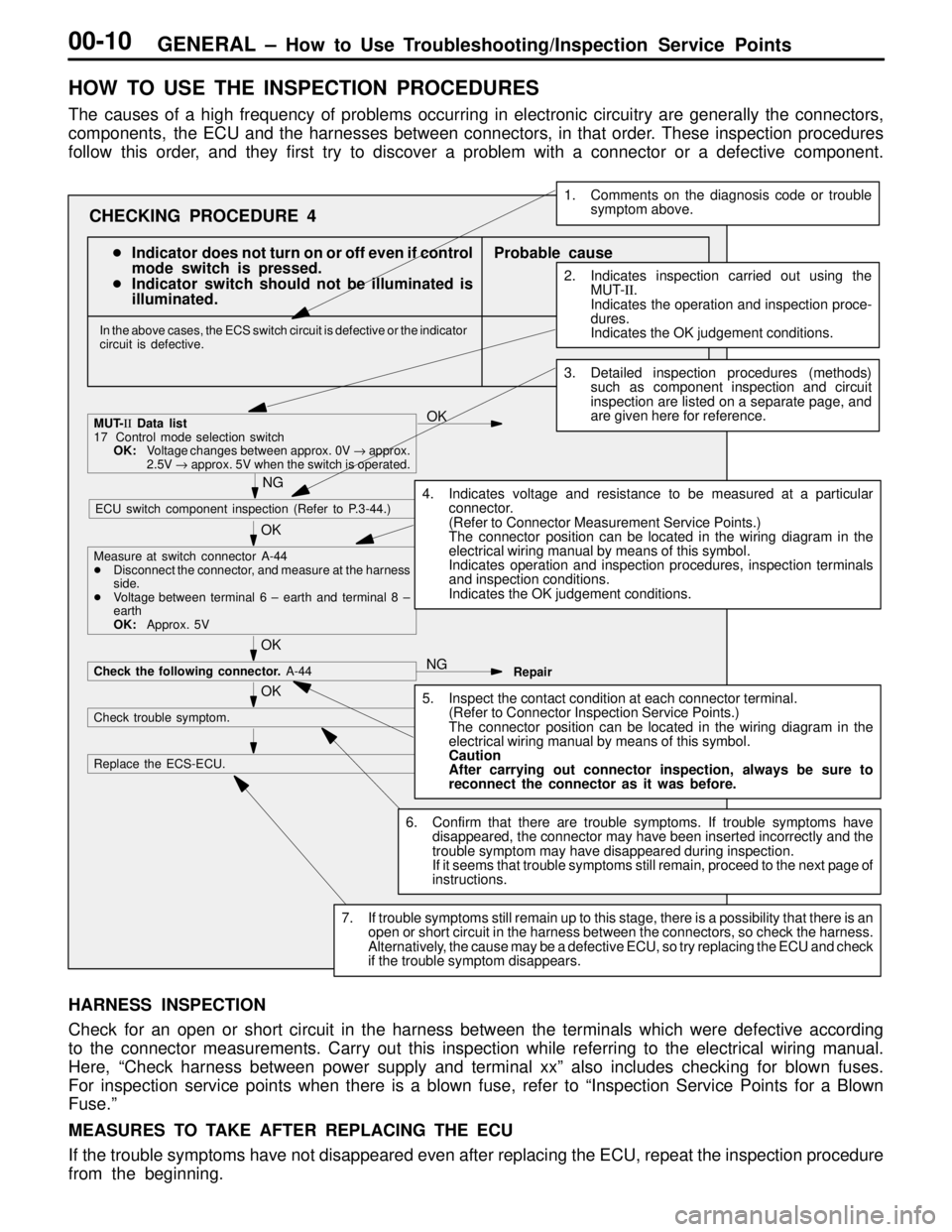

CHECKING PROCEDURE 4
2. Indicates inspection carried out using the
MUT-II.
Indicates the operation and inspection proce-
dures.
Indicates the OK judgement conditions.
3. Detailed inspection procedures (methods)
such as component inspection and circuit
inspection are listed on a separate page, and
are given here for reference.
5. Inspect the contact condition at each connector terminal.
(Refer to Connector Inspection Service Points.)
The connector position can be located in the wiring diagram in the
electrical wiring manual by means of this symbol.
Caution
After carrying out connector inspection, always be sure to
reconnect the connector as it was before.
6. Confirm that there are trouble symptoms. If trouble symptoms have
disappeared, the connector may have been inserted incorrectly and the
trouble symptom may have disappeared during inspection.
If it seems that trouble symptoms still remain, proceed to the next page of
instructions.
7. If trouble symptoms still remain up to this stage, there is a possibility that there is an
open or short circuit in the harness between the connectors, so check the harness.
Alternatively, the cause may be a defective ECU, so try replacing the ECU and check
if the trouble symptom disappears.
NGECU switch component inspection (Refer to P.3-44.)
NG
1. Comments on the diagnosis code or trouble
symptom above.
MUT-II Data list
17 Control mode selection switch
OK:Voltage changes between approx. 0V → approx.
2.5V → approx. 5V when the switch is operated.
4. Indicates voltage and resistance to be measured at a particular
connector.
(Refer to Connector Measurement Service Points.)
The connector position can be located in the wiring diagram in the
electrical wiring manual by means of this symbol.
Indicates operation and inspection procedures, inspection terminals
and inspection conditions.
Indicates the OK judgement conditions.
HARNESS INSPECTION
Check for an open or short circuit in the harness between the terminals which were defective according
to the connector measurements. Carry out this inspection while referring to the electrical wiring manual.
Here, “Check harness between power supply and terminal xx” also includes checking for blown fuses.
For inspection service points when there is a blown fuse, refer to “Inspection Service Points for a Blown
Fuse.”
MEASURES TO TAKE AFTER REPLACING THE ECU
If the trouble symptoms have not disappeared even after replacing the ECU, repeat the inspection procedure
from the beginning.

ENGINE – Starter Motor11-85
REASSEMBLY SERVICE POINTS
ASTOP RING / SNAP RING INSTALLATION
Using a suitable pulling tool, pull overrunnig clutch stop ring
over snap ring.
INSPECTION
COMMUTATOR CHECK
(1) Place the armature in a pair of “V” blocks and check
the runout with a dial indicator.
Standard value: 0.05 mm
Limit: 0.1 mm
(2) Measure the commutator outer diameter.
Standard value: 32.0 mm
Limit: 31.4 mm
(3) Check the undercut depth between segments.
Standard value: 0.5 mm
BRUSH HOLDER CHECK
Check the continuity between brush holder plate and brush
holder.
If there is no continuity, the brush holder is in order.
Stop ringOverrunning
clutchStop ring
Snap ring
Undercut
Segment
Mica
Brush holder
