Page 92 of 460
3-4 Features and controls
3
NOTEThe keyless entry key and F.A.S.T.-key are a precision
electronic device with a built-in signal transmitter. Please
observe the following in order to prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.
If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-28.
When the theft-alarm is in the system operational status,
the alarm operates if a door or liftgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.
The system does not enter the preparation status if the
keyless entry system or the F.A.S.T.-key was not used to
lock the vehicle.
BK0162600US.book 4 ページ 2013年3月22日 金曜日 午後2時41分
Page 96 of 460
3-8 Features and controls
3
• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “OFF” posi-
tion to the moment when the second key is turned to the
“ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “OFF”
position to the moment when the blank immobilizer key
is turned to the “ON” position
• more than 20 seconds elapses after the immobilizer indi-
cator starts blinking
General information
N00562300097
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
FCC Rules and Industry Canada licence-exempt RSS stan-
dard(s).
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.
Keyless entry system
(if so equipped)
N00509000923
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
WA R N I N G
!Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0162600US.book 8 ページ 2013年3月22日 金曜日 午後2時41分
Page 98 of 460
3-10 Features and controls
3
Setting of door and liftgate unlock function
N00543600118
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0162600US.book 10 ページ 2013年3月22日 金曜日 午後2時41分
Page 119 of 460
Features and controls
3-31
3
Keyless entry system
N00515500213
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTEIf you press the LOCK button (1) twice, the horn will
sound once.To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.NOTEThe door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-32.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Operation indicator light
BK0162600US.book 31 ページ 2013年3月22日 金曜日 午後2時41分
Page 121 of 460
Features and controls
3-33
3
Using the panic alarm
N00544700060
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTEThe indicator light (4) comes on each time a button is
pressed.
The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.
If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.
If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.
If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.To use the new remote control transmitters, it is necessary
to register the key with the electronic immobilizer and
keyless entry system.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem): Customer F.A.S.T.-key programming” on page 3-
29.
General information
N00562000065
Your F.A.S.T.-key operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of FCC
Rules and Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.Procedure for replacing the remote control trans-
mitter battery
N00562100066
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
WA R N I N G
!Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
BK0162600US.book 33 ページ 2013年3月22日 金曜日 午後2時41分
Page 157 of 460
Features and controls
3-69
3
Brake pad wear alarm
N00550700124
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Hill start assist
(if so equipped)
N00562600087
The hill start assist makes it easy to start off on a steep uphill
slope by preventing the vehicle from moving backwards. It
keeps the braking force for about 2 second when you move
your foot from the brake pedal to the accelerator pedal.
WA R N I N G
!Driving with worn brake pads will make it harder to
stop, and can cause an accident.
CAUTION
!Do not overly rely on the hill start assist to prevent
backwards movement of the vehicle. Under certain
circumstances, even when hill start assist is acti-
vated, the vehicle may move backwards if the brake
pedal is not sufficiently depressed, if the vehicle is
heavily loaded, or if the road is very steep or slip-
pery. The hill start assist is not designed to keep the vehi-
cle stopped in place on uphill slopes for more than 2
seconds.When facing uphill, do not rely on using the hill
start assist to maintain a stopped position as an
alternative to depressing the brake pedal.
Doing so could cause an accident.Do not perform the following operation while the
hill start assist is operating.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “OFF” or “ACC”
position.
[Vehicles equipped with the F.A.S.T.-key]
Put the operation mode in OFF or ACC. The hill
start assist could stop operating, which could result
in an accident.
BK0162600US.book 69 ページ 2013年3月22日 金曜日 午後2時41分

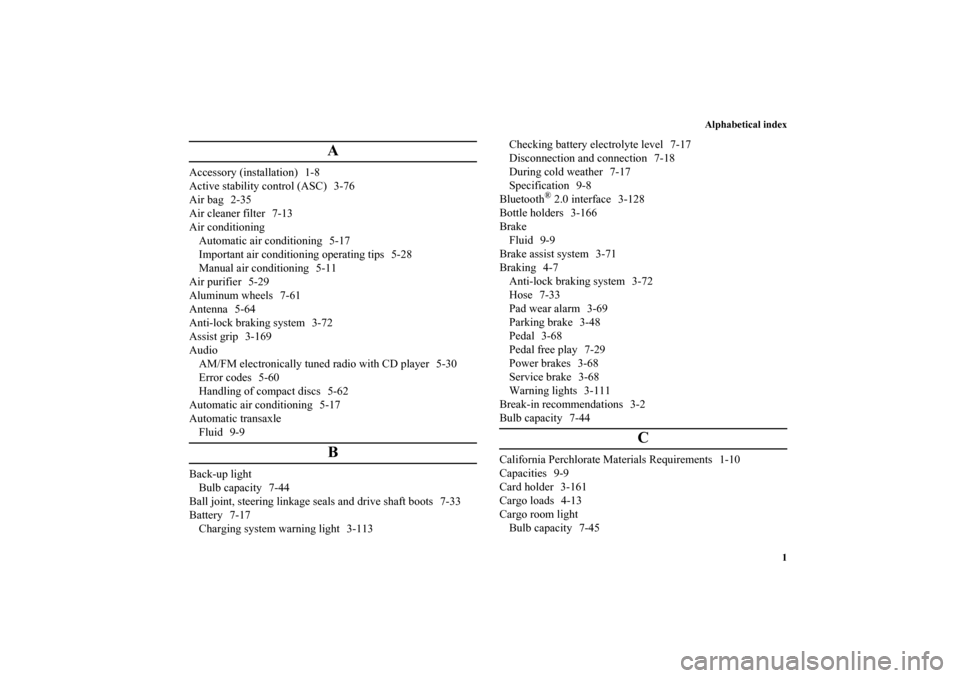

Page 453 of 460
Alphabetical index
1
A
Accessory (installation) 1-8
Active stability control (ASC) 3-76
Air bag 2-35
Air cleaner filter 7-13
Air conditioning
Automatic air conditioning 5-17
Important air conditioning operating tips 5-28
Manual air conditioning 5-11
Air purifier 5-29
Aluminum wheels 7-61
Antenna 5-64
Anti-lock braking system 3-72
Assist grip 3-169
Audio
AM/FM electronically tuned radio with CD player 5-30
Error codes 5-60
Handling of compact discs 5-62
Automatic air conditioning 5-17
Automatic transaxle
Fluid 9-9
B
Back-up light
Bulb capacity 7-44
Ball joint, steering linkage seals and drive shaft boots 7-33
Battery 7-17
Charging system warning light 3-113Checking battery electrolyte level 7-17
Disconnection and connection 7-18
During cold weather 7-17
Specification 9-8
Bluetooth
® 2.0 interface 3-128
Bottle holders 3-166
Brake
Fluid 9-9
Brake assist system 3-71
Braking 4-7
Anti-lock braking system 3-72
Hose 7-33
Pad wear alarm 3-69
Parking brake 3-48
Pedal 3-68
Pedal free play 7-29
Power brakes 3-68
Service brake 3-68
Warning lights 3-111
Break-in recommendations 3-2
Bulb capacity 7-44
C
California Perchlorate Materials Requirements 1-10
Capacities 9-9
Card holder 3-161
Cargo loads 4-13
Cargo room light
Bulb capacity 7-45
BK0162600US.book 1 ページ 2013年3月22日 金曜日 午後2時41分
