Page 11 of 714
2 Quick indexAnti-lock braking system warning
lightWhen this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.
Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-134.
If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3-134
SRS warning lightIt is not necessary to stop the vehicle immediately, but we recommend that
you have the airbag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.P. 2-70
Tire pressure monitoring system
warning lightIf the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-27.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.
If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P. 3-150
Warning lights
Do this
Ref. Page
BK0138000US.book 2 ページ 2011年4月13日 水曜日 午前11時17分
Page 32 of 714
Seat and restraint systems
2-5

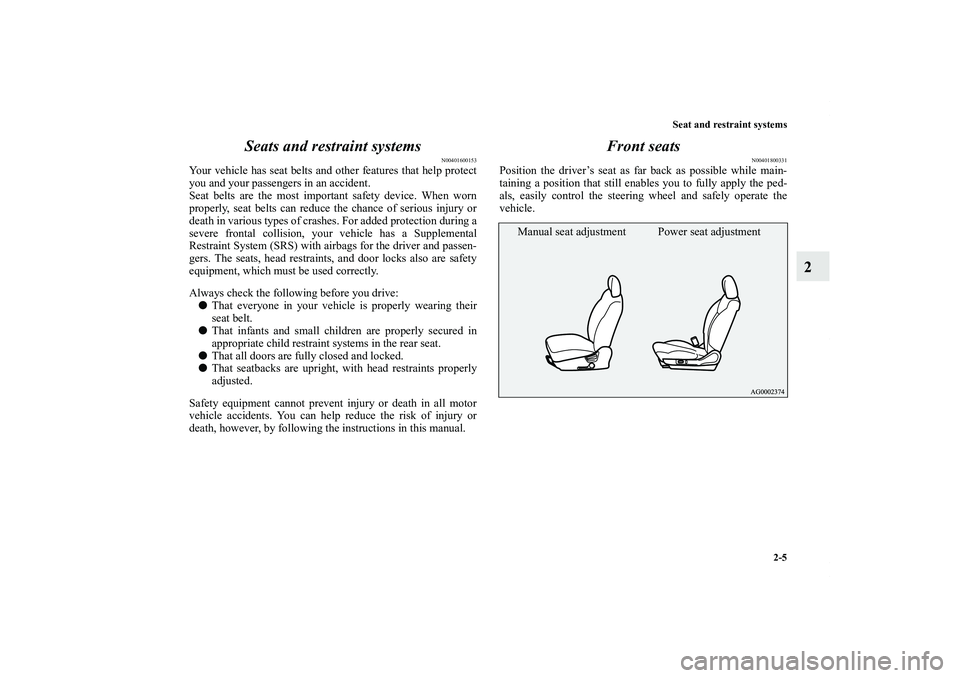

2 Seats and restraint systems
N00401600153
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:
That everyone in your vehicle is properly wearing their
seat belt.
That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.
That all doors are fully closed and locked.
That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800331
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.
Power seat adjustment Manual seat adjustment
BK0138000US.book 5 ページ 2011年4月13日 水曜日 午前11時17分
Page 34 of 714
Seat and restraint systems
2-7
2

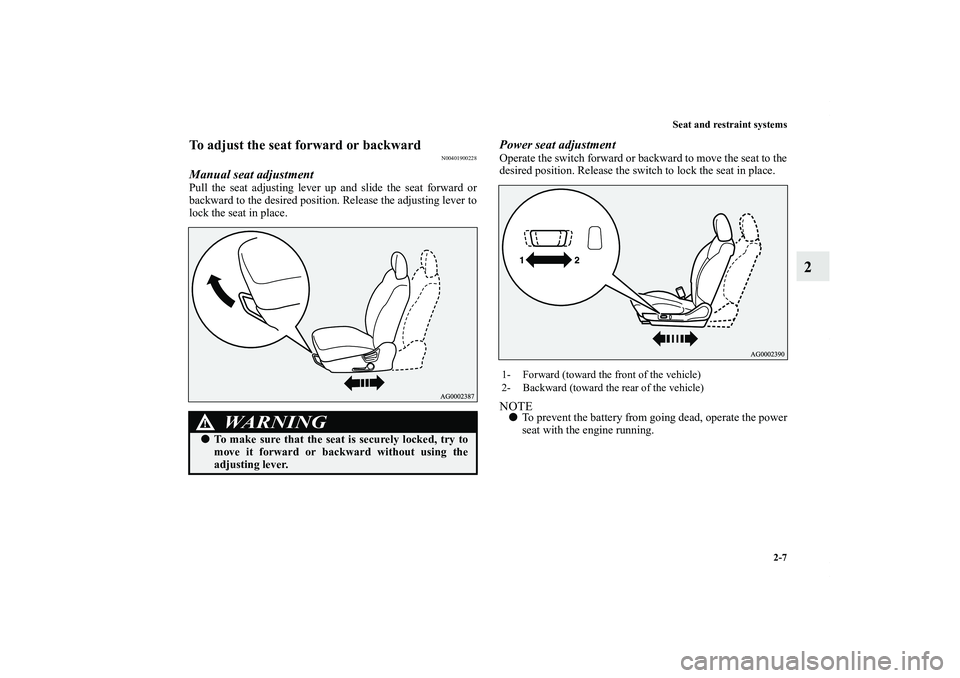

To adjust the seat forward or backward
N00401900228
Manual seat adjustmentPull the seat adjusting lever up and slide the seat forward or
backward to the desired position. Release the adjusting lever to
lock the seat in place.
Power seat adjustmentOperate the switch forward or backward to move the seat to the
desired position. Release the switch to lock the seat in place.NOTETo prevent the battery from going dead, operate the power
seat with the engine running.
WA R N I N G
!To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever.
1- Forward (toward the front of the vehicle)
2- Backward (toward the rear of the vehicle)
BK0138000US.book 7 ページ 2011年4月13日 水曜日 午前11時17分
Page 35 of 714
2-8 Seat and restraint systems
2

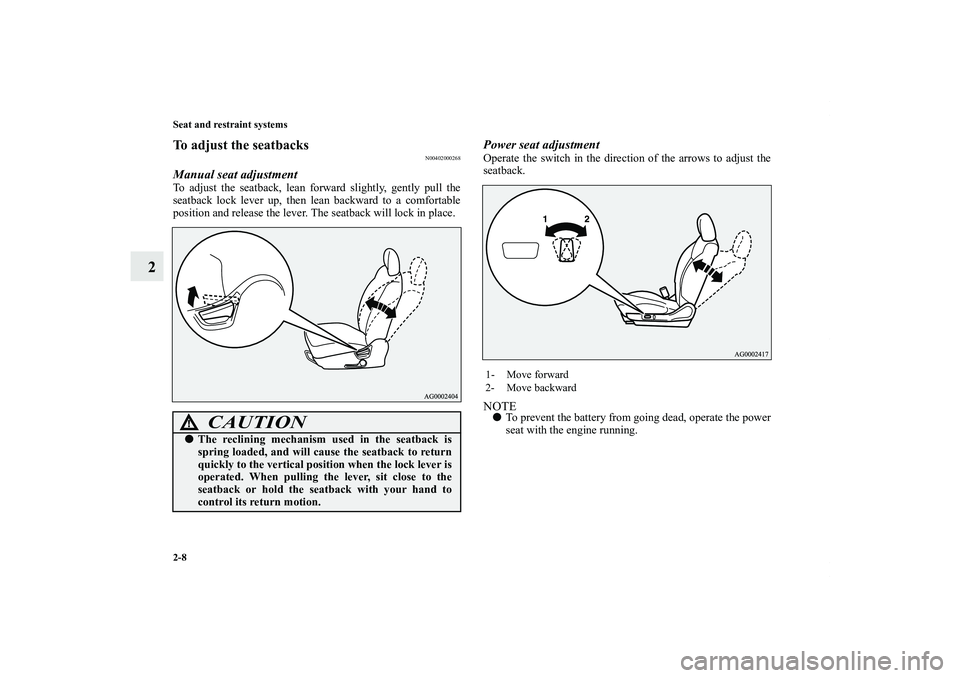

To adjust the seatbacks
N00402000268
Manual seat adjustmentTo adjust the seatback, lean forward slightly, gently pull the
seatback lock lever up, then lean backward to a comfortable
position and release the lever. The seatback will lock in place.
Power seat adjustmentOperate the switch in the direction of the arrows to adjust the
seatback.NOTETo prevent the battery from going dead, operate the power
seat with the engine running.
CAUTION
!The reclining mechanism used in the seatback is
spring loaded, and will cause the seatback to return
quickly to the vertical position when the lock lever is
operated. When pulling the lever, sit close to the
seatback or hold the seatback with your hand to
control its return motion.
1- Move forward
2- Move backward
BK0138000US.book 8 ページ 2011年4月13日 水曜日 午前11時17分
Page 36 of 714
Seat and restraint systems
2-9
2

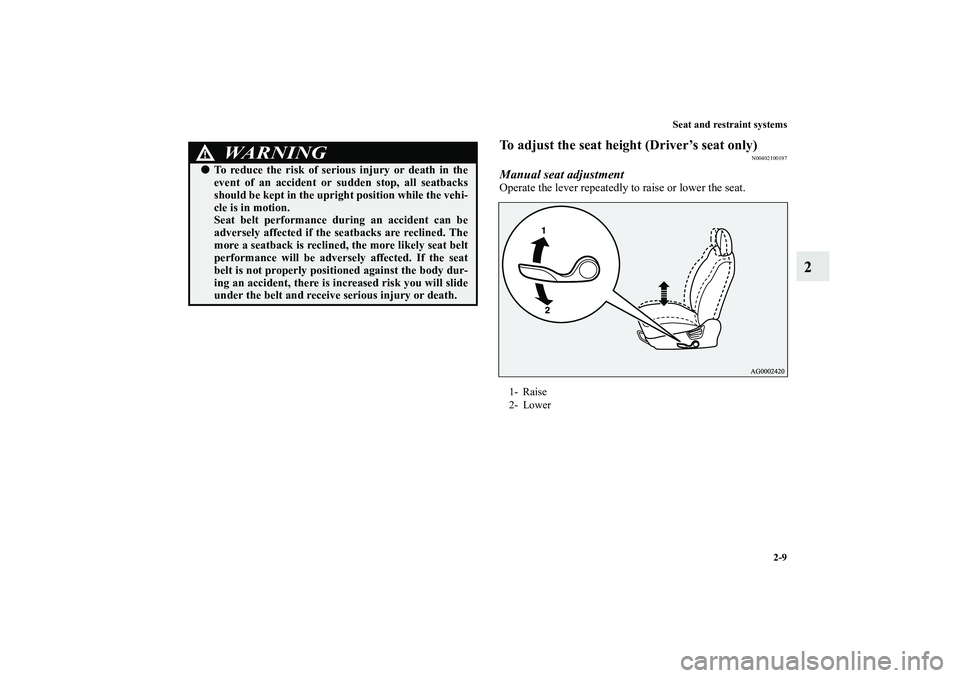

To adjust the seat height (Driver’s seat only)
N00402100197
Manual seat adjustmentOperate the lever repeatedly to raise or lower the seat.
WA R N I N G
!To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
1- Raise
2- Lower
BK0138000US.book 9 ページ 2011年4月13日 水曜日 午前11時17分
Page 37 of 714
2-10 Seat and restraint systems
2

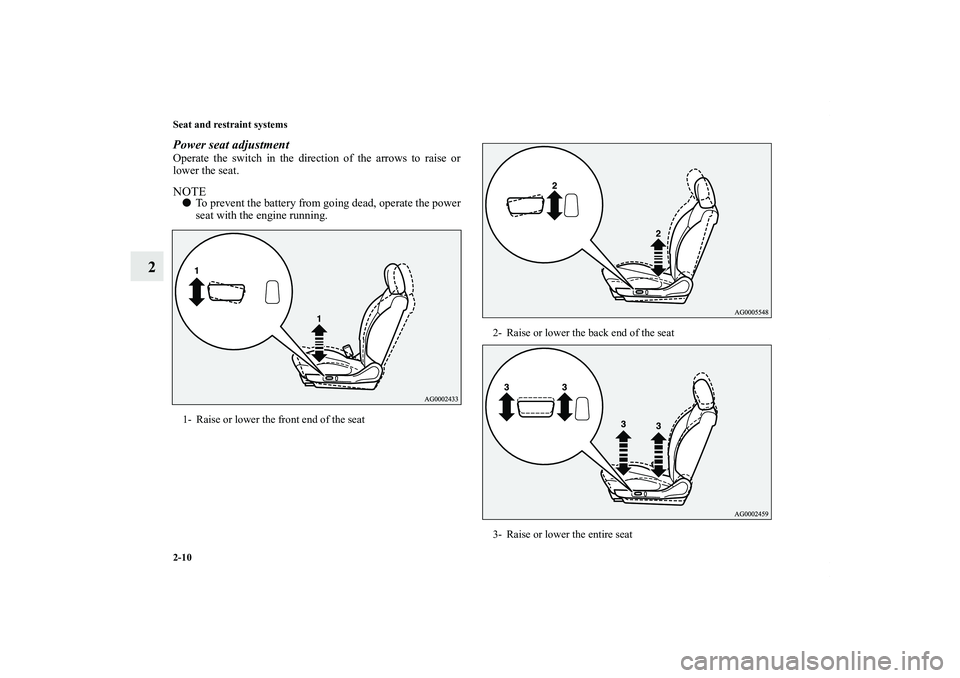

Power seat adjustmentOperate the switch in the direction of the arrows to raise or
lower the seat.NOTETo prevent the battery from going dead, operate the power
seat with the engine running.1- Raise or lower the front end of the seat
2- Raise or lower the back end of the seat
3- Raise or lower the entire seat
BK0138000US.book 10 ページ 2011年4月13日 水曜日 午前11時17分
Page 54 of 714
Seat and restraint systems
2-27
2
NOTEThe head restraint height in the third row seats cannot be
adjusted.
For instructions regarding on how to use the third row
seats, refer to “Third row seat (Seating 7 passengers)” on
page 2-16.
Adjustment of the head restraint height (The
front and second row seats)To reduce the risk of injury in an accident, adjust the head
restraint height so that the center of the restraint is at your eye
level when seated. Any person too tall for the restraint to reach
their eye level when seated should raise the restraint to the
highest locked position.
To raise the restraint, pull it straight up.
To lower the restraint, push down on it while pressing the
lock knob (A) in the direction shown by the arrow.
After adjusting the height, push down on the restraint to
make sure it is locked in position.
WA R N I N G
!Driving without the head restraints in place can
cause you and your passengers serious injury or
death in an accident. To reduce the risk of injury in
an accident, always make sure the head restraints
are installed and properly positioned when the seat
is occupied.In order to minimize the risk of a neck injury due to
a rear impact, the seatback must be adjusted to the
upright position and the head restraint must be
adjusted to the proper position before vehicle opera-
tion. The driver should never adjust the seat while
the vehicle is in motion.Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
head and the restraint.
BK0138000US.book 27 ページ 2011年4月13日 水曜日 午前11時17分
Page 57 of 714
2-30 Seat and restraint systems
2
NOTEWhen the seatback of a front seat is reclined, return it to
the upright position before driving.
Folding the second row seats
N00405700110
The second row seat can be folded to create an additional cargo
area or to permit access to the third row seat on vehicles with a
third row seat.NOTEYou can separately fold the right and left side of the sec-
ond row seat.
When folding down the seatback, the seat belt buckles can
be stowed in the slits on the seat to avoid leaving marks on
the seat.
“Storing the second row and third row seat belts” on page
2-46.To f o l d u p t h e s e a t1. Lower the head restraints to the lowest position.
Refer to “Head restraints” on page 2-26.
CAUTION
!In the cargo area, do not load the luggage higher
than the top of the seats and make sure that the lug-
gage is firmly secured. Restricted rear vision or fly-
ing objects entering the passenger compartment
during sudden braking could result in a serious acci-
dent.Seats should always be folded up and put back into
the normal position by an adult. Seat adjustments
by a child could lead to an unexpected accident.When adjusting the seats, be careful not to catch
your hand or leg. Personal injury could result.
BK0138000US.book 30 ページ 2011年4月13日 水曜日 午前11時17分
Page 62 of 714
Seat and restraint systems
2-35
2

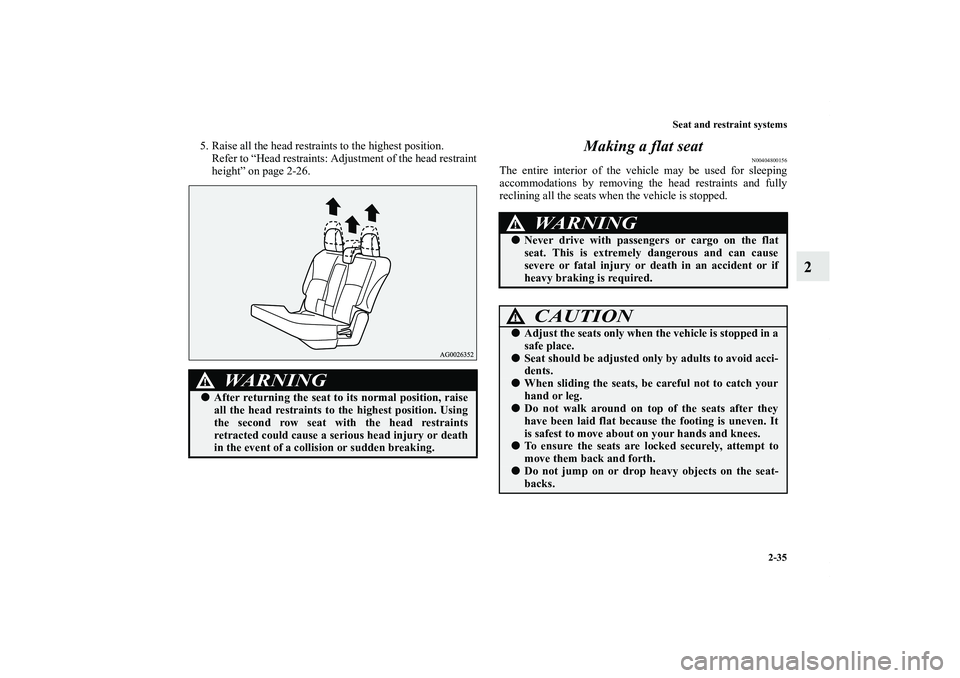

5. Raise all the head restraints to the highest position.
Refer to “Head restraints: Adjustment of the head restraint
height” on page 2-26.
Making a flat seat
N00404800156
The entire interior of the vehicle may be used for sleeping
accommodations by removing the head restraints and fully
reclining all the seats when the vehicle is stopped.
WA R N I N G
!After returning the seat to its normal position, raise
all the head restraints to the highest position. Using
the second row seat with the head restraints
retracted could cause a serious head injury or death
in the event of a collision or sudden breaking.
WA R N I N G
!Never drive with passengers or cargo on the flat
seat. This is extremely dangerous and can cause
severe or fatal injury or death in an accident or if
heavy braking is required.
CAUTION
!Adjust the seats only when the vehicle is stopped in a
safe place.Seat should be adjusted only by adults to avoid acci-
dents.When sliding the seats, be careful not to catch your
hand or leg.Do not walk around on top of the seats after they
have been laid flat because the footing is uneven. It
is safest to move about on your hands and knees.To ensure the seats are locked securely, attempt to
move them back and forth.Do not jump on or drop heavy objects on the seat-
backs.
BK0138000US.book 35 ページ 2011年4月13日 水曜日 午前11時17分
Page 197 of 714
3-82 Features and controls

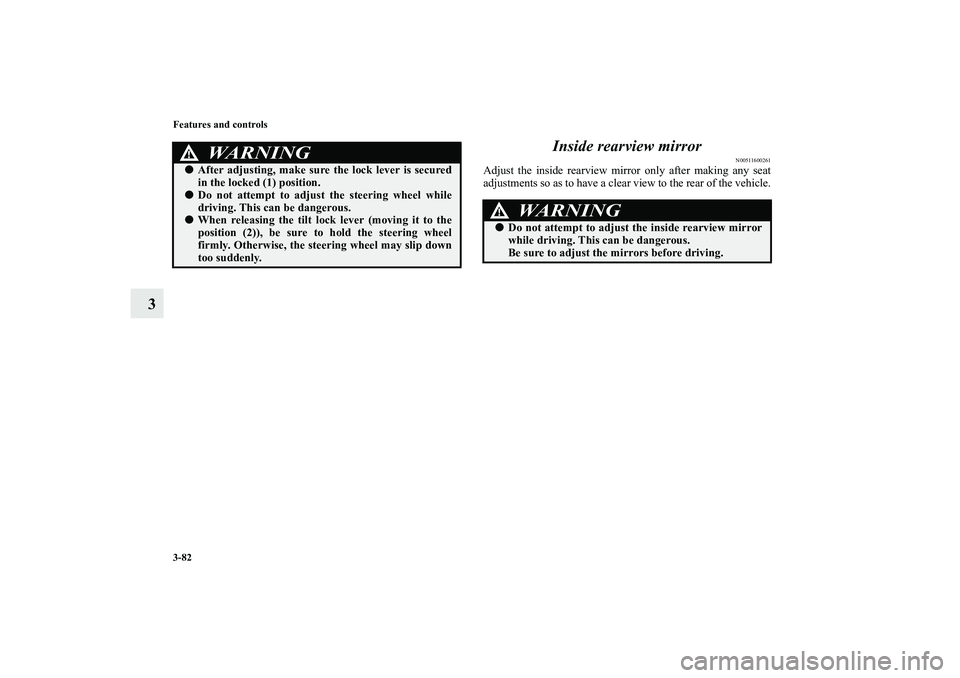

3Inside rearview mirror
N00511600261
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!After adjusting, make sure the lock lever is secured
in the locked (1) position.Do not attempt to adjust the steering wheel while
driving. This can be dangerous.When releasing the tilt lock lever (moving it to the
position (2)), be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
BK0138000US.book 82 ページ 2011年4月13日 水曜日 午前11時17分
