NISSAN 350Z 2008 Z33 Quick Reference Guide
Manufacturer: NISSAN, Model Year: 2008, Model line: 350Z, Model: NISSAN 350Z 2008 Z33Pages: 32, PDF Size: 1.95 MB
Page 21 of 32
7. Say “Store” when you are finished entering numbers. The system confirms the name,
location, and number.
8. Say “Yes” or “No” when the system asks if you would like to store another location for
the same name. If you do not respond to the system prompt, the system ends the New
Entry session.
MAKING A PHONE CALL
1. Press thebutton.
2. After the tone, do one of the following:
Say “Call [name] [location].” For example, say “Call Michelle Home.”
Say “Call [number].” For example, say “Call 123-456-7891.”
Say “Redial” to redial the previous phone number called by the system.
RECEIVING/ENDING A PHONE CALL
When you receive a phone call, a ring tone sounds through the audio system.
To accept the call, press the
button. To reject the call, press thebutton.
To hang up the phone at the end of a call or to disconnect during call placement, press
the
button.
HOW TO SAY NUMBER
NISSAN voice recognition permits numbers to be spoken in a variety of ways.
Say “zero” or “oh” for “0.” Example: 1-800-662-6200 – Say “one eight zero zero six six
two six two oh oh.”
Say “pound” for “#”. Say “star” for “*”. Example: 1-555-1212*123 – Say “one five five five
one two one two star one two three.”
NAVIGATION SYSTEM (if so equipped)
GETTING STARTED
The Navigation System begins
when the ignition switch is in the
ACC or ON position. To help
ensure safe driving, some func-
tions are grayed out, or muted,
while driving. Park the vehicle in
a safe location and then operate
the Navigation System.
19
Page 22 of 32
BASIC FUNCTIONS
START-UP SCREEN
Read the precautions carefully, highlight the
“OK” key using the joystick and press the
ENTERbutton.
NAVIGATION DISPLAY SCREEN
Displays navigation features and map.
DISABLED WHILE DRIVING
Not all features can be manually operated
while the vehicle is in motion. The text for these
restricted features turns from white to gray and
cannot be selected.
DAY/NIGHT BUTTON
Press thebuttonto switch be-
tween the day screen (bright) and the night
screen (dark) . Within 10 seconds of pressing
the
button, you can adjust the
brightness of the map display screen by mov-
ing the joystick right or left.
MOVING AROUND WITHIN A MAP
To maneuver around the navigation display
screen, tilt the joystick corresponding to the
direction that you want to move across the
map. Keep tilting the joystick to continuously
move across the map in that direction. Once
you start moving on the map, the cross pointer
appears.
20
Page 23 of 32
SETTING BUTTON
Press the SETTING buttonto change or
set navigation preferences.
DEST (DESTINATION) BUTTON
Press the DESTbuttonto display the
address book and alternative ways of pro-
gramming a destination.
MAP BUTTON
Press the MAPbuttonto display the
current location map screen.
ROUTE BUTTON
Press the ROUTEbuttonto display vari-
ous ways to modify the route to a destination.
ZOOM OUT/IN BUTTONS
Press thebuttonor the
buttonto increase or decrease the scale
of the map display.
BACK BUTTON
Press the BACKbuttonto return to the previous function shown on the navigation
display.
VOICE BUTTON
Press the VOICEbuttonto hear the current navigation situation.
21
Page 24 of 32
CANCEL BUTTON
Press theCANCELbuttonto return to the map screen or cancel the route that has
already been set.
SWITCHING THE MAP VIEW
Press theMAPbutton. The current loca-
tion map screen is displayed.
Press theENTERbutton.
Highlight the “Map View” key and press the
ENTERbutton.
Highlight either one of the “Plan View” keys or
one of the “Birdview” keys and press theEN-
TERbutton to select the map view. Press the
MAPbutton
or the “Back” key to accept
the changes.
PLAN VIEW
Displays the map in a 2-dimensional environ-
ment similar to a road map.
BIRDVIEW™
Displays the map in an elevated perspective.
22
Page 25 of 32
SELECTING A MENU SCREEN
1. To select a preferred menu key, use the joystick to highlight the corresponding key on
the screen and press theENTERbutton.
2. Depending on the key you selected, a detailed menu screen, a character input screen
or a setting screen, etc. is displayed. On the screen displayed, make adjustments,
input information, etc. accordingly.
3. Press theBACKbutton
to return to the previous screen without applying any
changes; in some cases pressing theBACKbutton
will accept the changes
you made.
4. Press theMAPbutton
to return to the current location map screen without
applying any changes.
NOTE: Depending on the menu selected, pressing theMAPbutton
may not return you
to the current location map screen.
STORING YOUR HOME IN YOUR ADDRESS BOOK
Press theDESTbutton.
Highlight the “Address Book” key and press
theENTERbutton.
Highlight the “Home (Add New)” key and
press theENTERbutton, a confirmation mes-
sage is displayed. Highlight the “YES” key and
press theENTERbutton.
Highlight the “Street Address” key and press
theENTERbutton. A character input screen is
displayed.
Enter the address of your home, highlight the
“OK” key and press theENTERbutton. The
map screen is displayed.
23
Page 26 of 32
Moving the joystick right or left, adjust your
home location if necessary. After adjusting the
location, press theENTERbutton.
Your home is displayed at the center of the
map. A confirmation message is displayed,
and the system sets your home as the destina-
tion.
Press theMAPbutton
to return to the
current location map screen. The home icon is
displayed on the screen.
SETTING A STREET ADDRESS AS A DESTINATION
Press theDESTbutton.
Highlight the “Street Address” key and press
theENTERbutton. A character input screen is
displayed.
Make sure that the correct region is selected
before inputting the name of the location.
Enter the house number; when finished high-
light the “OK” key and press theENTERbut-
ton. If you do not know the house number,
highlight the “Skip” key and press theENTER
button.
Enter the name of the street. After finishing the
entry, highlight the “OK” key and press the
ENTERbutton. A list of cities is displayed.
Highlight the correct city of the destination
from the list and press theENTERbutton.
24
Page 27 of 32
The selected destination is displayed at the
center of the map. Highlight the “OK” key and
press theENTERbutton after confirming the
location of the displayed destination. The sys-
tem sets the destination to the selected loca-
tion and starts calculating a route.
SETTING A PLACE AS A DESTINATION
Press theDESTbutton.
A nearby airport is set as a destination in this
example.
Highlight the “Points of Interest” key and press
theENTERbutton.
Highlight the “Travel” key and press theEN-
TERbutton.
From the category list, highlight the “AIR-
PORT” key and press theENTERbutton. A
character input screen appears.
Make sure that the correct region is selected
before inputting the name of the location.
After inputting the name of the location, high-
light the “OK” key and press theENTERbut-
ton. A list screen appears.
Highlight the preferred airport key from the list
and press theENTERbutton.
25
Page 28 of 32
The selected destination is displayed at the
center of the map. Highlight the “OK” key after
confirming the location of the displayed desti-
nation, and press theENTERbutton. The sys-
tem sets the destination to the selected loca-
tion and starts calculating a route.
BEGINNING ROUTE GUIDANCE
After setting a destination and performing route calculation, the suggested route is displayed.
Highlight the “OK” key and press theENTER
button. The system will navigate you through
the guide points using visual and voice guid-
ance.
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection in
the left screen.
When arriving at the destination, the route
guidance automatically ends.
26
Page 29 of 32

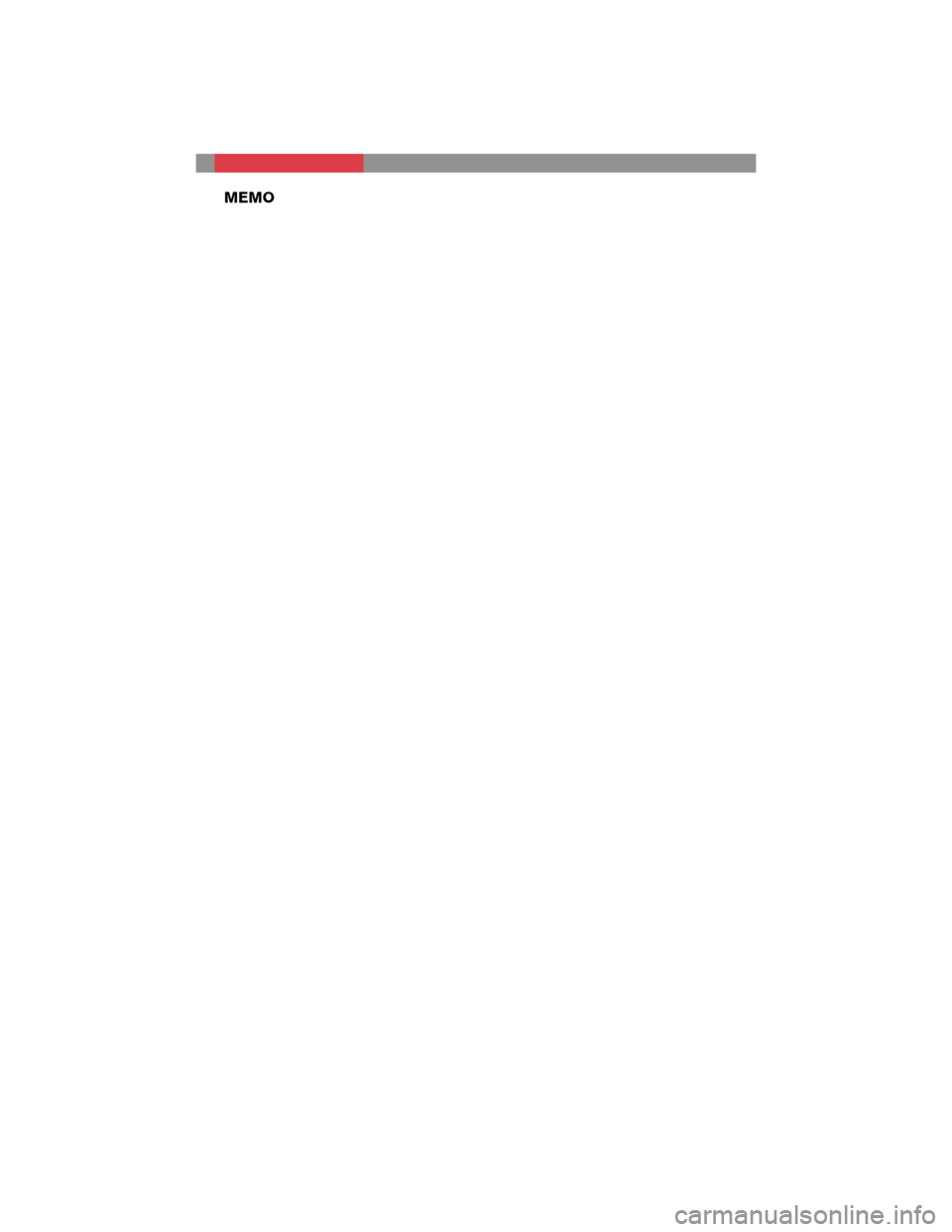

MEMO
