reset NISSAN ALTIMA COUPE 2010 D32 / 4.G Navigation Manual

●“Residential”:
Adjust the average vehicle speed in a residen-
tial area by touching [+] or [].
●“Reset”:
Sets the average vehicle speeds to the de-
fault values.
Route guidance5-41

8 Other settings
Settings screen...................................8-2
Basic operation................................8-2
Display settings...................................8-3
Basic operation................................8-3
Display adjustment.............................8-3
Basic operation................................8-4
Setting color theme.............................8-7
Navigation setting.................................8-7
Basic operation................................8-7
Speed limit indication on map . ...................8-8Other navigation settings........................8-9
Delete stored items............................8-15
Reset all navigation settings to default...........8-16
Volume adjustment...............................8-17
Basic operation...............................8-17
Clock settings....................................8-18
Basic operation...............................8-18
Language and unit settings........................8-19
Language settings.............................8-19
Unit settings..................................8-20

●“Map View”:
Set the display method and the direction of
the map.
“Changing the map view”
(page 3-11)
●“Map Icons”:
Set the map icons to display on the map.
“Displaying map icons”
(page 3-21)
●“Guidance settings”:
Set the various functions for the route
guidance.
“Guidance settings” (page 5-28)
●“Route Settings”:
Change the routing preferences.
“Detailed route settings”
(page 5-34)
●“Traffic Info Setting”:
Set the various functions of the XM Nav-
Trafficinformation system.
“Traffic information settings”
(page 7-10)●“Weather Info Setting”:
Set the functions of the XM NavWeather™
information system.
●“Speed Limit Info”:
Display speed limit information.
●“Others”:
Display other setting items.
“Other navigation settings”
(page 8-9)
●“Deletes stored information”:
Delete stored locations and the home set-
ting in the Address Book.
“Delete stored items”
(page 8-15)
●“Delete All Previous Destinations”:
Delete all previous destinations.
“Delete stored items”
(page 8-15)
●“Delete Previous Starting Point”:
Delete all previous starting points.
“Delete stored items”
(page 8-15)●“Reset all Navigation Settings to Default”:
Reset all of the settings to default.
“Reset all navigation settings to
default” (page 8-16)
SPEED LIMIT INDICATION ON MAP
Turn the “Speed Limit Information” display on or
off. The indicator light illuminates when the
speed limit display function is set to on.
8-8Other settings

RESET ALL NAVIGATION SETTINGS
TO DEFAULT
This restores various settings (display, volume
level, etc.) to the default settings.
INFO:
The memory contents, such as the stored
locations, will not be deleted.
1. Select “Navigation”.
2. Select “Reset All Navigation Settings to
Default”.3. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”.
NSE0030NSE0031
8-16Other settings

7. Select an item to edit.
Setting items
●“Edit User Name”:
Edit the user name.
●“Delete Voice Data”:
Reset the user voice that the voice recogni-
tion system has learned.
●“Continuous Learning”:
Have the system learn the voice commands
of the user in succession, without selecting
commands one by one.
VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations by voice commands are described
here.
Example 1: Switching the map to 2D (Plan
View) mode
1. Press
located on the steering wheel
switch.2. The system announces, “Please say a
command”.
3. After the tone sounds and the icon on the
screen changes from
to,
speak “Plan View Map”.
NVR0045NVR0046
9-32Voice recognition

– If the only route to reach the destination
or waypoints is extremely complicated.
– If the destination, current vehicle position
or waypoint is within the “Avoid Area”.
– If a part of the route is included in the
“Avoid Area”.
●The following may occur when the route is
displayed:
– If you calculate a route on a main road,
the starting point of the route may not ex-
actly match the current vehicle location.
– The endpoint of the route may not exactly
match the destination.
– If you calculate a route on a main road,
the system may display a route from an-
other main road. This may be because
the position of the vehicle icon is not
accurate. In this case, park the vehicle in
a safe location and reset the vehicle icon,
or continue driving to see if the position
of the vehicle icon is automatically ad-
justed before recalculating the route.
– There are cases in which the system
shows an indirect route to reach the des-
tination or waypoints, if you set them
from stored or facility information. In or-
der to correct this, you must be carefulabout the traffic direction, especially
when lanes with different travel direc-
tions are shown separately, such as in-
terchanges and service areas.
– This system makes no distinction be-
tween limited traffic control and total
control (blockage) . It may show an indi-
rect route even if the road is usable.
– Even if the freeway preference is set to
OFF, a route that uses the freeway may
be suggested.
– Even if the preference is set to OFF, a
route that uses a ferry line may be
suggested.
– Ferry lines, excluding those that are only
for pedestrians, bicycles and
motorcycles, are stored in this system.
Take into consideration the travel time re-
quired and operational condition before
deciding whether to use them or not.INFO:
The system will only announce street names
when the system language is set to English.
Street names are not announced when the sys-
tem is set to Francais (French) or Español
(Spanish) .
BASICS OF VOICE GUIDANCE
Voice guidance announces which direction to
turn when approaching an intersection in which
a turn is necessary.
NOTE:
●There may be some cases in which voice
guidance and actual road conditions do
not correspond. This may occur because
of discrepancies between the actual
road and the information on the map
data, or it is due to the vehicle’s speed.
●In case voice guidance does not corre-
spond to the actual road conditions, fol-
low the information obtained from traf-
fic signs or notices on the road.
●Route guidance provided by the naviga-
tion system does not take carpool lane
driving into consideration, especially
when carpool lanes are separated from
other road lanes.
ROUTE GUIDANCE
10-10General system information

Symptom Possible cause Possible solution
Waypoints are not included in the auto reroute
calculation.Waypoints that have been already passed are not included in the
auto reroute calculation.To go to that waypoint again, edit the route.
Route information is not displayed. Route calculation has not yet been performed. Set the destination and perform route calculation.
The vehicle is not on the suggested route. Drive on the suggested route.
Route guidance is set to off. Turn on route guidance.
Route information is not provided for certain types of roads (roads
displayed in gray) .This is not a malfunction.
The auto reroute calculation (or detour calculation) sug-
gests the same route as the one previously suggested.Route calculations took priority conditions into consideration, but
the same route was calculated.This is not a malfunction.
A waypoint cannot be added. Five waypoints are already set on the route, including ones that the
vehicle has already passed.A maximum of 5 waypoints can be set on the route.
To go to 6 or more waypoints, perform route calcula-
tions multiple times as necessary.
The suggested route is not displayed. Roads near the destination cannot be calculated. Reset the destination to a main or ordinary road, and
recalculate the route.
The starting point and destination are too close. Set a more distant destination.
The starting point and destination are too far away. Divide the trip by selecting one or two intermediate
destinations, and perform route calculations multiple
times.
There are time restricted roads (by the day of the week, by time)
near the current vehicle location or destination.Set “Use Time Restricted Roads” to off.
“Setting conditions for the route calcula-
tion” (page 5-33)
A part of the route is not displayed. The suggested route includes narrow streets (roads displayed in
gray) .This is not a malfunction.
ROUTE CALCULATION AND VISUAL
GUIDANCE
11-6Troubleshooting guide

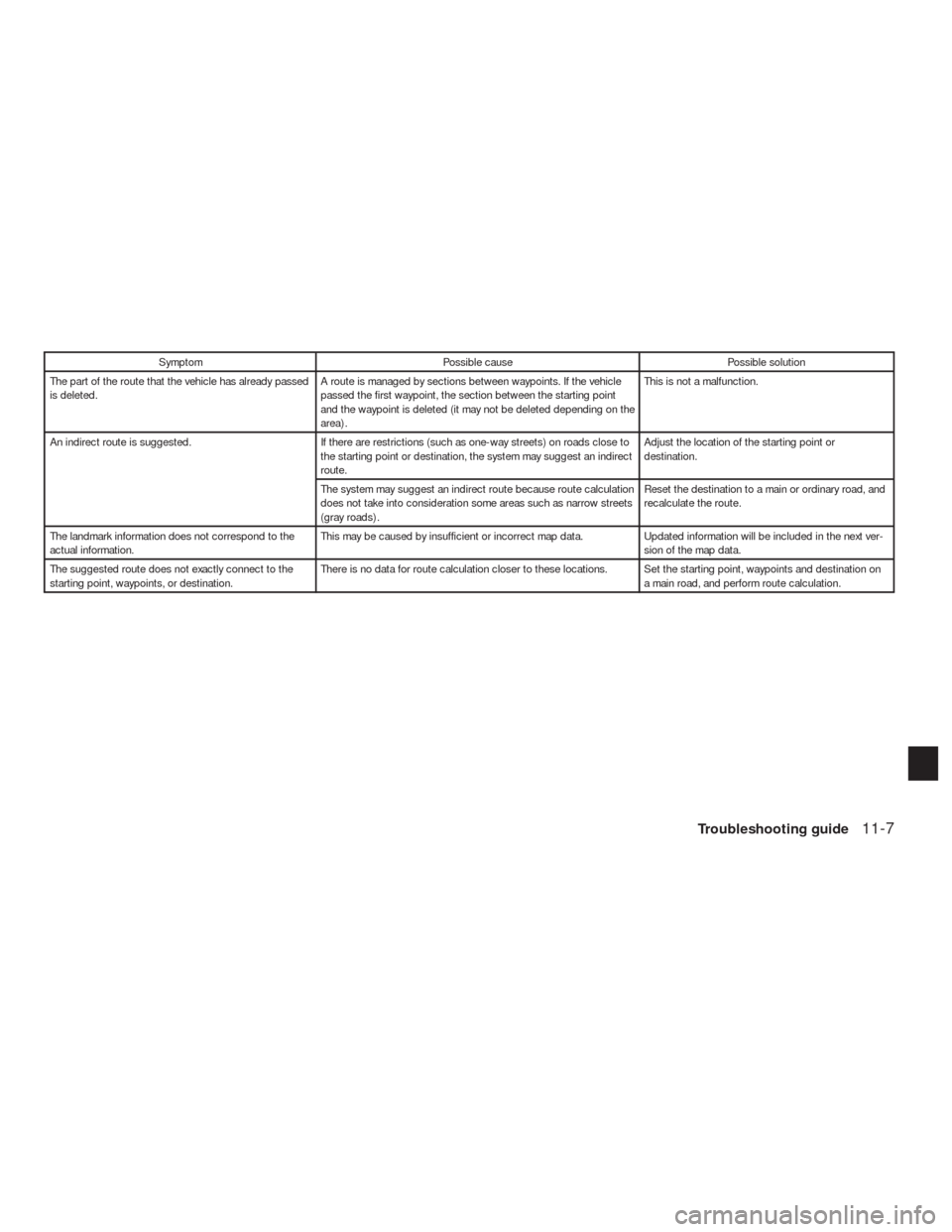

Symptom Possible cause Possible solution
The part of the route that the vehicle has already passed
is deleted.A route is managed by sections between waypoints. If the vehicle
passed the first waypoint, the section between the starting point
and the waypoint is deleted (it may not be deleted depending on the
area) .This is not a malfunction.
An indirect route is suggested. If there are restrictions (such as one-way streets) on roads close to
the starting point or destination, the system may suggest an indirect
route.Adjust the location of the starting point or
destination.
The system may suggest an indirect route because route calculation
does not take into consideration some areas such as narrow streets
(gray roads) .Reset the destination to a main or ordinary road, and
recalculate the route.
The landmark information does not correspond to the
actual information.This may be caused by insufficient or incorrect map data. Updated information will be included in the next ver-
sion of the map data.
The suggested route does not exactly connect to the
starting point, waypoints, or destination.There is no data for route calculation closer to these locations. Set the starting point, waypoints and destination on
a main road, and perform route calculation.
Troubleshooting guide11-7

SETTING button
NavigationAddress Bookpage 6-2
Map Viewpage 3-13
Map Iconspage 3-21
Guidance Settingspage 5-28
Route Settingspage 5-28
Traffic Info Settingspage 6-11
Weather Info Settingspage 7-11
Speed Limit Infopage 8-8
Otherspage 8-9
Delete Stored Informationpage 8-15
Delete All Previous Destinationspage 8-15
Delete All Previous Start Pointpage 8-15
Reset All Navigation Settings to Defaultpage 8-16
SETTING SCREEN
11-16Troubleshooting guide
