1. Antenna (P. 4-68)
2. Rear window defroster switch (P. 2-24)
3. Trunk lid release (P. 3-25)
4. Rearview camera (if so equipped)(P. 4-10)
5. Replacing bulbs (P. 8-24)
6. Fuel-filler door (P. 3-27) Fuel-filler cap (P. 3-27)
Fuel recommendation (P. 10-2)
7. Child safety rear door locks (P. 3-5)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2462
EXTERIOR REAR
0-4Illustrated table of contents
Page 12 of 404
1. Interior light (P. 2-35)
2. Sun visors (P. 3-30)
3. Map light (if so equipped) (P. 2-35)
4. Rearview mirror (P. 3-31)
5. Glove box (P. 2-30)
6. Parking brake (P. 5-27)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2463
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 13 of 404
1. Headlight/turn signal switch/fog lightswitch (if so equipped) (P. 2-25)
2. Driver’s supplemental air bag (P. 1-39) Horn (P. 2-28)
3. Meters and gauges (P. 2-3) Warning and indicator lights (P. 2-12)
4. Wiper and washer switch (P. 2-23)
5. Vents (P. 4-16)
6. Rear window defroster switch (P. 2-24)
7. Front passenger air bag status light
(P. 1-39)
8. Hazard warning flasher switch (P. 6-2)
9. Climate controls (P. 4-17)
10. Audio system (P. 4-25)
11. Passenger’s supplemental air bag
(P. 1-39)
12. Glove box (P. 2-30)
13. Power outlet (P. 2-29)
14. Shift lever (P. 5-17)
15. Cup holders (P. 2-30)
16. Ignition switch (if so equipped) (P. 5-8) Push-button ignition switch
(if so equipped) (P. 5-11)
17. Cruise control switches
(if so equipped) (P. 5-28)
18. Tilt steering (P. 3-30)
LII2475
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 14 of 404

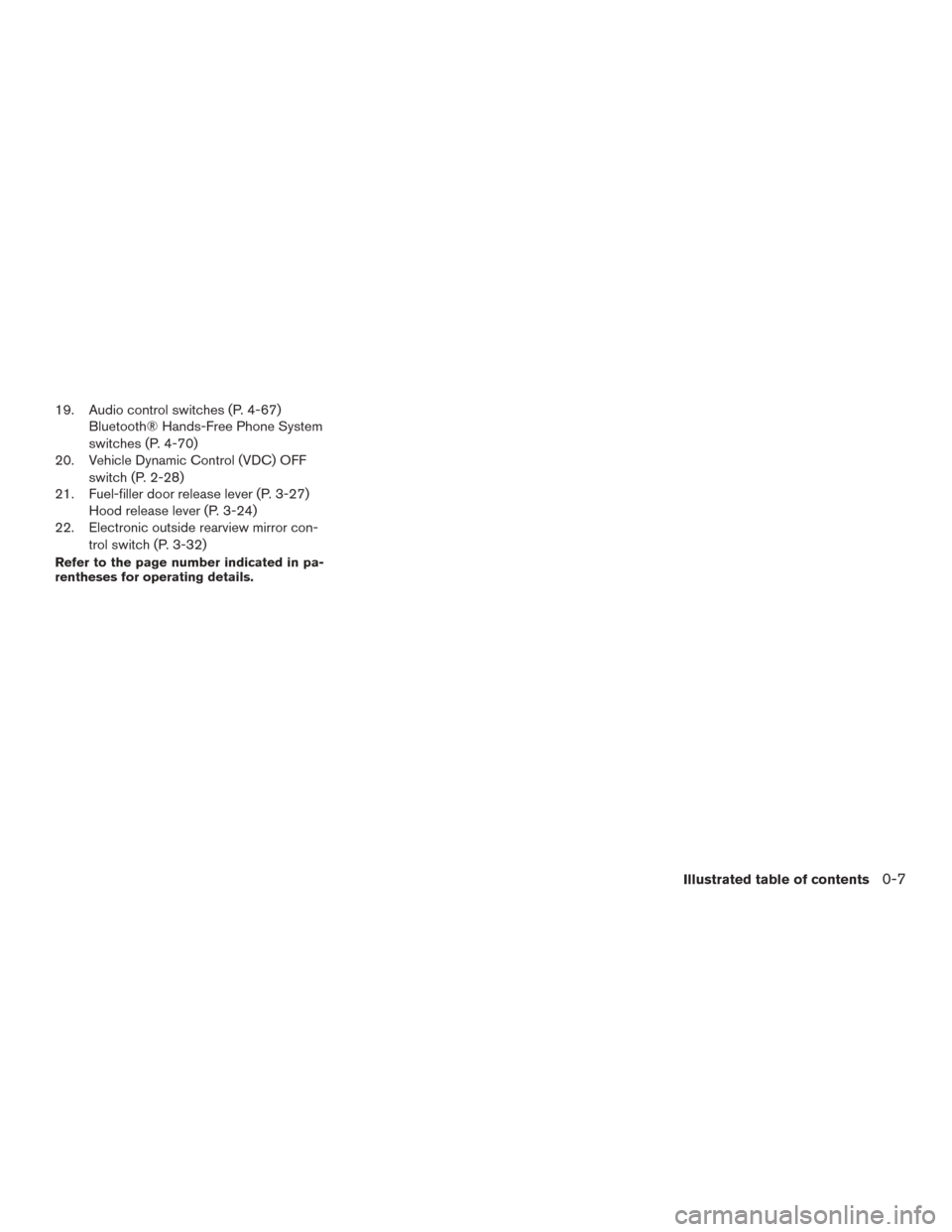

19. Audio control switches (P. 4-67)Bluetooth® Hands-Free Phone System
switches (P. 4-70)
20. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)
21. Fuel-filler door release lever (P. 3-27) Hood release lever (P. 3-24)
22. Electronic outside rearview mirror con-
trol switch (P. 3-32)
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7
Page 15 of 404
HR16DE Engine
1. Drive belt location (P. 8-14)
2. Engine oil filler cap (P. 8-6)
3. Air cleaner (P. 8-15)
4. Brake and clutch (if so equipped) fluidreservoir (P. 8-10)
5. Fusible link (P. 8-18)
6. Battery (P. 8-11)
7. Engine coolant reservoir (P. 8-4)
8. Radiator cap (P. 8-4)
9. Engine oil dipstick (P. 8-6)
10. Windshield-washer fluid reservoir
(P. 8-11)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI3055
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
Page 16 of 404

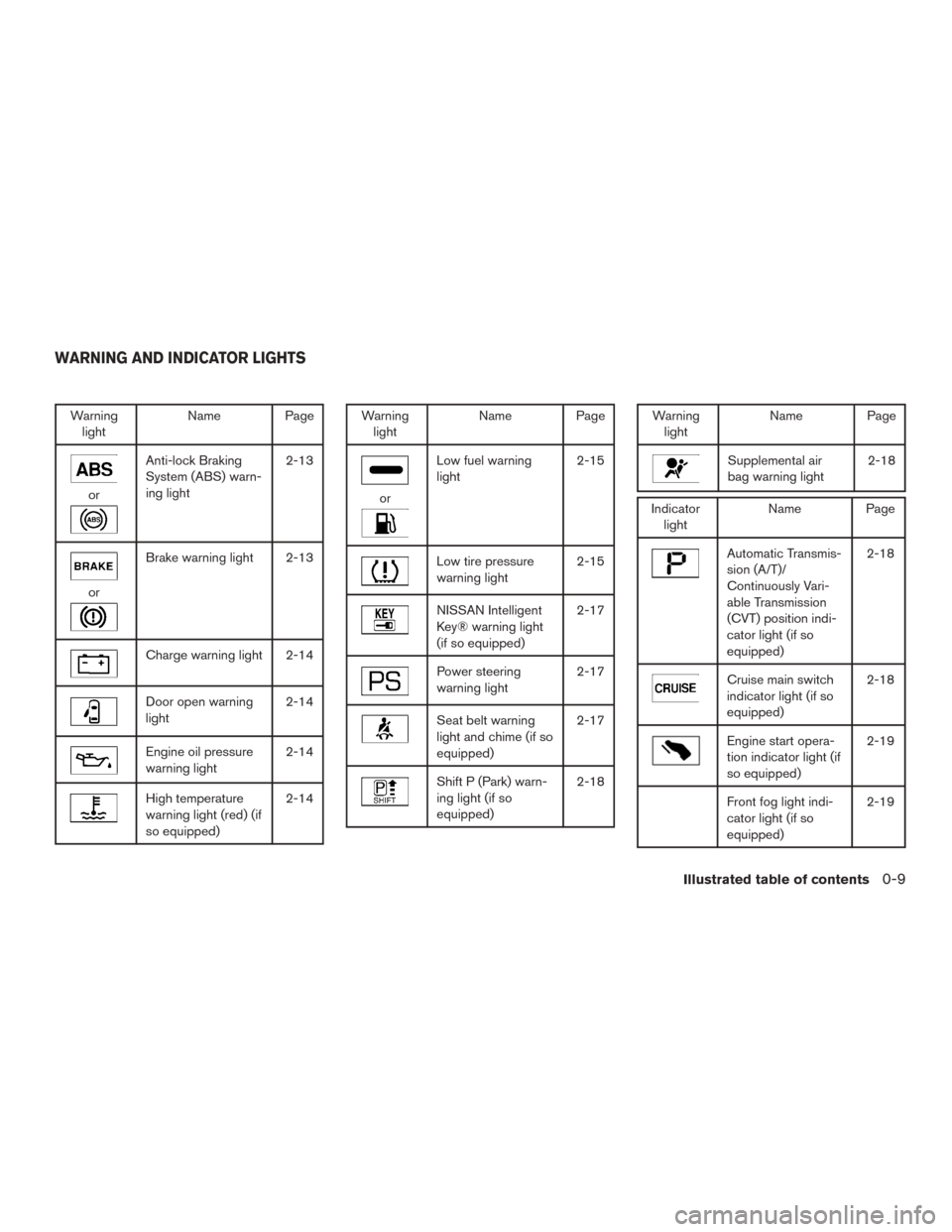

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-13
or
Brake warning light 2-13
Charge warning light 2-14
Door open warning
light
2-14
Engine oil pressure
warning light2-14
High temperature
warning light (red) (if
so equipped)2-14
Warning
light Name Page
or
Low fuel warning
light 2-15
Low tire pressure
warning light2-15
NISSAN Intelligent
Key® warning light
(if so equipped)2-17
Power steering
warning light
2-17
Seat belt warning
light and chime (if so
equipped)2-17
Shift P (Park) warn-
ing light (if so
equipped)2-18
Warning
light Name Page
Supplemental air
bag warning light 2-18
Indicator
light Name Page
Automatic Transmis-
sion (A/T)/
Continuously Vari-
able Transmission
(CVT) position indi-
cator light (if so
equipped) 2-18
Cruise main switch
indicator light (if so
equipped)
2-18
Engine start opera-
tion indicator light (if
so equipped)2-19
Front fog light indi-
cator light (if so
equipped)2-19
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9
Page 17 of 404

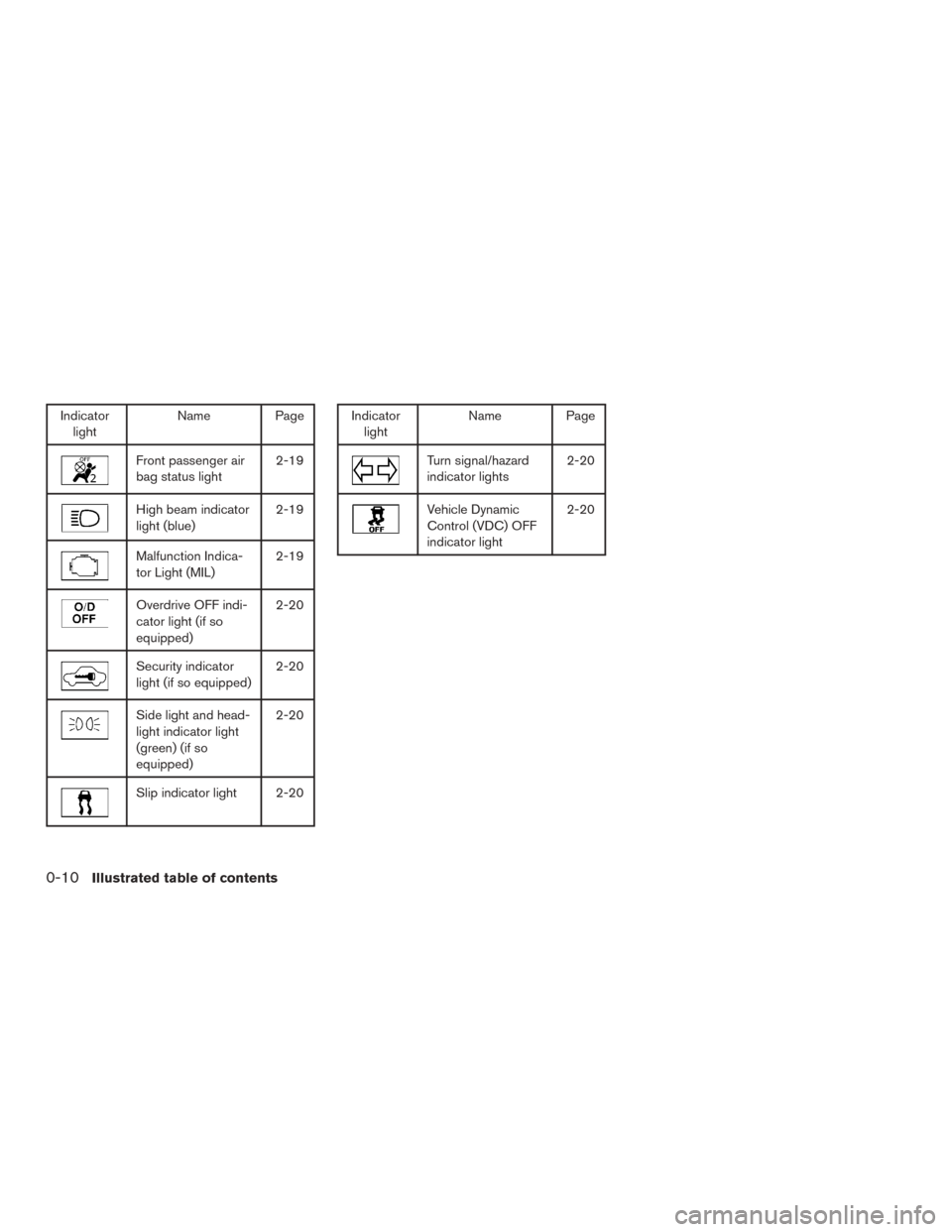

Indicatorlight Name Page
Front passenger air
bag status light 2-19
High beam indicator
light (blue)2-19
Malfunction Indica-
tor Light (MIL)2-19
Overdrive OFF indi-
cator light (if so
equipped)2-20
Security indicator
light (if so equipped)
2-20
Side light and head-
light indicator light
(green) (if so
equipped)2-20
Slip indicator light 2-20
Indicator
light Name Page
Turn signal/hazard
indicator lights 2-20
Vehicle Dynamic
Control (VDC) OFF
indicator light2-20
0-10Illustrated table of contents
Page 18 of 404

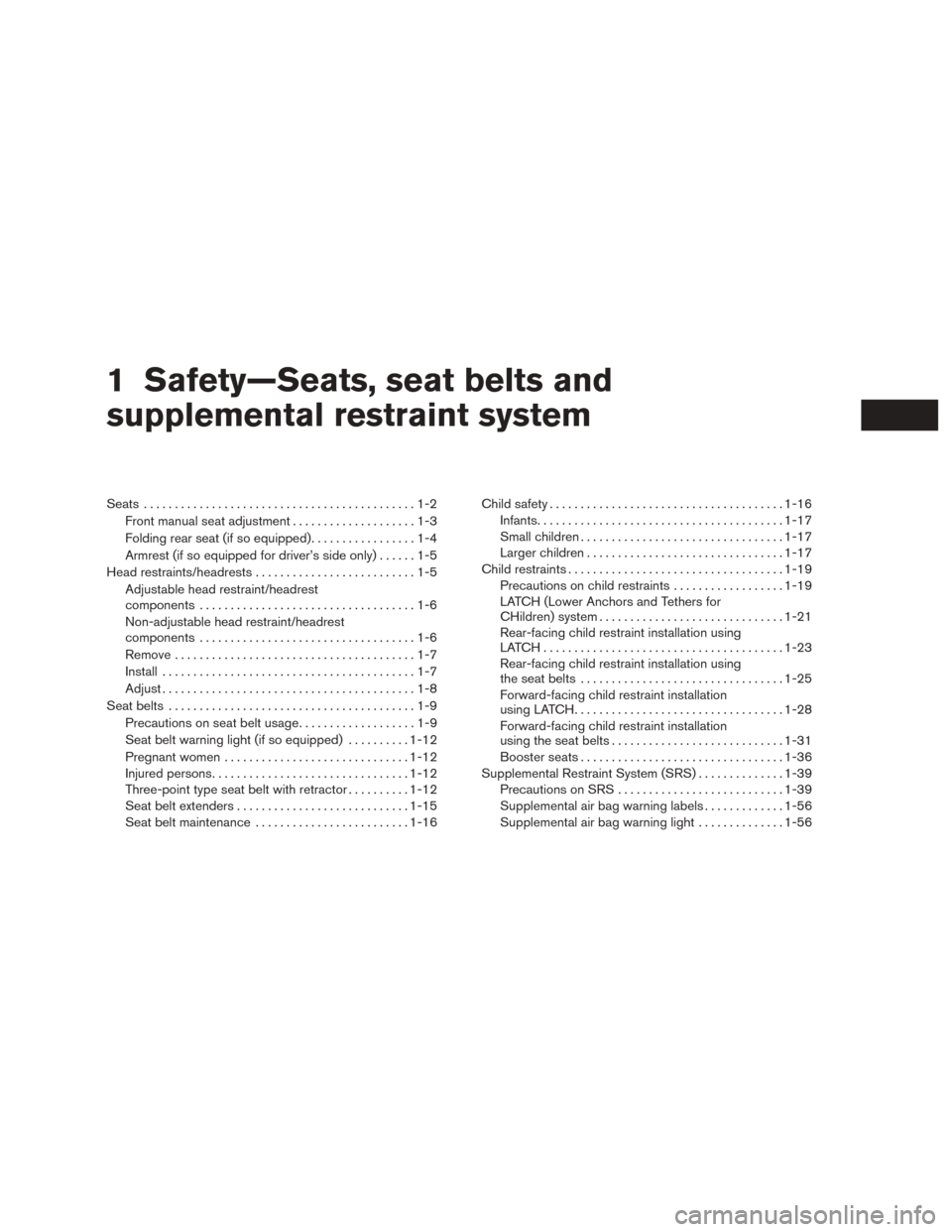

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment . . ..................1-3
Folding rear seat (if so equipped) .................1-4
Armrest (if so equipped for driver’s side only) ......1-5
Head restraints/headrests ..........................1-5
Adjustable head restraint/headrest
components ...................................1-6
Non-adjustable head restraint/headrest
components ...................................1-6
Remove .......................................1-7
Install .........................................1-7
Adjust .........................................1-8
Seat belts ........................................1-9
Precautions on seat belt usage ...................1-9
Seat belt warning light (if so equipped) ..........1-12
Pregnant women .............................. 1-12
Injured persons ................................ 1-12
Three-point type seat belt with retractor ..........1-12
Seat belt extenders ............................ 1-15
Seat belt maintenance ......................... 1-16Child safety
...................................... 1-16
Infants ........................................ 1-17
Small children ................................. 1-17
Larger children ................................ 1-17
Child restraints ................................... 1-19
Precautions on child restraints ..................1-19
LATCH (Lower Anchors and Tethers for
CHildren) system .............................. 1-21
Rear-facing child restraint installation using
LATCH....................................... 1-23
Rear-facing child restraint installation using
the seat belts ................................. 1-25
Forward-facing child restraint installation
using LATCH .................................. 1-28
Forward-facing child restraint installation
using the seat belts ............................ 1-31
Booster seats ................................. 1-36
Supplemental Restraint System (SRS) ..............1-39
Precautions on SRS ........................... 1-39
Supplemental air bag warning labels .............1-56
Supplemental air bag warning light ..............1-56
Page 19 of 404
WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat with both feet on the
floor and adjust the seat properly. For
additional information, refer to “Pre-
cautions on seat belt usage” in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked. ●
Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children
could become involved in serious
accidents.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
● Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
Page 20 of 404
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT
Your vehicle seats can be adjusted manually. For
additional information about adjusting the seats,
refer to the steps outlined in this section.
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) or N (Neutral) position with the
parking brake fully applied.
LRS2571LRS2572
Safety—Seats, seat belts and supplemental restraint system1-3
