Page 89 of 212
83
Instruments
Adjustable wiper interval
To set the wiper interval to a value between
2 and 15 seconds:
Lever to interval operation $, lever to §,
wait for required interval delay, Level to
interval operation again $.
The selected interval will remain stored
until the next time it is changed or until the
ignition is switched off.
After switching on the ignition and moving
the lever up, $ the interval is set to
7seconds.
Picture no: 14056h.tif
Windscreen washer system
Pull the lever towards the steering wheel.
Washer fluid sprays onto the windscreen
and the windscreen wipers switch on for a
few sweep movements.
Picture no: 14057h.tif
Rear window wiper 3 and rear window
washer system 3
Push the lever forwards. The rear window
wiper swipes in timed interval mode. Switch
off by pulling the lever towards the steering
wheel.
If the stalk is held forwards, washer fluid is
sprayed on the rear window.
Page 96 of 212

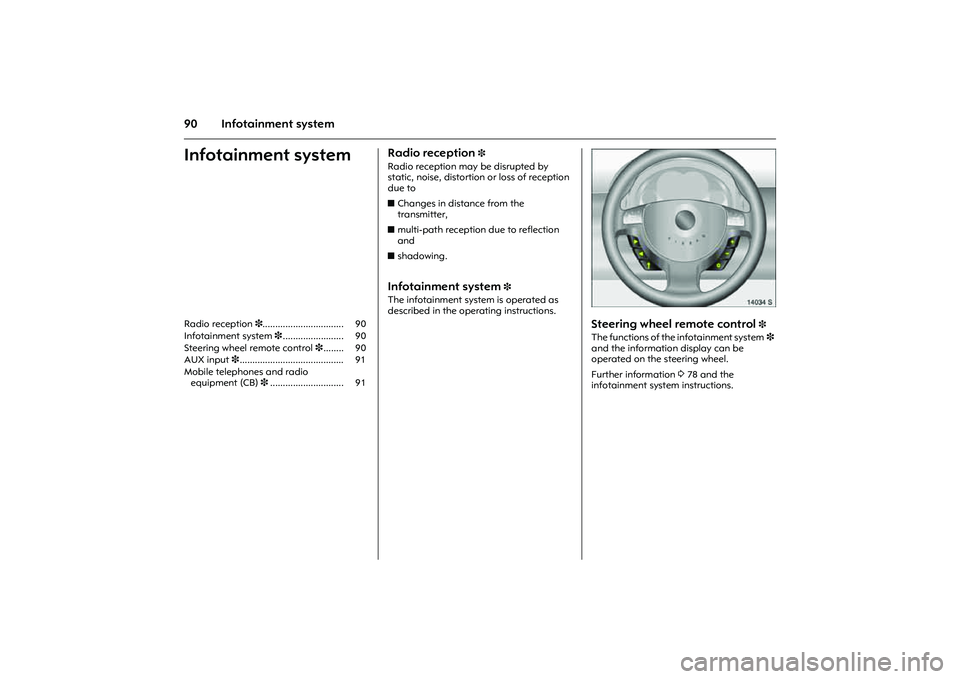

90 Infotainment systemInfotainment system
Radio reception
3
Radio reception may be disrupted by
static, noise, distortion or loss of reception
due to
zChanges in distance from the
transmitter,
zmulti-path reception due to reflection
and
zshadowing. Infotainment system
3
The infotainment system is operated as
described in the operating instructions.
Picture no: 14034s.tif
Steering wheel remote control
3
The functions of the infotainment system3
and the information display can be
operated on the steering wheel.
Further information 378 and the
infotainment system instructions. Radio reception 3................................ 90
Infotainment system 3........................ 90
Steering wheel remote control 3........ 90
AUX input 3......................................... 91
Mobile telephones and radio
equipment (CB) 3............................. 91
Page 141 of 212
135
Self-help, vehicle care
Picture no: 16493s.tif

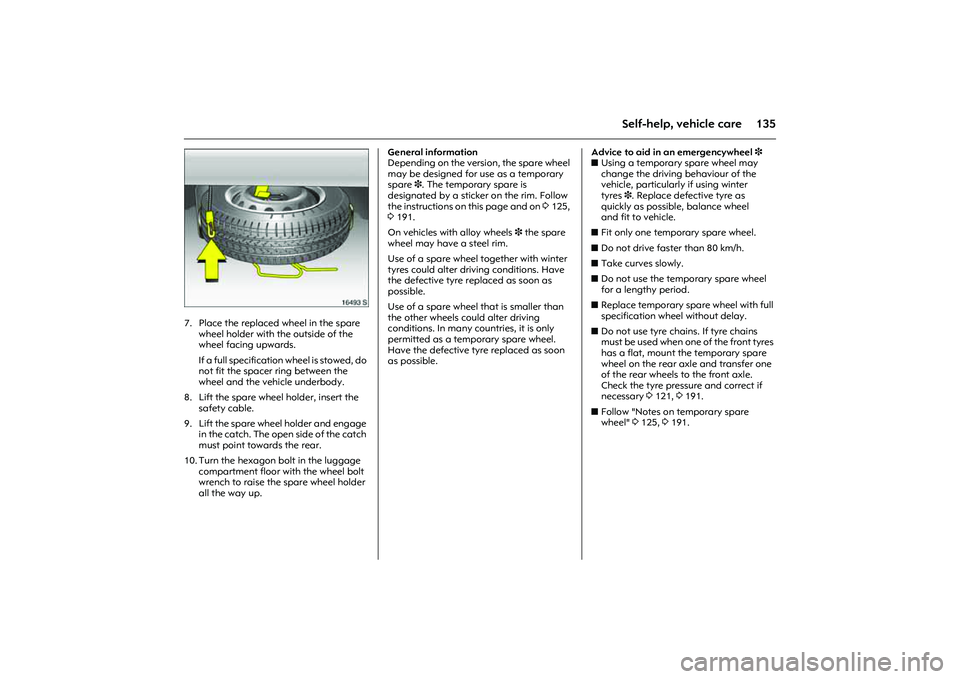

7. Place the replaced wheel in the spare
wheel holder with the outside of the
wheel facing upwards.
If a full specification wheel is stowed, do
not fit the spacer ring between the
wheel and the vehicle underbody.
8. Lift the spare wheel holder, insert the
safety cable.
9. Lift the spare wheel holder and engage
in the catch. The open side of the catch
must point towards the rear.
10. Turn the hexagon bolt in the luggage
compartment floor with the wheel bolt
wrench to raise the spare wheel holder
all the way up. General information
Depending on the version, the spare wheel
may be designed for use as a temporary
spare 3. The temporary spare is
designated by a sticker on the rim. Follow
the instructions on this page and on 3125,
3191.
On vehicles with alloy wheels 3 the spare
wheel may have a steel rim.
Use of a spare wheel together with winter
tyres could alter driving conditions. Have
the defective tyre replaced as soon as
possible.
Use of a spare wheel that is smaller than
the other wheels could alter driving
conditions. In many countries, it is only
permitted as a temporary spare wheel.
Have the defective tyre replaced as soon
as possible. Advice to aid in an emergencywheel 3
zUsing a temporary spare wheel may
change the driving behaviour of the
vehicle, particularly if using winter
tyres3. Replace defective tyre as
quickly as possible, balance wheel
and fit to vehicle.
zFit only one temporary spare wheel.
zDo not drive faster than 80 km/h.
zTake curves slowly.
zDo not use the temporary spare wheel
for a lengthy period.
zReplace temporary spare wheel with full
specification wheel without delay.
zDo not use tyre chains. If tyre chains
must be used when one of the front tyres
has a flat, mount the temporary spare
wheel on the rear axle and transfer one
of the rear wheels to the front axle.
Check the tyre pressure and correct if
necessary 3121, 3191.
zFollow "Notes on temporary spare
wheel" 3125, 3191.
Page 143 of 212
137
Self-help, vehicle care
Picture no: 12461s.tif

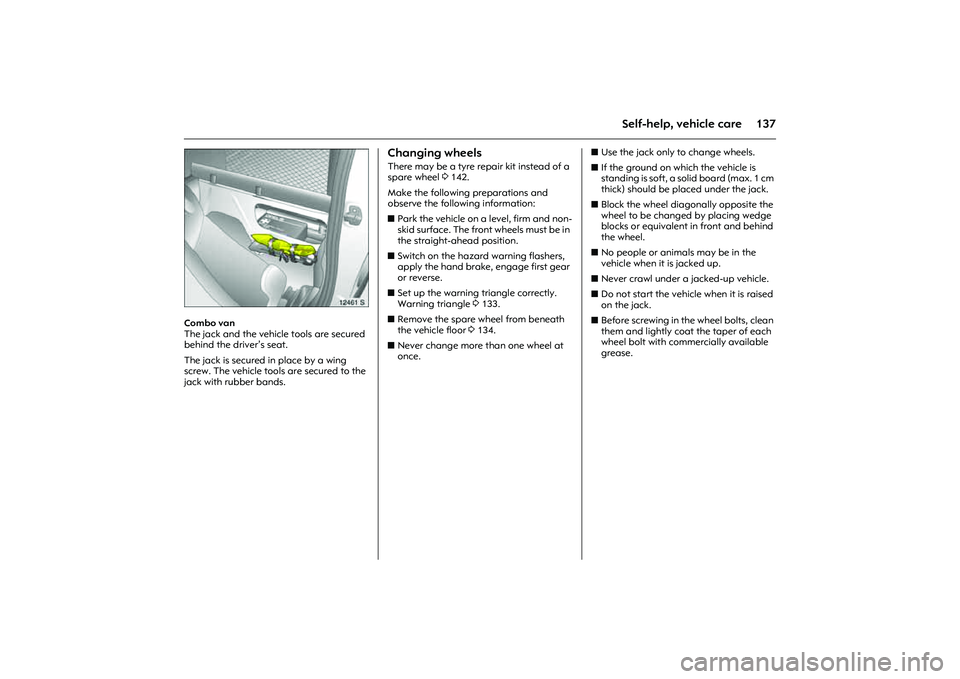

Combo van
The jack and the vehicle tools are secured
behind the driver’s seat.
The jack is secured in place by a wing
screw. The vehicle tools are secured to the
jack with rubber bands.
Changing wheels There may be a tyre repair kit instead of a
spare wheel 3142.
Make the following preparations and
observe the following information:
zPark the vehicle on a level, firm and non-
skid surface. The front wheels must be in
the straight-ahead position.
zSwitch on the hazard warning flashers,
apply the hand brake, engage first gear
or reverse.
zSet up the warning triangle correctly.
Warning triangle 3133.
zRemove the spare wheel from beneath
the vehicle floor 3134.
zNever change more than one wheel at
once. zUse the jack only to change wheels.
zIf the ground on which the vehicle is
standing is soft, a solid board (max. 1 cm
thick) should be placed under the jack.
zBlock the wheel diagonally opposite the
wheel to be changed by placing wedge
blocks or equivalent in front and behind
the wheel.
zNo people or animals may be in the
vehicle when it is jacked up.
zNever crawl under a jacked-up vehicle.
zDo not start the vehicle when it is raised
on the jack.
zBefore screwing in the wheel bolts, clean
them and lightly coat the taper of each
wheel bolt with commercially available
grease.
Page 172 of 212

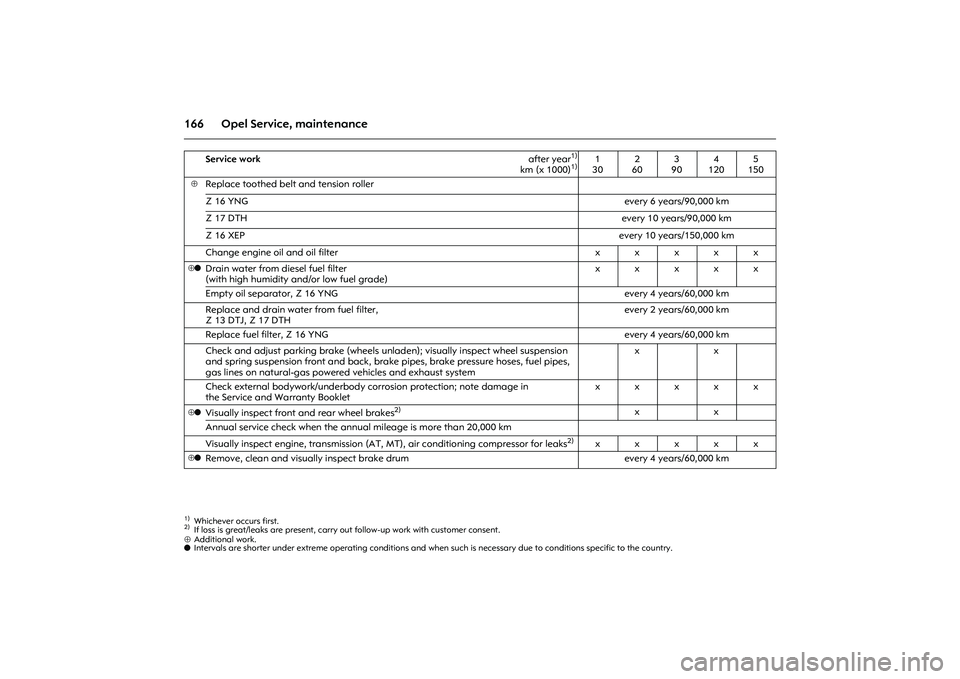

166 Opel Service, maintenance⊕Additional work.
o Intervals are shorter under extreme operating conditions and when such is necessary due to conditions specific to the country.
Service work after year
1)
km (x 1000)
1)
1)Whichever occurs first.
1
302
603
904
1205
150
⊕
Replace toothed belt and tension roller
Z 16 YNGevery 6 years/90,000 km
Z 17 DTHevery 10 years/90,000 km
Z 16 XEPevery 10 years/150,000 km
Change engine oil and oil filter x x x x x
⊕o
Drain water from diesel fuel filter
(with high humidity and/or low fuel grade)xxxxx
Empty oil separator, Z 16 YNG every 4 years/60,000 km
Replace and drain water from fuel filter,
Z 13 DTJ, Z 17 DTHevery 2 years/60,000 km
Replace fuel filter, Z 16 YNG every 4 years/60,000 km
Check and adjust parking brake (wheels unladen); visually inspect wheel suspension
and spring suspension front and back, brake pipes, brake pressure hoses, fuel pipes,
gas lines on natural-gas powered vehicles and exhaust systemxx
Check external bodywork/underbody corrosion protection; note damage in
the Service and Warranty Bookletxxxxx
⊕o
Visually inspect front and rear wheel brakes
2)
2)If loss is great/leaks are present, carry out follow-up work with customer consent.
xx
Annual service check when the annual mileage is more than 20,000 km
Visually inspect engine, transmission (AT, MT), air conditioning compressor for leaks
2)
xxxxx
⊕o
Remove, clean and visually inspect brake drum every 4 years/60,000 km
Page 173 of 212
167 Opel Service, maintenance
⊕Additional work.
o Intervals are shorter under extreme operating conditions and when such is necessary due to conditions specific to the country.
Service work after year
1)
km (x 1000)
1)
1)Whichever occurs first.
1
302
603
904
1205
150
Visually inspect steering bellows, track rods and axle drive xxxxx
Check track-rod ends and suspension ball joints xxxxx
⊕
Change brake and clutch fluid (manual transmission automated) every 2 years
Undo wheel mounting and tighten to 110 Nm torque
xx During assembly, lightly lubricate wheel bolt tapers with grease or oil
Check tyre condition; check and correct tyre pressures (including the spare wheel)
With tyre inflation system, check the set to make sure that it is complete and not out
of date. Replace sealant bottle every 4 years
⊕
Annual service check when the annual mileage is more than 20,000 km
Visually inspect the first-aid kit (present and stowed in the right place, intact and not
out of date), lashing eyes and warning triangleevery 2 years
Check and correct headlamp aiming (including auxiliary headlamps) x x
⊕o
Lubricate door hinges, door brakes, lock cylinders, strikers, bonnet closure and
tailgate hinges.xx
Road test, final inspection (check steering column lock, ignition switch, instruments
and control indicators, entire brake system, steering, air conditioning system, engine,
body and chassis), reset service interval display using TECH 2xxxxx
⊕
For Germany only: carry out emissions inspection (AU), general inspection (HU) First after 3 years and then every
2 years thereafter
With commercial passenger transport, taxis, ambulances, hired vehicles, etc. annually
⊕
Carry out gas system test (GAP) and note it in the Service and Warranty Booklet First after 3 years and then every
2 years thereafter
With commercial passenger transport, taxis, ambulances, hired vehicles, etc. annually
Page 175 of 212

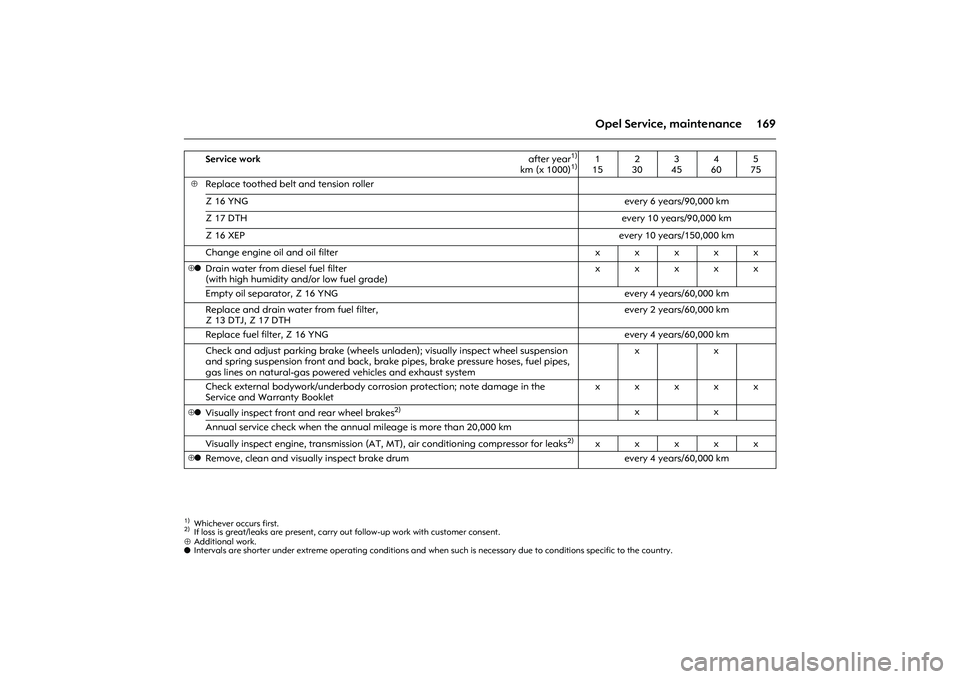

169 Opel Service, maintenance
⊕Additional work.
o Intervals are shorter under extreme operating conditions and when such is necessary due to conditions specific to the country.
Service work after year
1)
km (x 1000)
1)
1)Whichever occurs first.
1
152
303
454
605
75
⊕
Replace toothed belt and tension roller
Z 16 YNGevery 6 years/90,000 km
Z 17 DTHevery 10 years/90,000 km
Z 16 XEPevery 10 years/150,000 km
Change engine oil and oil filter x x x x x
⊕o
Drain water from diesel fuel filter
(with high humidity and/or low fuel grade)xxxxx
Empty oil separator, Z 16 YNG every 4 years/60,000 km
Replace and drain water from fuel filter,
Z 13 DTJ, Z 17 DTHevery 2 years/60,000 km
Replace fuel filter, Z 16 YNG every 4 years/60,000 km
Check and adjust parking brake (wheels unladen); visually inspect wheel suspension
and spring suspension front and back, brake pipes, brake pressure hoses, fuel pipes,
gas lines on natural-gas powered vehicles and exhaust systemxx
Check external bodywork/underbody corrosion protection; note damage in the
Service and Warranty Bookletxxxxx
⊕o
Visually inspect front and rear wheel brakes
2)
2)If loss is great/leaks are present, carry out follow-up work with customer consent.
xx
Annual service check when the annual mileage is more than 20,000 km
Visually inspect engine, transmission (AT, MT), air conditioning compressor for leaks
2)
xxxxx
⊕o
Remove, clean and visually inspect brake drum every 4 years/60,000 km
Page 176 of 212
170 Opel Service, maintenance⊕Additional work.
o Intervals are shorter under extreme operating conditions and when such is necessary due to conditions specific to the country.
Service work after year
1)
km (x 1000)
1)
1)Whichever occurs first.
1
152
303
454
605
75
Visually inspect steering bellows, track rods and axle drive x x x x x
Check track-rod ends and suspension ball joints x x x x x
⊕
Change brake and clutch fluid (manual transmission automated) every 2 years
Undo wheel mounting and tighten to 110 Nm torque
xx During assembly, lightly lubricate wheel bolt tapers with grease or oil
Check tyre condition; check and correct tyre pressures (including the spare wheel)
With tyre inflation system, check the set to make sure that it is complete and not
out of date. Replace sealant bottle every 4 years
⊕
Annual service check when the annual mileage is more than 20,000 km
Visually inspect the first-aid kit (present and stowed in the right place, intact and
not out of date), lashing eyes and warning triangleevery 2 years
Check and correct headlamp aiming (including auxiliary headlamps) x x
⊕o
Lubricate door hinges, door brakes, lock cylinders, strikers, bonnet closure and
tailgate hinges.xx
Road test, final inspection (check steering column lock, ignition switch, instruments
and control indicators, entire brake system, steering, air conditioning system, engine,
body and chassis), reset service interval display using TECH 2xxxxx
⊕
Carry out gas system test (GAP) and note it in the Service and Warranty Booklet First after 3 years and then every
2 years thereafter
With commercial passenger transport, taxis, ambulances, hired vehicles, etc. annually
Page 197 of 212
191
Technical data

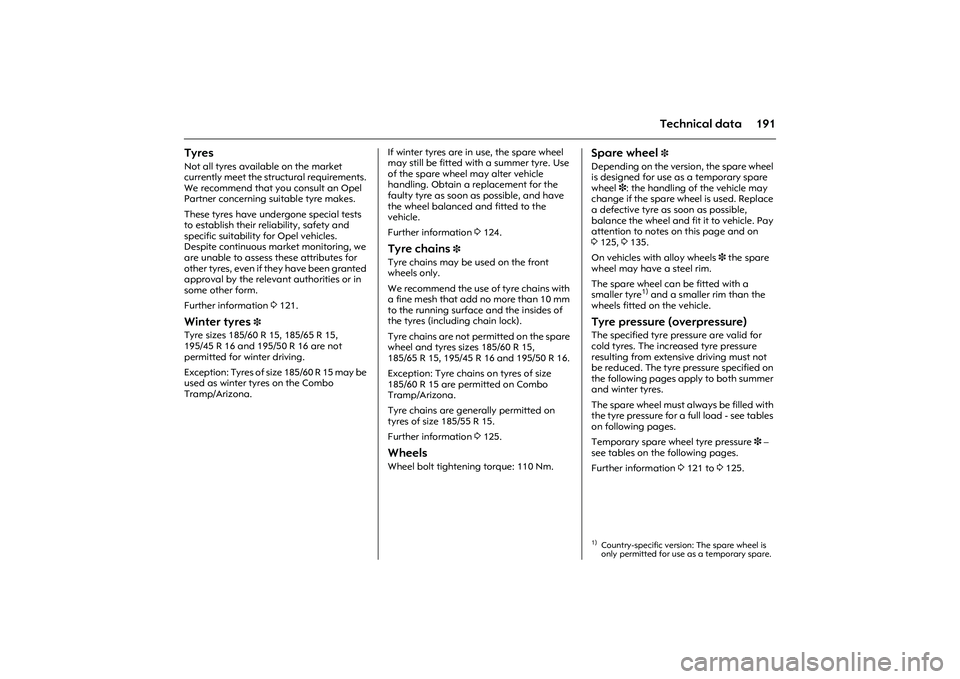

Tyres Not all tyres available on the market
currently meet the structural requirements.
We recommend that you consult an Opel
Partner concerning suitable tyre makes.
These tyres have undergone special tests
to establish their reliability, safety and
specific suitability for Opel vehicles.
Despite continuous market monitoring, we
are unable to assess these attributes for
other tyres, even if they have been granted
approval by the relevant authorities or in
some other form.
Further information 3121. Winter tyres
3
Tyre sizes 185/60 R 15, 185/65 R 15,
195/45 R 16 and 195/50 R 16 are not
permitted for winter driving.
Exception: Tyres of size 185/60 R 15 may be
used as winter tyres on the Combo
Tramp/Arizona. If winter tyres are in use, the spare wheel
may still be fitted with a summer tyre. Use
of the spare wheel may alter vehicle
handling. Obtain a replacement for the
faulty tyre as soon as possible, and have
the wheel balanced and fitted to the
vehicle.
Further information 3124.
Tyre chains
3
Tyre chains may be used on the front
wheels only.
We recommend the use of tyre chains with
a fine mesh that add no more than 10 mm
to the running surface and the insides of
the tyres (including chain lock).
Tyre chains are not permitted on the spare
wheel and tyres sizes 185/60 R 15,
185/65 R 15, 195/45 R 16 and 195/50 R 16.
Exception: Tyre chains on tyres of size
185/60 R 15 are permitted on Combo
Tramp/Arizona.
Tyre chains are generally permitted on
tyres of size 185/55 R 15.
Further information 3125. Wheels Wheel bolt tightening torque: 110 Nm.
Spare wheel
3
Depending on the version, the spare wheel
is designed for use as a temporary spare
wheel 3: the handling of the vehicle may
change if the spare wheel is used. Replace
a defective tyre as soon as possible,
balance the wheel and fit it to vehicle. Pay
attention to notes on this page and on
3125, 3135.
On vehicles with alloy wheels 3 the spare
wheel may have a steel rim.
The spare wheel can be fitted with a
smaller tyre
1) and a smaller rim than the
wheels fitted on the vehicle.
Tyre pressure (overpressure)The specified tyre pressure are valid for
cold tyres. The increased tyre pressure
resulting from extensive driving must not
be reduced. The tyre pressure specified on
the following pages apply to both summer
and winter tyres.
The spare wheel must always be filled with
the tyre pressure for a full load - see tables
on following pages.
Temporary spare wheel tyre pressure 3 –
see tables on the following pages.
Further information 3121 to 3125. 1)Country-specific version: The spare wheel is
only permitted for use as a temporary spare.
Page 205 of 212
199

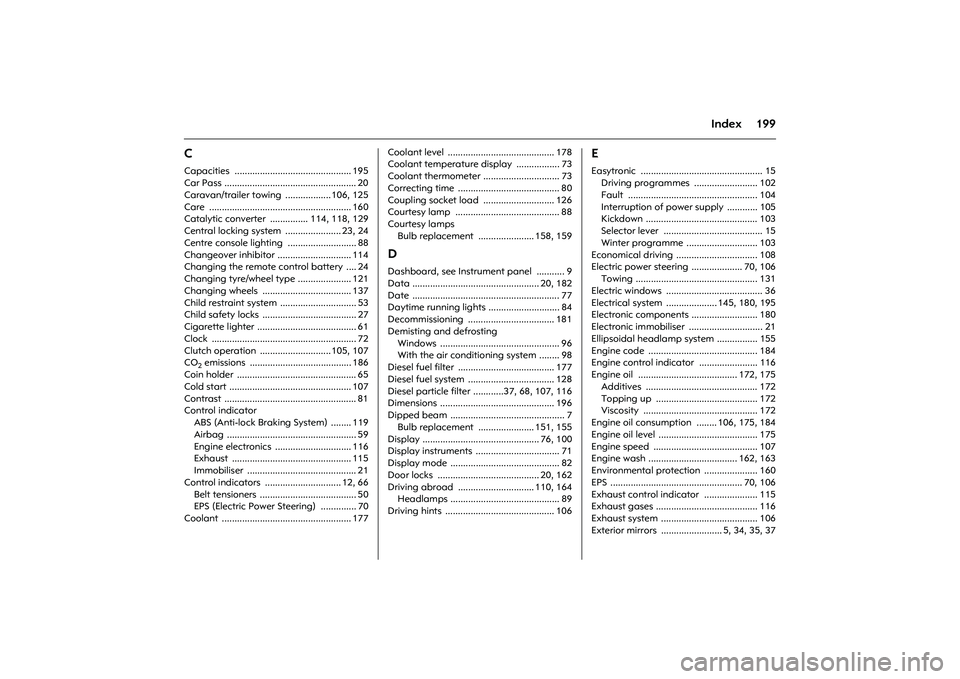

Index
CCapacities .............................................. 195
Car Pass .................................................... 20
Caravan/trailer towing .................. 106, 125
Care ........................................................ 160
Catalytic converter ............... 114, 118, 129
Central locking system ...................... 23, 24
Centre console lighting ........................... 88
Changeover inhibitor ............................. 114
Changing the remote control battery .... 24
Changing tyre/wheel type ..................... 121
Changing wheels ................................... 137
Child restraint system .............................. 53
Child safety locks ..................................... 27
Cigarette lighter ....................................... 61
Clock ......................................................... 72
Clutch operation ............................ 105, 107
CO
2 emissions ........................................ 186
Coin holder ............................................... 65
Cold start ................................................ 107
Contrast .................................................... 81
Control indicator
ABS (Anti-lock Braking System) ........ 119
Airbag ................................................... 59
Engine electronics .............................. 116
Exhaust ............................................... 115
Immobiliser ........................................... 21
Control indicators .............................. 12, 66
Belt tensioners ...................................... 50
EPS (Electric Power Steering) .............. 70
Coolant ................................................... 177Coolant level .......................................... 178
Coolant temperature display ................. 73
Coolant thermometer .............................. 73
Correcting time ........................................ 80
Coupling socket load ............................ 126
Courtesy lamp ......................................... 88
Courtesy lamps
Bulb replacement ...................... 158, 159
DDashboard, see Instrument panel ........... 9
Data .................................................. 20, 182
Date .......................................................... 77
Daytime running lights ............................ 84
Decommissioning .................................. 181
Demisting and defrosting
Windows ............................................... 96
With the air conditioning system ........ 98
Diesel fuel filter ...................................... 177
Diesel fuel system .................................. 128
Diesel particle filter ............37, 68, 107, 116
Dimensions ............................................. 196
Dipped beam ............................................. 7
Bulb replacement ...................... 151, 155
Display .............................................. 76, 100
Display instruments ................................. 71
Display mode ........................................... 82
Door locks ........................................ 20, 162
Driving abroad .............................. 110, 164
Headlamps ........................................... 89
Driving hints ........................................... 106
EEasytronic ................................................ 15
Driving programmes ......................... 102
Fault ................................................... 104
Interruption of power supply ............ 105
Kickdown ............................................ 103
Selector lever ....................................... 15
Winter programme ............................ 103
Economical driving ................................ 108
Electric power steering .................... 70, 106
Towing ................................................ 131
Electric windows ...................................... 36
Electrical system .................... 145, 180, 195
Electronic components .......................... 180
Electronic immobiliser ............................. 21
Ellipsoidal headlamp system ................ 155
Engine code ........................................... 184
Engine control indicator ....................... 116
Engine oil ....................................... 172, 175
Additives ............................................ 172
Topping up ........................................ 172
Viscosity ............................................. 172
Engine oil consumption ........ 106, 175, 184
Engine oil level ....................................... 175
Engine speed ......................................... 107
Engine wash ................................... 162, 163
Environmental protection ..................... 160
EPS .................................................... 70, 106
Exhaust control indicator ..................... 115
Exhaust gases ........................................ 116
Exhaust system ...................................... 106
Exterior mirrors ........................ 5, 34, 35, 37
