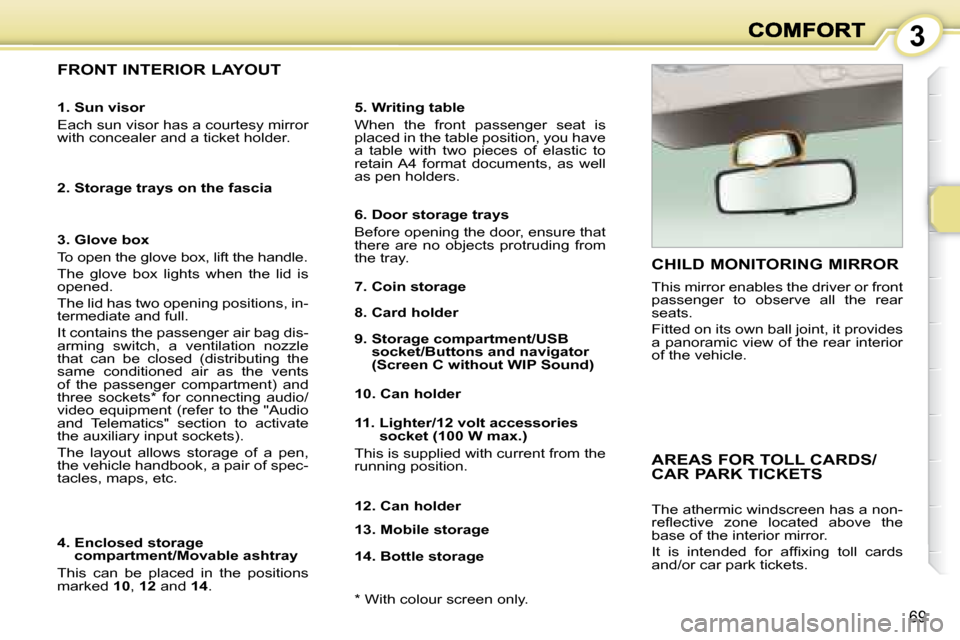

Page 66 of 194
3
69
FRONT INTERIOR LAYOUT
5. Writing table
When the front passenger seat is
placed in the table position, you have
a table with two pieces of elastic to
retain A4 format documents, as well
as pen holders.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint, it provides
a panoramic view of the rear interior
of the vehicle.
AREAS FOR TOLL CARDS/CAR PARK TICKETS
* With colour screen only.
1. Sun visor
Each sun visor has a courtesy mirror
with concealer and a ticket holder.
2. Storage trays on the fascia
3. Glove box
To open the glove box, lift the handle.
The glove box lights when the lid is
opened.
The lid has two opening positions, in-
termediate and full.
It contains the passenger air bag dis-
arming switch, a ventilation nozzle
that can be closed (distributing the
same conditioned air as the vents
of the passenger compartment) and
three sockets * for connecting audio/
video equipment (refer to the "Audio
and Telematics" section to activate
the auxiliary input sockets).
The layout allows storage of a pen,
the vehicle handbook, a pair of spec-
tacles, maps, etc.
4. Enclosed storage
compartment/Movable ashtray
This can be placed in the positions
marked 10, 12 and 14. 6. Door storage trays
B e f o r e o p e n i n g t h e d o o r , e n s u r e t h a t
there are no objects protruding from
the tray.
7. Coin storage
8. Card holder
9. Storage compartment/USB
socket/Buttons and navigator
(Screen C without WIP Sound)
10. Can holder
11. Lighter/12 volt accessories socket (100 W max.)
This is supplied with current from the
running position.
12. Can holder
13. Mobile storage
14. Bottle storage The athermic windscreen has a non-
r e fl e c t i v e z o n e l o c a t e d a b o v e t h e
base of the interior mirror.
I t i s i n t e n d e d f o r a f fi x i n g t o l l c a r d s
and/or car park tickets.

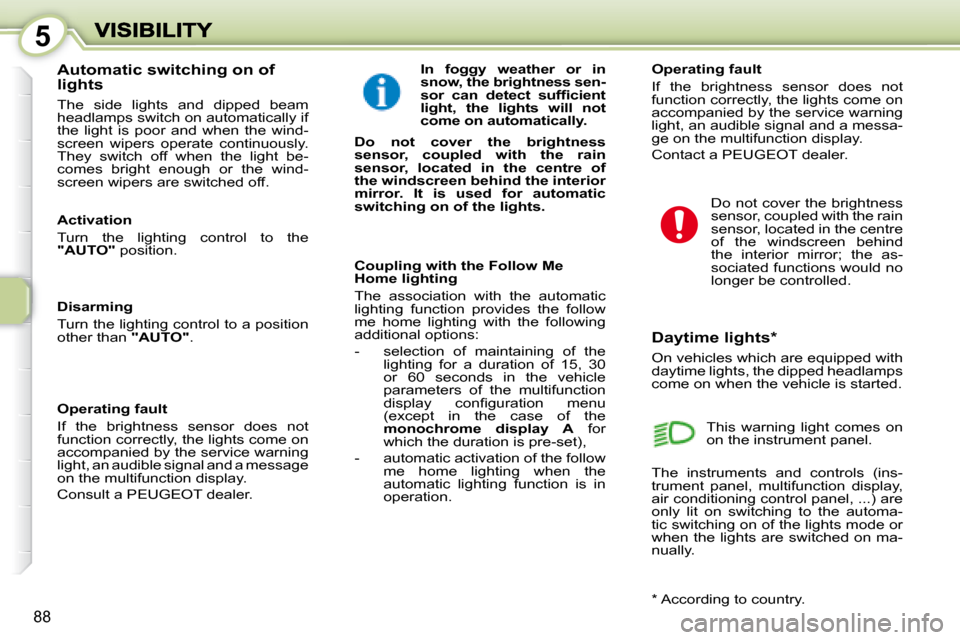

Page 88 of 194
5
88
Daytime lights *
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
A u t o m a t i c s w i t c h i n g o n o f
lights
The side lights and dipped beam headlamps switch on automatically if the light is poor and when the wind-screen wipers operate continuously. They switch off when the light be-comes bright enough or the wind-screen wipers are switched off.
I n f o g g y w e a t h e r o r i n s n o w , t h e b r i g h t n e s s s e n - s o r c a n d e t e c t s u f fi c i e n t l i g h t , t h e l i g h t s w i l l n o t come on automatically.
Do not cover the brightness s e n s o r , c o u p l e d w i t h t h e r a i n s e n s o r , l o c a t e d i n t h e c e n t r e o f t h e w i n d s c r e e n b e h i n d t h e i n t e r i o r mirror. It is used for automatic s w i t c h i n g o n o f t h e l i g h t s .
C o u p l i n g w i t h t h e F o l l o w M e
Home lighting
The association with the automatic lighting function provides the follow me home lighting with the following additional options:
- selection of maintaining of the lighting for a duration of 15, 30 or 60 seconds in the vehicle parameters of the multifunction d i s p l a y c o n fi g u r a t i o n m e n u (except in the case of the monochrome display A for which the duration is pre-set),
- automatic activation of the follow me home lighting when the automatic lighting function is in operation.
Activation
Turn the lighting control to the " AUTO " position.
Disarming
Turn the lighting control to a position other than " AUTO ".
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction display.
Consult a PEUGEOT dealer.
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a messa-ge on the multifunction display.
Contact a PEUGEOT dealer.
Do not cover the brightness sensor, coupled with the rain sensor, located in the centre of the windscreen behind the interior mirror; the as-sociated functions would no longer be controlled.
This warning light comes on on the instrument panel.
The instruments and controls (ins-trument panel, multifunction display, air conditioning control panel, ...) are only lit on switching to the automa-tic switching on of the lights mode or when the lights are switched on ma-nually.
* According to country.
Page 89 of 194
5
88
Daytime lights *
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
A u t o m a t i c s w i t c h i n g o n o f
lights
The side lights and dipped beam headlamps switch on automatically if the light is poor and when the wind-screen wipers operate continuously. They switch off when the light be-comes bright enough or the wind-screen wipers are switched off.
I n f o g g y w e a t h e r o r i n s n o w , t h e b r i g h t n e s s s e n - s o r c a n d e t e c t s u f fi c i e n t l i g h t , t h e l i g h t s w i l l n o t come on automatically.
Do not cover the brightness s e n s o r , c o u p l e d w i t h t h e r a i n s e n s o r , l o c a t e d i n t h e c e n t r e o f t h e w i n d s c r e e n b e h i n d t h e i n t e r i o r mirror. It is used for automatic s w i t c h i n g o n o f t h e l i g h t s .
C o u p l i n g w i t h t h e F o l l o w M e
Home lighting
The association with the automatic lighting function provides the follow me home lighting with the following additional options:
- selection of maintaining of the lighting for a duration of 15, 30 or 60 seconds in the vehicle parameters of the multifunction d i s p l a y c o n fi g u r a t i o n m e n u (except in the case of the monochrome display A for which the duration is pre-set),
- automatic activation of the follow me home lighting when the automatic lighting function is in operation.
Activation
Turn the lighting control to the " AUTO " position.
Disarming
Turn the lighting control to a position other than " AUTO ".
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction display.
Consult a PEUGEOT dealer.
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a messa-ge on the multifunction display.
Contact a PEUGEOT dealer.
Do not cover the brightness sensor, coupled with the rain sensor, located in the centre of the windscreen behind the interior mirror; the as-sociated functions would no longer be controlled.
This warning light comes on on the instrument panel.
The instruments and controls (ins-trument panel, multifunction display, air conditioning control panel, ...) are only lit on switching to the automa-tic switching on of the lights mode or when the lights are switched on ma-nually.
* According to country.
