Page 123 of 308
Controls, Instruments
123
Check left/right dipped beam (low
beam)
also applies to:
front side lights, direction indicator,
high beam, fog lights, side indicator
light, brake light, tail light, rear fog
light, reversing light, raised brake
light, side markerThe reported light is faulty. Check bulb.
Have the fault remedied at an authorized
Porsche dealer.
Daytime
driving lights offDaytime driving lights switch off when the engi-
ne is shut off. Switch on lights if necessary.
Headlight beam
adjustment faultyHave the fault remedied at an authorized
Porsche dealer.
Front lid not closed Close luggage compartment lid properly.
Rear lid not closed Close engine compartment lid properly.
Lid opener front
faultyLuggage compartment lid release is faulty.
Have the fault remedied at an authorized
Porsche dealer.
Rain sensor faulty Have the fault remedied at an authorized
Porsche dealer.
Refill washer fluid
LIMIT
Cannot be accepted
with vehicle stoppedThe current speed can only be accepted for the
acoustic warning signal when the vehicle is in
motion.
LIMIT
30Selected speed limit (e.g. 30 mph) for the
acoustic warning signal has been exceeded.
Adjust your speed if necessary.
Instrument
panelOn-board
computerText display on on-board
computerMeaning/measure
Page 267 of 308
Practical Tips, Emergency Service
267
Bulb chart
Ty p e , r a t i n g
Halogen low beam H7, 55W
Low beam with Bi-Xenon headlight Philips, D2S 35W
Halogen high beam H9, 65W
Additional high beam with Bi-Xenon headlight H11, 55W
Fog light H8, 35W
Tail light, rear fog light P21/4W
Brake light/tail light P21/4W
Tail light, reflector P21/5W
Make-up mirror light K3W
Reversing light P21
Trun signal indicator light, front and rear PY21W
Turn signal indicator light, side WY5W
Side marker light W3W
Door guard/Curb light W5W
Parking light W5W Blue-Vision
License plate light C5W
Luggage compartment/engine compartment
light, interior lightK10W
Reading light 6W Xenon
Page 272 of 308
272
Practical Tips, Emergency Service

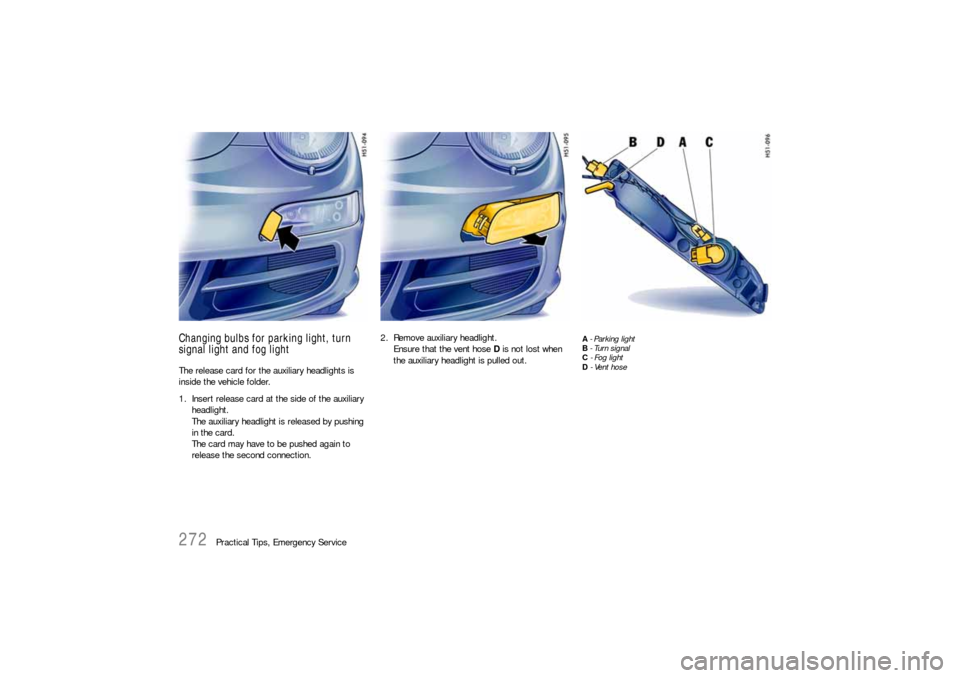

Changing bulbs for parking light, turn
signal light and fog lightThe release card for the auxiliary headlights is
inside the vehicle folder.
1. Insert release card at the side of the auxiliary
headlight.
The auxiliary headlight is released by pushing
in the card.
The card may have to be pushed again to
release the second connection.2. Remove auxiliary headlight.
Ensure that the vent hose D is not lost when
the auxiliary headlight is pulled out.
A - Parking light
B - Turn signal
C - Fog light
D - Vent hose
Page 273 of 308
Practical Tips, Emergency Service
273

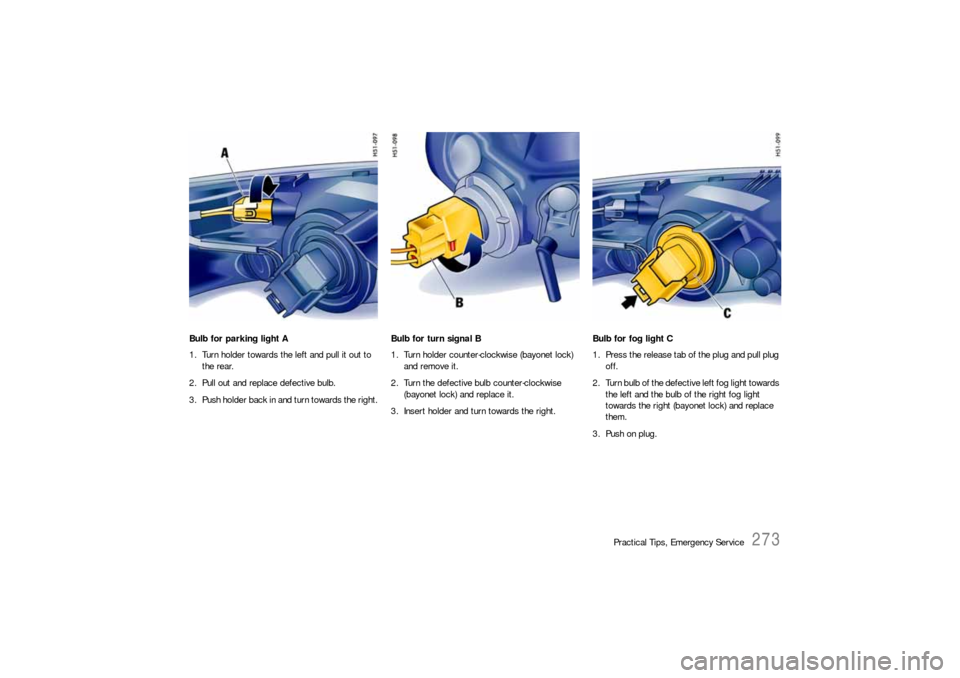

Bulb for parking light A
1. Turn holder towards the left and pull it out to
the rear.
2. Pull out and replace defective bulb.
3. Push holder back in and turn towards the right.Bulb for turn signal B
1. Turn holder counter-clockwise (bayonet lock)
and remove it.
2. Turn the defective bulb counter-clockwise
(bayonet lock) and replace it.
3. Insert holder and turn towards the right.Bulb for fog light C
1. Press the release tab of the plug and pull plug
off.
2. Turn bulb of the defective left fog light towards
the left and the bulb of the right fog light
towards the right (bayonet lock) and replace
them.
3. Push on plug.
Page 276 of 308
276
Practical Tips, Emergency Service

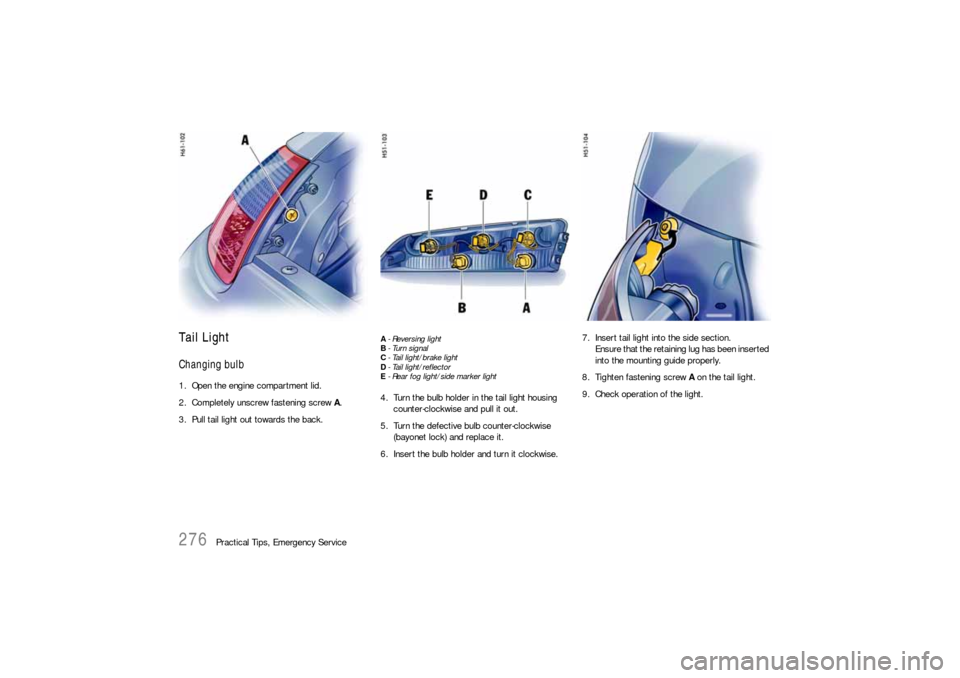

Tail LightChanging bulb1. Open the engine compartment lid.
2. Completely unscrew fastening screw A.
3. Pull tail light out towards the back.
A- Reversing light
B-Turn signal
C- Tail light/brake light
D- Tail light/reflector
E- Rear fog light/side marker light4. Turn the bulb holder in the tail light housing
counter-clockwise and pull it out.
5. Turn the defective bulb counter-clockwise
(bayonet lock) and replace it.
6. Insert the bulb holder and turn it clockwise.7. Insert tail light into the side section.
Ensure that the retaining lug has been inserted
into the mounting guide properly.
8. Tighten fastening screw A on the tail light.
9. Check operation of the light.
Page 307 of 308
Index
307
PPaint
Care .................................................. 218
Data................................................... 285
ParkAssistant ............................................... 58
Parking ...................................................... 170
Parking aids ...........................................58
, 60
Parking brake ............................................... 65
Warning light ........................................ 66
Parking light .......................................131, 132
Particle filter............................................... 215
Passenger compartment monitoring............... 26
Plastic parts ............................................... 224
Platform lift ................................................ 244
Porsche Active Suspension Management
(PASM) ......................................................... 75
Porsche Ceramic Composite Brake (PCCB) ....... 8
Porsche Communication Management (PCM) 158
Porsche Stability Management (PSM).............. 72
Information light .................................... 74
Power measurement ..................................... 61
Power measurements ................................. 198
Power steering fluid level.....................214, 291
Power windows.............................. 21
, 28, 176
Practical tips .............................................. 228
RRadiator fan .........................................83
, 200
Radio reception .......................................... 159
Rain sensor ................................................ 133
Range on remaining fuel ........................99, 121
Reading light ........................................76, 278
Rear fog light ............................................. 131Rear lid ......................................................148
Rear seat backrests ......................................39
Rear spoiler ..................................................63
Rear view mirrors................................... 30
, 32
Rear window defogger...................................33
Rear window wiper ......................................134
Recycling .......................................................7
Reduced driving program, Tiptronic ..............170
Relays ........................................................254
Release button............................................165
Remote control .............................................20
Replacement key ..........................................19
Replacing bulbs ..........................................266
Replacing wiper blades................................216
Rims
Diameter ............................................241
Rim width ...........................................241
Rollover Protection System ............................57
Roof Transport System ............... 195
, 292
, 293
Running in ....................................................16
SSafety belts ......................................... 42
, 226
Height adjustment .................................44
Tensioner .............................................42
Warning light.........................................43
Safety compliance sticker............................284
Sealing set .................................................246
Seals .........................................................224
Seat
Adjustment ...........................................34
Heating ................................................38
Memory................................................36
Selector lever .............................................165Selector lever position indicator ............ 93
, 166
Shifting gear .............................................. 164
Side marker light................................ 131, 275
Side vents ................................................. 141
Sliding roof ................................................ 172
Snow chains .............................................. 239
Snow tires ................................................. 238
Socket ...................................................... 254
Spacers ............................................ 249, 252
Spare key .............................................. 19, 20
Speed code letter ...................................... 240
Speed control .............................. 88
, 136
, 137
Speed limit ........................................ 100, 240
Speedometer ............................................... 90
Spoiler ........................................................ 63
Sport Chrono Package
CHRONO stopwatch............................ 104
Sport mode ......................................... 71
Sport mode ........................................... 71, 75
Sports seat ................................................. 34
Sport-type running gear .............................. 298
Stability management system ........................ 72
Starting ....................................................... 81
Starting engine ............................................ 82
Steering lock ............................................... 80
Steering wheel
Adjustment .......................................... 39
Function keys ....................................... 40
Lock.................................................... 81
Rocker switches ................................. 165
Stopping engine ........................................... 83
Stopwatch ................................................. 104
Storage options ......................................... 146
Storing your Porsche.................................. 226
Sun visors ................................................... 41
