RENAULT KANGOO 2013 X61 / 2.G Wipers And Washers Owner's Manual

85A-21
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$100.mif
WIPERS - WASHERS
Fault finding – Interpretation of statuses85A
UCH
Vdiag No.: 0F
ET557
CONTINUED
Check the continuity between connections NA and 24A of the rear screen washer control.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the
following connection:
•24A between components677 and 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace the wiring.
If the fault is still present, contact the techline.

85A-22
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$100.mif
WIPERS - WASHERS
Fault finding – Interpretation of statuses85A
UCH
Vdiag No.: 0F
ET558 WINDSCREEN WIPER SPEED SETTING SELECTION
NOTESThere must be no present or stored faults.
Switch on the ignition.
Put the wiper stalk in the intermittent wipe position.
The status should be YES.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
ET558
"NO"Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse
and relay box, component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and
location of components).
Check the connection and condition of the combined wiper-washer connector, component
code 145 and check the windscreen wiper motor connector, component code 212.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the operation of the wiper control.
Check the continuity between connections 14E and AP7 of the screen wiper control in the
intermittent speed position.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•14E between components 645 and 145,
•AP7 between components 145 and 260.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
If the fault is still present, contact the techline.
UCH_V0F_ET558

85A-23V1 MR-376-X76-85A000$110.mif
85A
UCH
Vdiag No.: 0F
Tool
commandDiagnostic tool name Comments
AC007Rear screen wiper See interpretation of the command.
AC056Low-speed wiper See interpretation of the command.
WIPERS - WASHERS
Fault finding – Command summary table

85A-24
AFTER REPAIRCarry out a road test and then a check using the diagnostic tool.
V1 MR-376-X76-85A000$120.mif
85A
UCH
Vdiag No.: 0F
AC007REAR SCREEN WIPER
NOTESThis command activates the rear screen wiper.
There must be no present or stored faults.
Switch on the ignition.
Activate the rear screen wiper control.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse and relay box,
component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and location of components).
Check the connection and condition of the rear screen wiper connector, component code 211 and the rear screen
wiper relay connector, component code 1041.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the + 12 V after ignition feed on connection AP7 of the rear screen wiper relay, component code 1041.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance of the following connections:
•AP7 between components 1041 and 260,
•MG between component 211 and the earth,
•36G of component 1041 and 36A of component 211.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the wiper mechanism or motor are not jammed.
If the fault is still present, contact the techline.
UCH_V0F_AC007
WIPERS - WASHERS
Fault finding – Interpretation of commands

85A-25
AFTER REPAIRCarry out a road test and then a check using the diagnostic tool.
V1 MR-376-X76-85A000$120.mif
WIPERS - WASHERS
Fault finding – Interpretation of commands85A
UCH
Vdiag No.: 0F
AC056LOW SPEED WIPER
NOTESThis command activates the low speed wiper.
There must be no present or stored faults.
Switch on the ignition.
Activate the low speed wiper command.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence and condition of fuse F15 on the passenger compartment fuse and relay box, component
code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and Location of components).
Check the connection and condition of the windscreen wiper connector, component code 212, and the combined
wiper-washer connector, component code 145.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the + 12 V after ignition feed on connection AP7 of the combined wiper-washer, component code 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•14A between components 145 and 212,
•MQ between component 212 and earth.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the wiper mechanism or motor are not jammed.
If the fault is still present, contact the techline.
UCH_V0F_AC056

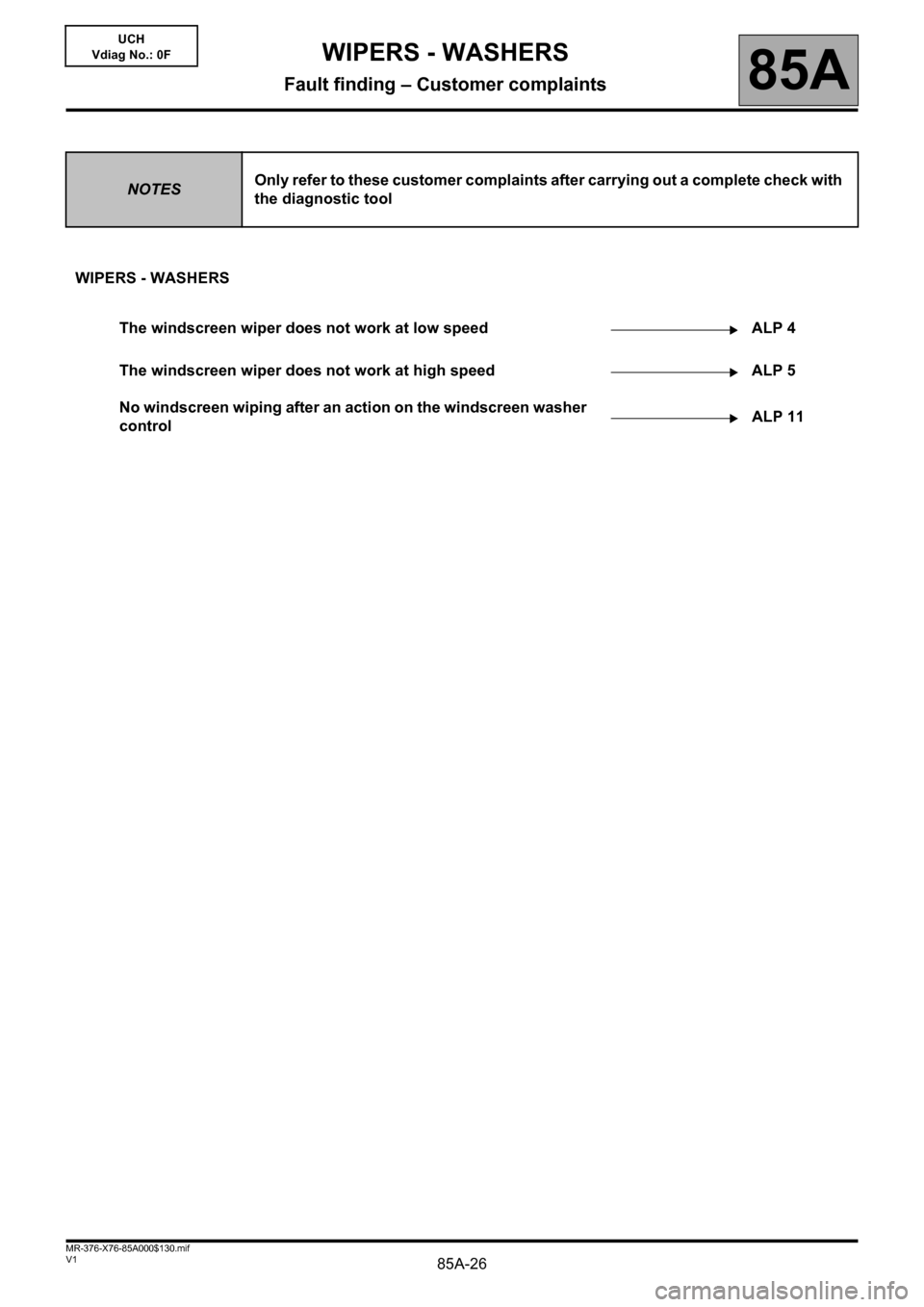

85A-26V1 MR-376-X76-85A000$130.mif
85A
UCH
Vdiag No.: 0F
NOTESOnly refer to these customer complaints after carrying out a complete check with
the diagnostic tool
WIPERS - WASHERS
The windscreen wiper does not work at low speed ALP 4
The windscreen wiper does not work at high speed ALP 5
No windscreen wiping after an action on the windscreen washer
controlALP 11
WIPERS - WASHERS
Fault finding – Customer complaints

85A-27
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$140.mif
85A
UCH
Vdiag No.: 0F
ALP 4 The windscreen wiper does not work at low speed
NOTESOnly consult this customer complaint after a complete check with the diagnostic
tool.
There must be no present or stored faults.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse and relay box,
component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and location of components).
Check the + 12 V after ignition feed on connection AP7 of the combined wiper-washer, component code 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•14A between components 145 and 212,
•MQ between component 212 and earth.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the motor operates correctly.
Check that the wiper mechanism or motor are not jammed.
UCH_V0F_ALP04
WIPERS - WASHERS
Fault finding – Fault Finding Chart

85A-28V1 MR-376-X76-85A000$140.mif
WIPERS - WASHERS
Fault finding – Fault Finding Chart85A
UCH
Vdiag No.: 0F
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
ALP 5 The windscreen wiper does not work at high speed
NOTESOnly consult this customer complaint after a complete check with the diagnostic
tool.
There must be no present or stored faults.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse and relay box,
component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and location of components).
Check the + 12 V after ignition feed on connection AP7 of the combined wiper-washer, component code 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•14B between components 145 and 212,
•MQ between component 212 and earth.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the motor operates correctly.
Check that the wiper mechanism or motor are not jammed.
UCH_V0F_ALP05

85A-29V1 MR-376-X76-85A000$140.mif
WIPERS - WASHERS
Fault finding – Fault Finding Chart85A
UCH
Vdiag No.: 0F
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
ALP 11No windscreen wiping after an action on the windscreen washer
control
NOTESOnly consult this customer complaint after a complete check with the diagnostic
tool.
There must be no present or stored faults.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check that the wiper mechanism or motor are not jammed.
Check that the blades are correctly fitted to the blade holders and that each mounting nut is correctly tightened.
Check that the motor is in good condition.
Check that nothing is interfering with the windscreen wiper mechanism operation.
Check that the mechanism between the motor and the blades is correctly fitted.
Check the connection and condition of the combined wiper-washer connectors, component code 145 and the
passenger compartment electronic control unit connectors, component code 645.
If the connector or connectors are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity and insulation to earth and + 12 V on the following connections:
•16A between components 145 and 645,
•14E between components 145 and 645,
•14A between components 145 and 212.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.
UCH_V0F_ALP11
