8Radio/Radio MP3
The performed adjustments are reflected in a bar in the display12
⇒page 5.
Pressing the multi-function key "re-set" allthe sound adjustments
are placed in the centralposition (zero value).
The adjustments are memorised automatically.
Ifno adjustmentismade, the uni
treturns to the initialstate after
5 seconds. Itisalso possible to exit the AUDIO menu by pressing
one of the function keys or pressing the multi-function keyofthe
last adjustmentmodified.
K
Sound adjustment memory
In the pre-tuning keys 1 ... 5 you may store sound adjustments
(bass/mid/treb) and the volume distribution (bal/fad).
A
Addjjuussttmmeenntt aanndd mmeemmoorriissaattiioonn
Perform the bass, midrange, treble, balance and fader adjustments
asdescribed previously. When you are still in one of these
adjustments, maintain the pre-tuning key (1 ... 5) depressed where
you wish to store these adjustments,
untilhearing the confirmation
signal. "Sound 1" appearsin the display (ifyou have elected the key 1).
The adjusted values staymemorised.
R
Reeccaalllliinngg tthhee ssttoorreedd vvaalluueess
Press the key SOUND and then the pre-tuning keywhere the
adjustmentiswhich contains the values you wish to retrieve (for
example 3).
"Sound 3" appearsin the display.
The stored values pass to be the actualones.
R
Reeccaalllliinngg tthhee mmiiddrraannggee vvaalluueess
Press the key SOUND and then the pre-tuning key 6.
"Sound 6" appearsin the display.
Allthe adjustments are reset to itsmidrange value.
K
Page 12 of 34
9Radio/Radio MP3
PROG Function
Fig. 3BRS-0056
To facilitate driving, the radio has a PROG menu that allows
performing a series of adjustments that are onlynecessaryonce or
circumstantially.
S
Seettttiinnggss
11.. PPRROOGG mmeennuu aaccttiivvaattiioonn
Press the keyPROG, in the display appears"program" and the
differentfunctions of the program menu that are allowed to be
selected.
2
2.. SSeelleeccttiinngg tthhee PPRROOGG mmeennuu ffuunnccttiioonnss
Press the corresponding multi-function key to the desired function.
In the display appears the said function.
The multi-function keys <,> allow the display change to display all
the functions.3
3.. VVaarryyiinngg tthhee ffuunnccttiioonn aaddjjuussttmmeenntt
Once the function isselected, the adjustmentsmay be varied via
the search keys, except the functionsonvol, tivoland tpvolwhich
are adjusted via the rotaryswitch. The performed adjustments are
reflected in the display.
44.. AAccttiivvaattiinngg tthhee nneeww aaddjjuussttmmeenntt
Once the new adjustmentsisselected, thisisupdated
immediately.
Reaching thispointyou mayreturn to select and adjust another
function repeating the points 2 to 4, or:
5
5.. EEnnddiinngg tthhee aaddjjuussttmmeennttss
Ifno adjustmentismade, the unitreturns to the initialstate after 5
seconds. Itisalso possible to exit the PROG menu via the pressing
of anyfunction key.
K
Page 13 of 34
10Radio/Radio MP3

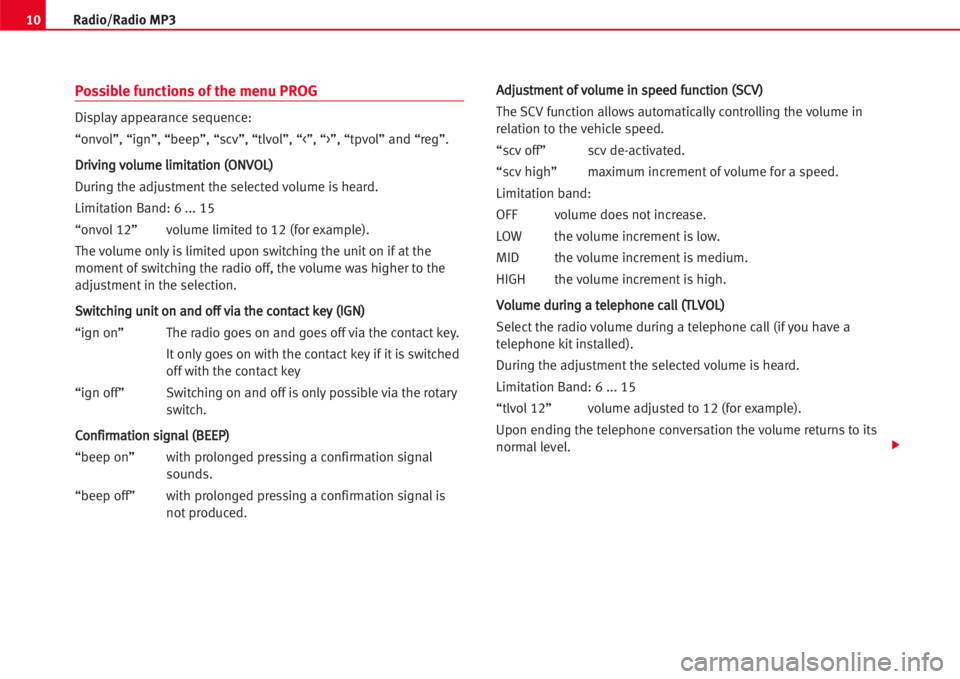

Possible functions of the menu PROG
Display appearance sequence:
“onvol”, “ign”, “beep”, “scv”, “tlvol”, “<”, “>”, “tpvol” and “reg”.
D
Drriivviinngg vvoolluummee lliimmiittaattiioonn ((OONNVVOOLL))
During the adjustment the selected volume isheard.
Limitation Band: 6 ... 15
“onvol12” volume limited to 12 (for example).
The volume onlyislimited upon switching the uniton if at the
momentofswitching the radio off, the volume was higher to the
adjustm
entin the selection.
S
Swwiittcchhiinngg uunniitt oonn aanndd ooffff vviiaa tthhee ccoonnttaacctt kkeeyy ((IIGGNN))
“ign on”The radio goes on and goes off via the contact key.
Itonlygoeson with the contact keyifitisswitched
offwith the contact key
“ign off” Switching on and offisonlypossible via the rotary
switch.
C
Coonnffiirrmmaattiioonn ssiiggnnaall ((BBEEEEPP))
“beep on”with prolonged pressing a confirmation signal
sounds.
“beep off”with prolonged pressing a confirmation signalis
not produced.A
Addjjuussttmmeenntt ooff vvoolluummee iinn ssppeeeedd ffuunnccttiioonn ((SSCCVV))
The SCV function allowsautomaticallycontrolling the volume in
relation to the vehicle speed.
“scv off” scvde-activated.
“scv high”maximum incrementofvolume for a speed.
Limitation band:
OFF volume doesnotincrease.
LOW the volume incremen
tislow.
MID the volume incrementismedium.
HIGH the volume incrementishigh.
V
Voolluummee dduurriinngg aa tteelleepphhoonnee ccaallll ((TTLLVVOOLL))
Select the radio volume during a telephone call(ifyou have a
telephone kitinstalled).
During the adjustment the selected volume isheard.
Limitation Band: 6 ... 15
“tlvol12” volume adjusted to 12 (for example).
Upon ending the telephone conversation the volum
e returnsto its
normallevel.
Page 14 of 34
11Radio/Radio MP3
TTrraaffffiicc rreeppoorrttss vvoolluummee ((TTPPVVOOLL))
Select the volume increment, with respect to the existing volume at
the moment of the trafficreportreception.
During the adjustment the selected volume isheard.
Limitation Band: 0 ... +5
“tavol+3” 3 step incrementofvolume with respect to the
actualvolume.
R
Reeggiioonnaall pprrooggrraammmmiinngg aauuttoommaattiicc cchhaannggee ((RREEGG))
Look for the station programming in thiszone.
When the radio receivesin RDSmode variousregionalstations, it
may occur thatitwould change between differentregional
programs.
“reg on”regiona
lprogramming automaticchange.
“reg off”doesnot change to another regionalprogram.
K
Page 15 of 34
12Radio/Radio MP3
RRaaddiioo mmooddee
General frame
78
6
4532
1
BRS-0057Fig. 4
Page 16 of 34
13Radio/Radio MP3
1PPrree--ttuunniinngg kkeeyyss ⇒fig. 4.
– Allowsselecting the stationsstored or memorise the desired
stations.
2BBuuttttoonn TTPP11))// BBuuttttoonn MMUUTTEE22)) ⇒fig. 4.
T
TPP BBuuttttoonn.. IInnddiiccaattoorr rreeppoorrttss ooff ttrraaffffiicc11))
– TTPP: function activated and operating
– (
(TTPP)): function activated butwithout effect, since itwasnot tuned,
or doesnotreceive anystation with trafficreports.
– No indication: TP function de-activated.
B
Buuttttoonn MMUUTTEE22))
– Permits activating/de-activating the MUTEfunction (reduction of
the volume to 0).
3BBuuttttoonn PPTTYY11))// BBuuttttoonn LLOOUUDD22)) ⇒fig. 4.
B
Buuttttoonn PPTTYY11))
– Permits selecting the type of program desired (SPORT, NEWS, ...)
L
LOOUUDD BBuuttttoonn ((ffuunnccttiioonn LLOOUUDDNNEESSSS))22))
– Permits activating/de-activating the LOUDNESS function. The
bass and treble are raised atlow volume. "LD" appearsin the
displaywhen the function is active.
4MMuullttii--ffuunnccttiioonn kkeeyyss ⇒fig. 4.
– F
FMM11, FFMM22, AAMM11or AAMM22: corresponding memoryband and level
– S
SCCAANN: Activates/de-activates the function SCAN
– A
ASS: Activates the auto-store function
– M
MAANN: permitsmanuallyselecting the stations
– L
LRRNN: Update the memory LEARN, which isused for the automatic
search (onlyin FM mode)
– A
AFF: Activates/de-activates the alternate frequencies (onlyin FM
mode).
5DDiissppllaayy ⇒fig. 4.
– Indicates the station frequency, the selected row and the pre-
tuning number in case thatitismemorised.
– In the case of FM with RDS stations the name of the station is
also indicated.
6.. SSeeaarrcchh kkeeyyss ⇒fig. 4.
– Activate the automaticsearch.
7FFMM KKeeyy ⇒fig. 4.
– The radio mode in the corresponding band isselected via the FM
button.
8AAMM KKeeyy ⇒fig. 4.
– The radio mode in the corresponding band isselected via the AM
button.
K
1)OnlyEuropean version.2)OnlyAmerican version.
Page 17 of 34
14Radio/Radio MP3
AM or FM buttons
To select the radio mode, press the AM or FM buttons.
Via the buttons AM
8⇒page 12 or FM 7the radio mode in the
corresponding band isselected.
Pressing the firstmulti-function key, selects a memorylevel(FM1,
FM2, AM1 or AM2). Sixstationsmay be stored in each one of them.
The memorylevel(A
AMM11, AAMM22, FFMM11or FFMM22) isindicated in the
display5⇒page 12.
The indicated stationsare selected via the corresponding
pre-tuning keys
1⇒page 12, "Selecting and storing radio
stations".
K
Search functions
You may perform an automaticor manualsearch of stations.
S
Sttaattiioonn aauuttoommaattiicc sseeaarrcchh
To automaticallysearch the prior or next station within the same
band, press or
⇒page 12, 6.
The search stops onlyin the stationswith a good quality of
reception. These are shown in the display of the radio
5.
S
Sttaattiioonn mmaannuuaall sseeaarrcchh
Once the desired band isselected press the multi-function button
MAN; then, via the search keys select the frequencydesired.
If the keys are brieflypressed the changing is step by step (of
9 kHzin AM and of 100 kHzin FM) and if they are maintained
pressed, the freque
ncies change rapidly. In thiswayitisalso
possible to tune in stationswith weak signals, notdetectable via
the automaticsearch.
S
SCCAANN FFuunnccttiioonn
With the SCAN function activated, allthe stationswith a good
quality ofreception are reproduced during 10 seconds. To select a
station, deactivate the function SCAN whilst the same isbeing
played.
The SCAN function is activated or de-activate
d by brieflypressing
the multi-function key SCAN
⇒page 12, 4.
If the tuned station isalready stored, the corresponding pre-tuning
keynumber appearsin the display.
K
Fig. 5BRS-0058
Page 18 of 34
15Radio/Radio MP3
With the trafficreportreception function TP activated, the unitis
readyto receive messages about the trafficsituation in any
function mode.
The TP function may only be used in the FM band. Ifyou switch on
the AM band the TP function automaticallyde-activates.
T
TPP ffuunnccttiioonn aaccttiivvaattiioonn
Pressing the TP keyin the display appears:
– T
TPP: if the pre-tuned station emits trafficreports.
– (
(TTPP)): if the pre-tuned station doesnot emittrafficreports.
The messages are reproduced at a minimum determined volume
level. In the PROG menu you may change the minimum volume.
After the trafficreport, you willcontinue to hear the selected source
at the vo
lume itwas adjusted to.The CD or CD6 playing isstopped during the trafficreports
reproduction.
During the reproduction of a trafficreport, you may vary the volume
with the main switch.
T
TPP ffuunnccttiioonn ddee--aaccttiivvaattiioonn
If the TP keyispressed during the emission of a trafficreport, the
reproduction of that trafficreportisturned off.
If the TP keyispressed when no trafficreportsisbeing reproduced,
the function isswitched off.
K
Switching to traffic reports (function TP)1)
Fig. 6BRS-0059
1)OnlyEuropean version.
Page 19 of 34
16Radio/Radio MP3
Button MUTE1)
Allowssilencing the source being heard:
– Radio: the volume is set to zero.
– CD/CDC: passes to “pause” mode.When the function is activated in the display appears.
To switch the function off again press the key MUTE, the previous
volume isrecuperated, or turn the rotaryswitch, the volume is
incremented from 0.
K
You may store radio stationsin allthe pre-tuning keys. For each
band you have two levelsofmemory (AM1, AM2, FM1 and FM2).SSttoorriinngg aa rraaddiioo ssttaattiioonn
To store a station in one pre-tuning key⇒ page 12, 1, selectin
the first place the band (AM or FM).
Next select the memorylevel(AM1, AM2, FM1 or FM3)
⇒ page 14.
The memorylevelisindicated in the display.
Memorise and select radio stations
Fig. 7BRS-0060
1)OnlyAmerican version.
Page 20 of 34
17Radio/Radio MP3
After tuning the desired station, keep pressing the pre-tuning key
where you wish to store ituntilthe signalsounds.
Once stored, the pre-tuning keynumber where itisfound stored
appearsin the display.
S
Seelleeccttiinngg aa ssttoorreedd rraaddiioo ssttaattiioonn
To select a stored radio station, first select the band (AM or FM)
and the corresponding memorylevel(AM1, AM2, FM1 or FM2).
Pressing briefly the corresponding pre-tuning key, selects the
desired station.
A
ASS KKeeyy.. AAuuttoo--ssttoorree ffuunnccttiioonn
Via the Auto-store function are stored automatically the sixstations
with better reception quality of a band (AM or FM).
The Auto-store function is activated by brieflypressing the multi-
function key AS.
K
Memory LEARN (lrn)
Function onlyavailable in the FM band.
In the LEARN memorymay be stored the stations of better
reception.
Thisfunction makes sense ifyou move into a non-habitualzone
and do notwantto erase the pre-tuned stationsin the
memory
keys (1 to 6) to which you are accustomed to.L
LEEAARRNN MMeemmoorryy ooccccuuppaattiioonn
Press the multi-function key LRN. "learn" appearsin the display.
The receiver searchesin the FM band and stores the stationsof
greater power that are transmitted in the area where you are at the
moment.
Next the unitchanges to the station with better reception
.
To select another station of the LEARN memorypress the search
keys.
K
Alternate Frequencies (AF)
Function onlyavailable in the FM band.
RDS programsexistwhich may be transmitted by variousstations
with differentfrequencies.
A
Accttiivvaattiinngg AAFF
Press the multi-function key "af". "AF" appearsin the display.
The available alternate frequencies search is activated for the
selected station.
The radio silentlyand automatically passes to the alternate
frequency of better reception.
A
AFF sswwiittcchh ooffff
In case you are in an area of bad reception itmay occur that the
attemptsin changing be perceived as brief pauses or smallvolume
changes. To avoid this, you may switch off the AF function.
Again press the multi-function key "af". The indication AF
disappear
sfrom the display.K
