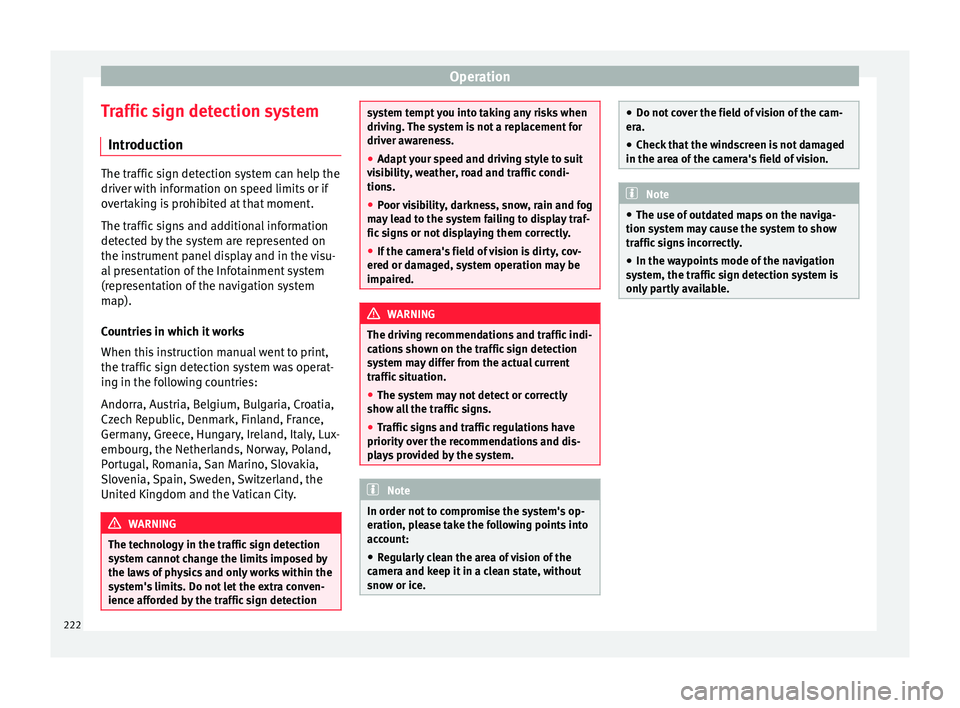

Traffic sign detection system Intr oduction The traffic sign detection system can help the
driver w
ith inf
ormation on speed limits or if
overtaking is prohibited at that moment.
The traffic signs and additional information
detected by the system are represented on
the instrument panel display and in the visu-
al presentation of the Infotainment system
(representation of the navigation system
map).
Countries in which it works
When this instruction manual went to print,
the traffic sign detection system was operat-
ing in the following countries:
Andorra, Austria, Belgium, Bulgaria, Croatia,
Czech Republic, Denmark, Finland, France,
Germany, Greece, Hungary, Ireland, Italy, Lux-
embourg, the Netherlands, Norway, Poland,
Portugal, Romania, San Marino, Slovakia,
Slovenia, Spain, Sweden, Switzerland, the
United Kingdom and the Vatican City. WARNING
The technology in the traffic sign detection
sys t

em cannot change the limits imposed by
the laws of physics and only works within the
system's limits. Do not let the extra conven-
ience afforded by the traffic sign detection system tempt you into taking any risks when
drivin
g.

The system is not a replacement for
driver awareness.
● Adapt your speed and driving style to suit
vis
ibility, weather, road and traffic condi-
tions.
● Poor visibility, darkness, snow, rain and fog
may
lead to the system failing to display traf-
fic signs or not displaying them correctly.
● If the camera's field of vision is dirty, cov-
ered or dam
aged, system operation may be
impaired. WARNING
The driving recommendations and traffic indi-
cation s

shown on the traffic sign detection
system may differ from the actual current
traffic situation.
● The system may not detect or correctly
show al
l the traffic signs.
● Traffic signs and traffic regulations have
priority ov
er the recommendations and dis-
plays provided by the system. Note
In order not to compromise the system's op-
eration, p l

ease take the following points into
account:
● Regularly clean the area of vision of the
camera and k
eep it in a clean state, without
snow or ice. ●
Do not c o

ver the field of vision of the cam-
era.
● Check that the windscreen is not damaged
in the area of
the camera's field of vision. Note
● The u se of out

dated maps on the naviga-
tion system may cause the system to show
traffic signs incorrectly.
● In the waypoints mode of the navigation
syst
em, the traffic sign detection system is
only partly available. 222

Driver assistance systems
Indication on display Fig. 217
On the instrument panel display: ex-
amp l
e
s of speed limits or overtaking prohibi-
tions with their respective additional signs. Speed limits or overtaking prohibitions with
their r
e
s

pective additional signs may be
shown on the instrument panel display
››› Fig. 217 and, depending on the navigation
system installed in a vehicle, also on the in-
fotainment system display ›››
 page 27.
Traffic sign de-
tection system
messagesCause and solution
There are no
traffic signs
availableThe system is booting up.
OR: the camera has not recog-
nised any obligation or prohibi-
tion signs.
Error: Detec-
tion of traffic
signsThere is a fault in the system.
Have the system checked by a
specialised workshop.
Detection of traffic signs:
Clean the wind-
screen!The windscreen is dirty in the
camera area.
Clean the windscreen.
Traffic sign
detection is
currently limi-
tedThe navigation system is not
transmitting any data.
Check that the navigation sys-
tem has up-to-date maps.
OR: The vehicle is currently in a
region that is not included in the
navigation system's map.
Function not
availableThe traffic sign detection system
does not work in the current
country. WARNING
If messages are ignored, the vehicle may stall
in traffic and c

ause accidents and severe inju-
ries.
● Never ignore the messages displayed.
● Stop the vehicle at the next opportunity
and in a safe p
lace. Note
Failure to heed the control lamps and corre-
spondin g t

ext messages when they light up
may result in damage to the vehicle. Operation
The traffic sign detection system does not
work
in al

l countries ››› page 222, Countries
in which it works . Keep this in mind when
travelling abroad.
Display of traffic signs
When the traffic sign detection system is con-
nected, a camera located on the base of the
interior rear-view mirror records the traffic
signs in front of the vehicle. After checking
and evaluating the information from the cam-
era, the navigation system and the current
vehicle data, up to three valid traffic signs
are displayed ›››
Fig. 217 B in conjunction
with their corresponding additional signs.
The sign that is currently valid for the
driver is shown in the left side of the
screen For example, a maximum speed
limit of 130 km/h (100 mph)
››› Fig. 217 A.
A sign valid only in certain circum-
stances, e.g. 100 km/h (60 mph) is
shown second, together with the addi-
tional rain sign. »
First:
Second:
223
Technical data
Advice
Operation
Emergencies
Safety

Driver assistance systems
The Easy Connect system screen will only dis-
p l
a
y objects detected at the front, and the ve-
hicle's trajectory will be hidden.
Braked manoeuvre function* 3 Valid only with Parking system plus
If an o

bstacle is detected while reversing, the
braked manoeuvre function activates the
emergency brake. Depending on the equip-
ment, the braked manoeuvre function can al-
so activate the emergency brake while mov-
ing forwards.
The emergency braking function helps to
minimise collisions. The vehicle's speed
must be no higher than 10 km/h.
The braked manoeuvre function is active or
inactive when the parking light is lit or off, re-
spectively. If the emergency brake has been
activated, the function will remain inactive
until the gear is changed.
The limitations of Parking Aid apply.
The braked manoeuvre function is configured
in the Easy Connect system with the  but-
t on and the f
u

nction buttons SETUP and
P ark
in
g and manoeuvring .
●  on – enables use of the braked ma-
noeu
vre function.
●  off – disab
les use of the braked ma-
noeuvre function. Temporary suppression of emergency brak-
ing
● When de activ

ating the function with the
Braked m
anoeuvre button, which appears on
the P ark
in
g aid screen of the Easy Connect
system.
● When any of the doors, the rear lid or the
bonnet are opened.
R

ear Assist “Rear View Cam-
era”*
Operatin

g and safety warnings WARNING
● The Re ar As

sist does not make it possible
to precisely calculate the distance from ob-
stacles (people, vehicles, etc.) and nor can it
overcome the system's own limits, hence us-
ing it may cause serious accidents and inju-
ries if used negligently or without due care.
The driver should be aware of his/her sur-
roundings at all times to ensure safe driving.
● The camera lens expands and distorts the
field of
vision and displays the objects on the
screen in a different, vague manner. The per-
ception of distances is also distorted by this
effect.
● Some objects may, due to the resolution of
the disp
lay screen - not be displayed in a sat-
isfactory manner or may not be displayed at all. Take special care with thin posts, fences,
rai
lin

gs or trees that might not be displayed
on screen and could damage the vehicle.
● The rear assist has blind spots where it is
not pos
sible to represent people or objects
(small children, animals and certain objects
cannot be detected in its field of vision). Mon-
itor the vehicle's surrounding area at all
times.
● Keep the camera lens clean, free of ice and
snow
, and do not cover it.
● The system is not a replacement for driver
awar
eness. Supervise the parking operation
at all times, as well as the vehicle's surround-
ing area. Adapt your speed and driving style
at all times to suit visibility, weather, road
and traffic conditions.
● Do not be distracted from the traffic by
looking at
the screen.
● The images on the rear assist screen are
only tw
o-dimensional. Due to a lack of spatial
depth, protruding parts or holes in the road,
for example, are more difficult to detect or
may not be seen at all.
● Vehicle load modifies the representation of
the orientation lines
displayed. The width
represented by the lines diminishes with ve-
hicle load. Pay special attention to the vehi-
cle's surroundings when the inside of the ve-
hicle of the luggage compartment is carrying
a heavy load.
● In the following situations, the objects or
other vehic
les shown in the navigation sys-
tem display appear to be further away or » 231
Technical data
Advice
Operation
Emergencies
Safety

Index
selector lever lock . . . . . . . . . . . . . . . . . . . . . . . 181
sel ect
or l
ever positions . . . . . . . . . . . . . . . . . . 180
steering wheel with gearshift paddles . . . . . . 182
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . 180, 182
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
B Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Before starting the vehicle . . . . . . . . . . . . . . . . . . 65
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 262 opening the bonnet . . . . . . . . . . . . . . . . . . . . . 263
Brake emergency braking function . . . . . . . . . . . . . . 173
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . 176
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
electronic parking brake . . . . . . . . . . . . . . . . . 172
new brake pads . . . . . . . . . . . . . . . . . . . . . . . . 175
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 176
moving off on hills . . . . . . . . . . . . . . . . . . . . . . 179
C
Camera cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
windscreen washer water . . . . . . . . . . . . . . . . 268
Capacity natural gas tank . . . . . . . . . . . . . . . . . . . . . . . . 257 Car-care products . . . . . . . . . . . . . . . . . . . . . . . . . 246
Catalytic
converter . . . . . . . . . . . . . . . . . . . . . . . . 189
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CD-ROM player (navigation) . . . . . . . . . . . . . . . . 149
Central locking anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 124
central locking switch . . . . . . . . . . . . . . . . . . . . 119
electric windows . . . . . . . . . . . . . . . . . . . . . . . . 128
Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . 120
manual locking . . . . . . . . . . . . . . . . . . . . . . . . . . 11
programming . . . . . . . . . . . . . . . . . . . . . . . . . . 119
remote control key . . . . . . . . . . . . . . . . . . . . . . 118
selective unlocking system . . . . . . . . . . . . . . . 118
sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . 128
Central locking system . . . . . . . . . . . . . . . . . . . . . 116
Cetane number (diesel fuel) . . . . . . . . . . . . . . . . 259
Changing parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 rear light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 97
rear light in the side panel . . . . . . . . . . . . . . . . . 98
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 57 subsequent work . . . . . . . . . . . . . . . . . . . . . . . . 59
Changing bulbs fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
number plate light . . . . . . . . . . . . . . . . . . . . . . 100
Changing gear engaging gears (manual gearbox) . . . . . . . . . 179
Changing main headlight turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Changing settings CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 87
Changing the main beam headlight bulb main beam headlight . . . . . . . . . . . . . . . . . . . . . 96 Changing the main headlight bulb
day light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
dipped headlight . . . . . . . . . . . . . . . . . . . . . . . . 95
Changing the wiper blades . . . . . . . . . . . . . . . . . . 63
Charging the battery . . . . . . . . . . . . . . . . . . . . . . 270
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . 262
Child-proof locking electric windows . . . . . . . . . . . . . . . . . . . . . . . . 127
Child seat categorisation in groups . . . . . . . . . . . . . . . . . . 84
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 84 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
safety instructions . . . . . . . . . . . . . . . . . . . . 19, 83
securing with seat belt . . . . . . . . . . . . . . . . . . . . 20
Top Tether system . . . . . . . . . . . . . . . . . . . . . 21, 23
City Emergency braking function . . . . . . . . . . . . . 211
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
carbon parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Easy Connect control panel . . . . . . . . . . . . . . . 250
exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 252
plastic parts . . . . . . . . . . . . . . . . . . . . . . 249, 250
radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 246
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
308

Index
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 131 audib l
e s
ignals . . . . . . . . . . . . . . . . . . . . . . . . . 131
AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
coming home . . . . . . . . . . . . . . . . . . . . . . . . . . 134
cornering lights . . . . . . . . . . . . . . . . . . . . . . . . 134
daytime running lights . . . . . . . . . . . . . . . . . . . 131
dipped beam headlight . . . . . . . . . . . . . . . . . . 131
fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
hazard warning lights . . . . . . . . . . . . . . . . . . . . 25
headlight range control . . . . . . . . . . . . . . . . . . 137
interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . 138
leaving home . . . . . . . . . . . . . . . . . . . . . . . . . . 135
light control . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
lighting of the instruments . . . . . . . . . . . . . . . 137
lighting of the switches . . . . . . . . . . . . . . . . . . 137
main beam lever . . . . . . . . . . . . . . . . . . . . . . . . 131
main beam lights . . . . . . . . . . . . . . . . . . . . . . . 131
main beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
motorway light . . . . . . . . . . . . . . . . . . . . . . . . . 136
parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 136
reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 138
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 131
Load compartment in the luggage compartment see Loading the luggage compartment . . . . . 151
Loading the luggage compartment . . . . . . . . . . . 151
Loading the vehicle fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 157
luggage compartment . . . . . . . . . . . . . . . . . . . . 11
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 162
tailboard for transporting long items . . . . . . . 156
Locking and unlocking in the door cylinder . . . . . . . . . . . . . . . . . . . . . . 10
with Keyless Access . . . . . . . . . . . . . . . . . . . . . 120
with the central locking switch . . . . . . . . . . . . 119 Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Lugg
age compartment . . . . . . . . . . . . . . . . . . . . . . 11
automatic lock . . . . . . . . . . . . . . . . . . . . . . . . . 126
luggage compartment lighting . . . . . . . . . . . . 138
luggage compartment variable floor . . . 159, 160
net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
net partition . . . . . . . . . . . . . . . . . . . . . . 154, 155
rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
retractable rear shelf . . . . . . . . . . . . . . . . . . . . 152
storing the rear shelf . . . . . . . . . . . . . . . 153, 154
unlocking manually . . . . . . . . . . . . . . . . . . . . . . 12
see also Loading the luggage compartment . 151
Luggage compartment floor . . . . . . . . . . . 159, 160
Luggage compartment variable floor . . . . 159, 160
Luggage net luggage compartment . . . . . . . . . . . . . . . . . . . 158
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . . . . 143
M Main beam assist . . . . . . . . . . . . . . . . . . . . . . . . . 132
Main beam lever . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Main panel turn signal and main beam lever . . . . . . . . . . . 131
Maintenance intervals . . . . . . . . . . . . . . . . . . . . . 264
Malfunction adaptive cruise control . . . . . . . . . . . . . . . . . . . 197
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 189
clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
diesel particulate filter . . . . . . . . . . . . . . . . . . . 189
Front Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
front assist monitoring system . . . . . . . . . . . . 208
gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Manual air conditioning . . . . . . . . . . . . . . . . . . . . 47
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Manual unlocking and locking . . . . . . . . . . . . . . . 87
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 Mobile telephones . . . . . . . . . . . . . . . . . . . . . . . . 245
Model pl
ate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Moving off hill driving assistant . . . . . . . . . . . . . . . . . . . . . 179
Multi-collision Brake . . . . . . . . . . . . . . . . . . . . . . 177
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
My Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
N
Natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
fuel tank cap . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
LNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . 257, 260
smell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
special features . . . . . . . . . . . . . . . . . . . . . . . . 258
Natural leather cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Navigation system CD-ROM player . . . . . . . . . . . . . . . . . . . . . . . . . 149
Net bag luggage compartment . . . . . . . . . . . . . . . . . . . 158
Net partition . . . . . . . . . . . . . . . . . . . . . . . . 154, 155
Noises adaptive cruise control . . . . . . . . . . . . . . . . . . . 197
brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . 174
refuelling natural gas . . . . . . . . . . . . . . . . . . . . 258
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 271
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
O Octane rating (petrol) . . . . . . . . . . . . . . . . . . . . . . 258
313
