SUZUKI KIZASHI 2010 1.G Owner's Manual

2-2
BEFORE DRIVING
57L20-03E
Immobilizer SystemThe immobilizer system is an anti-theft fea-
ture, which checks whether the keyless
start system remote controller that is com-
municating via radio waves with the vehicle
has been registered to the vehicle’s key-
less start system. If the remote controller is
not a registered one, the system will refuse
to start the engine using it.Immobilizer/Keyless Start System
Warning Light
85K2210
This light is on the instrument cluster.
 When you press the engine switch to
change the ignition mode to “ON”, the
light comes on briefly so you can check
that the light is working. If the light is
flashing, the engine cannot be started.
 The light also flashes when the “remote
controller outside” warning works.NOTE:
 The immobilizer/keyless start system is
normal if this light goes out in 2 seconds
after pressing the engine switch to
change the ignition mode to “ON”. If the
light fails to go out in this period, there is
something wrong with the system. There
is also a problem with the system if the
light remains on for 5 seconds after the
engine switch is pressed when the
switch is in any other ignition mode than
“ON”.
 Illumination or flashing of the light may
be accompanied by a message on the
information display in the instrument
cluster.
NOTE:
 If you lose your keyless start system
remote controller, see your SUZUKI
dealer as soon as possible to have the
lost one deactivated, then have the new
remote controller made by them.
 If you own other vehicles with keyless
start system remote controller, keep
those remote controllers away from the
engine switch when using your SUZUKI,
or the engine may not be started
because they may interfere with your
SUZUKI’s immobilizer system.
 In case of attaching any metal objects to
the keyless start system remote control-
ler, it may not start the engine.1. For USA
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
WARNING
Never leave the keyless start system
remote controller in the vehicle when
leaving the vehicle.
CAUTION
The keyless start system remote con-
troller is a sensitive electronic instru-
ment. To avoid damaging the keyless
start system remote controller:
 Do not expose it to impacts, mois-
ture or high temperature such as
on the dashboard under direct sun-
light.
 Keep the keyless start system
remote controller away from mag-
netic objects.
Door Locks: 3, 5, 8

2-3BEFORE DRIVING
57L20-03E
2. For Canada
This device complies with Industry Canada
Standard RSS-210. Operation is subject to
the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
Door LocksSide Door Locks
57L21004
(1) LOCK
(2) UNLOCK
(3) Rear
(4) Front
To lock a driver’s door from outside the
vehicle:
 Insert the key and turn the top of the key
toward the front of the vehicle, or Turn the lock knob forward, then pull and
hold the door handle as you close the
door.
To lock a passenger’s door from outside
the vehicle, turn the lock knob forward,
then pull and hold the door handle as you
close the door.
NOTE:
If the remote controller is left within the
“inside sensing area”, the locking of the
front doors will be cancelled.
To unlock a driver’s door from outside the
vehicle, insert the key and turn the top of
the key toward the rear of the vehicle.
57L21005
(1) LOCK
(2) UNLOCK
To lock a door from inside the vehicle, turn
the lock knob forward. Turn the lock knob
rearward to unlock the door.
WARNING
Always lock all doors when driving.
Locking the doors helps to prevent
occupants from being thrown from
the vehicle in the event of an acci-
dent. It also helps prevent unin-
tended opening of the doors.
(2)
(1)
(4)(3)
(1)
(2)
EXAMPLE
Door Locks: 3, 5, 8

2-4
BEFORE DRIVING
57L20-03E
To lock a rear door from outside the vehi-
cle, turn the lock knob forward and close
the door. You do not need to pull and hold
the door handle as you close the door.Power Door Locking SystemYou can lock and unlock all the doors
simultaneously by:
 Turning the key in a driver’s door lock, or
 Pushing the power door locking switch
located on the driver’s side or the front
passenger’s side door panel.

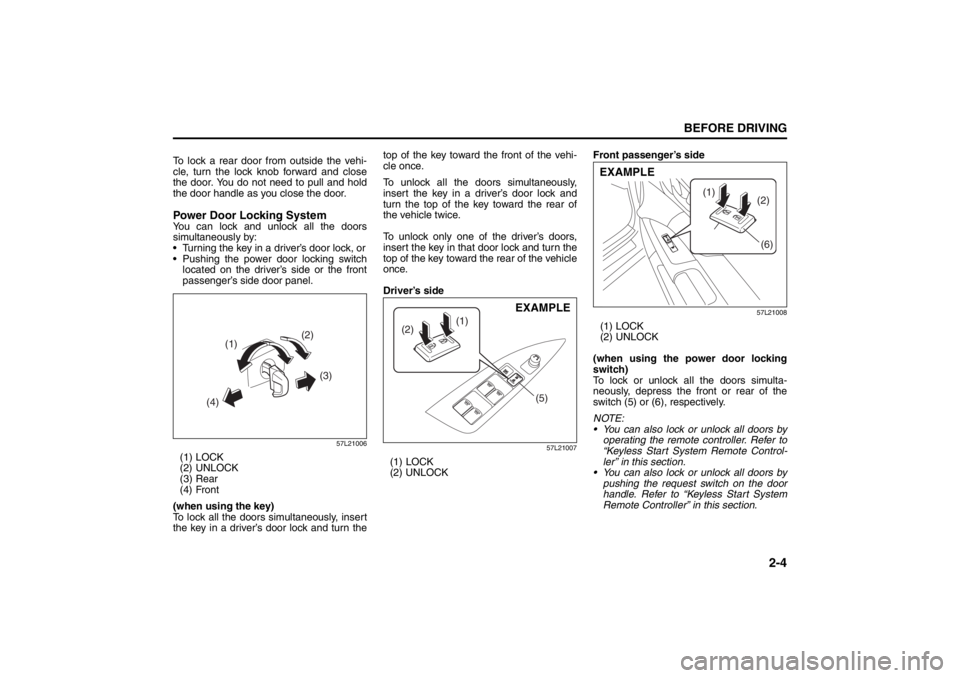

57L21006
(1) LOCK
(2) UNLOCK
(3) Rear
(4) Front
(when using the key)
To lock all the doors simultaneously, insert
the key in a driver’s door lock and turn thetop of the key toward the front of the vehi-
cle once.
To unlock all the doors simultaneously,
insert the key in a driver’s door lock and
turn the top of the key toward the rear of
the vehicle twice.
To unlock only one of the driver’s doors,
insert the key in that door lock and turn the
top of the key toward the rear of the vehicle
once.
Driver’s side
57L21007
(1) LOCK
(2) UNLOCKFront passenger’s side
57L21008
(1) LOCK
(2) UNLOCK
(when using the power door locking
switch)
To lock or unlock all the doors simulta-
neously, depress the front or rear of the
switch (5) or (6), respectively.
NOTE:
 You can also lock or unlock all doors by
operating the remote controller. Refer to
“Keyless Start System Remote Control-
ler” in this section.

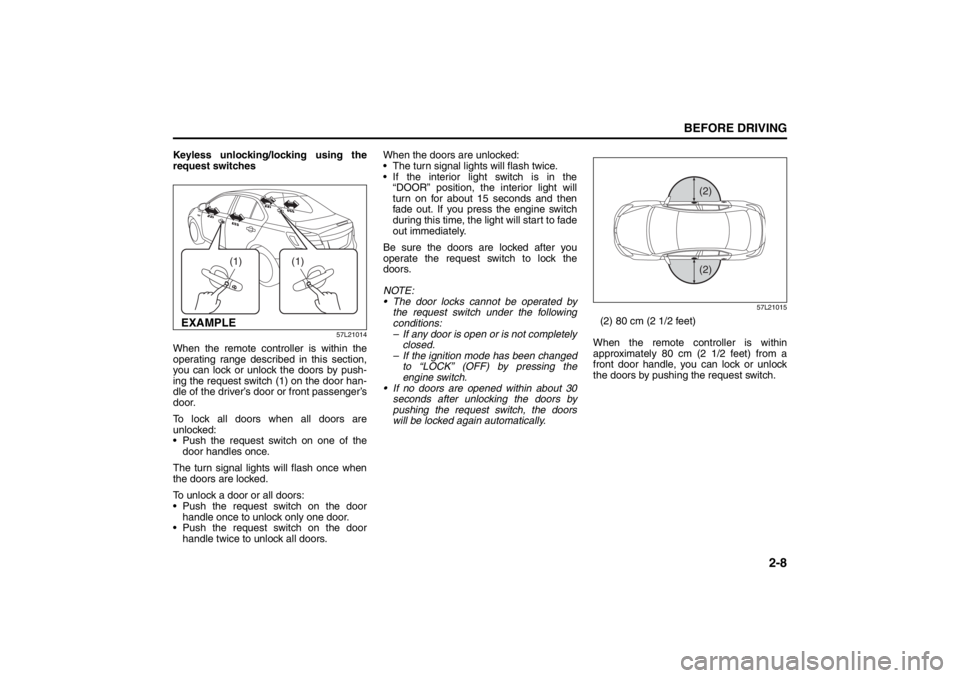

 You can also lock or unlock all doors by
pushing the request switch on the door
handle. Refer to “Keyless Start System
Remote Controller” in this section.
(2)
(1)
(4)(3)
(1)
(2)
(5)
EXAMPLE
(1)
(2)
(6)
EXAMPLE
Door Locks: 3, 5, 8

2-5BEFORE DRIVING
57L20-03E

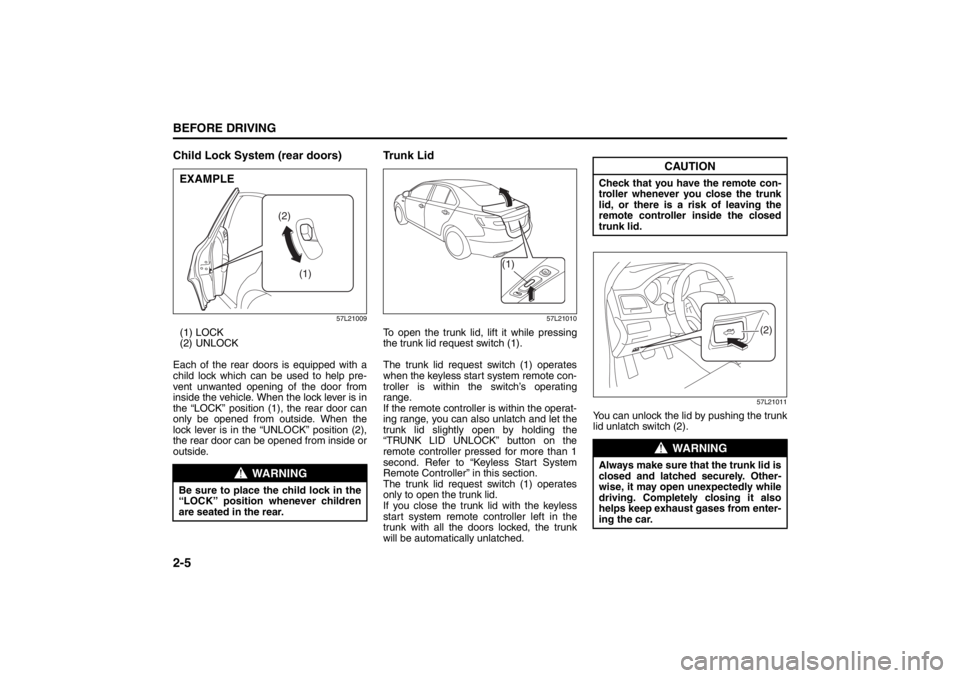

Child Lock System (rear doors)
57L21009
(1) LOCK
(2) UNLOCK
Each of the rear doors is equipped with a
child lock which can be used to help pre-
vent unwanted opening of the door from
inside the vehicle. When the lock lever is in
the “LOCK” position (1), the rear door can
only be opened from outside. When the
lock lever is in the “UNLOCK” position (2),
the rear door can be opened from inside or
outside.
Tr u n k L i d
57L21010
To open the trunk lid, lift it while pressing
the trunk lid request switch (1).
The trunk lid request switch (1) operates
when the keyless start system remote con-
troller is within the switch’s operating
range.
If the remote controller is within the operat-
ing range, you can also unlatch and let the
trunk lid slightly open by holding the
“TRUNK LID UNLOCK” button on the
remote controller pressed for more than 1
second. Refer to “Keyless Start System
Remote Controller” in this section.
The trunk lid request switch (1) operates
only to open the trunk lid.
If you close the trunk lid with the keyless
start system remote controller left in the
trunk with all the doors locked, the trunk
will be automatically unlatched.
57L21011
You can unlock the lid by pushing the trunk
lid unlatch switch (2).
WARNING
Be sure to place the child lock in the
“LOCK” position whenever children
are seated in the rear.
(1) (2)
EXAMPLE
(1)
CAUTION
Check that you have the remote con-
troller whenever you close the trunk
lid, or there is a risk of leaving the
remote controller inside the closed
trunk lid.
WARNING
Always make sure that the trunk lid is
closed and latched securely. Other-
wise, it may open unexpectedly while
driving. Completely closing it also
helps keep exhaust gases from enter-
ing the car.
(2)
Door Locks: 3, 5, 8

2-6
BEFORE DRIVING
57L20-03E

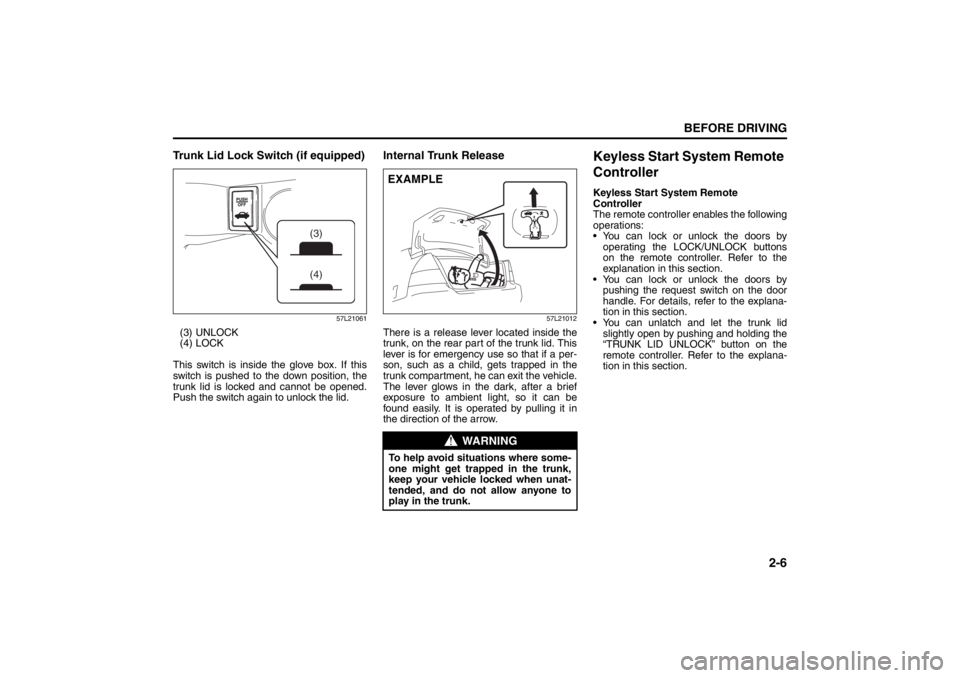

Trunk Lid Lock Switch (if equipped)
57L21061
(3) UNLOCK
(4) LOCK
This switch is inside the glove box. If this
switch is pushed to the down position, the
trunk lid is locked and cannot be opened.
Push the switch again to unlock the lid.
Internal Trunk Release
57L21012
There is a release lever located inside the
trunk, on the rear part of the trunk lid. This
lever is for emergency use so that if a per-
son, such as a child, gets trapped in the
trunk compartment, he can exit the vehicle.
The lever glows in the dark, after a brief
exposure to ambient light, so it can be
found easily. It is operated by pulling it in
the direction of the arrow.
Keyless Start System Remote
ControllerKeyless Start System Remote
Controller
The remote controller enables the following
operations:
 You can lock or unlock the doors by
operating the LOCK/UNLOCK buttons
on the remote controller. Refer to the
explanation in this section.
 You can lock or unlock the doors by
pushing the request switch on the door
handle. For details, refer to the explana-
tion in this section.
 You can unlatch and let the trunk lid
slightly open by pushing and holding the
“TRUNK LID UNLOCK” button on the
remote controller. Refer to the explana-
tion in this section.
(3)
(4)
WARNING
To help avoid situations where some-
one might get trapped in the trunk,
keep your vehicle locked when unat-
tended, and do not allow anyone to
play in the trunk.EXAMPLE
Door Locks: 3, 5, 8

2-7BEFORE DRIVING
57L20-03E

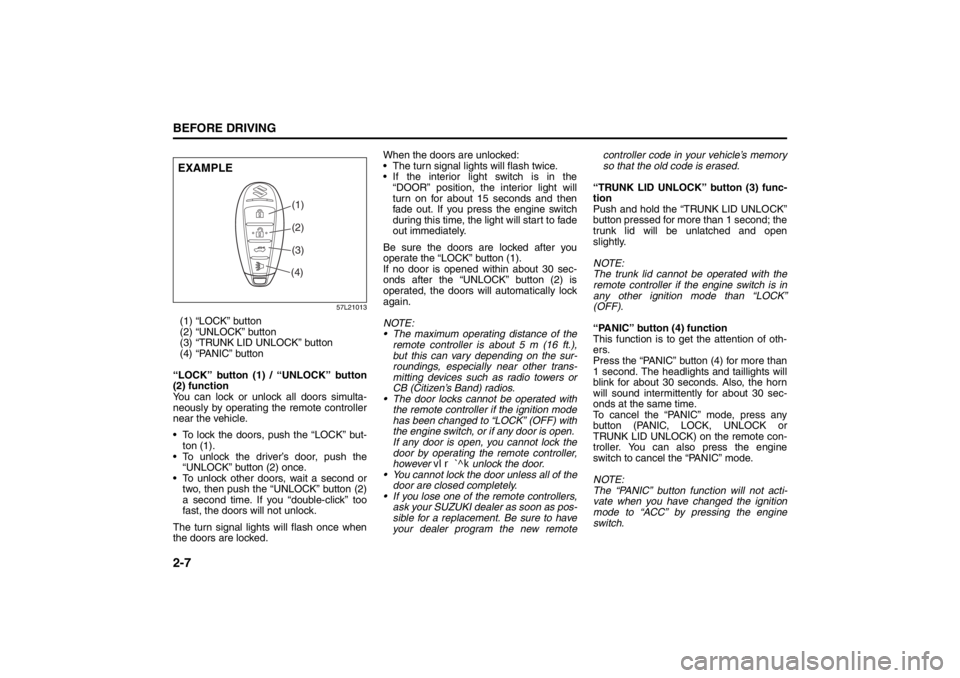

57L21013
(1) “LOCK” button
(2) “UNLOCK” button
(3) “TRUNK LID UNLOCK” button
(4) “PANIC” button
“LOCK” button (1) / “UNLOCK” button
(2) function
You can lock or unlock all doors simulta-
neously by operating the remote controller
near the vehicle.
 To lock the doors, push the “LOCK” but- ton (1).
 To unlock the driver’s door, push the “UNLOCK” button (2) once.
 To unlock other doors, wait a second or
two, then push the “UNLOCK” button (2)
a second time. If you “double-click” too
fast, the doors will not unlock.
The turn signal lights will flash once when
the doors are locked. When the doors are unlocked:
 The turn signal lights will flash twice.
 If the interior light switch is in the
“DOOR” position, the interior light will
turn on for about 15 seconds and then
fade out. If you press the engine switch
during this time, the light will start to fade
out immediately.
Be sure the doors are locked after you
operate the “LOCK” button (1).
If no door is opened within about 30 sec-
onds after the “UNLOCK” button (2) is
operated, the doors will automatically lock
again.
NOTE:
 The maximum operating distance of the remote controller is about 5 m (16 ft.),
but this can vary depending on the sur-
roundings, especially near other trans-
mitting devices such as radio towers or
CB (Citizen’s Band) radios.
 The door locks cannot be operated with the remote controller if the ignition mode
has been changed to “LOCK” (OFF) with
the engine switch, or if any door is open.
If any door is open, you cannot lock the
door by operating the remote controller,
however YOUCAN unlock the door.
 You cannot lock the door unless all of the
door are closed completely.
 If you lose one of the remote controllers, ask your SUZUKI dealer as soon as pos-
sible for a replacement. Be sure to have
your dealer program the new remote controller code in your vehicle’s memory
so that the old code is erased.
“TRUNK LID UNLOCK” button (3) func-
tion
Push and hold the “TRUNK LID UNLOCK”
button pressed for more than 1 second; the
trunk lid will be unlatched and open
slightly.
NOTE:
The trunk lid cannot be operated with the
remote controller if the engine switch is in
any other ignition mode than “LOCK”
(OFF).
“PANIC” button (4) function
This function is to get the attention of oth-
ers.
Press the “PANIC” button (4) for more than
1 second. The headlights and taillights will
blink for about 30 seconds. Also, the horn
will sound intermittently for about 30 sec-
onds at the same time.
To cancel the “PANIC” mode, press any
button (PANIC, LOCK, UNLOCK or
TRUNK LID UNLOCK) on the remote con-
troller. You can also press the engine
switch to cancel the “PANIC” mode.
NOTE:
The “PANIC” button function will not acti-
vate when you have changed the ignition
mode to “ACC” by pressing the engine
switch.
(2)(1)(3)(4)
EXAMPLE
Door Locks: 3, 5, 8

2-8
BEFORE DRIVING
57L20-03E
Keyless unlocking/locking using the
request switches
57L21014
When the remote controller is within the
operating range described in this section,
you can lock or unlock the doors by push-
ing the request switch (1) on the door han-
dle of the driver’s door or front passenger’s
door.
To lock all doors when all doors are
unlocked:
 Push the request switch on one of the
door handles once.
The turn signal lights will flash once when
the doors are locked.
To unlock a door or all doors:
 Push the request switch on the door
handle once to unlock only one door.
 Push the request switch on the door
handle twice to unlock all doors.When the doors are unlocked:
 The turn signal lights will flash twice.
 If the interior light switch is in the
“DOOR” position, the interior light will
turn on for about 15 seconds and then
fade out. If you press the engine switch
during this time, the light will start to fade
out immediately.
Be sure the doors are locked after you
operate the request switch to lock the
doors.
NOTE:
 The door locks cannot be operated by
the request switch under the following
conditions:
– If any door is open or is not completely
closed.
– If the ignition mode has been changed
to “LOCK” (OFF) by pressing the
engine switch.
 If no doors are opened within about 30
seconds after unlocking the doors by
pushing the request switch, the doors
will be locked again automatically.
57L21015
(2) 80 cm (2 1/2 feet)
When the remote controller is within
approximately 80 cm (2 1/2 feet) from a
front door handle, you can lock or unlock
the doors by pushing the request switch.
(1)
(1)
EXAMPLE
(2)
(2)
Windows: 3, 8

2-9BEFORE DRIVING
57L20-03E
NOTE:
 If the remote controller is outside the
request switch operating range
described above, you will not be able to
operate the request switch.
 If the battery of the remote controller
runs down or there are strong radio
waves or noise, the request switch oper-
ating range may be reduced or the
remote controller may be inoperative.
 If the remote controller is too close to the
door, the request switches may not oper-
ate.
 If a spare remote controller is in the vehi-
cle, the request switches may not oper-
ate normally.
 The remote controller will only operate a
request switch if it is within the switch’s
operating range. For example, if the
remote controller is within the operating
range of the driver’s door request switch
but not the front passenger’s door
request switch, the driver’s door switch
can be operated but the front passen-
ger’s door switch cannot be operated.NOTE:
The keyless start system may not function
correctly in certain environments or under
certain operating conditions such as the
following:
 When there are strong signals coming
from a television, power station or a cel-
lular phone.
 When the remote controller is in contact
with or covered by a metal object.
 When a radio wave type remote keyless
entry is used nearby.
 When the remote controller is placed
near an electronic device such as per-
sonal computer.Some additional precautions you should
take and information you should be aware
of are:
 Make sure the key is stowed in the
remote controller. If the remote controller
becomes unreliable, you will not be able
to lock or unlock the doors, or start the
engine.
 Be sure that the driver always carries the
remote controller.
 If you lose one of the remote controllers,
ask an authorized SUZUKI dealer as
soon as possible for a replacement. Be
sure to have your dealer program the
new remote controller code in your vehi-
cle’s memory so that the old code is
erased, or perform the programming pro-
cedure yourself according to the instruc-
tions in this section.
 You can use up to four remote controllers
and keys for your vehicle. Ask an autho-
rized SUZUKI dealer for details.
 The battery life of the remote controller
is about two years, but it can vary
depending on usage conditions.
CAUTION
The remote controller is a sensitive
electronic instrument. To avoid dam-
aging the remote controller:
 Do not expose it to impacts, mois-
ture or high temperature such as by
leaving it on the dashboard under
direct sunlight.
 Keep the remote controller away
from magnetic objects such as a
television.
Windows: 3, 8

2-10
BEFORE DRIVING
57L20-03E
Request Switch Warning Buzzer
This outside buzzer beeps for about 2 sec-
onds in the following conditions to warn
you that the request switch is not working:
 The request switch is pressed after all
doors are closed with the ignition mode
changed to “ACC” or “ON” by pressing
the engine switch.
 The request switch is pressed in any of
the following conditions after changing
the ignition mode to “LOCK” (OFF) by
pressing the engine switch.
– The remote controller is left inside the
vehicle.
– Any of the doors is open.
Press the request switch again after doing
the following:
With the ignition mode changed to “LOCK”
(OFF) by pressing the engine switch, bring
out the remote controller if it is inside the
vehicle and check that all doors are com-
pletely closed.Remote Controller Reminder Function
When you lock a door without using the
key, this function prevents it from being
locked if the remote controller is left inside
the vehicle.
With the remote controller inside the vehi-
cle, locking of the driver’s and passenger’s
doors made with the power door locking
system or door lock knobs will be can-
celled if either of the doors is open.
NOTE:
 Whenever you lock a door without using
the key, check that you have the remote
controller with you. This is a good habit
to prevent locking a door with the remote
controller left behind.
 The remote controller reminder function
is activated when you press the engine
switch to change the ignition mode to
“ACC” or “ON” anywhere the remote
controller is placed.Vehicle Inside Area Where Request
Switch Warning Buzzer/Remote Con-
troller Reminder Function Works
Inside the vehicle, the remote controller
may be located in any place within the indi-
cated “inside sensing area” (1) (not includ-
ing the instrument panel top and trunk) for
the request switch warning buzzer/remote
controller reminder function to work.
57L21017
(1)
Windows: 3, 8
Mirrors: 3, 8

2-11BEFORE DRIVING
57L20-03E
NOTE:
 Even with the remote controller within
the “inside sensing area”, the request
switch warning buzzer/remote controller
reminder function may not work under
any of the following conditions as the
presence of the remote controller may
not be sensed:
– The battery of the remote controller is
low.
– The remote controller is influenced by
strong radio waves or noise.
– The remote controller is in contact with
or covered by a metallic object.
– The remote controller is in the glove
box or a stowage for small articles
such as a door pocket.
– The remote controller is on the top or
in front of the instrument panel, in the
sun visor pocket or on the floor.
 The remote controller may be sensed
under any of the following conditions
even when the controller is not within the
“inside sensing area”. The request
switch warning buzzer/remote controller
reminder function will then work.
– The remote controller is outside the
vehicle but very close to it.
– The remote controller is on the instru-
ment panel top or in the trunk.Keyless unlocking/locking using the
trunk lid request switch
57L21010
57L21018
(2) 80 cm (2 1/2 feet)When the remote controller is within
approximately 80 cm (2 1/2 feet) from the
trunk lid request switch, you can open the
trunk lid by pushing and holding the trunk
lid request switch (1).
NOTE:
 If the remote controller is outside the
trunk lid request switch operating range
described above, you will not be able to
operate the switch.
 If the battery of the remote controller
runs down or there are strong radio
waves or noise, the trunk lid request
switch operating range may be reduced
or the remote controller may be inopera-
tive.
 If the remote controller is too close to the
trunk lid, the trunk lid request switch may
not operate.
 If a spare remote controller is in the
trunk, the trunk lid request switch may
not operate normally.
(1)
(2)
CAUTION
The remote controller is a sensitive
electronic instrument. To avoid dam-
aging the remote controller:
 Do not expose it to impacts, mois-
ture or high temperature such as by
leaving it on the dashboard under
direct sunlight.
 Keep the remote controller away
from magnetic objects such as a
television.
Mirrors: 3, 8
Seat Adjustment: 3
