11-3
FUSES AND PROTECTED CIRCUITS
80J23-03E
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX(21) – Air compressor relay
(22) – Fuel pump relay
(23) – Condensor fan relay
(24) – Front fog light relay
(25) – Throttle motor relay
(26) – FI MAIN relay
(27) – Starting motor relay
(28) – Radiator fan relay
(29) – Radiator fan relay 2
(30) – Radiator fan relay 3
(1)
(2) (3)
(28) (27) (26) (25) (6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)(20)(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7
Page 282 of 297
11-4FUSES AND PROTECTED CIRCUITS
80J23-03E
SX4
80J053
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(1) BLUE (15) RR WIP Rear wiper
(2) BLUE (15) IG COIL Ignition coil
(3) RED (10) BACK Back-up light
(4) RED (10) MTR Meter
(5) BLUE (15) ACC Accessory
(6) BLUE (15) ACC2 Accessory 2
(7) PINK (30) P/W Power window
(8) GREEN (30) WIP Wiper
(9) RED (10) IG1 SIG IG1 SIG
(10) BLUE (15) A/B Air bag
(11) RED (10) ABS Anti-lock brake system
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13) (14) (15) (16)
(18) (17) (19) (20) (21) (22) (23)(7)
Fuses and Protected Circuits: 7
Page 283 of 297
11-5
FUSES AND PROTECTED CIRCUITS
80J23-03E
80J053
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(12) BLUE (15) 4WD 4WD
(13) RED (10) STOP Stop light
(14) YELLOW (20) D/L Door lock
(15) RED (10) RR FOG Rear fog light
(16) RED (10) ST SIG ST SIG
(17) BLUE (15) S/H Seat heater
(18) RED (10) IG2 SIG IG2 SIG
(19) RED (10) TAIL Tail light
(20) BLUE (15) DOME Dome
(21) GREEN (30) RR DEF Rear defogger
(22) BLUE (15) HORN HAZ Horn/Hazard
(23) – – Blank
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13) (14) (15) (16)
(18) (17) (19) (20) (21) (22) (23)(7)
Page 284 of 297
11-6FUSES AND PROTECTED CIRCUITS
80J23-03E
SX4 SEDAN
80JC003
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(1) BLUE (15) RR WIP Rear wiper
(2) BLUE (15) IG COIL Ignition coil
(3) RED (10) BACK Back-up light
(4) RED (10) MTR Meter
(5) BLUE (15) ACC Accessory
(6) BLUE (15) ACC2 Accessory 2
(7) PINK (30) P/W Power window
(8) GREEN (30) WIP Wiper
(9) RED (10) IG1 SIG IG1 SIG
(10) BLUE (15) A/B Air bag
(11) RED (10) ABS Anti-lock brake system
(12) – – Blank
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13)
(21)
(24)
(14) (15) (16)
(18) (17) (19) (20) (22) (23)(7)
Page 285 of 297
11-7
FUSES AND PROTECTED CIRCUITS
80J23-03E
80JC003
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(13) RED (10) STOP Stop light
(14) YELLOW (20) D/L Door lock
(15) RED (10) RR FOG Rear fog light
(16) RED (10) ST SIG ST SIG
(17) BLUE (15) S/H Seat heater
(18) RED (10) IG2 SIG IG2 SIG
(19) RED (10) TAIL Tail light
(20) BLUE (15) DOME Dome
(21) GREEN (30) RR DEF Rear defogger
(22) BLUE (15) HORN HAZ Horn/Hazard
(23) – – Blank
(24) GREEN (30) RR DEF Rear defogger
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13)
(21)
(24)
(14) (15) (16)
(18) (17) (19) (20) (22) (23)(7)
Page 286 of 297
11-8FUSES AND PROTECTED CIRCUITS
80J23-03E
MEMO
Page 287 of 297
12-1
SPECIFICATIONS
80J23-03E
12
SPECIFICATIONSNOTE:
Specifications are subject to change with-
out notice.M/T: Manual transaxle
CVT: Continuously variable transaxle2WD: 2-wheel drive
i-AWD: intelligent All Wheel Drive
ITEM: Dimensions UNIT: mm (in.) SX4 SX4 SEDAN
Overall length 4115 – 4135 (162.0 – 162.8) 4490 – 4510 (176.8 – 177.6)
Overall width 1730 – 1755 (68.1 – 69.1) 1730 (68.1)
Overall height 195 tire 1575 (62.0) 1545 (60.8)
205 tire 1605 (63.2) 1545 (60.8)
Wheelbase 2500 (98.4) I
Track Front 1500 (59.1) I
Rear 1495 (58.9) I
Ground clearance 195 tire 165 (6.5) I
205 tire 175 (6.9) 160 (6.3)
ITEM: Weight
Gross axle weight rating
See the safety certification label and the tire information label which
are located on the driver’s door lock pillar. Gross vehicle weight rating
Vehicle capacity weight
Specifications: 1, 2, 5, 6, 7, 10, 11
Page 288 of 297
12-2SPECIFICATIONS
80J23-03E
ITEM: Engine
Type J20B (16V DOHC)
Number of cylinders 4
Bore 84.0 mm (3.31 in.)
Stroke 90.0 mm (3.54 in.)
Piston displacement 1995 cm
3 (1995cc, 121.7 cu.in)
Compression ratio 10.2 : 1
ITEM: Electrical
Ignition timing 3° – 17° B.T.D.C. at idle speed
Standard spark plug NGK SILFR5A11
Battery DELKOR 24-700 12V
Fuses See “INSPECTION AND MAINTENANCE” and “FUSES AND PRO-
TECTED CIRCUITS” sections.
Specifications: 1, 2, 5, 6, 7, 10, 11
Page 289 of 297
12-3
SPECIFICATIONS
80J23-03E

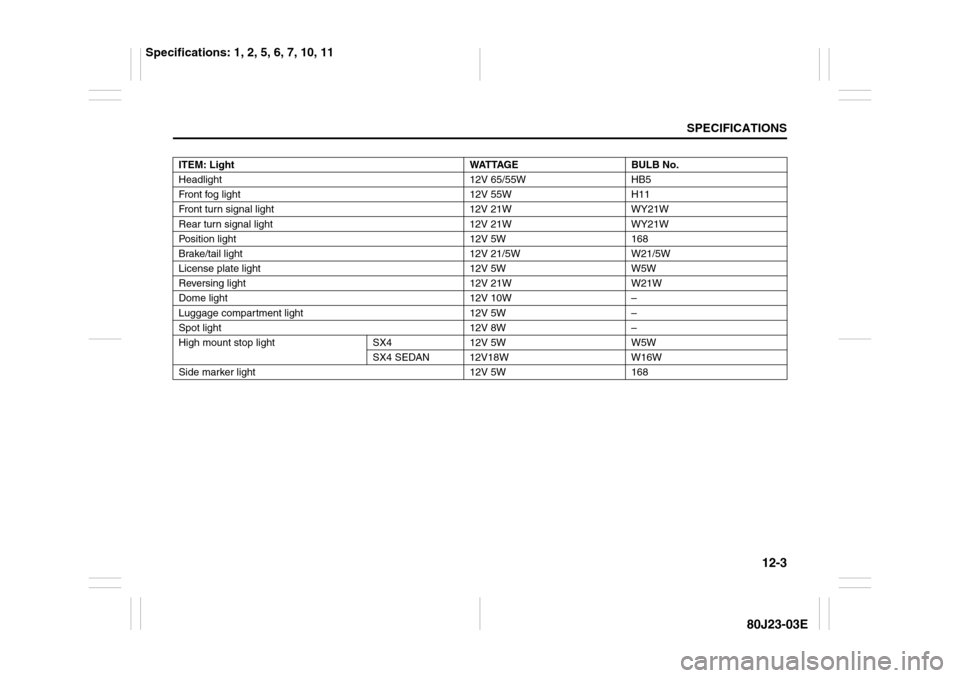

ITEM: Light WATTAGE BULB No.
Headlight 12V 65/55W HB5
Front fog light 12V 55W H11
Front turn signal light 12V 21W WY21W
Rear turn signal light 12V 21W WY21W
Position light 12V 5W 168
Brake/tail light 12V 21/5W W21/5W
License plate light 12V 5W W5W
Reversing light 12V 21W W21W
Dome light 12V 10W –
Luggage compartment light 12V 5W –
Spot light 12V 8W –
High mount stop light SX4 12V 5W W5W
SX4 SEDAN 12V18W W16W
Side marker light 12V 5W 168
Specifications: 1, 2, 5, 6, 7, 10, 11
Page 290 of 297
12-4SPECIFICATIONS
80J23-03E

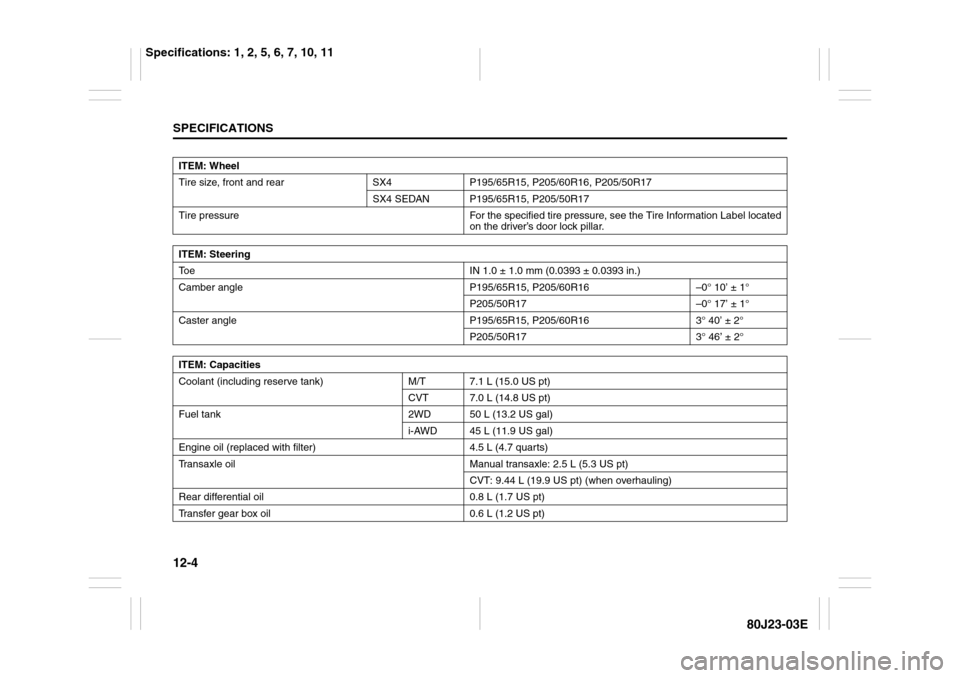

ITEM: Wheel
Tire size, front and rear SX4 P195/65R15, P205/60R16, P205/50R17
SX4 SEDAN P195/65R15, P205/50R17
Tire pressure For the specified tire pressure, see the Tire Information Label located
on the driver’s door lock pillar.
ITEM: Steering
Toe IN 1.0 ± 1.0 mm (0.0393 ± 0.0393 in.)
Camber angle P195/65R15, P205/60R16 –0° 10’ ± 1°
P205/50R17 –0° 17’ ± 1°
Caster angle P195/65R15, P205/60R16 3° 40’ ± 2°
P205/50R17 3° 46’ ± 2°
ITEM: Capacities
Coolant (including reserve tank) M/T 7.1 L (15.0 US pt)
CVT 7.0 L (14.8 US pt)
Fuel tank 2WD 50 L (13.2 US gal)
i-AWD 45 L (11.9 US gal)
Engine oil (replaced with filter) 4.5 L (4.7 quarts)
Transaxle oil Manual transaxle: 2.5 L (5.3 US pt)
CVT: 9.44 L (19.9 US pt) (when overhauling)
Rear differential oil 0.8 L (1.7 US pt)
Transfer gear box oil 0.6 L (1.2 US pt)
Specifications: 1, 2, 5, 6, 7, 10, 11
