TOYOTA 4RUNNER 2002 N210 / 4.G User Guide
Manufacturer: TOYOTA, Model Year: 2002, Model line: 4RUNNER, Model: TOYOTA 4RUNNER 2002 N210 / 4.GPages: 308, PDF Size: 5.46 MB
Page 11 of 308
’02 4Runner_U (L/O 0108)
52002 MY 4RUNNER_U (OM 35787U)
1. Service reminder indicators and
indicator lights
2. Engine coolant temperature gauge
3. Tachometer 4. Speedometer
5. Odometer and two trip meters
6. Fuel gauge
7. Trip meter reset knob
Instrument cluster overview
Page 12 of 308
’02 4Runner_U (L/O 0108)
62002 MY 4RUNNER_U (OM 35787U)
or
Driver ’s seat belt reminder light∗
1
Low engine oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Malfunction indicator lamp∗1
Discharge warning light∗1
Anti lock brake system warning light∗1
Automatic transmission fluid temperature
warning light∗1
SRS warning light∗1
Unengaged “Park” warning light∗1
Open door warning light∗1
Low windshield washer fluid level warning
light∗1
Headlight high beam indicator light Turn signal indicator lights
Front passenger ’s seat belt reminder light∗1
Vehicle skid control system and traction control
system (two w heel drive models) or active
traction control system (four wheel drive models)
warning light
∗ 1
Indicator symbols on the instrument panel
Page 13 of 308
’02 4Runner_U (L/O 0108)
72002 MY 4RUNNER_U (OM 35787U)
Cruise control indicator light∗
2
Driving pattern (“PWR” mode) indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1 5.
∗2: If this light flashes, see “Cruise control” in Section 1 6. Four wheel drive and center differential lock
indicator lights
Automatic transmission indicator lights
Traction control system off indicator light∗
1
(two wheel drive models)
Vehicle skid control system off indicator light
∗1
(four wheel drive models) Slip indicator light
Overdrive off indicator light
Page 14 of 308
’02 4Runner_U (L/O 0108)
82002 MY 4RUNNER_U (OM 35787U)
Page 15 of 308
’02 4Runner_U (L/O 0108)
92002 MY 4RUNNER_U (OM 35787U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobiliser system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power back window 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 16 of 308
’02 4Runner_U (L/O 0108)
102002 MY 4RUNNER_U (OM 35787U)

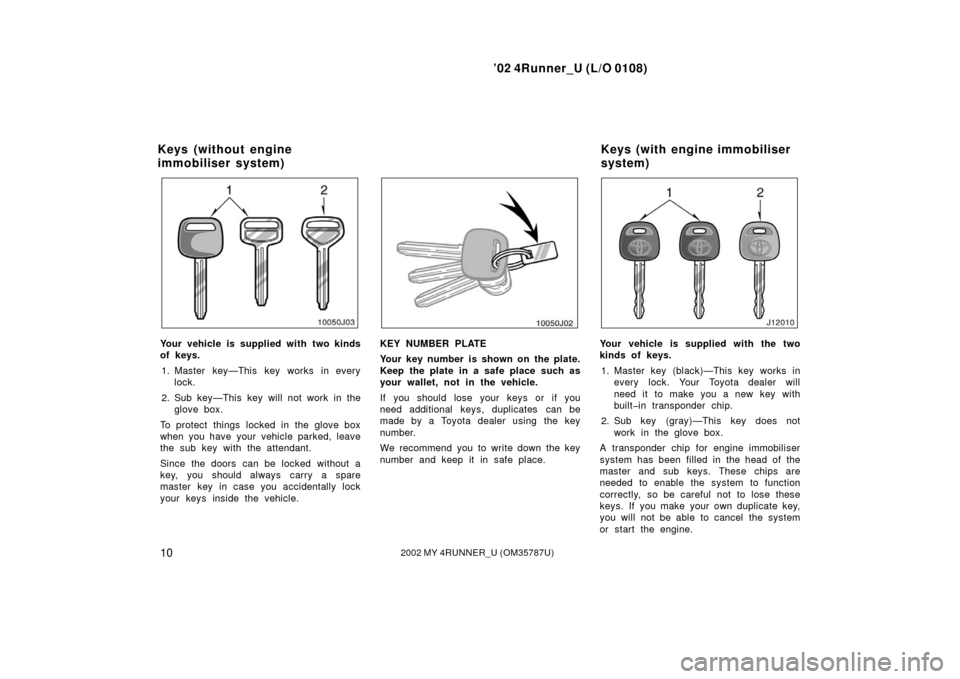

Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every lock.
2. Sub key—This key will not work in the glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with the two
kinds of keys. 1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
built in transponder chip.
2. Sub key (gray)—This key does not work in the glove box.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine immobiliser
system)
Page 17 of 308
’02 4Runner_U (L/O 0108)
112002 MY 4RUNNER_U (OM 35787U)
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.

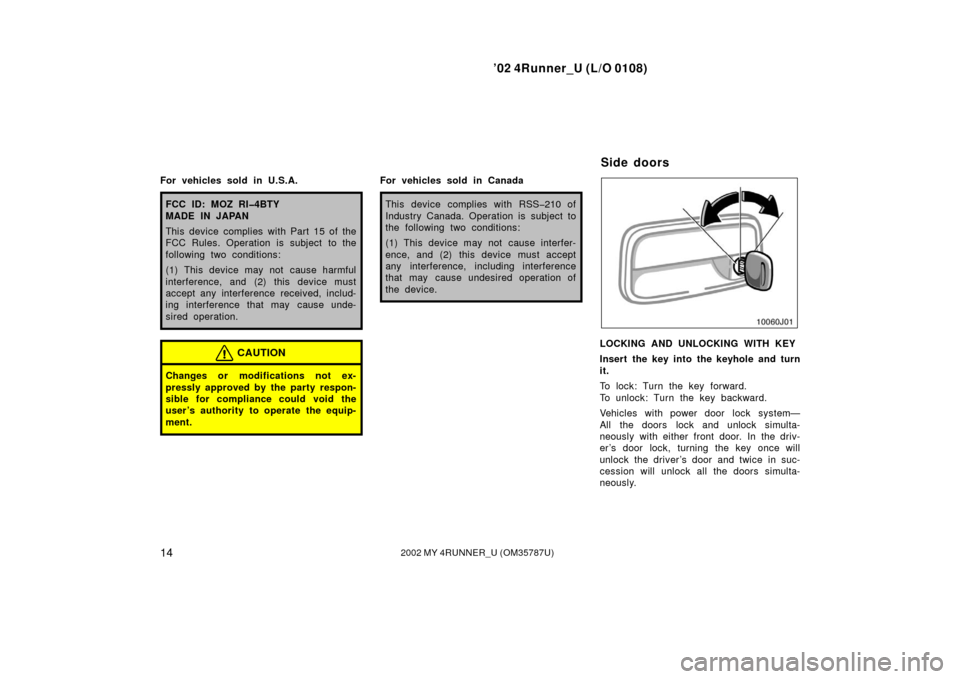

For information on use of the wireless
remote control key, see “Side doors” in
this section.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
Page 18 of 308
’02 4Runner_U (L/O 0108)
122002 MY 4RUNNER_U (OM 35787U)

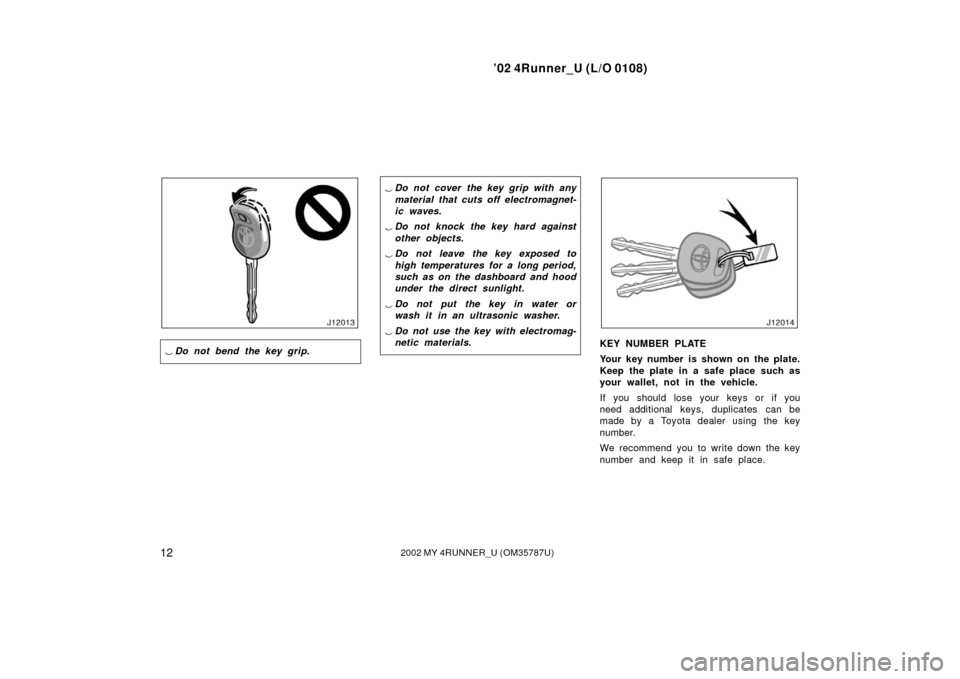

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Page 19 of 308
’02 4Runner_U (L/O 0108)
132002 MY 4RUNNER_U (OM 35787U)

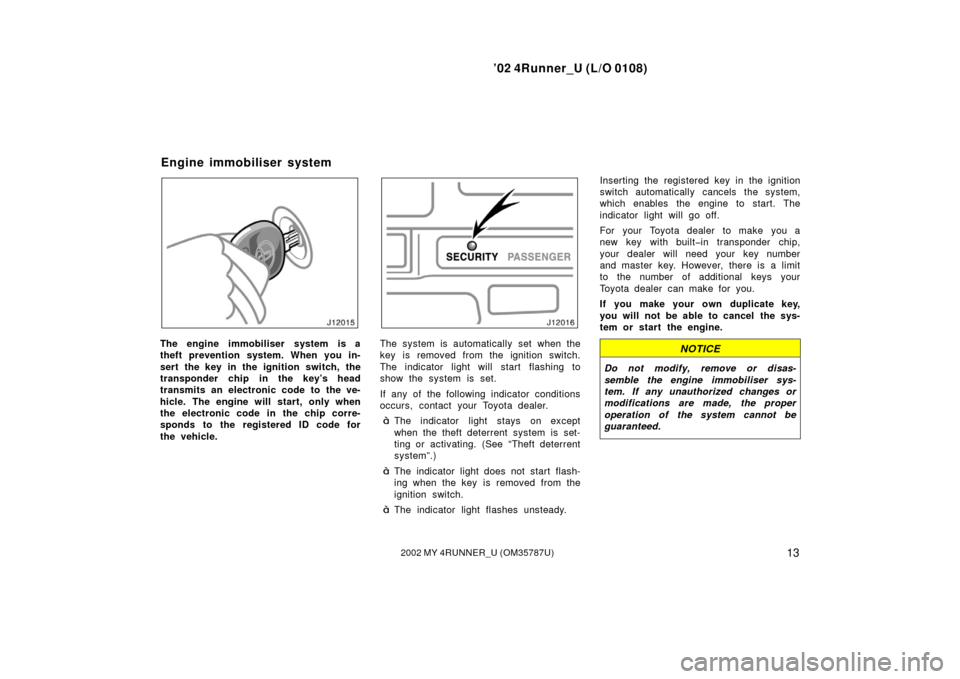

The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady. Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system
