TOYOTA 4RUNNER 2004 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0308)
i
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Foreword
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this
manual stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system
receives satellite signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these
signals and other vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is
designed to direct you to a destination that is unfamiliar to you in efficient manners. The system uses the maps of DENSO based
on NAVTECH maps, GDT maps and infoUSA POIs. The calculated routes are neither the shortest routes nor routes without traffic
congestion. Your own personal local knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 50 point of interest categories to allow you to easily select destinations such as
restaurants and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it
and the system will route you there. The system will provide both a visual map and audio instructions. The audio instructions will
announce the distance and direction to go when you are approaching a fork or intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to
perform properly. The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle
condition or other circumstances. For more information on the limitations of the system, refer to pages 59 through 61.
 2003 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.

4Runner_Navi_U (L/O 0308)
ii
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with
the following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or
must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its
equipment.
INFORMATION
This provides additional information.
Initial screen
UN001
When you start the engine or turn the
ignition switch to “ACC”, the initial
“TOYOTA” screen appears and the
system begins operating.
CAUTION
When the vehicle is stopped with
the engine running, always apply
the parking brake for safety.
After a few seconds, the “CAUTION”
screen appears.
L00002
Touch either “English” or “French” to
select a language. Read and follow
the instructions.

4Runner_Navi_U (L/O 0308)
iii
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
When you touch the “I agree”
switch on the screen, the “map”
screen appears.
You can access this screen when you
push the
“INFO” button and touch the
“Language” switch. Then you can
select a language.
Important Informa-
tion About This
Manual

4Runner_Navi_U (L/O 0308)
iv
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Safety Instruction
L00002
To use your system as safely as pos-
sible, follow all the safety tips shown
below.
This system is intended to assist you in
reaching your destination and, if used
properly, can do so. You, as the driver,
are solely responsible for the safe op-
eration of your vehicle and the safety of
your passengers.
Do not use any feature of this system
to the extent it distracts you from safe
driving. Your first priority while you are
driving should always be the safe opera-
tion of your vehicle. While you are driv-
ing, be sure to observe all traffic regula-
tions.Before attempting to use this system
while you are driving, learn how to use
it and become thoroughly familiar with it.
Read the entire Navigation System
Manual to make sure you understand the
system. Do not allow others to use this
system until they have read and under-
stood these and other instructions in this
manual.
For your safety, some functions may be-
come inoperable when you start driving.
Unavailable switches are dimmed. You
can input your destination and select
your route only when the vehicle is not
moving.
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is driving. Inattention
to the road and traffic may cause
an accident.
While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one
way street.

4Runner_Navi_U (L/O 0308)
v
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
While you are driving, listen to the voice
instructions as much as possible and
glance at the screen briefly and only
when it is safe. However, do not totally
rely on voice guidance. Use it just for
your information. If the system cannot
determine your current position correctly,
there is a possibility of incorrect, late or
non−voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, includ-
ing driving restrictions (no left turns,
street closures, etc.) frequently change.
Therefore, before you follow any instruc-
tion from the system, look to see wheth-
er you can comply with the instruction
safely and legally.
This system cannot warn you about such
things as the safety of an area, condi-
tion of streets, and availability of emer-
gency services. If you are unsure about
the safety of an area, do not drive into
it. Under no circumstances is this sys-
tem a substitute for the driver ’s per-
sonal judgement.
Use this system only in locations where
it is legal to do so. Some states/prov-
inces may have laws prohibiting video
screens within sight of the driver.

4Runner_Navi_U (L/O 0308)
ix
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Overview of Touch Screen and Switches
Switch operation
This system is operated mainly by the
switches on the screen. To prevent
damage to the screen, lightly touch
switches on the screen with your fin-
ger. When you touch a switch on the
screen or push a button, a beep
sounds.
INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.

4Runner_Navi_U (L/O 0308)
x
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

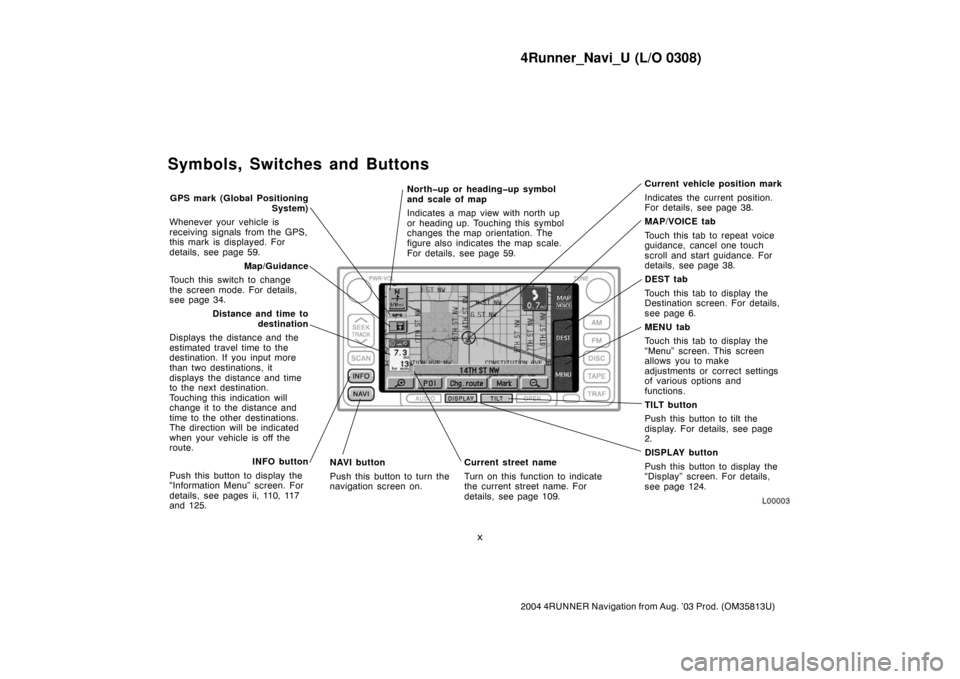

Symbols, Switches and Buttons
L00003
Current vehicle position mark
Indicates the current position.
For details, see page 38.
MAP/VOICE tab
Touch this tab to repeat voice
guidance, cancel one touch
scroll and start guidance. For
details, see page 38.
DEST tab
Touch this tab to display the
Destination screen. For details,
see page 6.
MENU tab
Touch this tab to display the
“Menu” screen. This screen
allows you to make
adjustments or correct settings
of various options and
functions.
TILT button
Push this button to tilt the
display. For details, see page
2.
DISPLAY button
Push this button to display the
“Display” screen. For details,
see page 124. GPS mark (Global Positioning
System)
Whenever your vehicle is
receiving signals from the GPS,
this mark is displayed. For
details, see page 59.
Map/Guidance
Touch this switch to change
the screen mode. For details,
see page 34.
Distance and time to
destination
Displays the distance and the
estimated travel time to the
destination. If you input more
than two destinations, it
displays the distance and time
to the next destination.
Touching this indication will
change it to the distance and
time to the other destinations.
The direction will be indicated
when your vehicle is off the
route.
INFO button
Push this button to display the
“Information Menu” screen. For
details, see pages ii, 110, 117
and 125.Current street name
Turn on this function to indicate
the current street name. For
details, see page 109.
NAVI button
Push this button to turn the
navigation screen on.Northup or headingup symbol
and scale of map
Indicates a map view with north up
or heading up. Touching this symbol
changes the map orientation. The
figure also indicates the map scale.
For details, see page 59.

4Runner_Navi_U (L/O 0308)
xi
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Changing the route
guidance
When you touch this switch, the “Change
route” screen will appear. For details,
see page 49.
Onetouch registration o
f
marked point
To register the current vehicle position as
a marked point. For details, see page 84.
Display of point of
interest
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For
details, see page 51.
Zoom in/zoom out
These switches magnify or reduce the
map scale. For details, see page 57.

4Runner_Navi_U (L/O 0308)
1
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Your navigation system2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to move the cursor4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input Explains 11 ways to input your destination
Explains 11 ways to input your destination6 . . . . . . . . . . . . . . . . . . .
Explains 11 ways to input your destination
Setting and deleting destination25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting preferred road31 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position display38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering your home41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering preset destinations45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displaying POI51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn list52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map appearance55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scrolling58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Orientation of the map59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation system59 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates62 . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

4Runner_Navi_U (L/O 0308)
2
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

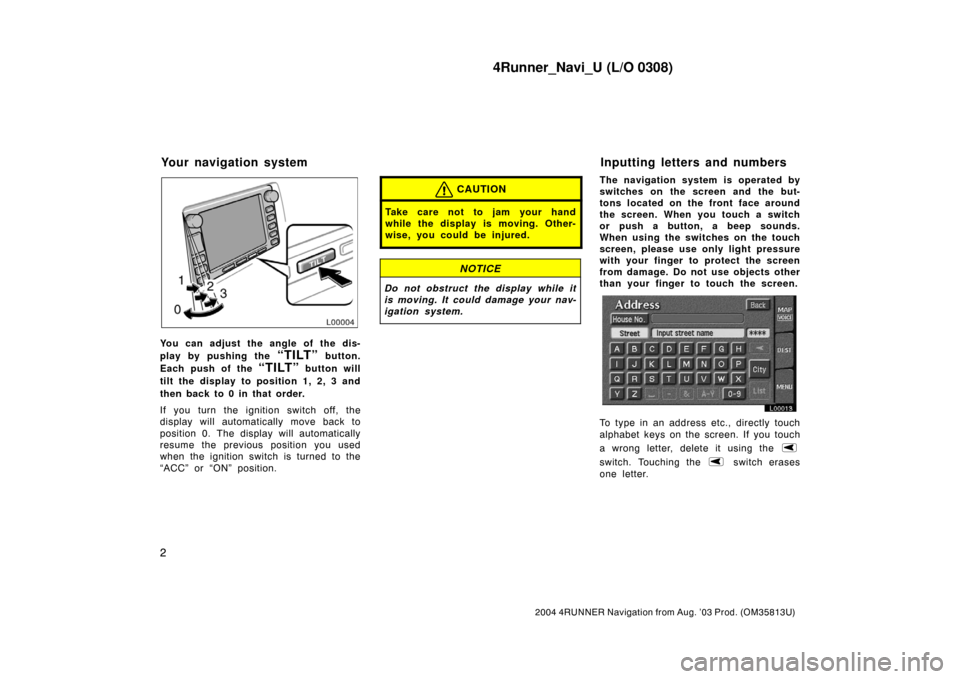

L00004
You can adjust the angle of the dis-
play by pushing the
“TILT” button.
Each push of the
“TILT” button will
tilt the display to position 1, 2, 3 and
then back to 0 in that order.
If you turn the ignition switch off, the
display will automatically move back to
position 0. The display will automatically
resume the previous position you used
when the ignition switch is turned to the
“ACC” or “ON” position.
CAUTION
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your nav-
igation system.
The navigation system is operated by
switches on the screen and the but-
tons located on the front face around
the screen. When you touch a switch
or push a button, a beep sounds.
When using the switches on the touch
screen, please use only light pressure
with your finger to protect the screen
from damage. Do not use objects other
than your finger to touch the screen.
L00013
To type in an address etc., directly touch
alphabet keys on the screen. If you touch
a wrong letter, delete it using the
switch. Touching the switch erases
one letter.
Your navigation system Inputting letters and numbers
