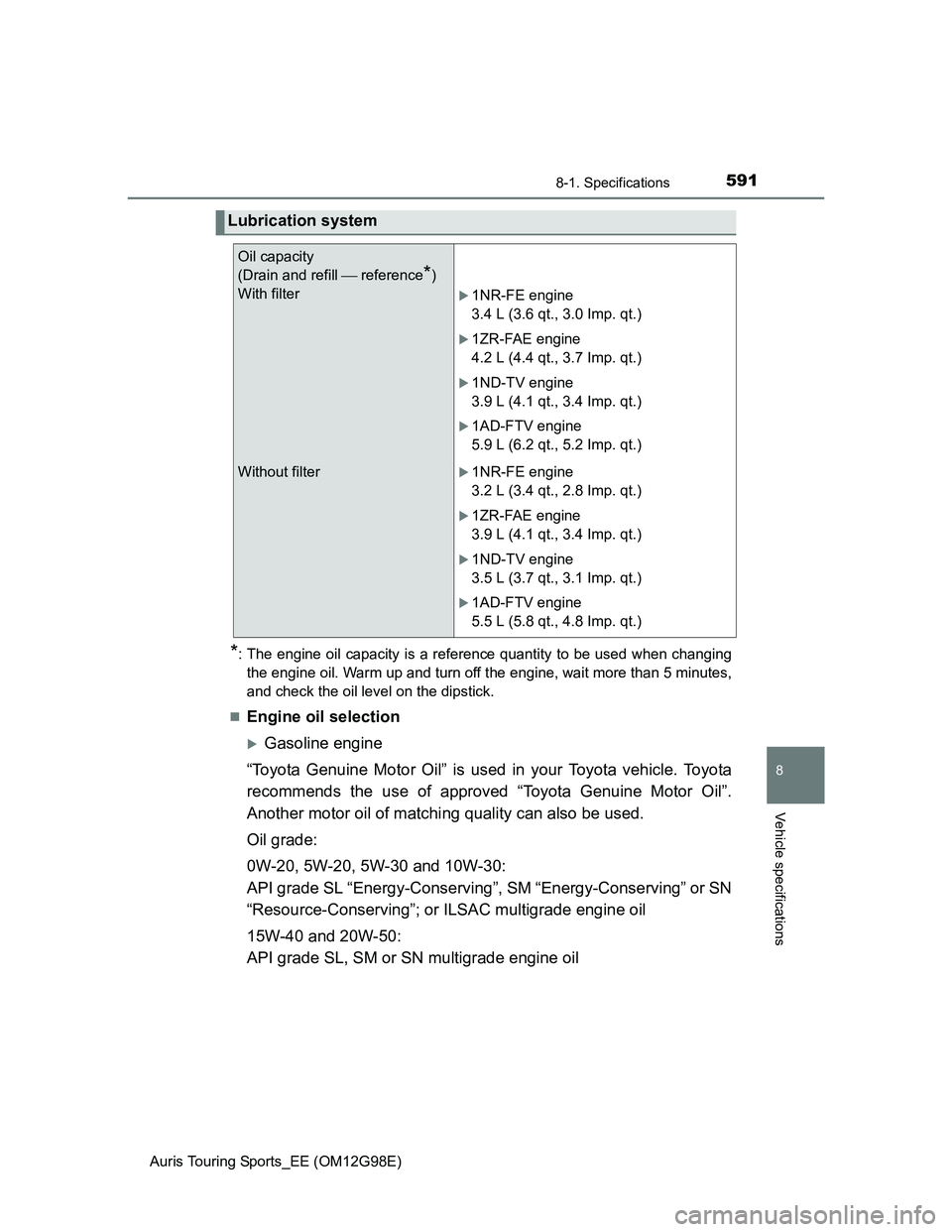

Page 591 of 632
5918-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection
Gasoline engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill reference
*)
With filter
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ZR-FAE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
1ND-TV engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1AD-FTV engine
5.9 L (6.2 qt., 5.2 Imp. qt.)
Without filter1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ZR-FAE engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1ND-TV engine
3.5 L (3.7 qt., 3.1 Imp. qt.)
1AD-FTV engine
5.5 L (5.8 qt., 4.8 Imp. qt.)

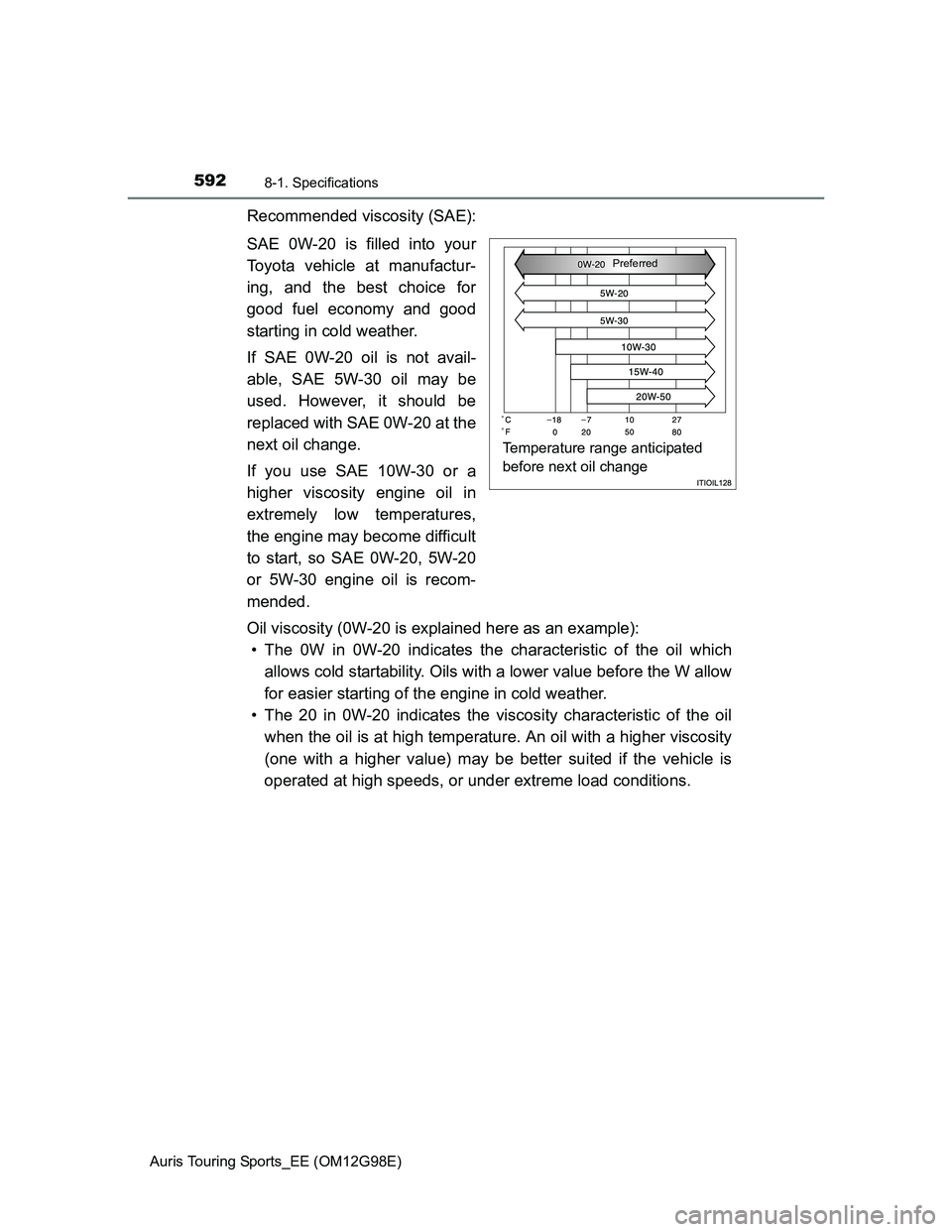

Page 592 of 632
5928-1. Specifications
Auris Touring Sports_EE (OM12G98E)
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred

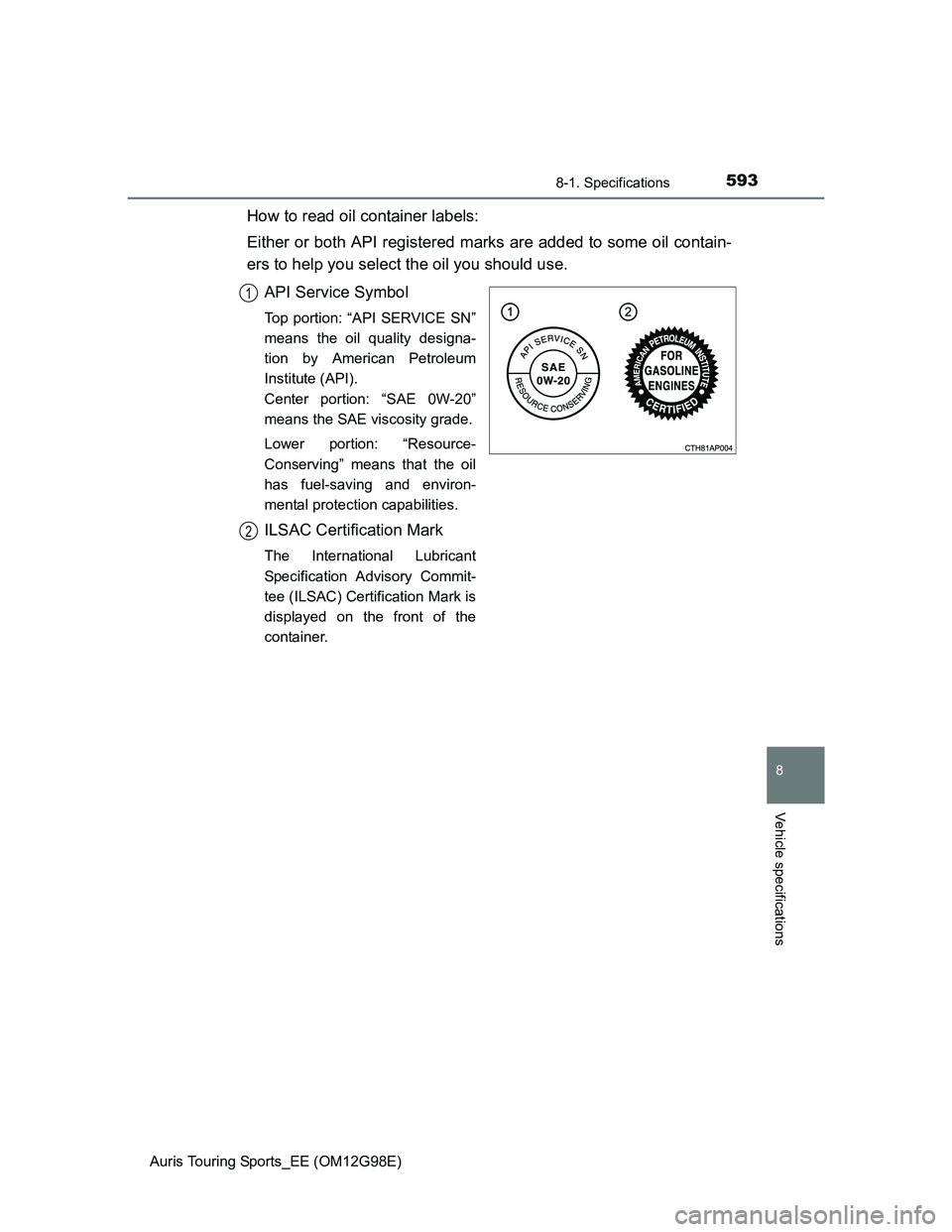

Page 593 of 632
5938-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
displayed on the front of the
container.
1
2

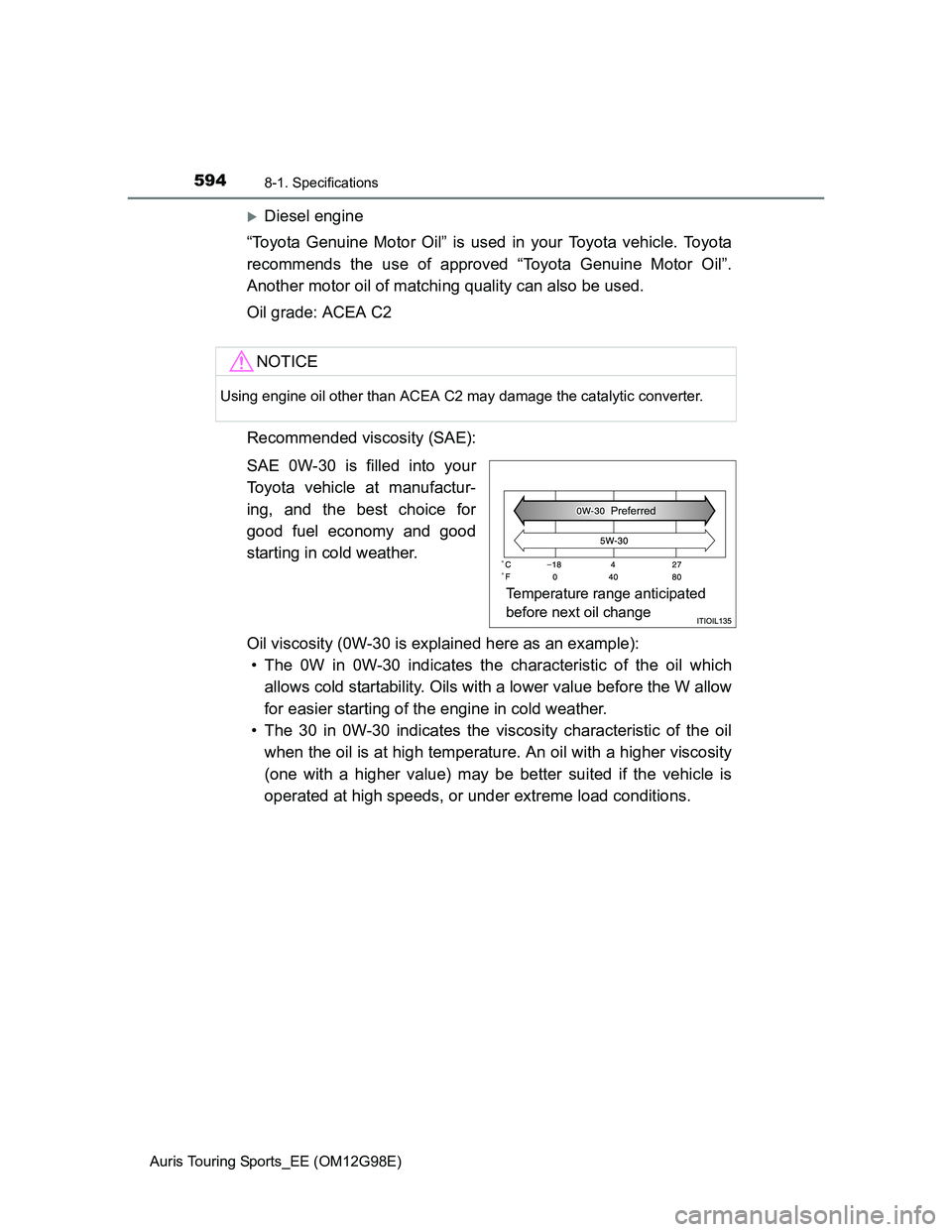

Page 594 of 632
5948-1. Specifications
Auris Touring Sports_EE (OM12G98E)
Diesel engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change
Preferred

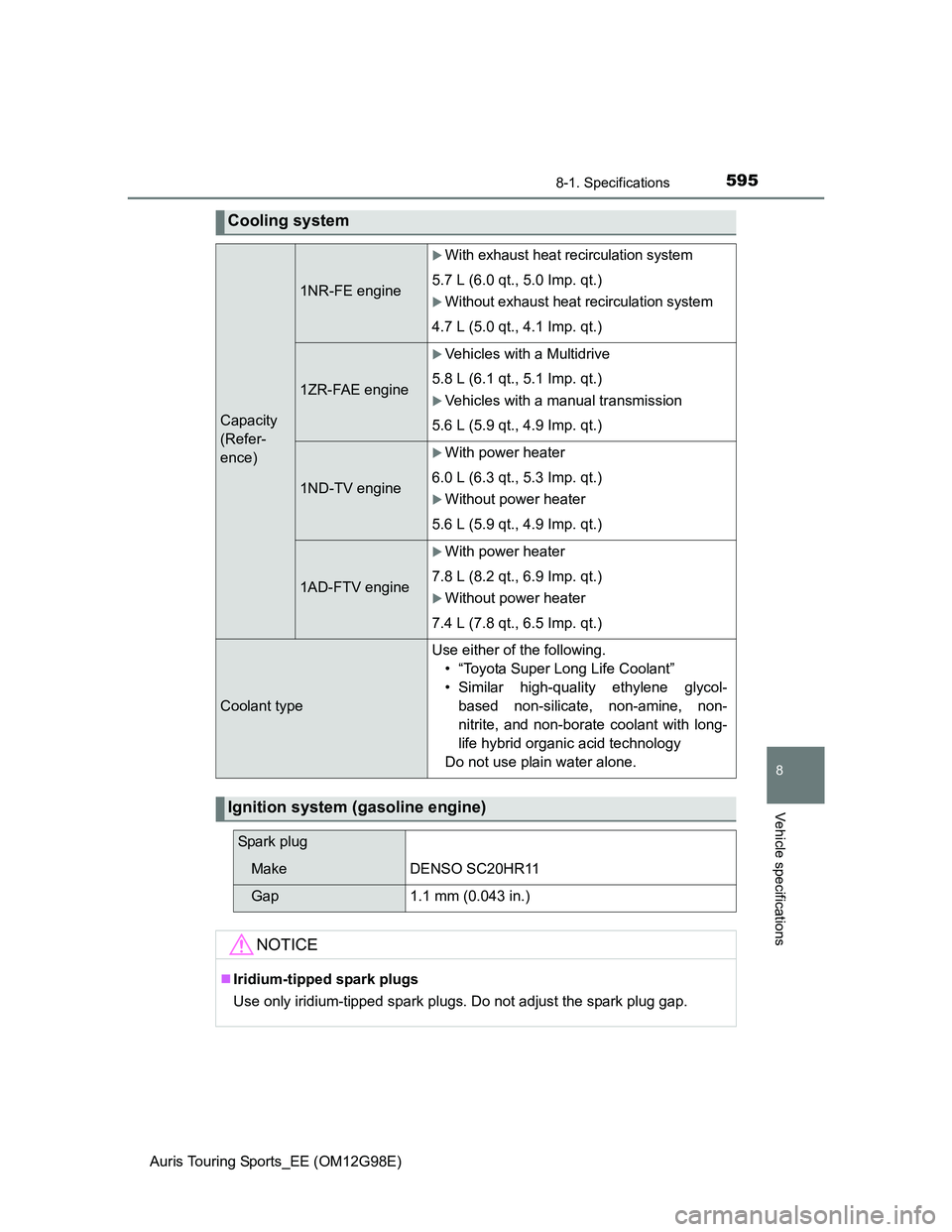

Page 595 of 632
5958-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
1AD-FTV engine
With power heater
7.8 L (8.2 qt., 6.9 Imp. qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (gasoline engine)
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Page 596 of 632
5968-1. Specifications
Auris Touring Sports_EE (OM12G98E)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
Battery
Open voltage at 20C
(68F):12.6 12.8 V Fully charged
12.2
12.4 V Half charged
11 . 8
12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.6 L (8.0 qt., 6.7 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Page 597 of 632
5978-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
Manual transaxle
Gear oil capacity (Reference)
1AD-FTV engine
2.3 L (2.4 qt., 2.0 Imp. qt.)
Others
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
Manual transaxle gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 5 15 mm (0.2 0.59 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Page 598 of 632
5988-1. Specifications
Auris Touring Sports_EE (OM12G98E)
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehi-
cles63 mm (2.48 in.) Min.
73 mm (2.87 in.) Min.
Pedal free play 1 6 mm (0.04 0.24 in.)
Parking brake lever
travel
*25 8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

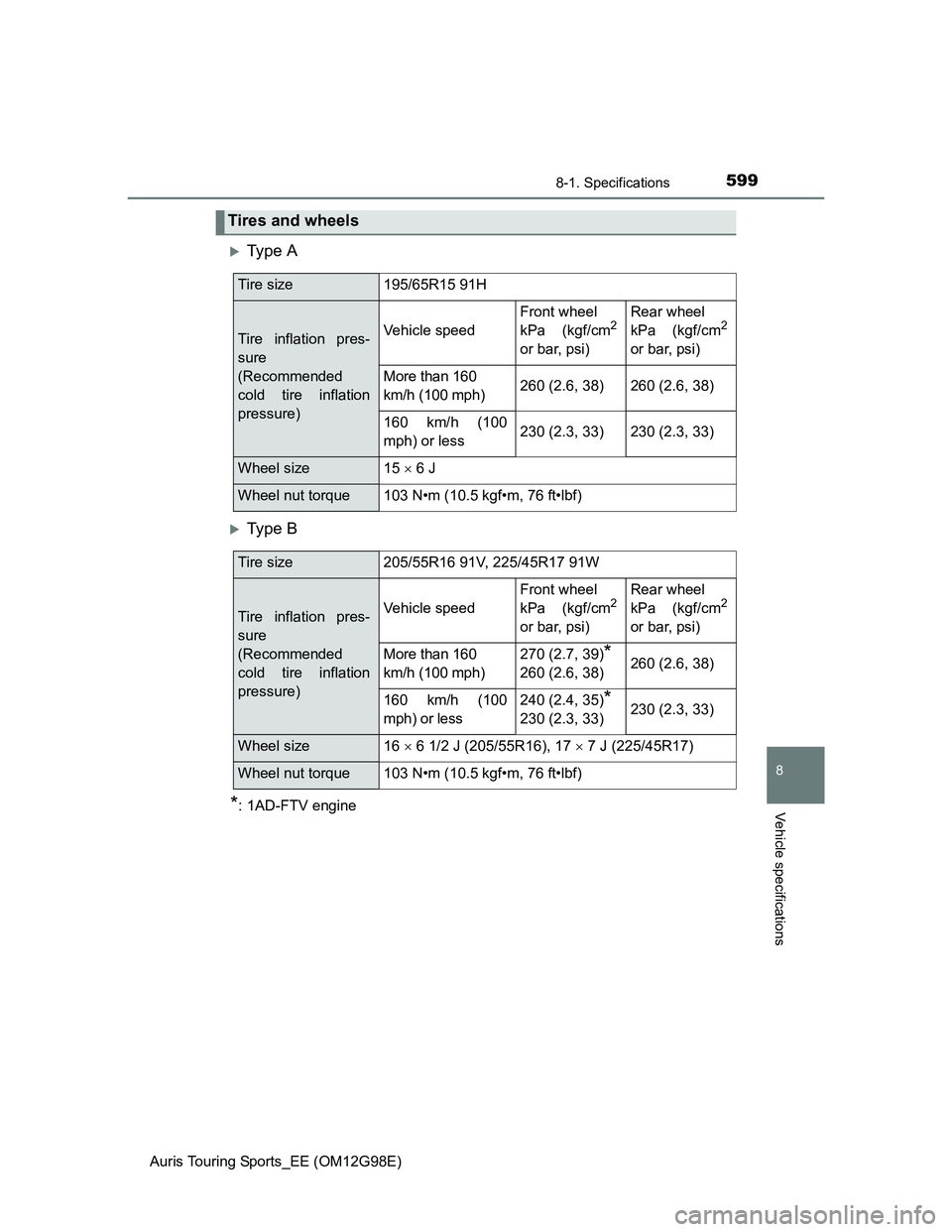

Page 599 of 632
5998-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
Ty p e A
Ty p e B
*: 1AD-FTV engine
Tires and wheels
Tire size195/65R15 91H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size15 6 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size205/55R16 91V, 225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)270 (2.7, 39)*
260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less240 (2.4, 35)*
230 (2.3, 33)230 (2.3, 33)
Wheel size16 6 1/2 J (205/55R16), 17 7 J (225/45R17)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

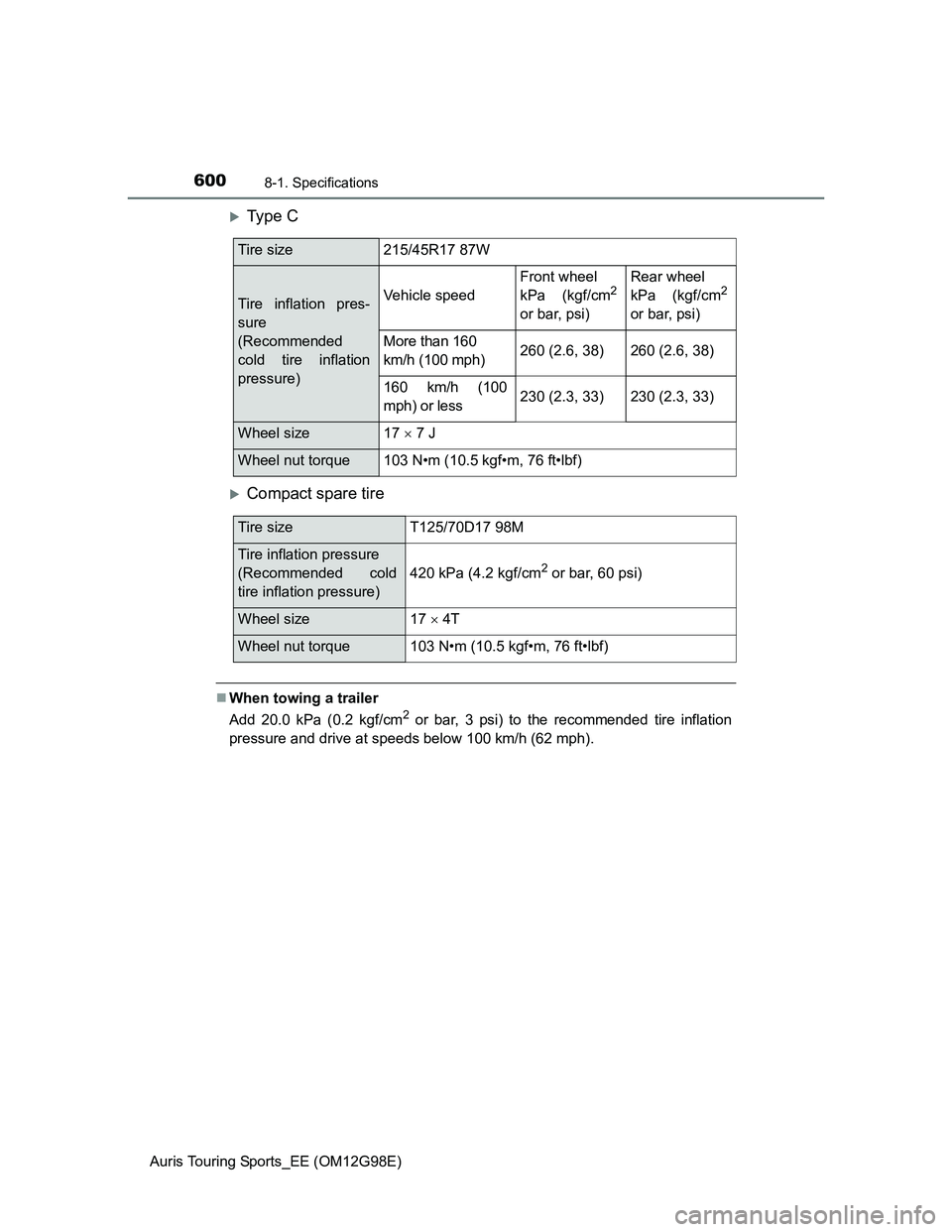

Page 600 of 632
6008-1. Specifications
Auris Touring Sports_EE (OM12G98E)
Ty p e C
Compact spare tire
When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size215/45R17 87W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size17 7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17 4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
