engine TOYOTA GT86 2017 1.G Quick Reference Guide

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
11
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Light control-Instrument cluster 7
OVERVIEW
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
Air conditioning/heating 14
Automatic transmission 9
AUX/USB port
16
Clock 15
Cruise control 10
Cup/bottle holders 16
Door locks 15
Driving modes 10-11
Hill-start Assist Control (HAC) 11
Lights & turn signals 12
Manual transmission 9
Multi-Information Display (MID) 12
Parking brake 9
Power outlets 16
Rear view monitor system 17
Seat adjustments-Front 13
Seats-Fold down rear seats 13
Seats-Head restraints 13
Tilt steering wheel 14
Trunk release 15
Windows 14
Windshield wipers & washers 13 Floor mat installation
21
Seat belts 18
Spare tire & tools 19
Star Safety System
™ 20-21
Tire Pressure Monitoring
(warning) System (TPMS) 18
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 22-23

44
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
Airbag SRS warning1
Electric power steering system warning1
Fuel tank door position
Cruise control indicators2

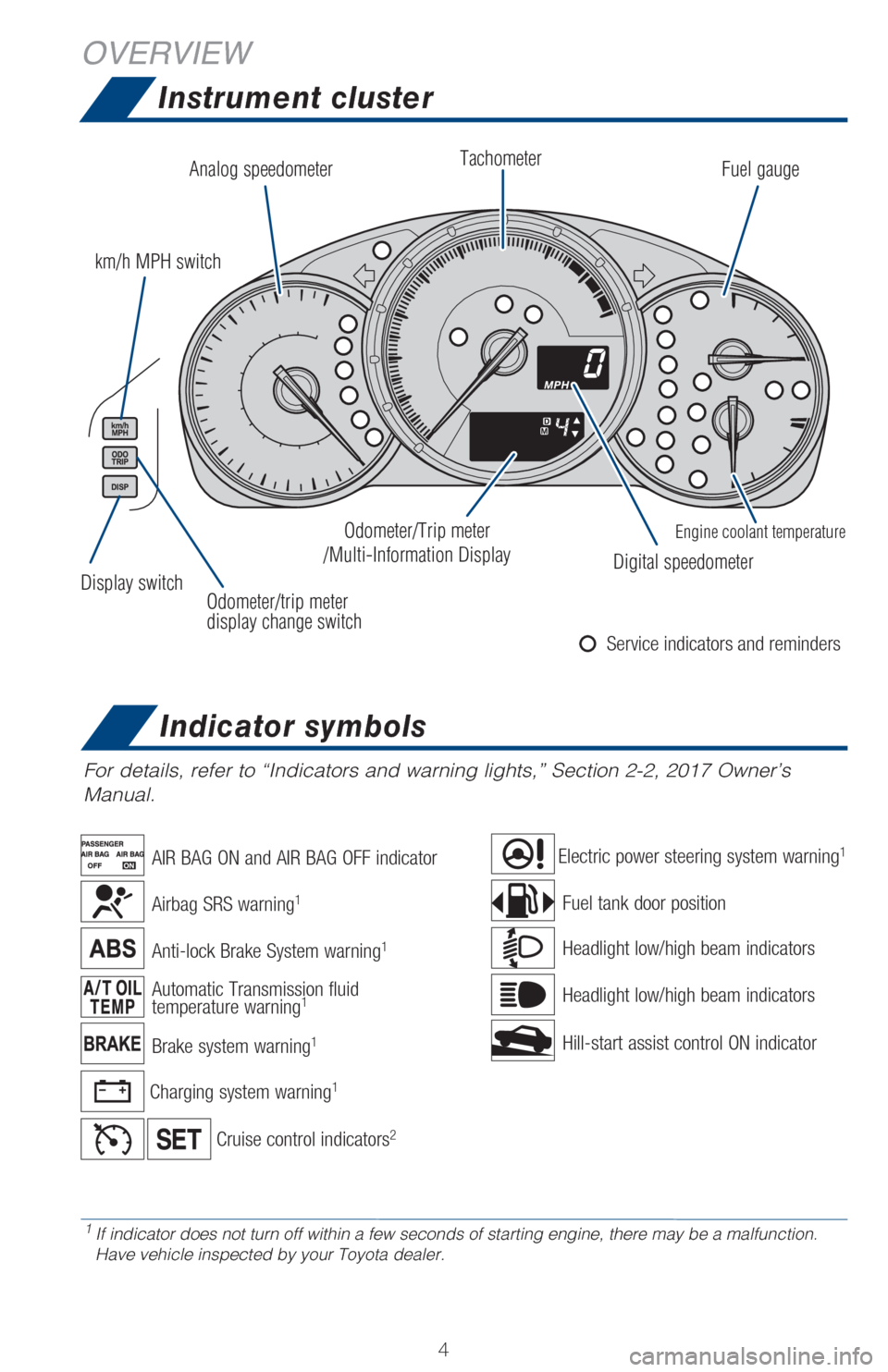

Instrument cluster
Automatic Transmission fluid
temperature warning1
Hill-start assist control ON indicator Headlight low/high beam indicators
Headlight low/high beam indicators
Charging system warning1
AIR BAG ON and AIR BAG OFF indicator
1 If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction. Have vehicle inspected by your Toyota dealer.
Display switch
Indicator symbols
Analog speedometer
km/h MPH switch
Odometer/trip meter
display change switch Tachometer
Fuel gauge
Engine coolant temperature
Digital speedometer
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
OVERVIEW

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
55

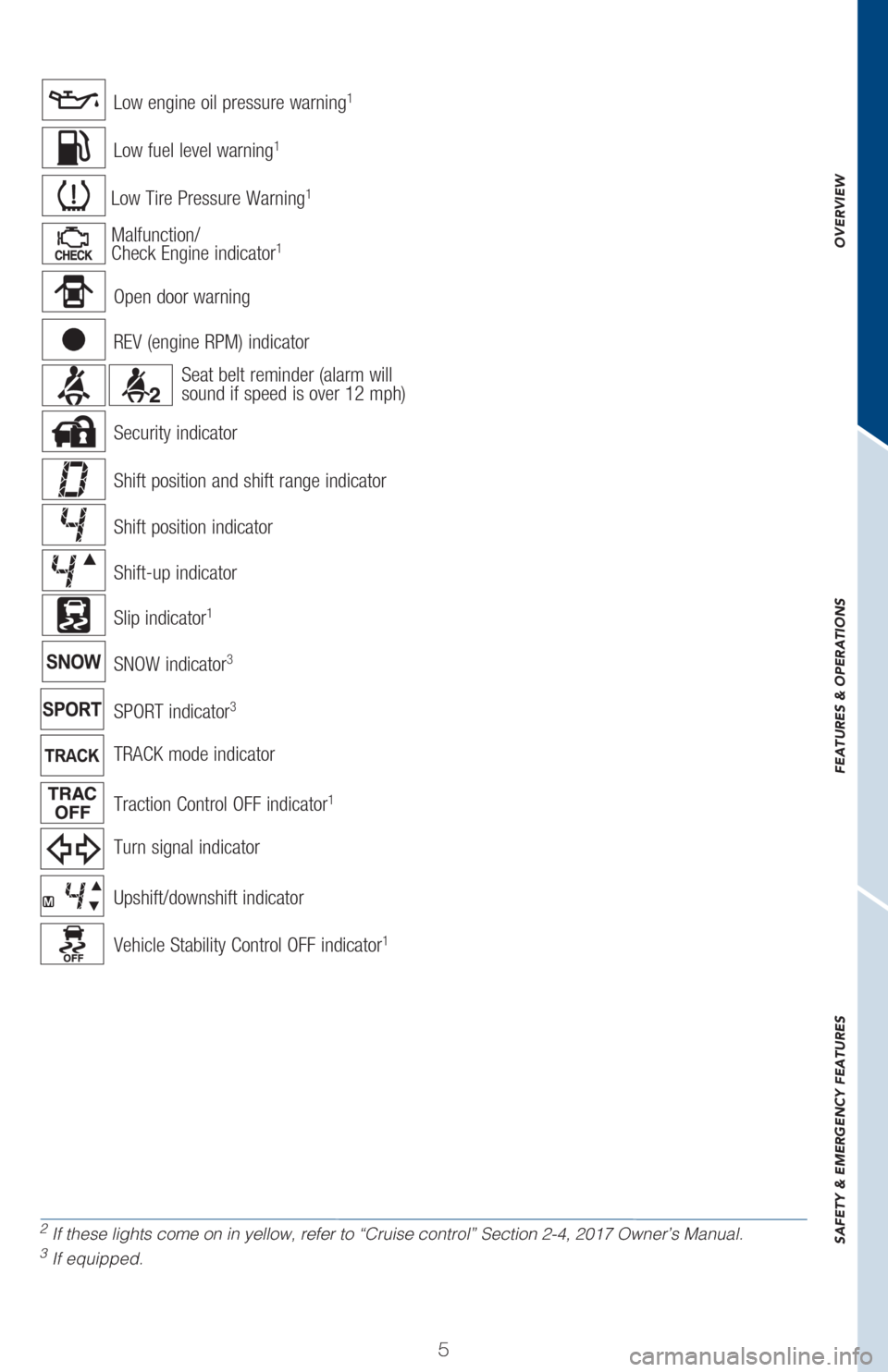

Low fuel level warning1
Low Tire Pressure Warning1
2
If these lights come on in yellow, refer to “Cruise control” Sect\
ion 2-4, 2017 Owner’s Manual.3 If equipped.
Slip indicator1
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator1
SNOW indicator3
REV (engine RPM) indicator
Upshift/downshift indicator
Shift position indicator
Shift-up indicator
Shift position and shift range indicator Security indicator
SPORT indicator3
Turn signal indicator
TRACK mode indicator
Open door warning
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
7

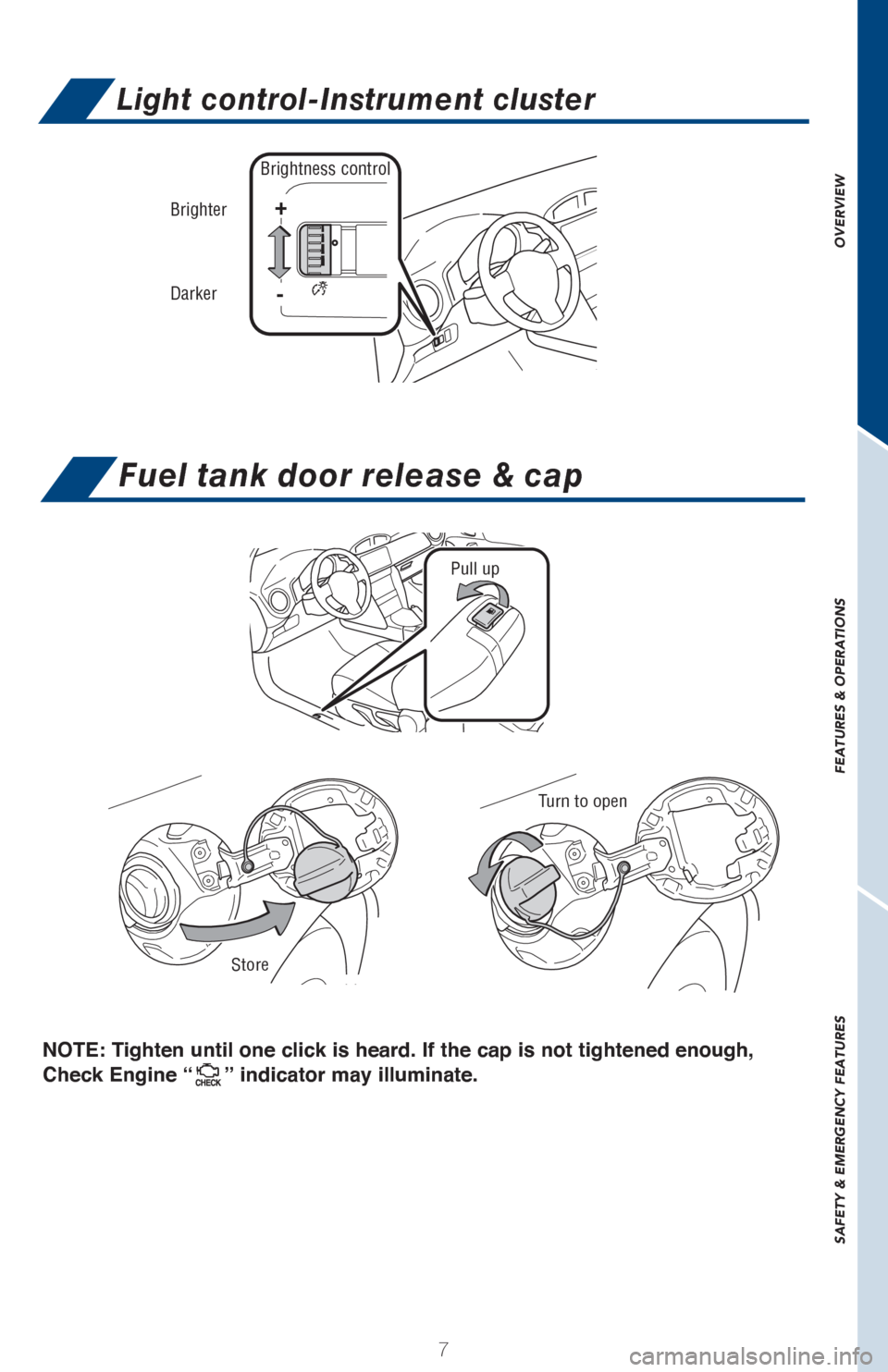

Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Light control-Instrument cluster
Brightness control
Brighter
Darker
+
-
Pull up
Store
Turn to open

8

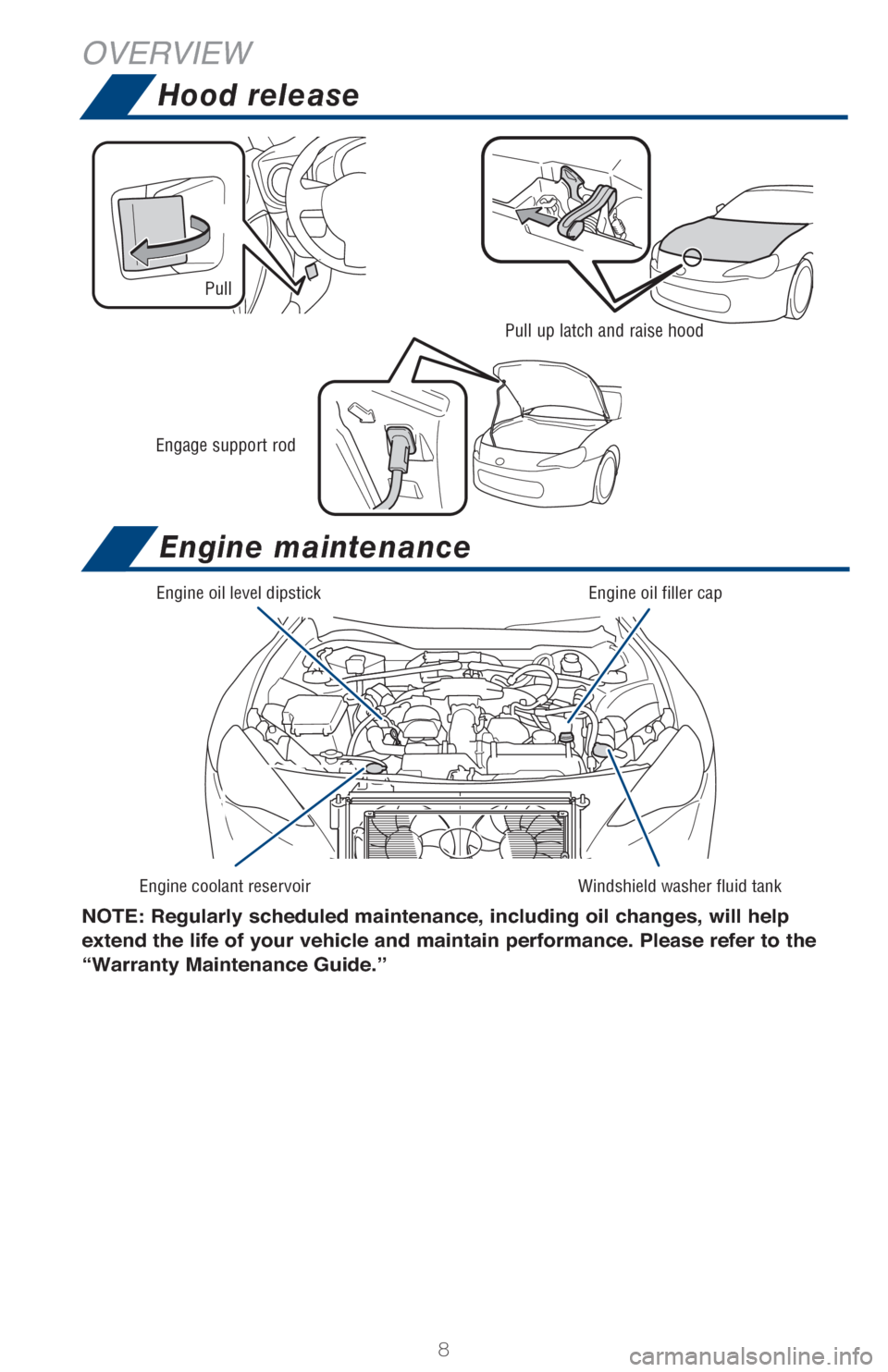

Hood release
Engage support rod
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Engine maintenance
Pull up latch and raise hood
Pull
OVERVIEW

OVERVIEW
SAFETY & EMERGENCY FEATURES
11
FEATURES & OPERATIONS

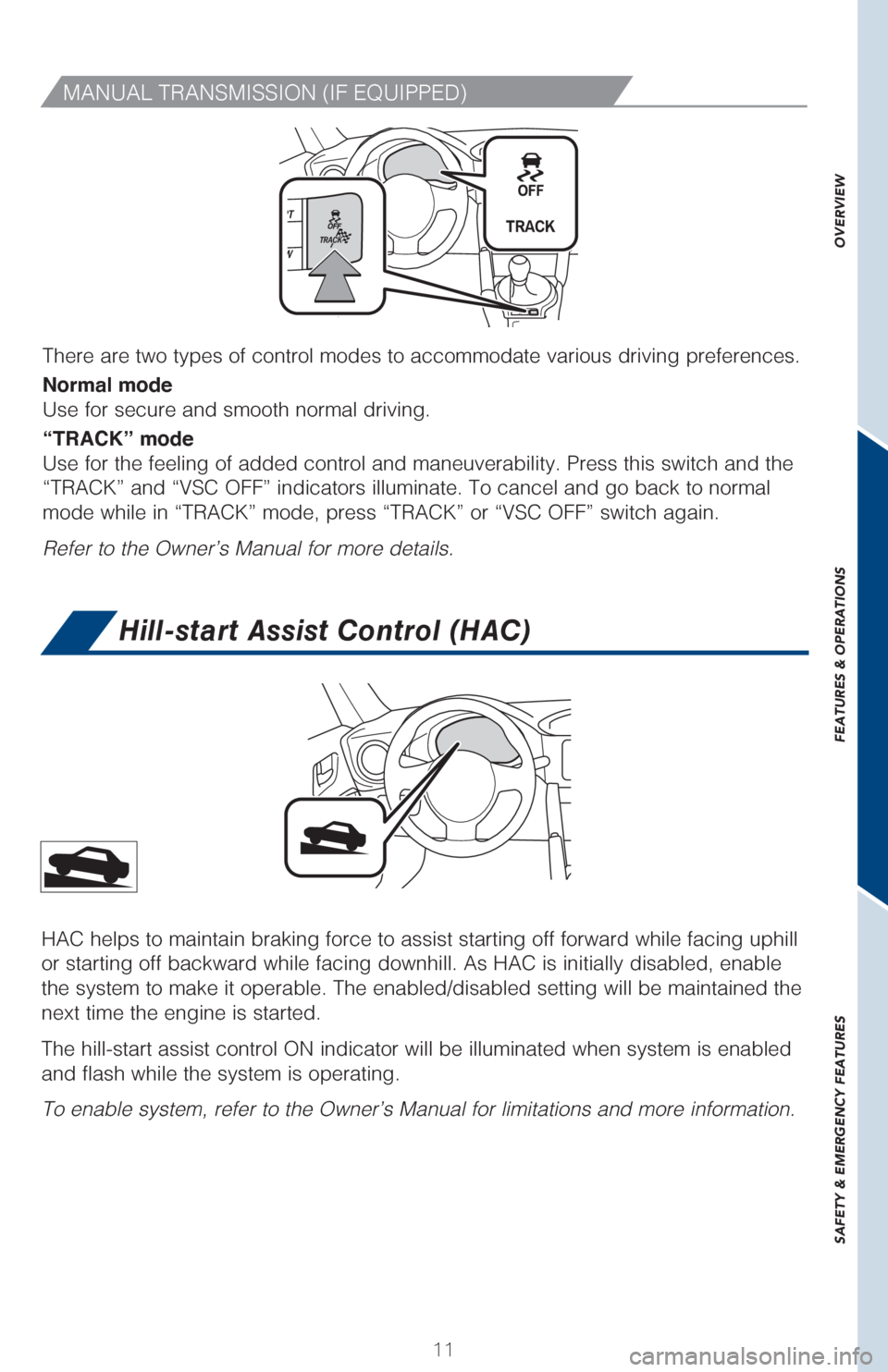

There are two types of control modes to accommodate various driving pref\
erences.
Normal mode
Use for secure and smooth normal driving.
“TRACK” mode
Use for the feeling of added control and maneuverability. Press this swi\
tch and the
“TRACK” and “VSC OFF” indicators illuminate. To cancel and g\
o back to normal
mode while in “TRACK” mode, press “TRACK” or “VSC OFF”\
switch again.
Refer to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
HAC helps to maintain braking force to assist starting off forward while\
facing uphill
or starting off backward while facing downhill. As HAC is initially disa\
bled, enable
the system to make it operable. The enabled/disabled setting will be mai\
ntained the
next time the engine is started.
The hill-start assist control ON indicator will be illuminated when syst\
em is enabled
and flash while the system is operating.
To enable system, refer to the Owner’s Manual for limitations and mor\
e information.
MANUAL TRANSMISSION (IF EQUIPPED)

1212

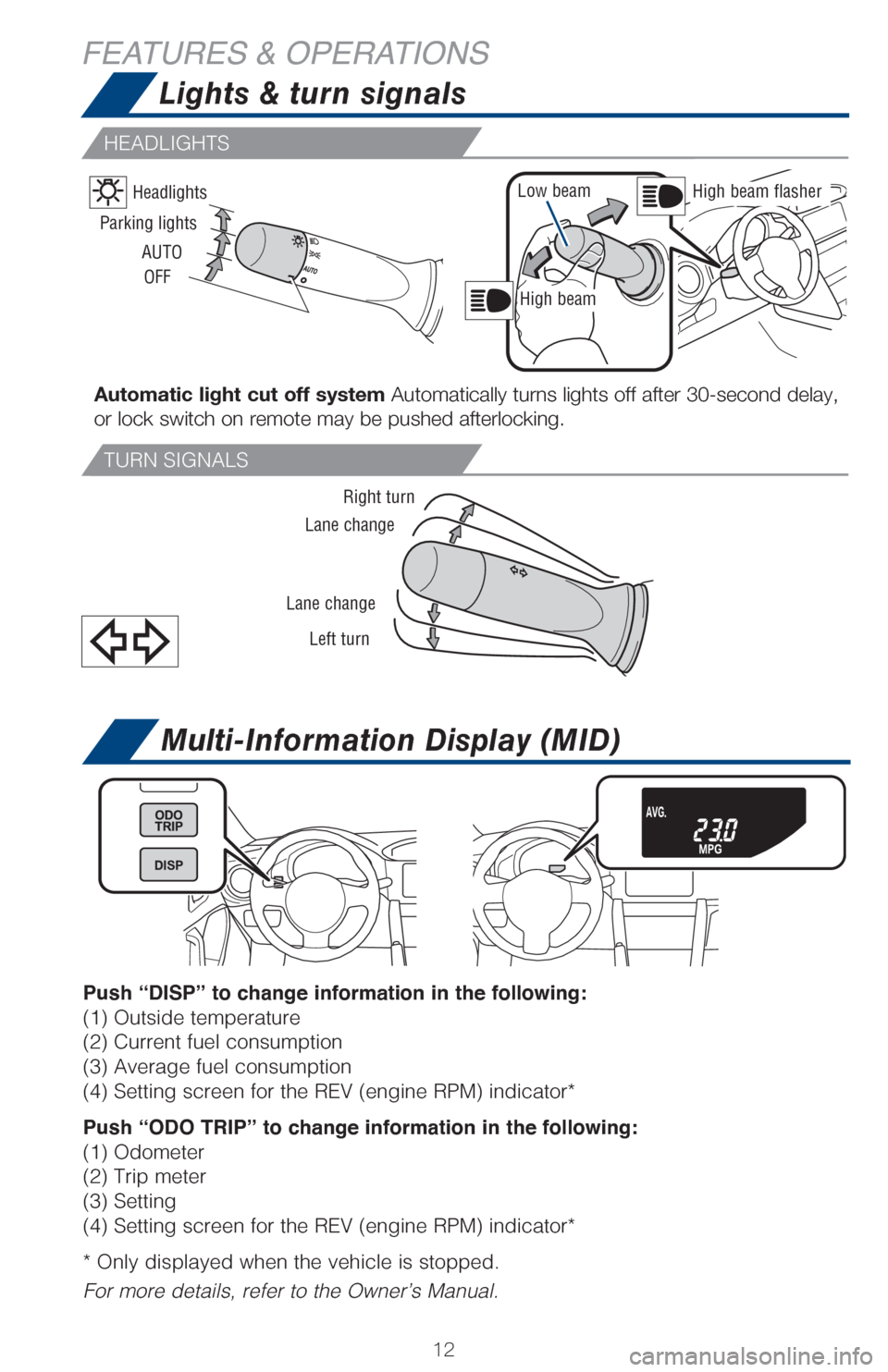

Multi-Information Display (MID)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
Push “ODO TRIP” to change information in the following:
(1) Odometer
(2) Trip meter
(3) Setting
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
For more details, refer to the Owner’s Manual.
Lights & turn signals
Parking lightsLow beam
Headlights
Right turn
Left turn
Lane change
Lane change
High beam
High beam flasher
AUTO OFF
Automatic light cut off system Automatically turns lights off after 30-second delay,
or lock switch on remote may be pushed afterlocking.
FEATURES & OPERATIONS
HEADLIGHTS
TURN SIGNALS

2020

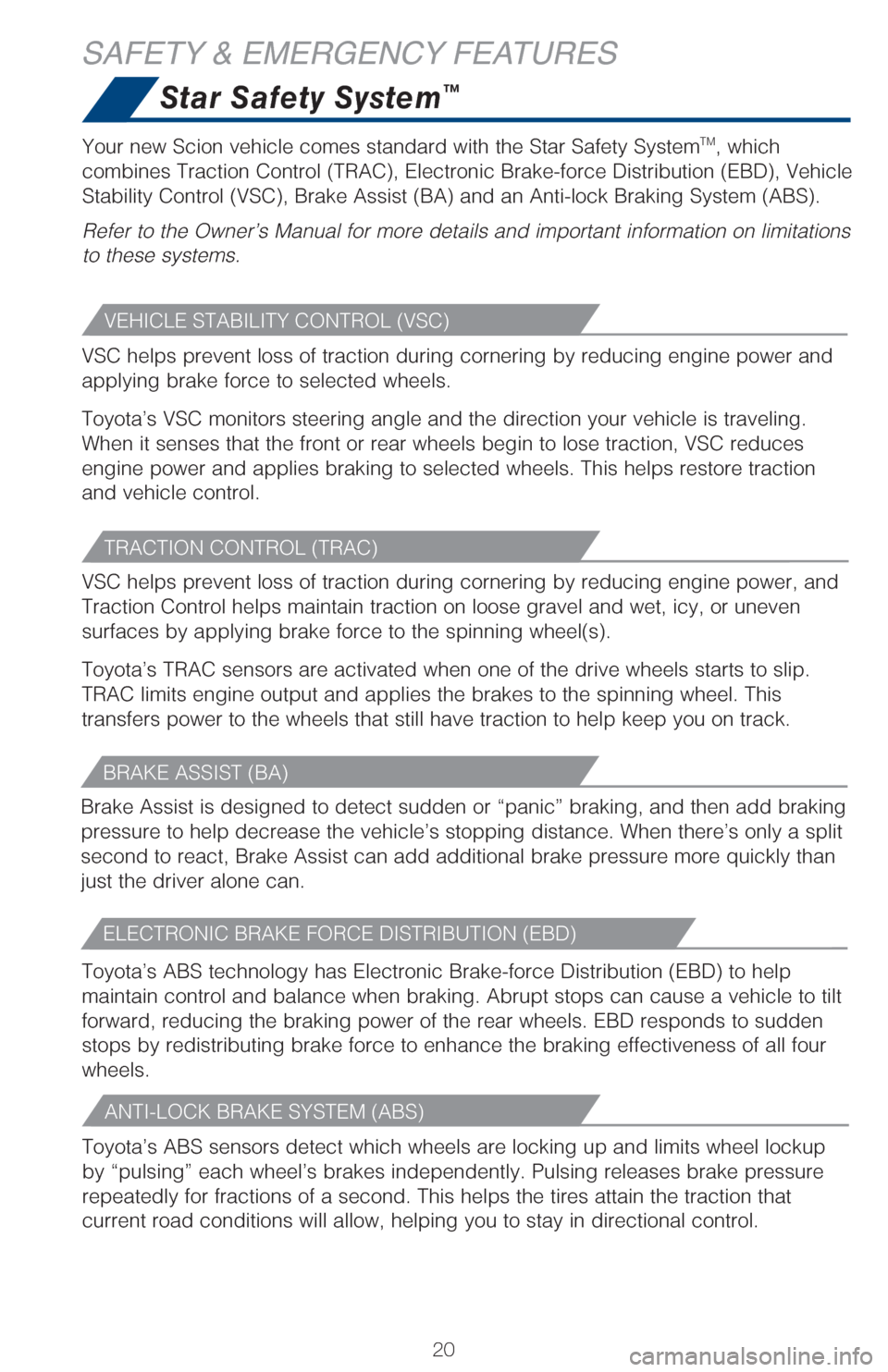

Star Safety System™
VSC helps prevent loss of traction during cornering by reducing engine p\
ower and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle i\
s traveling.
When it senses that the front or rear wheels begin to lose traction, VSC\
reduces
engine power and applies braking to selected wheels. This helps restore \
traction
and vehicle control.Toyota’s ABS sensors detect which wheels are locking up and limits wh\
eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\
s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\
action that
current road conditions will allow, helping you to stay in directional c\
ontrol.
Brake Assist is designed to detect sudden or “panic” braking, and \
then add braking
pressure to help decrease the vehicle’s stopping distance. When there\
’s only a split
second to react, Brake Assist can add additional brake pressure more qui\
ckly than
just the driver alone can.
VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\
r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\
ts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \
This
transfers power to the wheels that still have traction to help keep you \
on track.
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\
) to help
maintain control and balance when braking. Abrupt stops can cause a vehi\
cle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to \
sudden
stops by redistributing brake force to enhance the braking effectiveness\
of all four
wheels.Your new Scion vehicle comes standard with the Star Safety System
TM, which
combines Traction Control (TRAC), Electronic Brake-force Distribution \
(EBD), Vehicle
Stability Control (VSC), Brake Assist (BA) and an Anti-lock Braking \
System (ABS).
Refer to the Owner’s Manual for more details and important informatio\
n on limitations
to these systems.
SAFETY & EMERGENCY FEATURES
VEHICLE STABILITY CONTROL (VSC)
ANTI-LOCK BRAKE SYSTEM (ABS)
BRAKE ASSIST (BA)
TRACTION CONTROL (TRAC)
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
2121

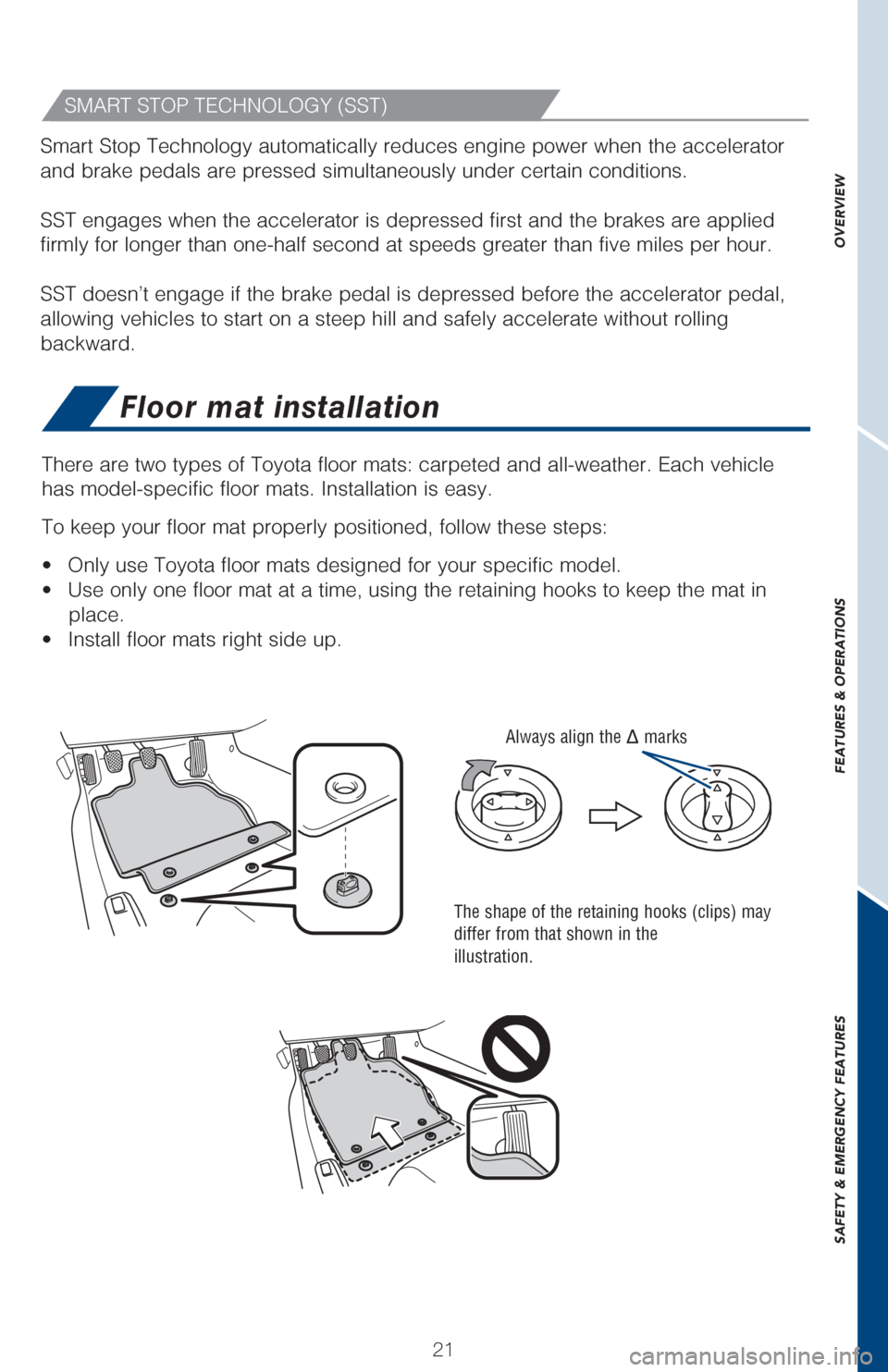

Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the \
mat in
place.
• Install floor mats right side up.
Smart Stop Technology automatically reduces engine power when the accele\
rator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\
pplied
firmly for longer than one-half second at speeds greater than five miles\
per hour.
SST doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling
backward.
The shape of the retaining hooks (clips) may
differ from that shown in the
illustration.
Always align the marks
SMART STOP TECHNOLOGY (SST)
