Page 15 of 621
5
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Accessory meter control switch
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system in- cluding audio system (For the naviga-
tion system, see the separate “Naviga-
tion System Owner ’s Manual”.)
7. Air conditioning controls
8. Outside rear view mirror defogger and/ or front windshield wiper de −icer
switch/Back window and outside rear
view mirror defogger and/or front wind-
shield wiper de −icer switch
9. Front passenger ’s seat belt reminder light
10. Passenger airbag on −off indicator light
11. Passenger airbag off switch (Regular cab models)
12. AUX adapter
13. Ashtray
14. Power outlet
15. Cigarette lighter
16. Front drive control switch knob (four −wheel drive models)
Bench seat (view B)
XS11031
Page 17 of 621
7
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Accessory meter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system in- cluding audio system (For the naviga-
tion system, see the separate “Naviga-
tion System Owner ’s Manual”.)
7. Air conditioning controls
8. Outside rear view mirror defogger and/ or front windshield wiper de −icer
switch/Back window and outside rear
view mirror defogger and/or front wind-
shield wiper de −icer switch
9. Front passenger ’s seat belt reminder light
10. Passenger airbag on −off indicator light
11. Passenger airbag off switch (Regular cab models)
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)
Separate seat with manual air conditioning system (view B)
XS11032
Page 19 of 621
9
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Multi −information display/accessory me-
ter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system in- cluding audio system (For the naviga-
tion system, see the separate “Naviga-
tion System Owner ’s Manual”.)
7. Outside rear view mirror defogger and/ or front windshield wiper de −icer
switch/Back window and outside rear
view mirror defogger and/or front wind-
shield wiper de −icer switch
8. Front passenger ’s seat belt reminder light
9. Passenger airbag on −off indicator light
10. Seat heater dials 11. Air conditioning controls
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)
Separate seat with automatic air conditioning system (view B)
XS11033a
Page 33 of 621
23
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may be depleted. Check
the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on page 25. If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an
accident. (See “If you lose your wireless
remote control transmitter” on page 523 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
For vehicles sold in Canada
NOTE
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

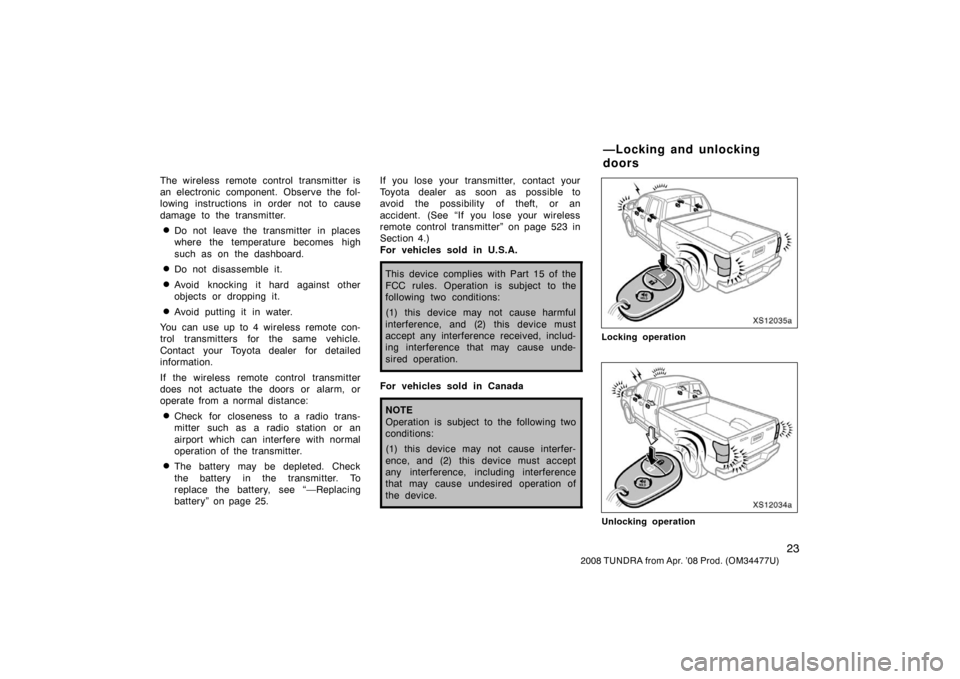

XS12035a
Locking operation
XS12034a
Unlocking operation
—Locking and unlocking
doors
Page 86 of 621
76
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side and curtain shield airbag
sensors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger
occupant classification system
∗, passenger
airbag off switch, passenger airbag on −off
indicator light, seat belt pretensioner
assemblies, inflators, “RSCA OFF”
indicator light, interconnecting wiring and
power sources. (For details, see “Service
reminder indicators and warning buzzers”
on page 197 in Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor,
front passenger ’s seat belt buckle switch.
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.
XS13121
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.
Page 89 of 621
79
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The SRS front airbags are designed to
deploy in severe (usually frontal) colli-
sions where the magnitude and duration
of the forward deceleration of the ve-
hicle exceeds the designed threshold
level.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when the vehicle has the impact straight
into a fixed barrier that does not move or
deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride collision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS front airbags and seat
belt pretensioners may not activate togeth-
er.
Always wear your seat belts properly.TABLE 1: A PASSENGER RISK GROUP
Infant. An infant (less than 1 year old) who must ride in the front seat because:
Vehicle has no rear seat;
Vehicle has a rear seat too small to accommodate a rear −facing infant seat;
or
The infant has a medical condition which, according to the infant’s physician,
makes it necessary for the infant to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because:
Vehicle has no rear seat:
Although children ages 1 to 12 ride in the rear seat(s) whenever possible,
children ages 1 to 12 sometimes must ride in the front because no space is
available in the rear seat(s) of vehicle; or
The child has a medical condition which, according to the child’s physician,
makes it necessary for the child to ride in the front seat so that the driver can
constantly monitor the child’s condition.
Medical condition. A passenger has a medical condition which according to his
or her physician:
Causes the passenger airbag to pose a special risk for the passenger: and
Makes the potential harm from the passenger airbag in a crash greater than the
potential harm from turning off the airbag and allowing the passenger, even if
belted, to hit the dashboard, or windshield in a crash.
For more detailed information concerning about the passenger risk group, please
contact NHTSA at 1 −888− 327−4236 or Transport Canada at 1 −800− 333−0371.
Page 95 of 621
85
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13135a
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS airbags are operat-
ing properly. This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side and curtain shield airbag
sensors, driver ’s seat position sensor,
driver ’s seat belt buckle switch, front
passenger occupant classification system
∗,
passenger airbag off switch, passenger
airbag on −off indicator light, seat belt
pretensioner assemblies, inflators, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 197 in Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor
and front passenger ’s seat belt buckle
switch.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving. The SRS warning light will come on and
passenger airbag on
−off indicator light will
indicate “OFF” if there is a malfunction in
the front passenger occupant classification
system.
Page 96 of 621
86
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

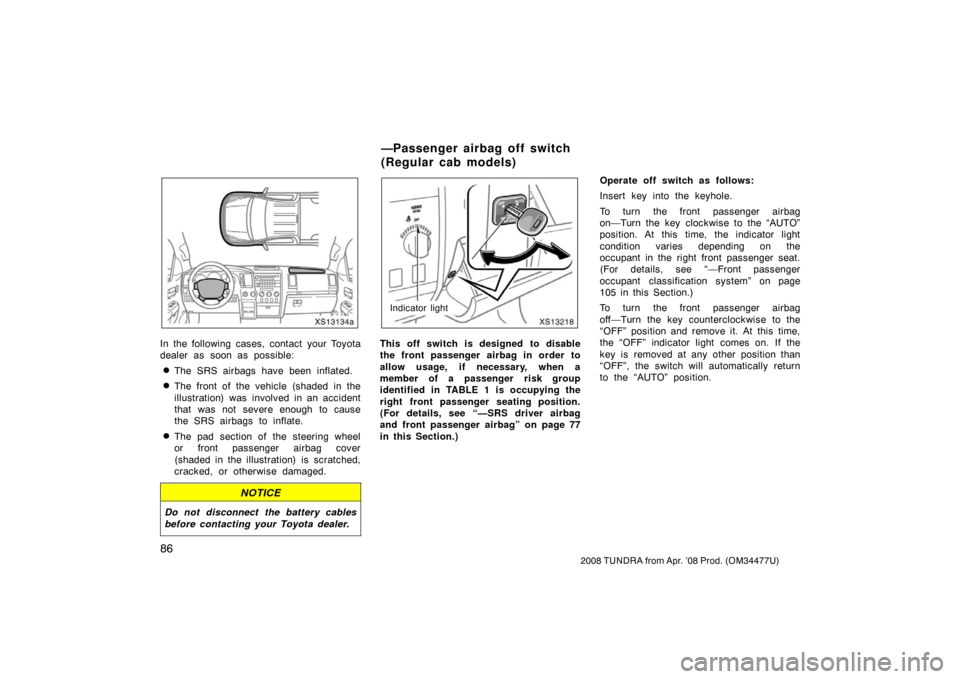

XS13134a
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS airbags have been inflated.
The front of the vehicle (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
XS13218
Indicator light
This off switch is designed to disable
the front passenger airbag in order to
allow usage, if necessary, when a
member of a passenger risk group
identified in TABLE 1 is occupying the
right front passenger seating position.
(For details, see “—SRS driver airbag
and front passenger airbag” on page 77
in this Section.) Operate off switch as follows:
Insert key into the keyhole.
To turn the front passenger airbag
on—Turn the key clockwise to the “AUTO”
position. At this time, the indicator light
condition varies depending on the
occupant in the right front passenger seat.
(For details, see “—Front passenger
occupant classification system” on page
105 in this Section.)
To turn the front passenger airbag
off—Turn the key counterclockwise to the
“OFF” position and remove it. At this time,
the “OFF” indicator light comes on. If the
key is removed at any other position than
“OFF”, the switch will automatically return
to the “AUTO” position.
—Passenger airbag off switch
(Regular cab models)
Page 104 of 621
94
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13135a
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS front airbags are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side and curtain shield airbag
sensors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger
occupant classification system
∗, passenger
airbag on −off indicator light, seat belt
pretensioner assemblies, inflators, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 197 in Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor
and front passenger ’s seat belt buckle
switch.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving.
The SRS warning light will come on and
passenger airbag on −off indicator light will
indicate “OFF” if there is a malfunction in
the front passenger occupant classification
system.
XS13133a
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
Page 114 of 621
104
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system
∗, passenger airbag
off switch, passenger airbag on −off indica-
tor light, seat belt pretensioner assem-
blies, inflators, “RSCA OFF” indicator light,
interconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 197 in
Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor
and front passenger ’s seat belt buckle
switch.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving. The SRS warning light will come on and
passenger airbag on
−off indicator light will
indicate “OFF” if there is a malfunction in
the front passenger occupant classification
system.
XS13137
