heating YAMAHA RHINO 660 2006 Manuale de Empleo (in Spanish)

6-21
EVU00590

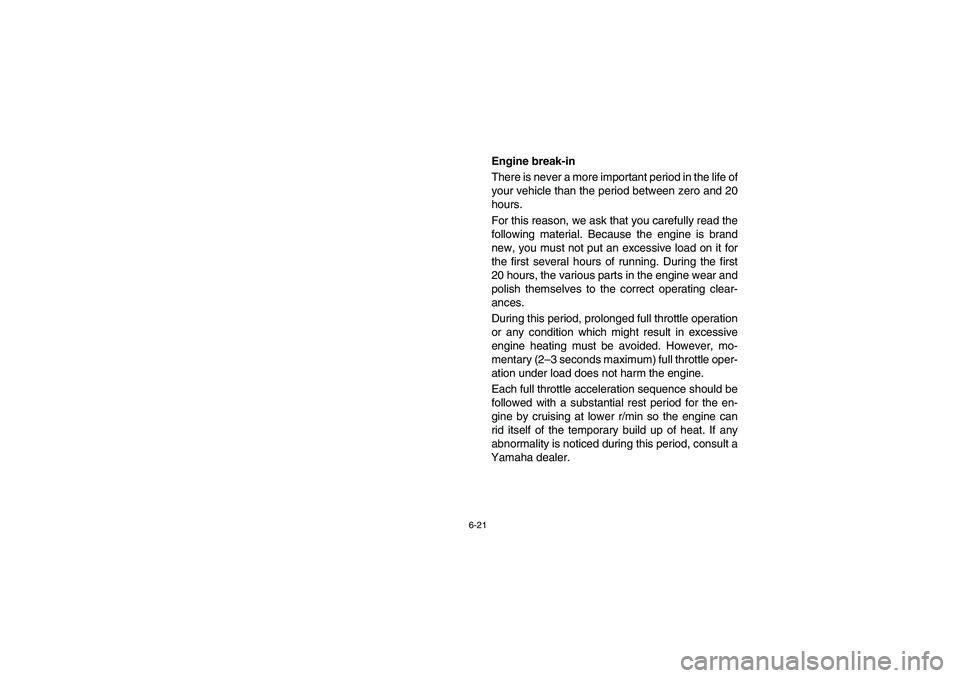

Engine break-in
There is never a more important period in the life of
your vehicle than the period between zero and 20
hours.
For this reason, we ask that you carefully read the
following material. Because the engine is brand
new, you must not put an excessive load on it for
the first several hours of running. During the first
20 hours, the various parts in the engine wear and
polish themselves to the correct operating clear-
ances.
During this period, prolonged full throttle operation
or any condition which might result in excessive
engine heating must be avoided. However, mo-
mentary (2–3 seconds maximum) full throttle oper-
ation under load does not harm the engine.
Each full throttle acceleration sequence should be
followed with a substantial rest period for the en-
gine by cruising at lower r/min so the engine can
rid itself of the temporary build up of heat. If any
abnormality is noticed during this period, consult a
Yamaha dealer.
EE.book Page 21 Monday, July 11, 2005 2:32 PM

8-71

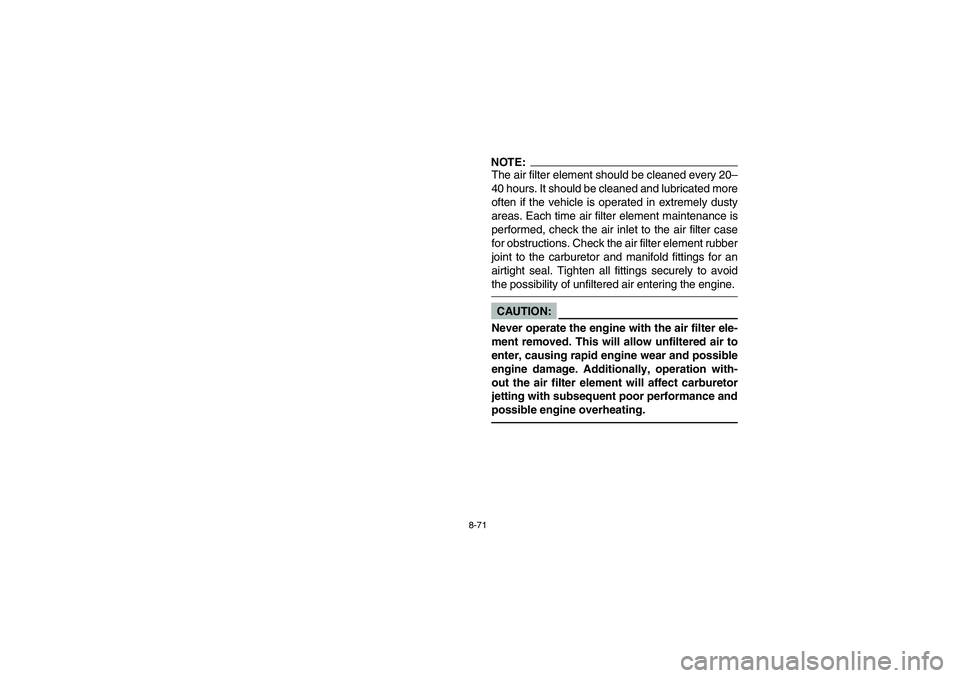

NOTE:_ The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the vehicle is operated in extremely dusty
areas. Each time air filter element maintenance is
performed, check the air inlet to the air filter case
for obstructions. Check the air filter element rubber
joint to the carburetor and manifold fittings for an
airtight seal. Tighten all fittings securely to avoid
the possibility of unfiltered air entering the engine. _CAUTION:_ Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter, causing rapid engine wear and possible
engine damage. Additionally, operation with-
out the air filter element will affect carburetor
jetting with subsequent poor performance and
possible engine overheating.
EE.book Page 71 Monday, July 11, 2005 2:32 PM

8-136

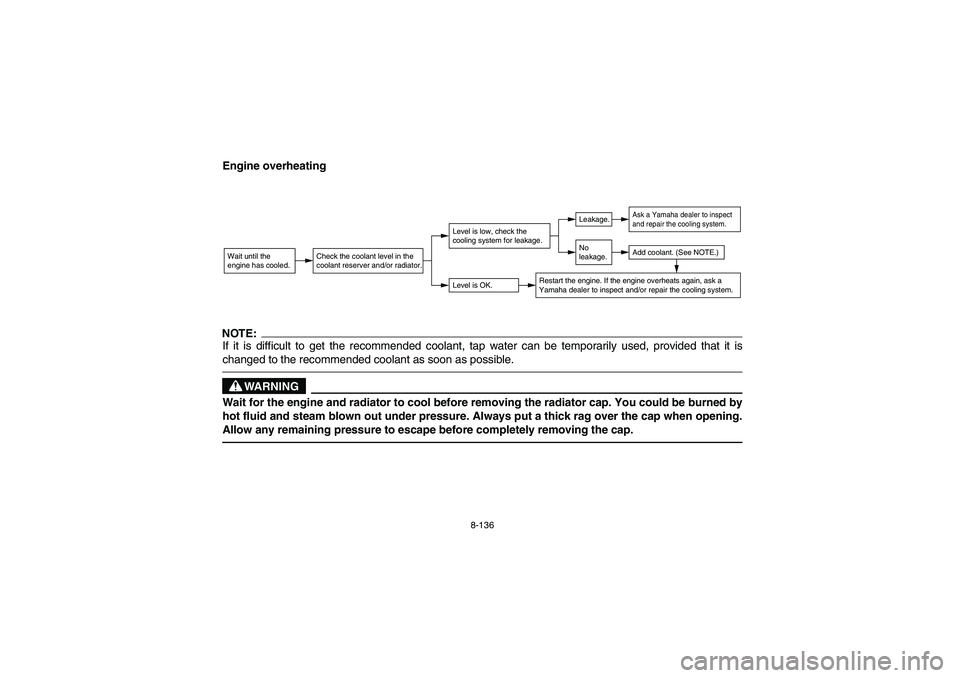

Engine overheatingNOTE:_ If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible. _
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.Wait until the
engine has cooled.
Check the coolant level in the
coolant reserver and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
EE.book Page 136 Monday, July 11, 2005 2:32 PM
