HEATING AND VENTILATION...................................... 28
MANUAL CLIMATE CONTROL SYSTEM .................... 29
AUTOMATIC CLIMATE CONTROL SYSTEM............. 31
EXTERNAL LIGHTS............................................................. 34
WINDOW WASHING....................................................... 35CEILING LIGHTS ................................................................. 36
CONTROLS........................................................................... 37
INTERIOR FITTINGS........................................................... 39
SUNROOF.............................................................................. 41
DOORS .................................................................................. 43
POWER WINDOWS........................................................... 45
BOOT ......................................................................................46
BONNET................................................................................. 49
ROOF RACK/SKI RACK .................................................... 51
HEADLIGHTS........................................................................ 51
ABS SYSTEM ......................................................................... 53
ESP SYSTEM ........................................................................... 54
EOBD SYSTEM ..................................................................... 57
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM ............................................................. 58
SOUND SYSTEM.................................................................. 59
AT THE FILLING STATION ............................................. 61
PROTECTING THE ENVIRONMENT............................. 62
Y
Y Y Y
O O O O
U U U U
R R R R

C C C C
A A A A
R R R R
001-022 ABARTH 500 GB 29-04-2009 9:40 Pagina 2

3
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the trim level
1. Side vent – 2. Left stalk: external lights control – 3. Turbo pressure gauge – 4. Instrument panel and warning lights – 5. Portable
navigator preparation socket – 6. Right stalk: controls wiper, washer, trip computer – 7. Central air vents – 8. Oddment/Car radio
compartment – 9. Passenger air bag – 10. Oddment compartment/hidden document tray – 11. Heating/ventilation/climate control
– 12. Power windows control – 13. Oddment compartment – 14. Gear lever – 15. Knee bag – 16. Driver air bag.

F0S0001Abfig. 1
001-022 ABARTH 500 GB 29-04-2009 9:40 Pagina 3

32
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
❒it is not possible to supply into the pas-
senger compartment air with a tem-
perature lower than external air tem-
perature (the temperature indicated on
the display blinks when the system does
not ensure the achievement of the re-
quired comfort conditions);
❒it is possible to manually reset the fan
speed (with compressor enabled, ven-
tilation cannot go below a bar shown
on the display).
Button OFF - C
System switch off
Pressing the button OFFthe system is
switched off.
The following climate control conditions
will be established when the system is off:
❒all LEDs off;
❒set temperature display off;
❒air recycle off;
❒compressor off;
❒fan off.
In this condition, it is possible to enable or
disable air recycle without system activa-
tion.Button
…- D
Air recycle on/off button
It is advisable to activate air recycle in
queues or in tunnels to prevent the in-
troduction of polluted air.
Led on button ON = recycle ON.
Led on button OFF = recycle OFF.
For low temperatures or if the compres-
sor is off, the recycle is forced to off to
avoid misting.
IMPORTANT It is advisable not to use the
air recycle function when the outside tem-
perature is low, to prevent the windows
from rapidly misting up.
Buttons
ÕÔ- E
Temperature setting
Pressing the button
Õthe temperature
in the passenger compartment rises until
the value HI is reached (maximum heat-
ing).
Pressing the button
Ôthe temperature
in the passenger compartment decreases
until the value LO is reached (maximum
cooling).
IMPORTANTSpecifically, if the heating flu-
id is not sufficiently warm, the fan will not
start up at the maximum speed immedi-
ately to limit introducing excessively cool
air into the passenger compartment.Buttons
ÕÔ- F
Fan speed setting
Pressing the buttons
Õor Ôrespective-
ly, the fan speed displayed on the display
bars increases or decreases.
The fan can be cut off only if the com-
pressor has been switched off (button B).
To restore automatic fan speed control,
press button AUTO.
Buttons
´μ∂- G H I
Manual selection
of air distribution
Pressing the buttons, it is possible to set
one of 5 different air flow options:
´to the windscreen and front side win-
dow vents to demist or defrost them.
μto central and side dashboard vents to
ventilate the chest and the face during
the hot season.
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 32

33
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
∂to the vents in the feet area (front
seats). The natural tendency of hot
air to spread upwards, allows to
warm the passenger compartment
up as quickly as possible, providing
an immediate feeling of warmth.
∂+μdistribution between feet area
vents (warmer air) and dashboard
vents (cooler air).
∂+´distribution between feet area
vents and windscreen and front
side window vents). This distribu-
tion allows an adequate warming of
the passenger compartment and
prevents the windows from mist-
ing up.
The set distribution is shown by the LEDs
on the selected buttons.
To restore automatic air distribution con-
trol, press button AUTO.
Button
-- L
Front window fast
demisting/defrosting button
Pressing the button
-the system acti-
vates all the functions required for fast
demisting/defrosting:
❒compressor switch on (if climatic con-
ditions are suitable);
❒air recycle off;
❒air temperature set to maximum (HI);
❒fan speed selection depending on
coolant temperature;
❒air flow toward the windshield and the
front side windows;
❒heated rear window on.
IMPORTANT The function remains active
for about 3 minutes since the engine
coolant temperature exceeds 50°C (for
petrol versions) or 35°C (for Diesel ver-
sions).
LOOKING AFTER THE SYSTEM
Run the climate control system for at least
10 minutes every month during the win-
ter.
Have the system inspected at a Abarth
Dealership before the summer.The system uses R134a
coolant which, in the event of
accidental leaks, is not dan-
gerous for the environment.
Do not use R12 coolant, not suitable
for the components of the system.
HEATED REAR WINDOW
DEMISTER/DEFROSTER
Press the button Mto activate this func-
tion; its activation is shown by a warning
light on the instrument panel.
The function is automatically deactivated
after about 20 minutes. To turn off the
function beforehand, press again the but-
ton
(.
IMPORTANT Do not apply stickers on
the internal side of the rear window over
the filaments of the heated rear window,
to avoid damaging it.
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 33

34
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
LOW BEAMS SIDE/TAILLIGHTS
fig. 30
With the key on MAR turn the knurled
ring to
2. If low beams are activated, day-
light lights are deactivated and taillights and
low beams are activated. The warning light
3on the instrument panel will come on
at the same time. With ignition key on
STOPor removed, rotate the knurled
ring from position Oto position
2. The
light
3on the instrument panel turns on
and all taillights and number plate lights
turn on.
MAIN BEAMS fig. 30
With knurled ring in position
2, push the
stalk forward toward the dashboard
(steady position). The warning light
1on the instrument panel will come on.
They switch off pulling the stalk toward
the wheel (low beams turn on).
FLASHING fig. 30
You can flash the beams pulling the stalk
toward the wheel (unstable position). The warning light
1on the instrument
panel will come on at the same time.
DIRECTION INDICATORS fig. 31
Move the stalk to (steady) position:
up (position a): right-hand indicator
down (position b): left-hand indicator
Warning light ¥or Îwill blink on the in-
strument panel. Direction indicator auto-
matically turn off, when the car travels
again in a straight direction.
Lane change function
If you want to signal that you want to
change lane, move the left stalk to un-
steady position for less than half a second.
The direction indicator of the selected
side activates for three blinks and then au-
tomatically turns off.

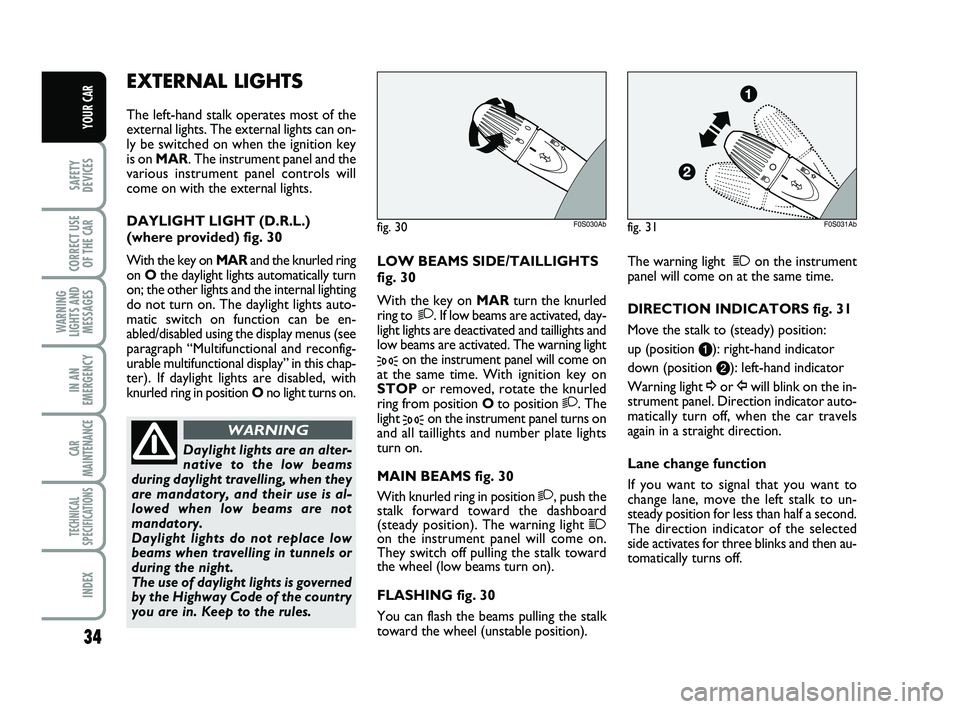

EXTERNAL LIGHTS
The left-hand stalk operates most of the
external lights. The external lights can on-
ly be switched on when the ignition key
is on MAR. The instrument panel and the
various instrument panel controls will
come on with the external lights.
DAYLIGHT LIGHT (D.R.L.)
(where provided) fig. 30
With the key on MARand the knurled ring
on Othe daylight lights automatically turn
on; the other lights and the internal lighting
do not turn on. The daylight lights auto-
matic switch on function can be en-
abled/disabled using the display menus (see
paragraph “Multifunctional and reconfig-
urable multifunctional display” in this chap-
ter). If daylight lights are disabled, with
knurled ring in position Ono light turns on.
fig. 30F0S030Abfig. 31F0S031Ab
Daylight lights are an alter-
native to the low beams
during daylight travelling, when they
are mandatory, and their use is al-
lowed when low beams are not
mandatory.
Daylight lights do not replace low
beams when travelling in tunnels or
during the night.
The use of daylight lights is governed
by the Highway Code of the country
you are in. Keep to the rules.
WARNING
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 34

36
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Ceiling light timing (central
position of the lens)
Three different switch on modes are fore-
seen:
❒when opening one door, a three minute
timing is set;
❒when removing the key from the igni-
tion switch within two minutes from
engine switch off, a 10 second timing
is set;
❒when doors are unlocked (either with
remote control or with key on driver
side door), a 10 second timing is set.
Three modes are foreseen for switch off:
❒when closing all doors, a three minute
timing is set; The timing is disabled if the
key is moved to MAR;
❒when doors are locked (either with re-
mote control or with key on driver side
door), the ceiling light turns off.
❒the internal lights turn off after 15 min-
utes to avoid battery drain
BOOT LIGHT
The lamp comes on automatically when the
luggage compartment is opened and goes
out when it is closed.
CEILING LIGHTS
FRONT CEILING LIGHT
The lens can be set to three positions:
❒right side pressed: light always on
❒left side pressed: light always off
❒central position (neutral): the light turns
on and off when the doors are opened
or closed.
IMPORTANT Before getting out of the
car, make sure the switch is on the cen-
tral position: ensure that lights are off with
doors closed in order to avoid draining
the battery.
On same versions, light switch on and off
occur only when the front driver side door
is opened or closed.
When the doors are unlocked using the re-
mote control, a 10 second timing turns on.
When the doors are locked using the re-
mote control, the ceiling light turns off. REAR WINDOW WIPER/
REAR WINDOW WASHER
The device can work only when the igni-
tion key is on MAR.
Turn the knurled ring to
'to operate
the rear window wiper.
With the windscreen wiper active, rotate
the knurled ring to
'to activate the rear
window wiper which, in this case, oper-
ates (in the different positions) in synch
with the windscreen wiper, yet with half
its frequency. With windscreen wiper ac-
tive, engaging reverse gear, the rear win-
dow wiper automatically turns on in slow
continuous mode.
It stops when the reverse gear is disen-
gaged.
“Smart washing” function
Pushing the stalk towards the dashboard
(unstable position) will activate the rear
window washer.
Keep the stalk pushed to activate with a
single movement the rear window wash-
er jet and the rear window wiper; the lat-
ter automatically turns on if you keep the
stalk pushed for over half a second.
The rear window wiper stops operating
a few strokes after releasing the stalk; a
further “cleaning stroke”, after a few sec-
onds, completes the wiping operation.
Do not use the rear window
wiper to remove layers of
snow or ice from the rear win-
dow. In such conditions, the
rear window wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If the issue persists,
contact the Abarth Dealership.
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 36

37
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
CONTROLS
SPORT FUNCTION CONTROL
fig. 33
When the SPORT button A-fig. 33is
pressed the sports driving setting is turned
on featuring more responsiveness during
acceleration, an increase in drive torque
and more precise steering with greater ef-
fort required on the steering wheel.
When the function is active, the message
SPORT is displayed on the instrument
panel. Press again the button to deactivate
the function and return to the standard
driving mode.
IMPORTANT Pressing SPORT, the func-
tion is active after about 5 seconds.
IMPORTANT When in SPORT mode, ac-
celeration may be abrupt, This is typical of
this mode.FRONT/REAR FOG LIGHTS
(where provided) fig. 33
To turn on the front/rear fog lights, use
the button Cas follows:
1° Pressure: front fog lights on
2° Pressure: rear fog lights on
3° Pressure: lights off
When the front fog lights are on, the
warning light
5turns on on the instru-
ment panel; when the rear fog lights are
on, the warning light
4turns on on the
instrument panel.
Front fog lights are turned on with low
beams on.
CD
MENU
FM ASAM 1 2 3 4 5 6 AUD
MP3 RND RPT TPM CD-IN EQ
LOUD AF LOC PTY TP TA RMB PBCD
BCA
F0S033Abfig. 33
HAZARD LIGHTS fig. 33
They turn on pressing the button B, re-
gardless of the position of the ignition key.
When the function is active, warning lights
Îand ¥on the panel blink.
To switch off, press again the button B.
The use of hazard lights is governed by the
Highway Code of the country you are in.
Keep to the rules.
Emergency braking
In the event of emergency braking the
emergency lights automatically turn on and
at the same time the lights
Îend ¥turn
on on the dashboard.
The function automatically turns off when
the emergency braking stops.
This function complies with the current ap-
plicable laws.
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 37

39
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
INTERIOR FITTINGS
CIGAR LIGHTER
(for versions/markets, where provided)
SUN VISORS fig. 35
These are arranged at the sides of the in-
ternal rearview mirror.
They may be oriented frontally and to the
side.
At the back of the passenger side sun vi-
sor there is a vanity mirror, lit up by a spe-
cial courtesy light (where provided) that
can be activated by pressing button B. The
sun visor on the driver’s side and passen-
ger side have document holder pockets.
The cigar lighter becomes
very hot. Handle with care.
The device must not be used by chil-
dren: risk of fire or burns. Always check
that the cigar lighter has turned off.
WARNING
fig. 35
A
F0S035Abfig. 36
A
F0S036Ab
GLOVE BOX ON PASSENGER
SIDE DASHBOARD fig. 36
(for versions/markets, where provided)
To open the glove box, operate opening
device A.
Do not travel with the odd-
ment compartments open:
they could hurt the passenger in case
of crash.
WARNING
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 39

41
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
FIXED GLASS
SUNROOF
(for versions/markets, where provided)
The fixed sunroof with wide glass includes
a glass panel provided with manually oper-
ated sun visor. The sun visor can be used
in the positions “fully closed” and “fully
open” (it has no fixed intermediate posi-
tion). To open the sun visor: press the tooth
A-fig. 41, release it and move it to “all open
position”. To close it, repeat the same op-
eration in the opposite direction.
OPENABLE SUNROOF
(for versions/markets, where provided)
The openable sunroof with wide glass in-
cludes a glass panel provided with manu-
ally operated sun visor. The sun visor can
be used in the positions “fully closed” and
“fully open” (it has no fixed intermediate
position). To open the sun visor: press the
tooth A-fig. 41, release it and move it to
“all open position”. To close it, repeat the
same operation in the opposite direction.
The sunroof can be operated only when
the ignition key is on MAR. The controls
A-B fig. 40on a dedicated dashboard
near the front ceiling lights, enable to
open/close the sunroof. CURRENT OUTLET fig. 39
(for versions/markets, where provided)
Positioned on the central tunnel, the out-
let is powered with ignition key on MAR.
To use the outlet, open the protective
cover A.
Correct operation is ensured only if the
connected devices are provided with ho-
mologated plugs, present on all the com-
ponents of the Lineaccessori Abarth.
IMPORTANT With engine off and key on
MAR, the extended use (for instance for
more than 1 hour) of accessories which
drain much current may reduce battery
efficiency, up to ignition failures.
Accessories with a maximum
power of 180W (maximum
electrical input 15A) can be
connected to the outlet.
fig. 40F0S0096m
To open
Press and keep pressed button B-fig. 40,
the front pane will set to the “spoiler” po-
sition; press button B-fig. 40 again for
over half a second to make the sunroof
sliding automatically to the wide open po-
sition; press the button to stop the sun-
roof at an intermediate position.
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 41

56
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
MSR system
(engine braking torque control)
It is an integral part of the ASR system that
in case of sudden gear downshifting, cuts
in providing torque to the engine thus pre-
venting excessive driving wheel drive that,
specially in poor grip conditions, can lead
to loss of stability.TTC SYSTEM
(Torque Transfer Control)
It is an integral part of the ESP system.
This system improves the transfer of dri-
ve torque to the wheels, guaranteeing
safer and more sporty driving, especially
when cornering, far more able to prevent
understeer.
The system is turned on by pressing the
button in the dashboard C-Fig. 58. The
LED in the TTC button is lit up when it
is on.
It is turned off by pressing the button again
or when the vehicle is switched off (igni-
tion key in STOP position). ASR SYSTEM
(Antislip Regulation)
It’s integral to the ESP system and auto-
matically intervenes in case of slip of one
or both drive wheels, helping the driver
to control the car.
The action of the ASR is particularly help-
ful in the following circumstances:
❒slipping of the inner wheel due to the
effect of dynamic load changes or ex-
cessive acceleration;
❒too much power transmitted to the
wheels also in relation to the conditions
of the road surface;
❒acceleration on slippery, snowy or
frozen surfaces;
❒in the case of loss of grip on a wet sur-
face (acquaplaning).
fig. 58
TTC
C
F0S058Ab
046-062 ABARTH 500 GB 29-04-2009 9:41 Pagina 56
