Remote start Acura ILX 2019 Owner's Guide

543
uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
u As a convenience, lightly place masking
tape over the remote buttons to hold
them in place.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Press down on the center of the assembly
and remove the battery.
u When removing the button battery, be
careful not to touch parts around it.
4. Make sure to replace the battery with the
correct polarity.
1Replacing the Button Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with remote control engine start system
Models with remote control engine start system
Battery type: CR2032
Battery
19 ACURA ILX-31TX66610.book 543 ページ ２０２０年４月１７日　金曜日　午前８時５２分

553
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 554
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 555
Changing a Flat Tire ......................... 570
Engine Does Not Start Checking the Engine ........................ 577
If the Keyless Access Remote Battery is Weak ............................................. 578
Emergency Engine Stop ................... 579
Jump Starting .................................... 580
Models with optional spare tire
Shift Lever Does Not Move .............. 583
Overheating How to Handle Overheating............. 584
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 586
If the Charging System Indicator Comes
On ................................................. 586
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 587
If the Brake System Indicator (Red) Comes On .................................. 588
If the Electric Power Steering (EPS) System
Indicator Comes On......................... 588
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 589
Fuses Fuse Locations ................................. 590
Inspecting and Changing Fuses ........ 592
Emergency Towing ........................... 593
19 ACURA ILX-31TX66610.book 553 ページ ２０２０年４月１７日　金曜日　午前８時５２分

577
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 578
uMake sure the keyless remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 135
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 541●If the interior lights come on normally 2 Fuses P. 590
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 426
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 128
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 88
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 592
If the problem continues:
2Emergency Towing P. 593
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 580
19 ACURA ILX-31TX66610.book 577 ページ ２０２０年４月１７日　金曜日　午前８時５２分

578
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, and the ENGINE START/STOP button
flashes, and the engine won’t start, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the ENGINE START/
STOP button is flashing. The buttons on
the keyless access remo te should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
19 ACURA ILX-31TX66610.book 578 ページ ２０２０年４月１７日　金曜日　午前８時５２分

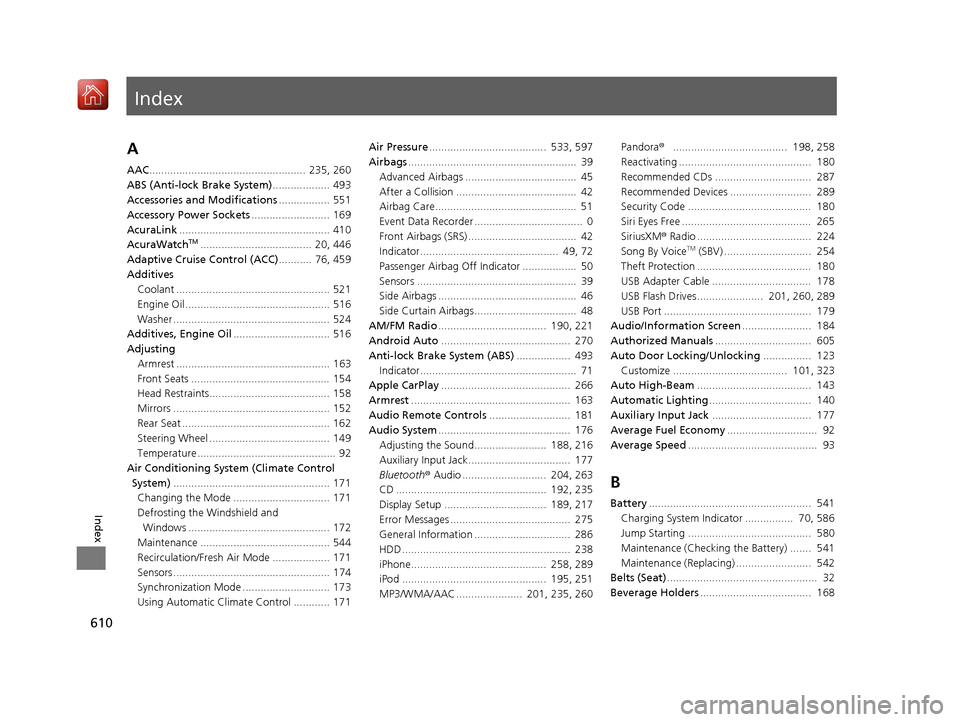

Index
610
Index
Index
A
AAC.................................................... 235, 260
ABS (Anti-lock Brake System) ................... 493
Accessories and Modifications ................. 551
Accessory Power Sockets .......................... 169
AcuraLink .................................................. 410
AcuraWatch
TM..................................... 20, 446
Adaptive Cruise Control (ACC) ........... 76, 459
Additives Coolant ................................................... 521
Engine Oil ................................................ 516
Washer .................................................... 524
Additives, Engine Oil ................................ 516
Adjusting
Armrest ................................................... 163
Front Seats .............................................. 154
Head Restraints........................................ 158
Mirrors .................................................... 152
Rear Seat ................................................. 162
Steering Wheel ........................................ 149
Temperature .............................................. 92
Air Conditioning System (Climate Control
System) .................................................... 171
Changing the Mode ................................ 171
Defrosting the Windshield and
Windows ............................................... 172
Maintenance ........................................... 544
Recirculation/Fresh Air Mode ................... 171
Sensors .................................................... 174
Synchronization Mode ............................. 173
Using Automatic Climate Control ............ 171 Air Pressure
....................................... 533, 597
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio .................................... 190, 221
Android Auto ........................................... 270
Anti-lock Brake System (ABS) .................. 493
Indicator.................................................... 71
Apple CarPlay ........................................... 266
Armrest ..................................................... 163
Audio Remote Controls ........................... 181
Audio System ............................................ 176
Adjusting the Sound........................ 188, 216
Auxiliary Input Jack.................................. 177
Bluetooth ® Audio ............................ 204, 263
CD .................................................. 192, 235
Display Setup .................................. 189, 217
Error Messages ........................................ 275
General Information ................................ 286
HDD ........................................................ 238
iPhone............................................. 258, 289
iPod ................................................ 195, 251
MP3/WMA/AAC ...................... 201, 235, 260 Pandora
®...................................... 198, 258
Reactivating ............................................ 180
Recommended CDs ................................ 287
Recommended Devices ........................... 289
Security Code ......................................... 180
Siri Eyes Free ........................................... 265
SiriusXM ® Radio ...................................... 224
Song By VoiceTM (SBV) ............................. 254
Theft Protection ...................................... 180
USB Adapter Cable ................................. 178
USB Flash Drives...................... 201, 260, 289
USB Port ................................................. 179
Audio/Information Screen ....................... 184
Authorized Manuals ................................ 605
Auto Door Locking/Unlocking ................ 123
Customize ...................................... 101, 323
Auto High-Beam ...................................... 143
Automatic Lighting .................................. 140
Auxiliary Input Jack ................................. 177
Average Fuel Economy .............................. 92
Average Speed ........................................... 93
B
Battery...................................................... 541
Charging System Indicator ................ 70, 586
Jump Starting ......................................... 580
Maintenance (Checking the Battery) ....... 541
Maintenance (Replacing) ......................... 542
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 168
19 ACURA ILX-31TX66610.book 610 ページ ２０２０年４月１７日　金曜日　午前８時５２分

612
Index
Doors......................................................... 108
Auto Door Locking .................................. 123
Auto Door Unlocking ............................... 123
Door Open Indicator .................................. 31
Door Open Message .................................. 83
Keys ........................................................ 108
Locking/Unlocking the Doors from the Inside ..................................................... 120
Locking/Unlocking the Doors from the Outside .................................................. 111
Lockout Prevention System ...................... 118
DOT Tire Quality Grading ........................ 535
Driving ....................................................... 419
Braking .................................................... 491
Dual Clutch Transmission ......................... 432
Shifting Gear ........................................... 433
Starting the Engine .................................. 426
Driving Position Memory System ............. 150
Dual Clutch Transmission ......................... 432
Creeping ................................................. 432
Fluid ................................................ 523, 597
Kickdown ................................................ 432
Operating the Shift Lever ................... 18, 433
Shift Lever Does Not Move....................... 583
Shifting.................................................... 433
E
Elapsed Time ............................................... 93
Electric Power Steering System (EPS)
Indicator ............................................ 72, 588 Electronic Stability Control (ESC)
............. 437
Emergency ................................................ 593
Emissions Testing (Readiness Codes) ....... 601
Engine ....................................................... 598
Coolant ................................................... 521
Jump Starting .......................................... 580
Oil ........................................................... 516
Remote Engine Start................................ 428
Starting ................................................... 426
Switch Buzzer.......................................... 135
Engine Coolant ......................................... 521
Adding to the Radiator ............................ 522
Adding to the Reserve Tank..................... 521
Overheating ............................................ 584
Temperature Gauge .................................. 88
Engine Oil ................................................. 516
Adding .................................................... 518
Checking................................................. 517
Displaying Oil Life .................................... 510
Low Oil Pressure Indicator ................. 69, 586
Recommended Engine Oil ....................... 516
ENGINE START/STOP Button .................... 135
EPS (Electric Power Steering) System ............................................... 72, 588
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 548
Exterior Mirrors ........................................ 153F
Features.................................................... 175 Filters
Oil .......................................................... 519
Flat Tire ..................................................... 555
Floor Mats ................................................ 546
Fluids
Brake ...................................................... 524
Dual Clutch Transmission ........................ 523
Engine Coolant ....................................... 521
Windshield Washer ................................. 524
Fog Light Indicator .................................... 74
Folding Down the Rear Seat ................... 162
Foot Brake ................................................ 492
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 154
Adjusting ................................................ 154
Front Sensor Camera ............................... 488
Fuel ..................................................... 19, 502
Fuel Economy and CO
2 Emissions ............ 504
Gauge ...................................................... 88
Instant Fuel Economy ................................ 93
Low Fuel Indicator ..................................... 71
Range ....................................................... 93
Recommendation.................................... 502
Refueling ................................................ 502
Fuel Economy and CO
2 Emissions ............ 504
Fuel Fill Cap ........................................ 19, 503
Message ................................................. 587
Fuel Fill Door ...................................... 19, 503
Fuses ......................................................... 590
Inspecting and Changing ........................ 592
Locations ........................................ 590, 591
19 ACURA ILX-31TX66610.book 612 ページ ２０２０年４月１７日　金曜日　午前８時５２分

614
Index
Indicators..................................................... 68
Adaptive Cruise Control (ACC) .... 76, 77, 459
Anti-lock Brake System (ABS) ..................... 71
Auto High-Beam ........................................ 74
Blind spot information System ........... 79, 440
Brake System (Amber)................................ 68
Brake System (Red) ............................ 68, 588
Charging System ............................... 70, 586
Collision Mitigation Braking System
TM (CMBSTM) ............................ 79, 80
Electric Power Steering (EPS) System .. 72, 588
Fog Light ................................................... 74
Gear Position ............................................. 69
High Beam................................................. 74
Immobilizer System .................................... 75
Keyless Access System ............................... 75
Lane Keeping Assist System (LKAS) .... 78, 476
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 586
Low Tire Pressure/TPMS ..... 73, 442, 444, 589
Maintenance Minder ............................... 509
Malfunction Indicator Lamp ............... 70, 587
Parking Brake and Brak e System ........ 68, 588
Road Departure Mitigation (RDM) .............. 76
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 75
Sequential mode...................................... 436
Shift Lever Position .................................... 69
Supplemental Restraint System ............ 49, 72
System Message ........................................ 73 Transmission System.................................. 69
Turn Signal ................................................ 74
Vehicle Stability Assist
® (VSA ®)
System ............................................ 72, 437
VSA ® OFF .......................................... 73, 438
Information .............................................. 595
Information Screen .................................. 211
Instant Fuel Economy ................................. 93
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 206
Interior Lights ........................................... 164
Interior Rearview Mirror .......................... 152
iPhone ............................................... 258, 289
iPod ................................................... 195, 251
J
Jack (Wheel Nut Wrench) ........................ 573
Jump Starting ........................................... 580
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 108
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Rear Door Won’t Open............................ 122
Remote Transmitter ................................. 116 Two-way Keyless Access Remote..... 119, 428
Types and Functions................................ 108
Kickdown (Dual Clutch Transmission) .... 432
L
Lane Keeping Assist System (LKAS)........ 474
LATCH (Child Seats) ................................... 57
License information ................................. 303
Lights ................................................ 139, 525
Automatic............................................... 140
Bulb Replacement ................................... 525
Daytime Running Lights .......................... 142
Fog Lights ............................................... 142
High-Beam Indicator ................................. 74
Interior.................................................... 164
Light Switches......................................... 139
Lights On Indicator .................................... 74
Turn Signals ............................................ 138
Limitations for Manual Operation .. 340, 370
Load Limits ............................................... 423
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 123
Childproof Door Locks ............................ 122
From Inside ............................................. 120
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 117
Lockout Prevention System ..................... 118
Low Battery Charge ................................. 586
Low Fuel Indicator ..................................... 71
19 ACURA ILX-31TX66610.book 614 ページ ２０２０年４月１７日　金曜日　午前８時５２分

616
Index
RDS (Radio Data System).................. 191, 222
Readiness Codes (Emissions Testing) ....... 601
Rear Defogger/Heated Door Mirror Button ...................................................... 149
Rear Seat (Folding Down) ........................ 162
Rearview Mirror ........................................ 152
Refueling ................................................... 502
Fuel Gauge ................................................ 88
Gasoline .......................................... 502, 596
Low Fuel Indicator ..................................... 71
Regulations ............................... 444, 535, 599
Remote Engine Start with Vehicle Feedback ................................................. 428
Remote Transmitter .................................. 116
Replacement Battery..................................................... 542
Bulbs ....................................................... 525
Fuses ............................................... 590, 591
Tires ........................................................ 538
Wiper Blade Rubber ................................. 530
Reporting Safety Defects ......................... 600
Resetting a Trip Meter ............................... 92
Road Departure Mitigation (RDM) .......... 483
On and Off .............................................. 485
S
Safe Driving ................................................. 27
Safety Labels ............................................... 66
Safety Message ............................................. 1 Seat Belts
.................................................... 32
Adjusting the Shoulder Anchor.................. 36
Automatic Seat Belt Tensioners ................. 34
Checking................................................... 38
Fastening .................................................. 35
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Pregnant Women ...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 71
Seat Heaters .............................................. 170
Seats .......................................................... 154
Adjusting ................................................ 154
Front Seats .............................................. 154
Rear Seat................................................. 162
Seat Heaters ............................................ 170
Security System ......................................... 128
Immobilizer System Indicator ..................... 75
Security System Alarm Indicator................. 75
Select Lever ......................................... 18, 433
Operation.......................................... 18, 434
Releasing................................................. 583
Won’t Move ............................................ 583
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 183
Sequential Mode ...................................... 435
Sequential Mode Operation .................... 436
Setting the Clock ...................................... 106
Shift Lever ........................................... 18, 433
Shift Lever Position Indicator ............ 69, 434
Shifting (Transmission) ............................. 433 Shoulder Anchor
........................................ 36
Side Airbags ............................................... 46
Side Curtain Airbags .................................. 48
SiriusXM ® Radio ....................................... 224
SMS Text Message ............................ 351, 363
Snow Tires ................................................ 540
Spare Tire ................................................. 597
Spark Plugs ............................................... 596
Specifications ........................................... 596
Specified Fuel ................................... 502, 596
SRS Airbags (Airbags) ................................ 42
Starting the Engine .................................. 426
Does Not Start ........................................ 577
Engine Switch Buzzer .............................. 135
Jump Starting ......................................... 580
Remote Engine Start ............................... 428
Steering Wheel ........................................ 149
Adjusting ................................................ 149
Stopping ................................................... 495
Summer Tires ............................................ 540
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering Wheel) .. 4, 5
Synchronization Mode ............................ 173
System Message Indicator ......................... 73
T
Temperature Sensor................................ 174
Temporary Tire Repair Kit ....................... 556
Text Message .................... 351, 363, 403, 405
Time (Setting) ........................................... 106
19 ACURA ILX-31TX66610.book 616 ページ ２０２０年４月１７日　金曜日　午前８時５２分

617
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 442
Indicator ........................................... 73, 589
Tires .......................................................... 532
Air Pressure..................................... 533, 597
Checking and Maintaining ...................... 532
Flat Tire (Puncture) .................................. 555
Inspection ............................................... 532
Labeling .................................................. 533
Puncture (Flat Tire) .................................. 555
Regulations ............................................. 535
Rotation.................................................. 539
Spare Tire ............................................... 597
Summer .................................................. 540
Temporary Tire Repair Kit ........................ 556
Tire Chains.............................................. 540
Wear Indicators....................................... 537
Winter .................................................... 540
Tools ......................................................... 554
Towing a Trailer ....................................... 425
Towing Your Vehicle ............................... 425
Emergency .............................................. 593
TPMS (Tire Pressure Monitoring System) .................................................... 442
Transmission ............................................. 433
Automatic............................................... 433
Fluid ....................................................... 523
Gear Position Indicator .............................. 69
Number .................................................. 598
Sequential Mode..................................... 435
Shift Lever Position Indicator ................... 434 Trip Meter
................................................... 92
Troubleshooting ....................................... 553
Blown Fuse ...................................... 590, 591
Brake Pedal Vibrates .................................. 23
Buzzer Sounds When Opening Door .......... 24
Emergency Towing .................................. 593
Engine Won’t Start .................................. 577
Flat Tire/Puncture ..................................... 555
Noise When Braking .................................. 24
Overheating ............................................ 584
Premium Gasoline ........................... 502, 596
Puncture/Flat Tire ..................................... 555
Rear Door Won’t Open ...................... 23, 122
Select Lever Won’t Move ......................... 583
Warning Indicators .................................... 68
Trunk ......................................................... 124
Lid ........................................................... 124
Light Bulb ................................................ 596
Open Message .......................................... 83
Turn Signals .............................................. 138
Indicators (Instrument Panel) ...................... 74
Turn-by-Turn Directions ............................. 93
Two-way Keyless Access Remote ..... 119, 428
U
Unlocking the Doors................................ 111
Unlocking the Front Doors from the Inside ................................................. 12, 120
USB Adapter Cable ........................... 176, 178
USB Flash Drives ........................................ 289 USB Port
.................................................... 179
Using the Keyless Access System ............. 111
V
Vanity Mirrors............................................... 7
Vehicle Identification Number ................ 598
Vehicle Stability Assist ® (VSA ®)................ 437
Off Button............................................... 438
Off Indicator.............................................. 73
System Indicator ........................................ 72
Viscosity (Oil) .................................... 516, 597
Voice Control Operation .......................... 218
Voice Portal Screen.................................. 219
Voice Recognition ................................... 218
VSA ® (Vehicle Stability Assist ®)................ 437
W
Wallpaper ................................................. 214
Wallpaper Setup ....................................... 186
Warning and Info rmation Messages ......... 81
Warning Indicator On/Blinking ............... 586
Warning Labels ........................................... 66
Warranties (Warranty Manual provided separately) .............................................. 603
Watts ......................................................... 596
Wear Indicators (Tire) .............................. 537
Wheel Nut Wrench (Jack Handle) ........... 573
19 ACURA ILX-31TX66610.book 617 ページ ２０２０年４月１７日　金曜日　午前８時５２分
