Page 75 of 621
74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals when
you press the hazard warning
button.
●Does not blink or blinks rapidly
2Replacing Light Bulbs P. 527
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the Auto high-beam
are met.
2Auto High-Beam P. 143—
Lights On
Indicator
●Comes on when the light switch in a
position other than OFF or when the
switch is set to AUTO and the
exterior lights come on.●If you set the power mode to VEHICLE OFF
(LOCK) while the exterior lights are on, a
chime sounds when the driver’s door is
opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
* Not available on all models
20 ACURA ILX-31TX66710.book 74 ページ 2020年4月16日 木曜日 午後8時46分
Page 528 of 621
527
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Turn Signal, Parking/Daytime Running and
Front Side Marker Lights
Front turn signal, parking/daytime running and front side marker lights are LED type.
Have an authorized Acura dealer in spect and replace the light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Acura dealer inspect and replace the
light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
20 ACURA ILX-31TX66710.book 527 ページ 2020年4月16日 木曜日 午後8時46分
Page 529 of 621
528

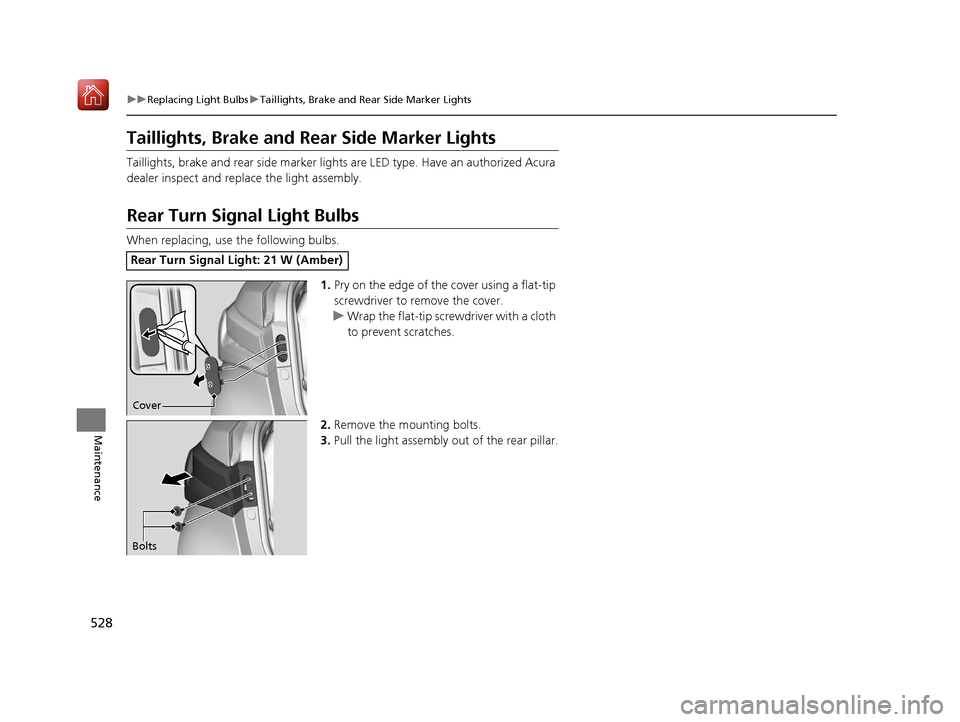

uuReplacing Light Bulbs uTaillights, Brake and Rear Side Marker Lights
Maintenance
Taillights, Brake and Rear Side Marker Lights
Taillights, brake and rear side marker light s are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Remove the mounting bolts.
3. Pull the light assembly out of the rear pillar.
Rear Turn Signal Light: 21 W (Amber)
Cover
Bolts
20 ACURA ILX-31TX66710.book 528 ページ 2020年4月16日 木曜日 午後8時46分
Page 530 of 621
529
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance

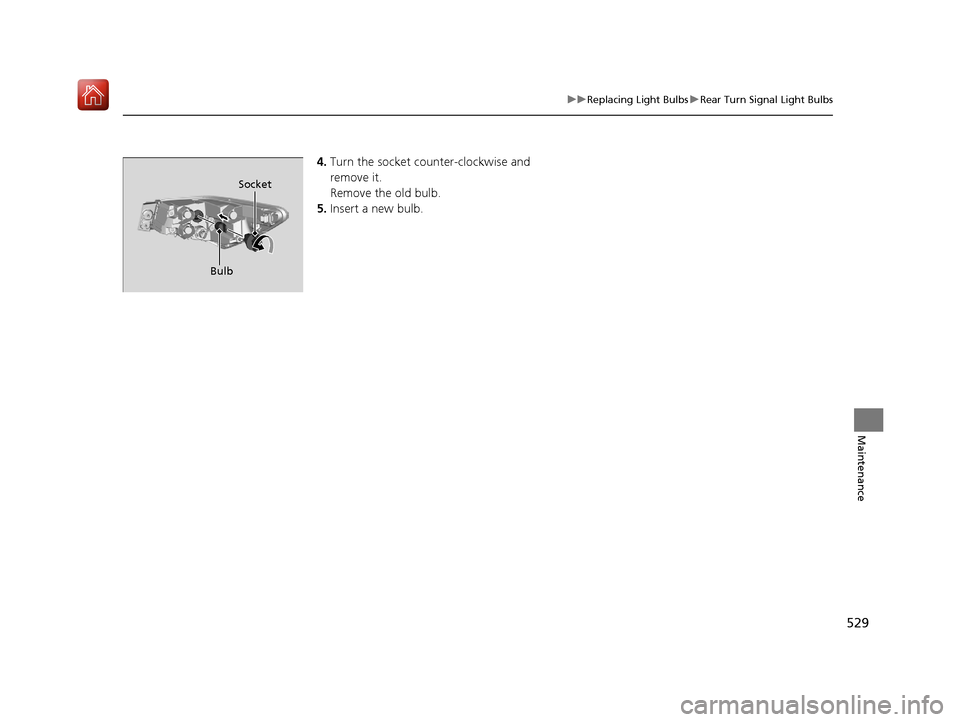

4. Turn the socket counter-clockwise and
remove it.
Remove the old bulb.
5. Insert a new bulb.
Socket
Bulb
20 ACURA ILX-31TX66710.book 529 ページ 2020年4月16日 木曜日 午後8時46分
Page 599 of 621
598
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front) See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 17.1 – 18.9 oz (485 – 535 g)
Lubricant TypeSE-A1 (POE)
Quantity 4.88 – 5.49 cu-in (80 – 90 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.12 US qt (4.85 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal LightsLED
Parking/Daytime Running Lights LED
Front Side Marker LightsLED
Brake Lights LED
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5 W
Interior LightsMap LightsLEDCeiling Light8 WAmbient LightsLEDFoot Lights1.4 WGlove Box LightLEDVanity Mirror Lights1.4 WTrunk Light5 W
* Not available on all models
20 ACURA ILX-31TX66710.book 598 ページ 2020年4月16日 木曜日 午後8時46分
Page 614 of 621
613
Index
Blind spot information System................ 439
Bluetooth ® Audio ............................. 204, 263
Bluetooth ® HandsFreeLink ®........... 339, 368
Booster Seats (For Children) ...................... 64
Brake System ............................................ 492
Anti-lock Brake System (ABS) .................. 494
Brake Assist System................................. 495
Fluid ....................................................... 526
Foot Brake .............................................. 493
Indicator ........................................... 68, 590
Parking Brake.......................................... 492
Brake System (Amber) Indicator ................................................... 68
Brightness Control (Instrument Panel) ... 148
Built-in Key ............................................... 109
Bulb Replacement .................................... 527
Back-Up Light ......................................... 530
Fog Lights ............................................... 527
Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights ... 527
Headlights .............................................. 527
High-Mount Brake Light.......................... 531
Rear License Plate Light ........................... 531
Rear Turn Signal Light ............................. 528
Taillights, Brake and Rear Side Marker
Lights .................................................... 528
Bulb Specifications ................................... 598
C
Carbon Monoxide Gas ............................... 65 Carrying Cargo
.................................. 421, 423
CD Player ........................................... 192, 235
Center Pocket ........................................... 167
Certification Label .................................... 600
Changing Bulbs ......................................... 527
Charging System Indicator ................. 70, 588
Child Safety ................................................. 52
Childproof Door Locks ............................. 122
Child Seat .................................................... 52
Booster Seats ............................................. 64
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Larger Children .......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 122
Cleaning the Exterior ............................... 550
Cleaning the Interior ................................ 547
Client Service Information ....................... 608
Climate Control System ............................ 171
Changing the Mode ................................ 171
Defrosting the Windshield and
Windows ............................................... 172
Maintenance ........................................... 546
Recirculation/Fresh Air Mode ................... 171
Sensors .................................................... 174
Using Automatic Climate Control ............ 171
Clock .......................................................... 106 CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 449
Coat Hook ................................................. 169
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 449
Compact Spare Tire .......................... 572, 599
Compass ...................................................... 93
Console Compartment ............................. 166
Controls ..................................................... 105
Coolant (Engine) ...................................... 523
Adding to the Radiator ............................ 524
Adding to the Reserve Tank..................... 523
Overheating ............................................ 586
Creeping ................................................... 432
Cross Traffic Monitor ............................... 498
Cup Holders .............................................. 168
Customized Features .................. 95, 304, 310
D
Daytime Running Lights .......................... 142
Dead Battery ............................................. 582
Defrosting the Windshield and Windows ................................................. 172
Devices that Emit Radio Waves ............... 601
Dimming Headlights ............................................... 139
Rearview Mirror....................................... 152
Dipstick (Engine Oil) ................................. 519
Directional Signals (Turn Signal) ............. 138
Door Mirrors ............................................. 153
20 ACURA ILX-31TX66710.book 613 ページ 2020年4月16日 木曜日 午後8時46分
Page 617 of 621
616
Index
Indicators..................................................... 68
Adaptive Cruise Control (ACC) .... 76, 77, 459
Anti-lock Brake System (ABS) ..................... 71
Auto High-Beam ........................................ 74
Blind spot information System ........... 79, 440
Brake System (Amber)................................ 68
Brake System (Red) ............................ 68, 590
Charging System ............................... 70, 588
Collision Mitigation Braking System
TM (CMBSTM) ............................ 79, 80
Electric Power Steering (EPS) System .. 72, 590
Fog Light ................................................... 74
Gear Position ............................................. 69
High Beam................................................. 74
Immobilizer System .................................... 75
Keyless Access System ............................... 75
Lane Keeping Assist System (LKAS) .... 78, 477
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 588
Low Tire Pressure/TPMS ..... 73, 442, 444, 591
Maintenance Minder ............................... 511
Malfunction Indicator Lamp ............... 70, 589
Parking Brake and Brak e System ........ 68, 590
Road Departure Mitigation (RDM) .............. 76
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 75
Sequential mode...................................... 436
Shift Lever Position .................................... 69
Supplemental Restraint System ............ 49, 72
System Message ........................................ 73 Transmission System.................................. 69
Turn Signal ................................................ 74
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 72, 437
VSA ® OFF .......................................... 73, 438
Information .............................................. 597
Information Screen .................................. 211
Instant Fuel Economy ................................. 93
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 206
Interior Lights ........................................... 164
Interior Rearview Mirror .......................... 152
iPhone ............................................... 258, 289
iPod ................................................... 195, 251
J
Jack (Wheel Nut Wrench) ........................ 575
Jump Starting ........................................... 582
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 108
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Rear Door Won’t Open............................ 122
Remote Transmitter ................................. 116 Two-way Keyless Access Remote..... 119, 428
Types and Functions................................ 108
Kickdown (Dual Clutch Transmission) .... 432
L
Lane Keeping Assist System (LKAS)........ 474
LATCH (Child Seats) ................................... 57
License information ................................. 303
Lights ................................................ 139, 527
Automatic............................................... 140
Bulb Replacement ................................... 527
Daytime Running Lights .......................... 142
Fog Lights ............................................... 142
High-Beam Indicator ................................. 74
Interior.................................................... 164
Light Switches......................................... 139
Lights On Indicator .................................... 74
Turn Signals ............................................ 138
Limitations for Manual Operation .. 340, 370
Load Limits ............................................... 423
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 123
Childproof Door Locks ............................ 122
From Inside ............................................. 120
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 117
Lockout Prevention System ..................... 118
Low Battery Charge ................................. 588
Low Fuel Indicator ..................................... 71
20 ACURA ILX-31TX66710.book 616 ページ 2020年4月16日 木曜日 午後8時46分
Page 620 of 621
619
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 442
Indicator ........................................... 73, 591
Tires .......................................................... 534
Air Pressure..................................... 535, 599
Checking and Maintaining ...................... 534
Flat Tire (Puncture) .................................. 557
Inspection ............................................... 534
Labeling .................................................. 535
Puncture (Flat Tire) .................................. 557
Regulations ............................................. 537
Rotation.................................................. 541
Spare Tire ............................................... 599
Summer .................................................. 542
Temporary Tire Repair Kit ........................ 558
Tire Chains.............................................. 542
Wear Indicators....................................... 539
Winter .................................................... 542
Tools ......................................................... 556
Towing a Trailer ....................................... 425
Towing Your Vehicle ............................... 425
Emergency .............................................. 595
TPMS (Tire Pressure Monitoring System) .................................................... 442
Transmission ............................................. 433
Automatic............................................... 433
Fluid ....................................................... 525
Gear Position Indicator .............................. 69
Number .................................................. 600
Sequential Mode..................................... 435
Shift Lever Position Indicator ................... 434 Trip Meter
................................................... 92
Troubleshooting ....................................... 555
Blown Fuse ...................................... 592, 593
Brake Pedal Vibrates .................................. 23
Buzzer Sounds When Opening Door .......... 24
Emergency Towing .................................. 595
Engine Won’t Start .................................. 579
Flat Tire/Puncture ..................................... 557
Noise When Braking .................................. 24
Overheating ............................................ 586
Premium Gasoline ........................... 503, 598
Puncture/Flat Tire ..................................... 557
Rear Door Won’t Open ...................... 23, 122
Select Lever Won’t Move ......................... 585
Warning Indicators .................................... 68
Trunk ......................................................... 124
Lid ........................................................... 124
Light Bulb ................................................ 598
Open Message .......................................... 83
Turn Signals .............................................. 138
Indicators (Instrument Panel) ...................... 74
Turn-by-Turn Directions ............................. 93
Two-way Keyless Access Remote ..... 119, 428
U
Unlocking the Doors................................ 111
Unlocking the Front Doors from the Inside ................................................. 12, 120
USB Adapter Cable ........................... 176, 177
USB Flash Drives ........................................ 289 USB Port
.................................................... 178
Using the Keyless Access System ............. 111
V
Vanity Mirrors............................................... 7
Vehicle Identification Number ................ 600
Vehicle Stability Assist
TM (VSA® ).............. 437
Off Button............................................... 438
Off Indicator.............................................. 73
System Indicator ........................................ 72
Viscosity (Oil) .................................... 518, 599
Voice Control Operation .......................... 218
Voice Portal Screen.................................. 219
Voice Recognition ................................... 218
VSA ® (Vehicle Stability Assist
TM) .............. 437
W
Wallpaper ................................................. 214
Wallpaper Setup ....................................... 186
Warning and Info rmation Messages ......... 81
Warning Indicator On/Blinking ............... 588
Warning Labels ........................................... 66
Warranties (Warranty Manual provided separately) .............................................. 605
Watts ......................................................... 598
Wear Indicators (Tire) .............................. 539
Wheel Nut Wrench (Jack Handle) ........... 575
20 ACURA ILX-31TX66710.book 619 ページ 2020年4月16日 木曜日 午後8時46分
