uuBluetooth ® HandsFreeLink ®u HFL Menus
394
Features
Up to 20 speed dial numbers can be stored per phone.
To store a speed dial number:
1.Press the PHONE button.
2. Rotate to select Speed Dial, then press
.
u Repeat the procedure to select New
Entry.
3. Rotate to select a place to choose a
number from, then press .
From Manual Input :
u Input the number manually.
From Import from Phonebook :
u Select a number from the linked cell
phone’s imported phonebook.
From Import from Call History:
u Select a number from the call history.
4. When the speed dial is successfully stored
from Import from Call History or Import
from Phonebook , you are asked to create
a voice tag for the number. Rotate to
select Yes or No, then press .
5. Using the button, follow the prompts to
store a voice tag for the speed dial entry.
■Speed Dial1Speed Dial
When a voice tag is stored, press the button to
call the number using the voice tag. Say “Call” and
the voice tag name.
22 ACURA ILX-31TX66900.book 394 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Continued395
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To add a voice tag to a stored speed
dial number
1. Press the SETTINGS button.
2. Rotate to select Bluetooth/Phone
Settings , then press .
u Repeat the procedure to select Edit
Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, rotate to
select Edit , then press .
4. Rotate to select Voice Tag, then press
.
u From the pop-up menu, rotate to
select Record , then press .
5. Using the button, follow the prompts to
complete the voice tag.
5. Press .
u Using the button, follow the prompts
to complete the voice tag.
6. You will receive a confirmation message on
the screen. Rotate to select OK, then
press .1 Speed Dial
Avoid using duplicate voice tags.
Avoid using “home” as a voice tag.
It is easier for HFL to re cognize a longer name. For
example, use “John Smit h” instead of “John.”
Models without navigation system
Models with navigation system
22 ACURA ILX-31TX66900.book 395 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

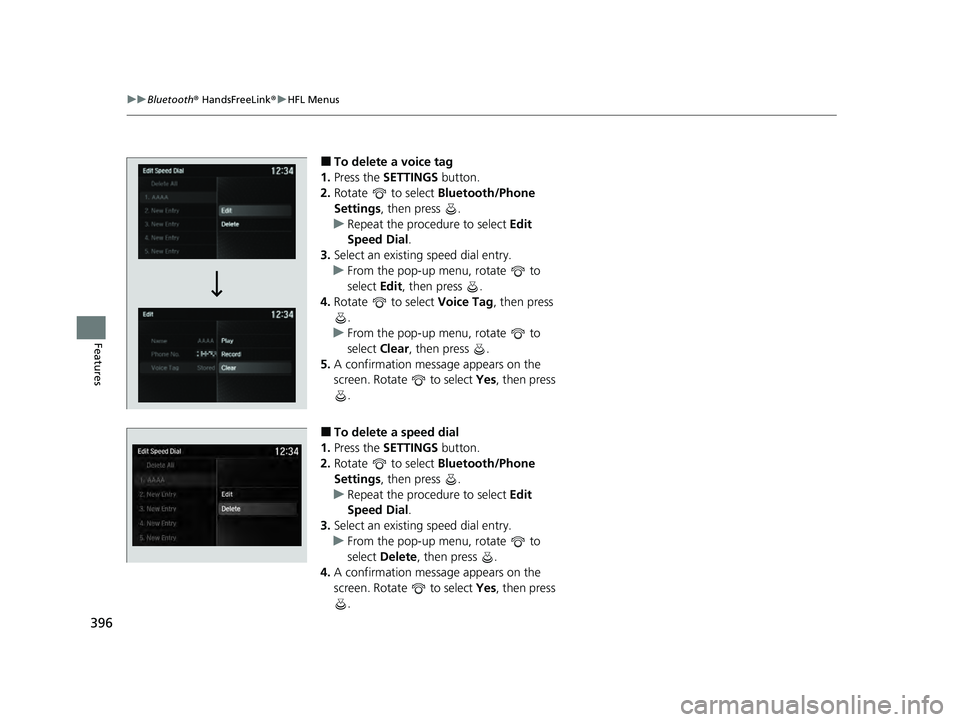

396
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To delete a voice tag
1. Press the SETTINGS button.
2. Rotate to select Bluetooth/Phone
Settings , then press .
u Repeat the procedure to select Edit
Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, rotate to
select Edit, then press .
4. Rotate to select Voice Tag, then press
.
u From the pop-up menu, rotate to
select Clear, then press .
5. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
■To delete a speed dial
1. Press the SETTINGS button.
2. Rotate to select Bluetooth/Phone
Settings , then press .
u Repeat the procedure to select Edit
Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, rotate to
select Delete , then press .
4. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
22 ACURA ILX-31TX66900.book 396 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Continued397
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
Add phonetic modifications or a new voice tag to the phone’s contact name so that
it is easier for HFL to recognize voice commands.
■To add a new voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings,
then press .
3. Rotate to select Phonebook
Phonetic Modification , then press .
4. Rotate to select the phone you want
to add phonetic modification to, then
press .
5. Rotate to select Options..., then press
.
6. Rotate to select New Voice Tag, then
press .
■Phonebook Phonetic Modification*1 Phonebook Phonetic Modification*
You can store up to 20 phone tic modification items.
* Not available on all models
22 ACURA ILX-31TX66900.book 397 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

398
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
7. Move or and rotate to select a
contact name, then press .
u The pop-up menu appears on the
screen.
8. Rotate to select Modify, then press
.
9. Press .
u Using the button, follow the
prompts to complete the voice tag.
10. You will receive a confirmation message
on the screen. Rotate to select OK,
then press .
11. Rotate to select Options..., then press
.
12. Rotate to select OK, then press .
22 ACURA ILX-31TX66900.book 398 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Continued399
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To modify a voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings,
then press .
3. Rotate to select Phonebook
Phonetic Modification , then press .
4. Rotate to select the phone you want
to add phonetic modification to, then
press .
5. Rotate to select a contact name you
want to modify, then press .
u The pop-up menu appears on the
screen.
6. Rotate to select Modify, then press
.
7. Press .
u Using the button, follow the
prompts to complete the voice tag.
8. You will receive a confirmation message
on the screen. Rotate to select OK,
then press .
9. Rotate to select Options..., then press
.
10. Rotate to select OK, then press .1Phonebook Phonetic Modification*
You can only modify or de lete contact names for the
currently connected phone.
* Not available on all models
22 ACURA ILX-31TX66900.book 399 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

400
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To delete a modified voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Rotate to select Phonebook Phonetic
Modification , then press .
4. Rotate to select the phone you want to
delete phonetic modification, then press
.
5. Rotate to select a contact name you
want to delete, then press .
u The pop-up menu appears on the screen.
6. Rotate to select Delete, then press .
u Items to be deleted are indicated with a
trash icon.
7. Rotate to select Options..., then press
.
8. Rotate to select OK, then press .
Trash Icon
22 ACURA ILX-31TX66900.book 400 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

401
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To delete all modified voice tags
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Rotate to select Phonebook Phonetic
Modification , then press .
4. Rotate to select the phone you want to
delete phonetic modifi cation, then press
.
5. Rotate to select Options..., then press
.
6. Rotate to select Delete All, then press
.
7. You will receive a confirmation message on
the screen. Rotate to select Yes, then
press .
22 ACURA ILX-31TX66900.book 401 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

uuBluetooth ® HandsFreeLink ®u HFL Menus
402
Features
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call1Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the button and say “Call” and the voice tag
name, “Call by name” and the phonebook name, or
“Call” and the phone number.
The maximum range be tween your phone and
vehicles is 30 fe et (10 meters).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls ca nnot be made with
HandsFreeLink ® and are only made from Apple
CarPlay.
22 ACURA ILX-31TX66900.book 402 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Continued403
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To make a call using the imported
phonebook
1. Press the PHONE button.
2. Rotate to select Phonebook, then
press .
3. Rotate to select a contact name, then
press .
u The phonebook is stored alphabetically.
4. Rotate to select a number, then press
.
u Dialing starts automatically.1To make a call using the imported phonebook
You can call a stored voice-tagged speed dial
number, phonebook name, or number using voice
commands. 2 Speed Dial P. 394
You can use the keyboard on the On Demand Multi-
Use Display
TM for a partial match search.
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
Models with navigation system
Models without navigation system
22 ACURA ILX-31TX66900.book 403 ページ ２０２１年４月２６日　月曜日　午前１１時２７分
