Continued389
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To edit a Favorite Contact
1. Go to the phone screen.
2 Phone screen P. 380
2.Select and hold a desired favorite contact.
3. Select the following options:
• Remove Favorite : Delete the favorite
contact.
• Add to Home Page : Add a favorite
contact shortcut icon to the home
screen.
• Add to Heads-Up Display
*: Add a
favorite contact shortcut icon to the
head-up display menu.
4. Press the (back) button on the True
Touchpad Interface.
u The screen will return to the previous
screen.
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, or Favorite Contact
entries.
■Making a Call1 Making a Call
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls ca nnot be made with
HandsFreeLink ® and are only made from Apple
CarPlay.
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 389 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuBluetooth ® HandsFreeLink ®u HFL Menus
390
Features
■To make a call using the imported
phonebook
1. Go to the phone screen.
2 Phone screen P. 380
2.Select Contacts .
3. Select a name.
u You can sort by First Name or Last
Name . Select the icon on the upper right
of the screen.
4. Select a number.
u Dialing starts automatically.
■To make a call using a phone number
1. Go to the phone screen.
2 Phone screen P. 380
2.Select Enter Number .
3. Trace the number on A-zone touchpad,
then press it.
u You can enter the number using the on-
screen keyboard. Select KEYPAD located
to the upper right of the screen.
4. Press the A-zone touchpad.
u Dialing starts automatically.
u If the on screen keyboard is displayed,
select Call.
1To make a call using the imported phonebook
You can also send a mess age or set a navigation
*
route to a contact’s address.
2 Text Message P. 394
2 Refer to Navigation System Manual
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 390 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

391
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

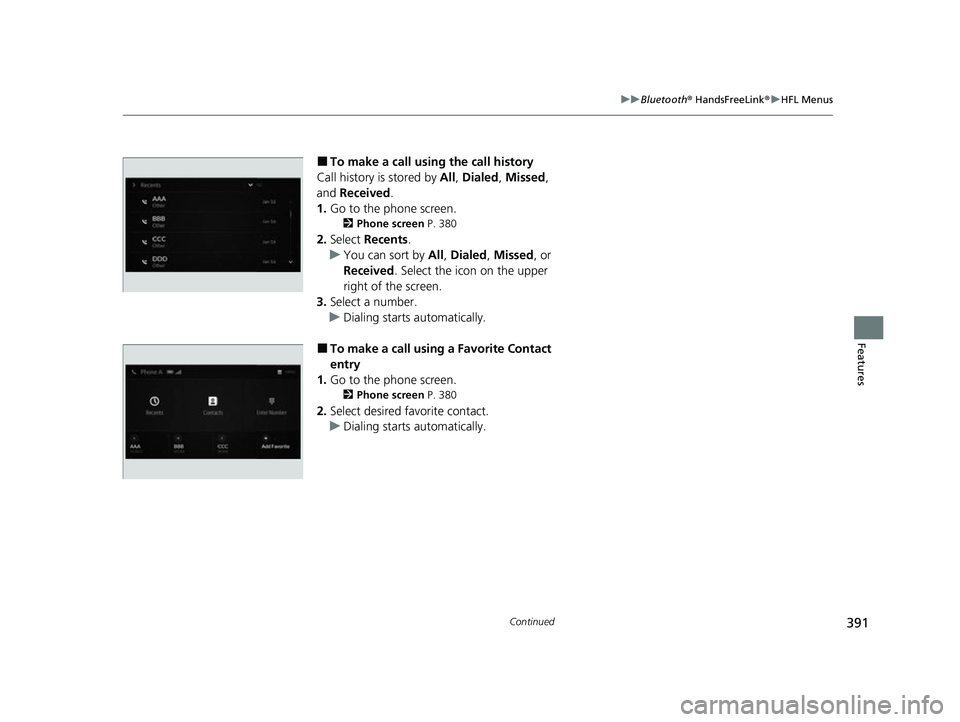

■To make a call using the call history
Call history is stored by All, Dialed , Missed ,
and Received.
1. Go to the phone screen.
2 Phone screen P. 380
2.Select Recents .
u You can sort by All, Dialed , Missed , or
Received . Select the icon on the upper
right of the screen.
3. Select a number.
u Dialing starts automatically.
■To make a call using a Favorite Contact
entry
1. Go to the phone screen.
2 Phone screen P. 380
2.Select desired favorite contact.
u Dialing starts automatically.
22 ACURA MDX-31TYA6000_02.book 391 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuBluetooth ® HandsFreeLink ®u HFL Menus
392
Features
When there is an incoming call, an audible
notification sounds (i f activated) and the
Incoming Call... screen appears.
Move the left selector wheel to the right to
answer the call. Move it to the left to decline
or end the call. u You can also select Answer or Ignore
on the audio/information screen to use
hands-free calling.
■Receiving a Call1 Receiving a Call
Call Waiting
To put a call on hold so that you can answer an
incoming call, move the left selector wheel to the
right.
Move the left selector wheel to the right to resume
the call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Move the left selector wheel to the left to end a call.
Instead of using the selector wheel, you can use the
icons on the audio/informati on screen to perform the
above mentione d functions.
When a screen other than the phone screen is
displayed in the A-zone, th e incoming call screen is
displayed in the B-zone.
22 ACURA MDX-31TYA6000_02.book 392 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

393
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
The following options are available during a call.
MUTE: Mute your voice.
TRANSFER TO MOBILE : Transfer a call from the system to your phone.
ENTER NUMBER : Send numbers during a call. This is useful when you call a menu-
driven phone system.
The available options are shown on the lower
half of the screen.
Select the option. u UNMUTE is displayed when the mute
function is on. Select UNMUTE to turn it
off.
u TRANSFER TO VEHICLE is displayed
when the hands-free mode is off. Select
TRANSFER TO VEHICLE to turn the
hands-free mode is on.
■Options During a Call1 Options During a Call
You can select the icons on the audio/information
screen.
22 ACURA MDX-31TYA6000_02.book 393 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

394
uuBluetooth ® HandsFreeLink ®u Text Message
Features
Text Message
You can operate the various options of th e text message function from the message
box. 1.Press the (home) button.
2. Select Messages .
The following options are available:
Inbox : Shows received messages.
Send Message to Contact : Sends a message
to your contact on the list.
2 Send Message to Contact P. 404
Add Favorite: Adds the favorite contact to
the message box.
u You can add a shortcut to the home
screen that will take you directly to your
favorite contact. Select and hold the
contact, then select Add to Home
Page .
MENU : Sets the message option for changing
the connected device, turning on or off
message notifications, or editing replies.
1 Text Message
The text message features may not be available
depending on a cellular phone.
22 ACURA MDX-31TYA6000_02.book 394 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

395
uuBluetooth ® HandsFreeLink ®u Text Message
Continued
Features

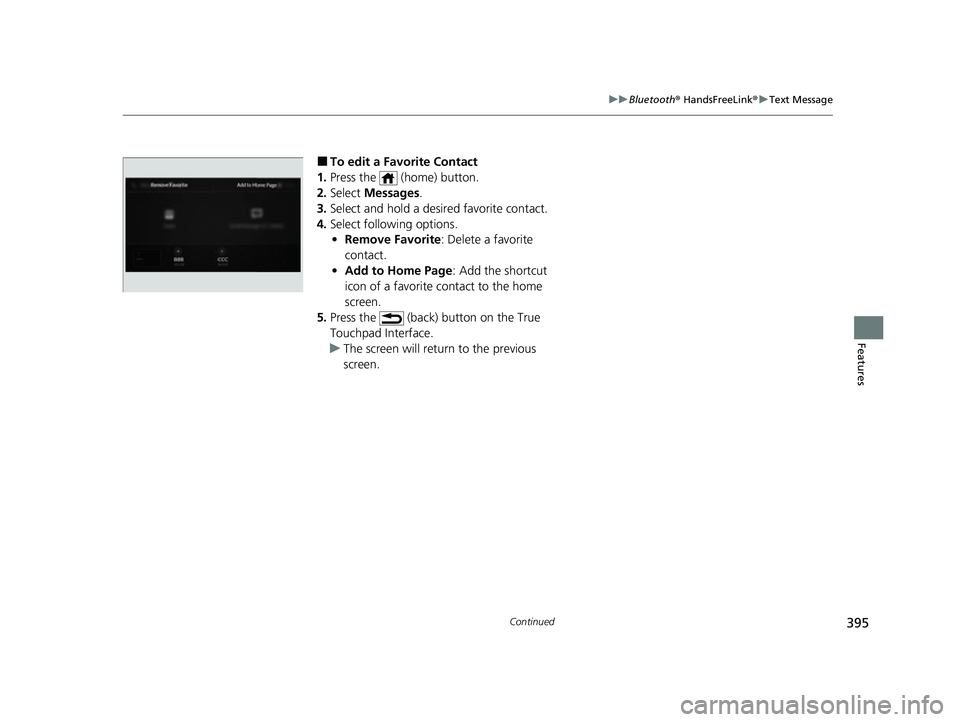

■To edit a Favorite Contact
1. Press the (home) button.
2. Select Messages.
3. Select and hold a desired favorite contact.
4. Select following options.
• Remove Favorite : Delete a favorite
contact.
• Add to Home Page : Add the shortcut
icon of a favorite contact to the home
screen.
5. Press the (back) button on the True
Touchpad Interface.
u The screen will return to the previous
screen.
22 ACURA MDX-31TYA6000_02.book 395 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuBluetooth ® HandsFreeLink ®u Text Message
396
Features

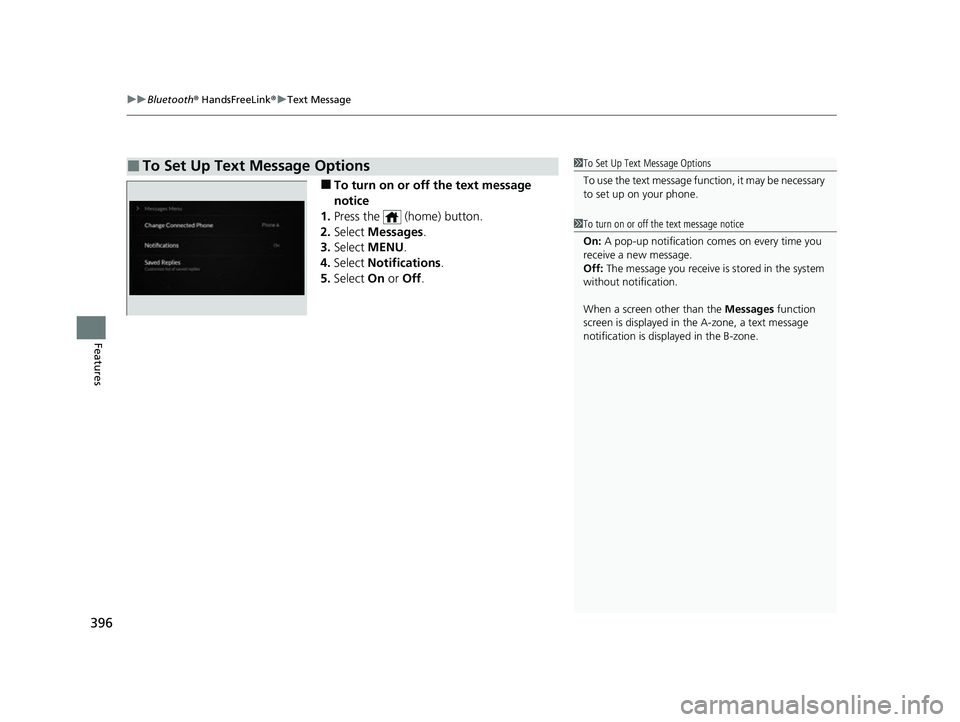

■To turn on or off the text message
notice
1. Press the (home) button.
2. Select Messages .
3. Select MENU .
4. Select Notifications .
5. Select On or Off .
■To Set Up Text Message Options1To Set Up Text Message Options
To use the text message func tion, it may be necessary
to set up on your phone.
1 To turn on or off the text message notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without not ification.
When a screen other than the Messages function
screen is displayed in the A-zone, a text message
notification is displa yed in the B-zone.
22 ACURA MDX-31TYA6000_02.book 396 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

Continued397
uuBluetooth ® HandsFreeLink ®u Text Message
Features
HFL can display newly received text mess ages as well as the last 20 messages
received on a linked cell phone. Each received message can be read aloud and
replied to using a fixed common phrase.
1.A pop-up appears and notifies you of a new
text message.
2. Select Open.
3. Select to listen to th e message. To stop
listening to the message, select .
u Select to hear the message from the
beginning.
■Receiving a Text Message1Receiving a Text Message
Some cell phones might not be able to read the
transmission log of data sent and data received.
The system does not display any received messages
while you are driving. You can only hear them read
aloud.
The system can only receive messages that are sent as
text (SMS) messages. The message sent using the
data services will not be displayed in the list.
With some phones, you may be able to display up to
20 of the last text messages received.
State or local laws may limit your use of the HFL text
message feature. Only use the text message feature
when conditions allow you to do so safely.
Depending on the status of A-zone, the received
message screen may be displayed on the B-zone.
22 ACURA MDX-31TYA6000_02.book 397 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuBluetooth ® HandsFreeLink ®u Text Message
398
Features

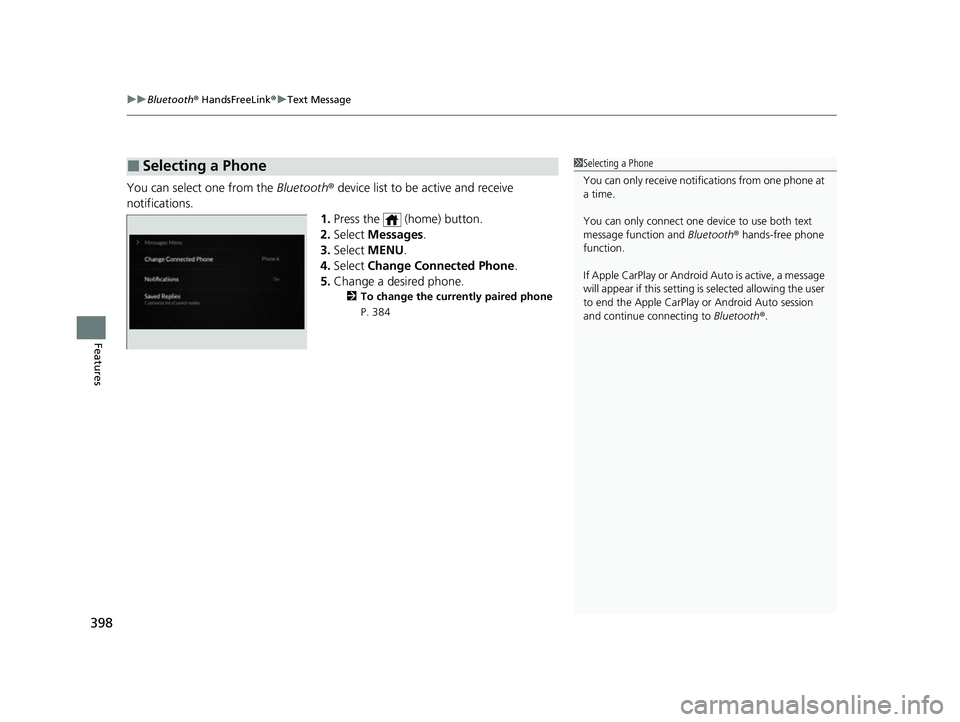

You can select one from the Bluetooth® device list to be active and receive
notifications.
1.Press the (home) button.
2. Select Messages .
3. Select MENU .
4. Select Change Connected Phone .
5. Change a desired phone.
2 To change the currently paired phone
P. 384
■Selecting a Phone1 Selecting a Phone
You can only receive notifications from one phone at
a time.
You can only connect one de vice to use both text
message function and Bluetooth® hands-free phone
function.
If Apple CarPlay or Android Auto is active, a message
will appear if this setting is selected allowing the user
to end the Apple CarPlay or Android Auto session
and continue connecting to Bluetooth®.
