tow ACURA NSX 2021 Owner's Manual

436
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Towing Hook Funnel
Tool Box
Wheel Bolt Cap Removal Tool
21 ACURA NSX PMC-31T6N6400.book 436 ページ ２０２０年１０月８日　木曜日　午後３時７分

437Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a sma ll puncture, from a small nail for instance,
you can use the temporary tire repair kit so that you can drive to the nearest service
station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface. Apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Acura NSX dealer or a
roadside assistant to have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture isYKit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
21 ACURA NSX PMC-31T6N6400.book 437 ページ ２０２０年１０月８日　木曜日　午後３時７分

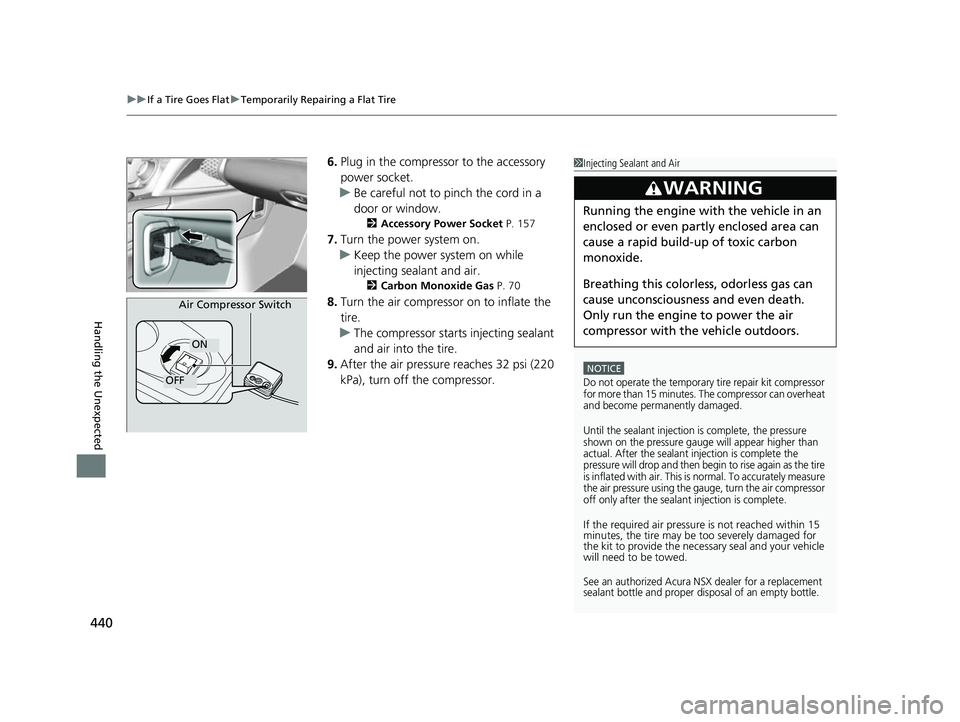

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
440
Handling the Unexpected
6. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 157
7.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 70
8.Turn the air compressor on to inflate the
tire.
u The compressor starts injecting sealant
and air into the tire.
9. After the air pressure reaches 32 psi (220
kPa), turn off the compressor.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit compressor
for more than 15 minutes. The compressor can overheat
and become permanently damagedM
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begi n to rise again as the tire
is inflated with air. This is normal. To accurately measure
the air pressure using the gauge, turn the air compressor
off only after the sealan t injection is complete.
If the required air pressure is not reached within 15
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal and your vehicle
will need to be towed.
See an authorized Acura NSX dealer for a replacement
sealant bottle and proper disposal of an empty bottle.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Air Compressor Switch
OFF
ON
21 ACURA NSX PMC-31T6N6400.book 440 ページ ２０２０年１０月８日　木曜日　午後３時７分

443
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
4. Recheck the air pressure using the gauge
on the air compressor.
u Do not turn the air compressor on to
check the pressure.
5. If the air pressure is:
• Less than 19 psi (130 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 466
•32 psi (220 kPa) or more:
Continue driving for another five
minutes or until you reach the nearest
service station if less than five minutes
away. Do not exceed 50 mph (80 km/h).
u Stop and check the air pressure again. If
the air pressure does not go down after
the five minute drive, you do not need to
check the pressure any more. Drive to
the nearest service station to fix or
replace the tire.
21 ACURA NSX PMC-31T6N6400.book 443 ページ ２０２０年１０月８日　木曜日　午後３時７分

445
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
6. Repackage and properly stow the kit.
u Ensure the sealant bottl e is inserted with
the sealant/air hose pa rallel to the tool
box to prevent the bottle/hose damage.Sealant/Air Hose
Tool Box
21 ACURA NSX PMC-31T6N6400.book 445 ページ ２０２０年１０月８日　木曜日　午後３時７分

447
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
7. Turn the air compressor switch on to
inflate the tire.
u The compressor starts to inject air into
the tire.
u If you have turned the power system
on, keep the power system on while
injecting air.
8. Inflate the tire to the specified air pressure.
9. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the deflation
button.
10. Unplug the kit from the accessory power
socket.
11. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
12. Push the deflation button until the gauge
returns 0 psi (0 kPa).
13. Repackage and properly stow the kit.Air Compressor Switch
OFF
ON
Deflation Button Air Pressure Gauge
21 ACURA NSX PMC-31T6N6400.book 447 ページ ２０２０年１０月８日　木曜日　午後３時７分

460
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle insp ected by an authorized Acura NSX
dealer.
• Put the transmission into
(N when you turn the power system on.
u Check to verify the
(N position on the instrument panel is selected
and if the indicator on the
(N button is illuminating or blinking.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 325
If the Low Oil Level Symbol Appears
■Reasons for the symbol to appear
Appears when the engine oil level is low.
■What to do as soon as the symbol appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
Check the oil level.
2 Oil Check P. 395
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 466
1If the Low Oil Level Symbol Appears
NOTICE
Running the engine with a low oil level can cause
serious mechanical damage almost immediatelyM
This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil levelM
If the symbol appears agai n, turn the power system
off, and contact an author ized Acura NSX dealer for
repairs immediately.
21 ACURA NSX PMC-31T6N6400.book 460 ページ ２０２０年１０月８日　木曜日　午後３時７分

466
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle

467
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the hatch.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, c ontact an authorized Acura
NSX dealer to have the vehicle checked.
Release Lever
21 ACURA NSX PMC-31T6N6400.book 467 ページ ２０２０年１０月８日　木曜日　午後３時７分

490
Index
S
Safe Driving................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 71
Safety Message ............................................. 2
Seat Belts ..................................................... 38
Automatic Seat Belt Tensioners .................. 40
Checking ................................................... 44
Fastening ................................................... 41
Installing a Child Seat ................................ 66
Pregnant Women ...................................... 43
Reminder ............................................. 39, 81
Warning Indicator ................................ 39, 81
Seat Heaters .............................................. 158
Seats .......................................................... 148
Adjusting ................................................. 148
Seat Heaters ............................................ 158
Security System ......................................... 126
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................. 86
Selecting a Forward-facing Child Seat ...... 65
Sequential Mode ...................................... 335
Sequential Mode Operation .................... 338
Setting the Clock ...................................... 108
Shift Button......................................... 25, 330
Operation ................................................ 332
Shifting (Transmission) ....................... 25, 330
Side Airbags ................................................ 54
Side Curtain Airbags ................................... 56
Siri ® Eyes Free ............................................ 219
SiriusXM ® Radio ........................................ 196 Snow Tires
................................................. 419
Sounds Unique to the SPORT HYBRID
SH-AWD® System...................................... 15
Spark Plugs ............................................... 472
Specifications ............................................ 472
Specified Fuel ................................... 375, 472
SPORT HYBRID Super Handling All-Wheel- Drive
TM (SPORT HYBRID SH-AWD® )....... 355
SRS Airbags (Airbags) ................................. 48
Steering Wheel Adjusting ................................................ 144
Stopping ................................................... 368
Storage ...................................................... 433
Summer Tires ............................................ 419
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 6, 7, 131
System Message Indicator .......................... 84
T
Temperature
Gauge ..................................................... 100
Temperature Sensor ................................. 163
Temporary Tire Repair Kit ....................... 437
Time (Setting) ........................................... 108
Tire Pressure Monitoring System
(TPMS) ..................................................... 356
Indicator............................................ 84, 459
Tires ........................................................... 411
Air Pressure ..................................... 412, 473 Chains .................................................... 419
Checking and Maintaining ...................... 411
Flat Tire (Puncture) .................................. 437
Inspection ............................................... 411
Labeling .................................................. 412
Regulations ............................................. 414
Rotation.................................................. 418
Summer .................................................. 419
Temporary Tire Repair Kit ........................ 437
Wear Indicators....................................... 416
Winter .................................................... 419
Tools ......................................................... 436
Towing a Trailer ....................................... 324
Towing Behind a Motorhome ................. 324
Towing Your Vehicle Emergency .............................................. 466
TPMS (Tire Pressure Monitoring
System) .................................................... 356
Transmission ....................................... 25, 330
Dual Clutch............................... 25, 329, 330
Fluids .............................................. 403, 473
Gear Position Indicator ...................... 80, 332
Number .................................................. 474
Sequential Mode..................................... 335
TRIP Button .............................................. 103
Trip Meter ................................................ 104
Troubleshooting ...................................... 435
Blown Fuse ............................. 461, 463, 464
Buzzer Sounds When Opening Door ......... 31
Emergency Towing ................................. 466
Flat Tire/Puncture .................................... 437
21 ACURA NSX PMC-31T6N6400.book 490 ページ ２０２０年１０月８日　木曜日　午後３時７分
