Acura RDX 2009 Owner's Manual

µµ
In MP3/WMA mode
The folder scan
f unction samples the f irst f ile of each
f older on the current disc in the
order they are compressed in MP3/
WMA. To activate this feature, press
the SCAN button twice. The first file
of each f older plays f or about 10
seconds. You will see ‘‘FOLDER
SCAN’’ next to disc number on the
audio control display. You will also
see ‘‘SCAN’’ and the f older number
blinking on the upper display. To
hear the rest of the f ile in the f older
currently scanning, press and hold
the SCAN button for more than 2
seconds. If you don’t, the system advances to
the next f older, plays about 10
seconds of it, and continues through
the rest of the f olders the same way.
When the system f inishes scanning
all the f olders on the current disc,
the system returns to the folder it
started scanning with, f older scan is
canceled, and the system begins to
play that folder normally. The disc scan
f unction samples the f irst track/f ile
(inMP3/WMAmode)oneachdisc
within the changer in numerical
order. To activate this f eature, press
the SCAN button twice. In the MP3/
WMA mode, press the SCAN button
three times. The f irst track/f ile on
each disc plays f or about 10 seconds.
You will see ‘‘SCAN’’ next to the
DISC icon on the audio control
display. You will also see ‘‘SCAN’’
and the disc number blinking on the
upper display. To hear the rest of the
track/f ile on the disc currently
scanning, press and hold the SCAN
button for more than 2 seconds.
CONT INUED
FOLDER SCAN DISC SCAN
Audio System
Features
207
FOLDER SCAN INDICATOR
\f—\f—

y
\f\f
y
() \fy\f
y
2009 RDX

µ
If you don’t, the system advances to
the next disc, plays about 10 seconds
of it, and continues through the rest
of thediscsthesameway.Whenthe
system f inishes scanning all the
discs, disc scan is canceled, and the
system begins to play the f irst track/
f ile of that disc normally. You will see ‘‘RANDOM’’ next to the
TRACK/FILE icon on the audio
display. To turn of f this f eature,
select random, then press ENTER
again.
Each time you press and release the
SCAN button, the mode changes
f rom scan to f older scan, disc scan,
then to normal play.
This f eature plays the
tracks (all f iles in each f older in
MP3/WMA mode) within a disc in
random order. To activate random
play, press the AUDIO button to
view the audio control display, then
push down the selector on the
interface dial. Rotate the interface
dial to select random. Press ENTER
on the selector to enter your
selection.
Audio System
RANDOM (Random within a
disc)
208

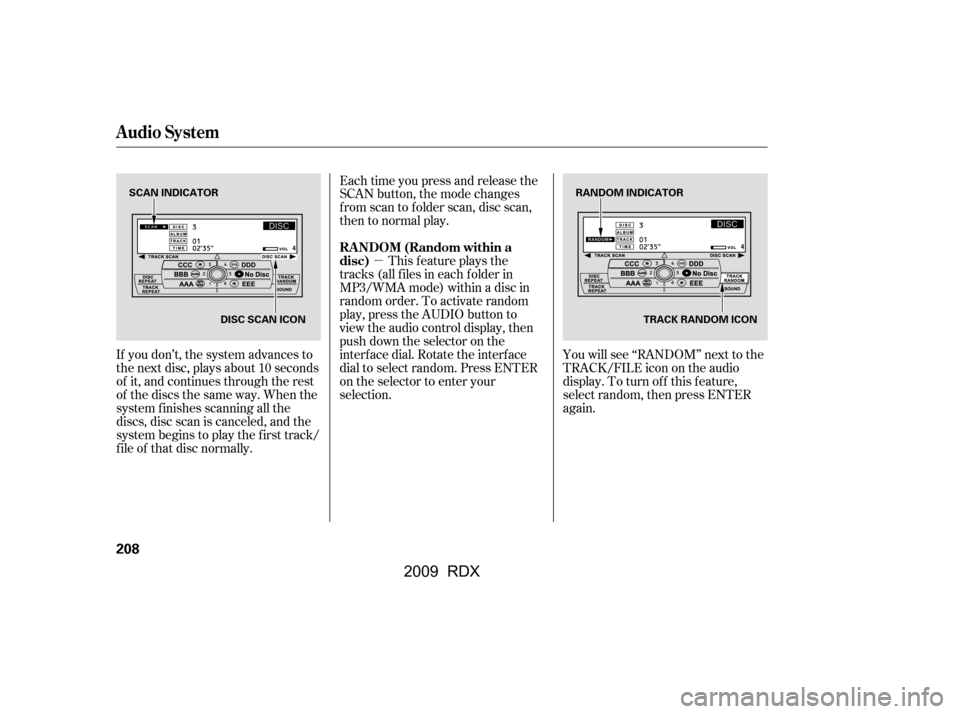

SCAN INDICATOR RANDOM INDICATOR
TRACK RANDOM ICON
DISC SCAN ICON
\f—\f—

y
\f\fy
() \fy\f
y
2009 RDX

µ
In MP3/WMA mode
This
f eature plays the f iles within a f older
in random order, rather than in the
order they are compressed in MP3/
WMA. To activate folder random
play, press the AUDIO button to
view the audio control display, then
push down the selector on the
interface dial. Rotate the interface
dial to select the f older random.
Press ENTER on the selector to
enter your selection.
You will see ‘‘FOLDER RANDOM’’
on the audio control display. To turn
of f this f eature, select the f older
random then, press ENTER again.You can play a DVD-A disc in the CD
changer. The disc controls are same
as previously described.
To pause a disc, press the preset
button which corresponds to the
current disc. To play the disc again,
press the preset button again.
You can also pause a disc on the
audio control display. Press the
AUDIO button to view the display,
select the corresponding number of
the current disc on the preset icons
by turning the interface knob, then
press ENTER on the interf ace
selector. To play the disc again,
select the preset icon, then press
ENTER again.
FOLDER RANDOM
Playing a DVD-A Disc
To Pause a Disc
Audio System
Features
209
FOLDER RANDOM INDICATOR
FOLDER RANDOM ICON
\f—\f—

y
\f
y
() \fy\f
y
2009 RDX

If you turn the system of f while a
disc is playing, either with the PWR/
VOL knob or by turning of f the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it lef t of f .
To take the system out of disc mode,
press the AM/FM, or DISC/AUX, orbutton to switch to the radio,
or satellite radio, or auxiliary input
while a disc is playing. When you
return to disc mode by pressing the
DISC/AUX button, play will continue
at the same point that it left off. To remove the disc that is currently
playing, press and release the eject
( ) button. You will see
‘‘EJECT’’ on the upper display. When
you remove the disc f rom the slot,
the system begins the load sequence
so you can load another disc in that
position. If you do not load another
disc within 10 seconds, the system
selects the previous mode (AM, FM1,
FM2, or XM).
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds and put the CD
changer in pause mode. To begin
playing the disc, press the DISC/
AUX button.
To remove a different disc from the
changer,firstselectitbypressing
the corresponding number on the
preset button or turning the
interf ace knob, and pressing ENTERon the interf ace selector. When that
disc begins playing, press the eject
button.
Press and hold the eject button until
you hear a beep to remove all the
discs from the changer.
You can also eject discs when the
ignition switch is of f by pressing the
eject button. The disc that was last
selected is ejected f irst. You can
eject the rest of the discs one at a
time.
For inf ormation on how to handle
and protect compact discs, see page
.
For inf ormation, see page .
For inf ormation, see page . 223
217
226
To Stop Playing a Disc Removing Discs f rom the
Changer
Protecting Discs
CD Changer Error Messages
Adjusting the Sound
Audio System
210
\f—\f—

y
\fy
() \fy\f
y
2009 RDX

CONT INUED
On RDX with Technology Package model only
XMSatellite Radio
Audio System
Features
211

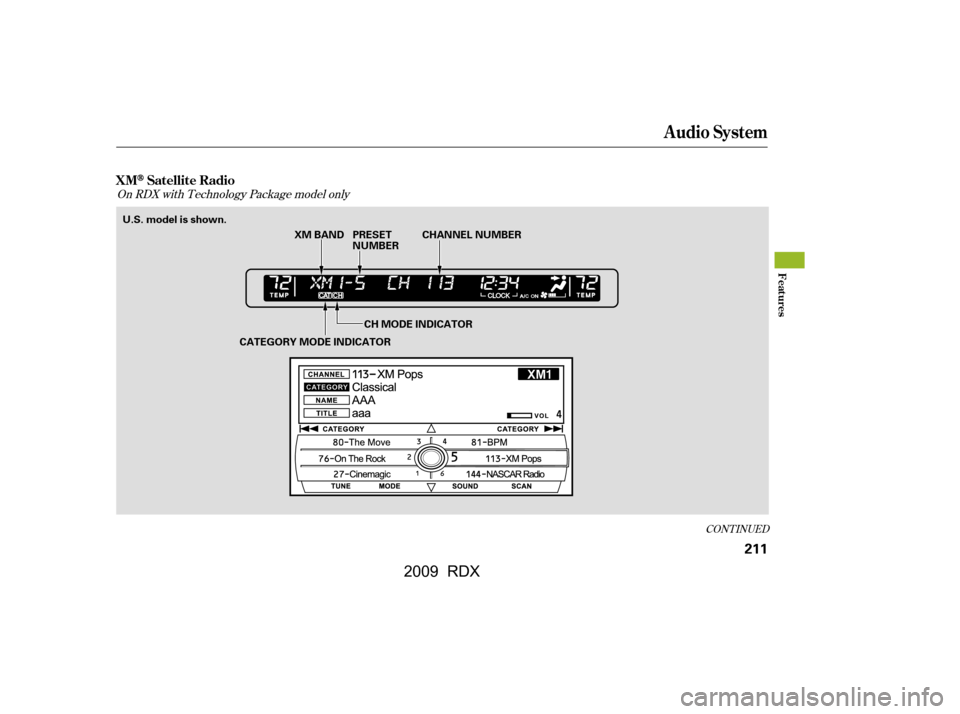

XM BAND
CATEGORY MODE INDICATOR PRESET
NUMBER
CHANNEL NUMBER
U.S. model is shown.
CH MODE INDICATOR
\f—\f—

y
\fy
() \fy\f
y
2009 RDX

Audio System
212

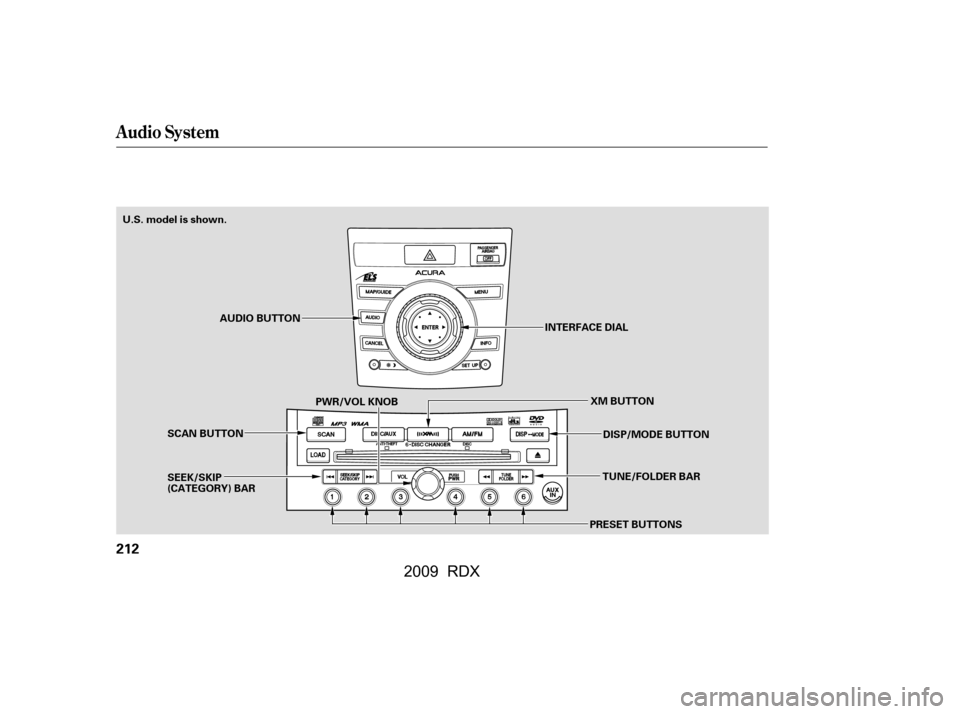

AUDIO BUTTONTUNE/FOLDER BAR
PRESET BUTTONS DISP/MODE BUTTON
PWR/VOL KNOB
SEEK/SKIP
(CATEGORY) BAR
SCAN BUTTON INTERFACE DIAL
XM BUTTON
U.S. model is shown.
\f—\f—

y
\fy
() \fy\f
y
2009 RDX

µµ
XM Satellite Radio receives signals
f rom two satellites to produce clear,
high-quality digital reception. It
of f ers many channels in several
categories. Along with a large
selection of dif f erent types of music,
XM Satellite Radio also allows you to
view channel and category selections
in the upper display and the audio
control display. To listen to the XM Satellite Radio,
turn the ignition switch to the
ACCESSORY (I) or ON (II) position.
Push the PWR/VOL knob to turn on
the audio system, and press the
button. To view the audio
control display, press the AUDIO
button. Adjust the volume turning
the PWR/VOL knob. The last
channel you listened to will show on
the upper display.
Each time you press and
release the DISP/MODE button, the
upper display changes in the
f ollowing sequence: Channel name,
category, artist name, and music title. To switch between the
category mode and channel mode,
press and hold the DISP/MODE
button until the mode changes. A
‘‘CH’’ (channel) or ‘‘CAT’’ (category)
mode indicator appears on the upper
display.
Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, and Canada, except
Hawaii and Alaska. XM
is a
registered trademark of XM Satellite
Radio, Inc.
CONT INUED
Audio System
DISP MODE
Operating the XM Satellite Radio
Features
213
\f—\f—

y
\fy
() \fy\f
y
2009 RDX

µ

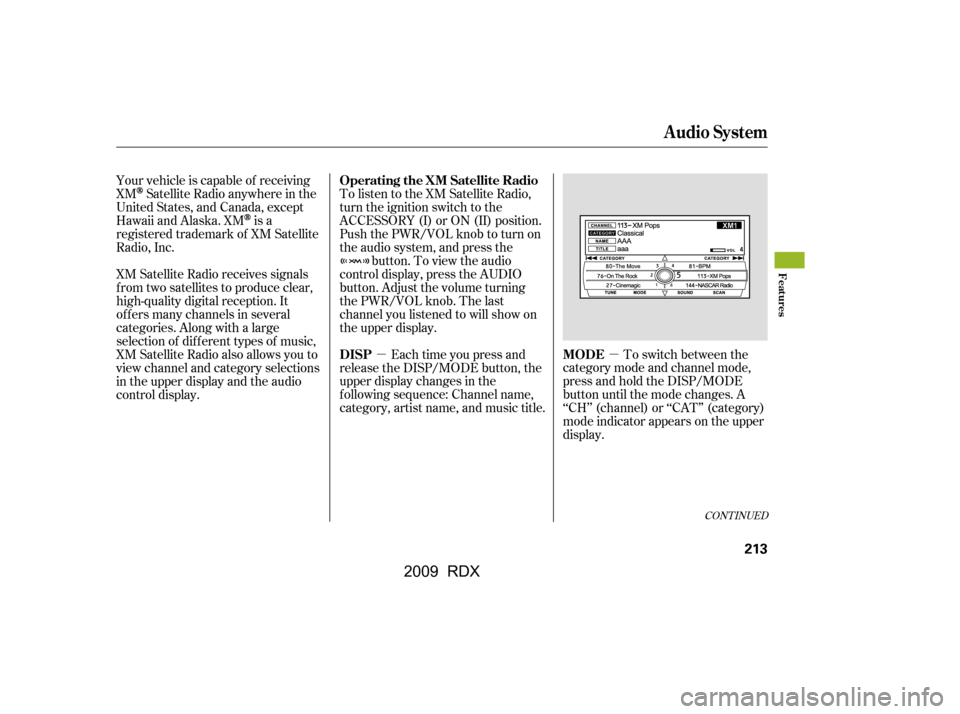

µ You can also change channel
selections on the audio control
display. Press the AUDIO button to
view the display, then push down the
selector on the interf ace dial. Rotate
the interf ace dial to select the tune.
Press ENTER on the selector to
enter your selection. Rotate the
interf ace knob to the desired
channel. In the category mode, you
can only select channels within that
category. Press either side of the SEEK/SKIP
(CATEGORY) bar ( or )
to select another category.
You can also change the category on
the audio control display. Press the
AUDIO button to view the display,
then push the selector on the
interf ace dial to the right side or lef t
side to select another category.
When in the satellite radio mode,
you can use any of f our methods to
f ind channels: TUNE, SEEK/SKIP
(CATEGORY), SCAN, and the
preset icons.
You can also switch between the
category mode and channel mode on
the audio control display. Press the
AUDIO button to view the display,
then push down the selector on the
interface dial. Rotate the interface
dial to select the mode. Press
ENTER on the selector to enter your
selection.
Press the TUNE/
FOLDER bar to change channel
selections. Press the side of the
bar to tune to higher numbered
channels, and the side of the
bar to tune to lower numbered
channels. In the category mode, you
can only select channels within that
category.
Audio System
SEEK /SK IP (CA T EGORY)
T o Select a Channel
TUNE
214

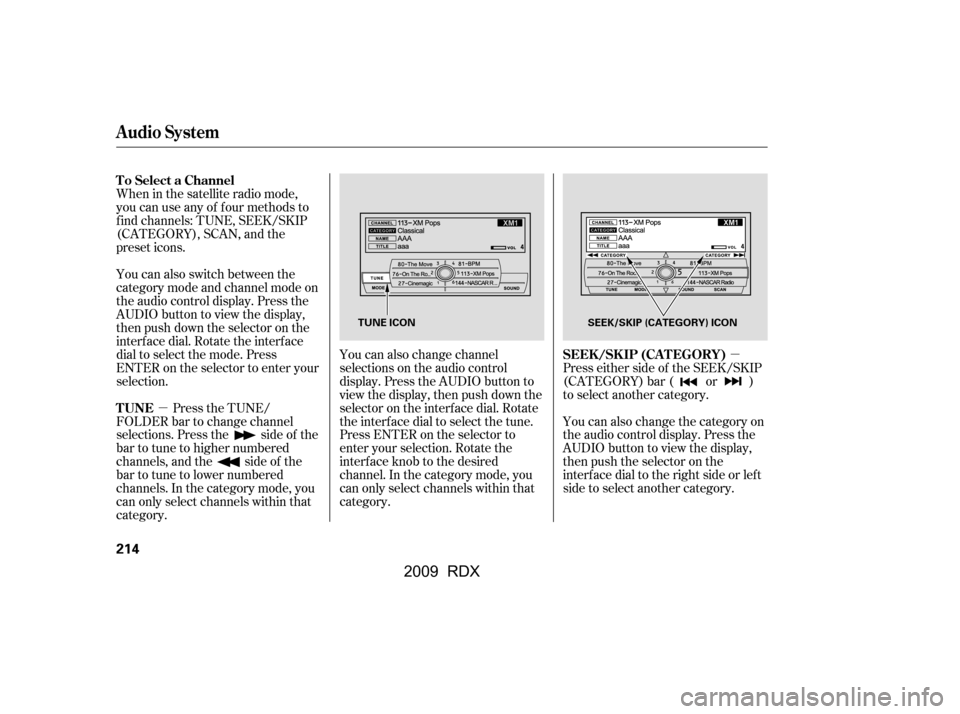

TUNE ICON SEEK/SKIP (CATEGORY) ICON
\f—\f—

y
\fy
() \fy\f
y
2009 RDX

µµ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Youcanstoreupto12
preset channels using the preset
buttons/icons. Each button/icon
stores one channel f rom the XM1
band and one channel f rom the XM2
band.
To store a channel:
You can also scan the channels on
the audio control display. Press the
AUDIO button to view the display,
then push down the selector on the
interf ace dial. Push the selector to
the right to activate scan feature. In category mode, only channels within that category can be selected.
In channel mode, all channels can be
selected.Usethetune,seek,orscan
function to tune to a desired
channel.
Press the button. To view
the audio control display, press the
AUDIO button. Either XM1 or XM
2 will be shown on the display.
1.
2.
CONT INUED
Audio System
SCAN
Preset
Features
215
SCAN ICON
SCAN INDICATOR
\f—\f—

y

\fy
() \fy\f\fy
2009 RDX

Pick a preset number f or the
channel you want to store. Press
and hold the appropriate button
until you hear a beep.

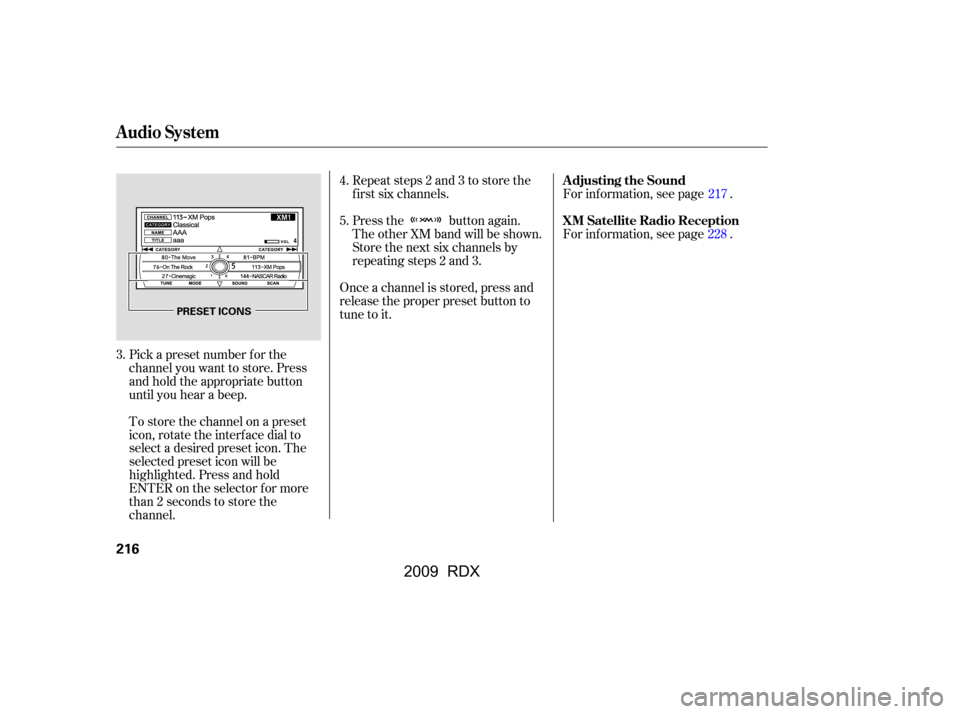

To store the channel on a preset
icon, rotate the interf ace dial to
select a desired preset icon. The
selected preset icon will be
highlighted. Press and hold
ENTER on the selector f or more
than 2 seconds to store the
channel.Repeat steps 2 and 3 to store the
f irst six channels.
Press the button again.
The other XM band will be shown.
Store the next six channels by
repeating steps 2 and 3.
Once a channel is stored, press and
release the proper preset button to
tune to it. For inf ormation, see page .
For inf ormation, see page .
3. 4.
5.
217
228
Audio System
XM Satellite Radio Reception
Adjusting the Sound
216
PRESET ICONS
\f—\f—

y


y
() \fy\f
y
2009 RDX
