child restraint Acura RDX 2016 Owner's Manual

9
Quick Reference Guide
Safe Driving (P 23)
Airbags (P 37)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 50)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 62)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 28)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 29)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
* Not available on all models

uuFor Safe Driving uYour Vehicle’s Safety Features
28
Safe DrivingFor the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 128
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 162
•Adjust head restraints to the proper posi tion. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Head Restraints P. 164
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 32
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 50
■Safety Checklist1Safety Checklist
If the door and tailgate open indicator
* is on and a
message appears on the multi-information display, a
door and/or the tailgate is not completely closed.
Close all doors and the ta ilgate tightly until the
message disappears. 2 Door and Tailgate Open Indicator
* P. 72
2 Multi-Information Display Warning and
Information Messages P. 87
Models with
full color displayModels without
full color display
*
* Not available on all models

38
uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that continually
monitors and can records information
about the sensors, the airbag activators,
the seat belt tensioners, and driver and
front passenger seat belt use when the
power mode is in ON.
eAutomatic front seat belt tensioners. The
driver’s and front passenger’s seat belts
incorporate sensors that detect whether
or not they are fastened.
fA driver’s seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is 65
lbs (29 kg) or less (the weight of an infant
or small child).
hImpact sensors that can detect a
moderate to severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kA rollover sensor that detects whether
the vehicle is about to roll over.

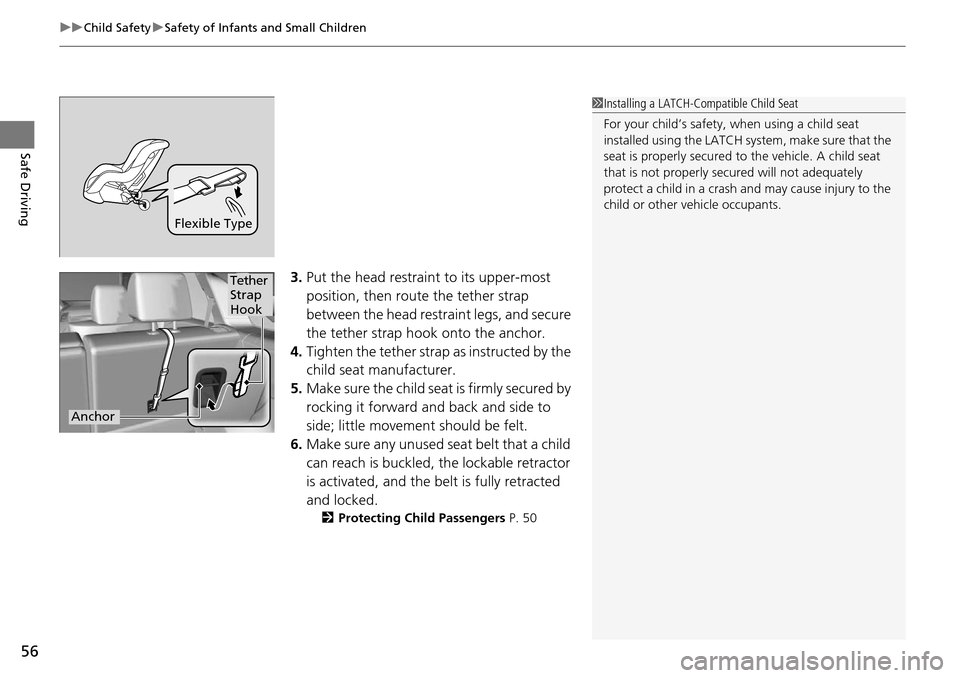

uuChild Safety uSafety of Infants and Small Children
56
Safe Driving
3. Put the head restraint to its upper-most
position, then rout e the tether strap
between the head restraint legs, and secure
the tether strap hook onto the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused se at belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 50
Flexible Type
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
seat is properly secured to the vehicle. A child seat
that is not properly secu red will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether
Strap
Hook
Anchor

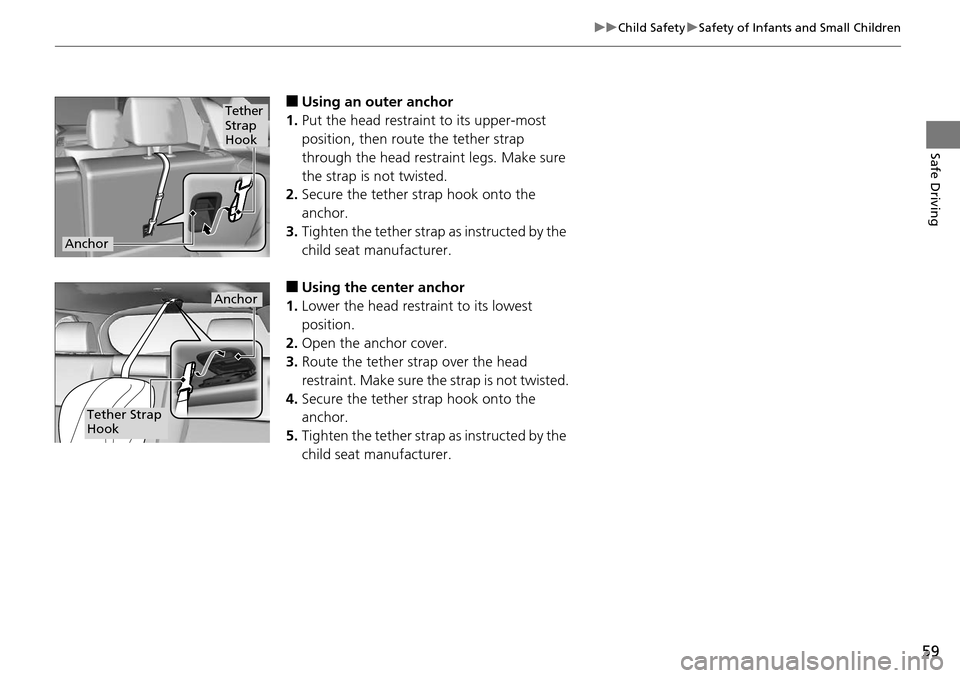

59
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using an outer anchor
1. Put the head restraint to its upper-most
position, then route the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
2. Secure the tether strap hook onto the
anchor.
3. Tighten the tether strap as instructed by the
child seat manufacturer.
■Using the center anchor
1. Lower the head restraint to its lowest
position.
2. Open the anchor cover.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook onto the
anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether
Strap
Hook
Anchor
Tether Strap
Hook
Anchor

443
Index
S
Safe Driving................................................ 23
Safety Check ............................................... 28
Safety Labels .............................................. 63
Safety Message ............................................ 1
Seat Belts .................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 57
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 69
Seat Heaters ............................................. 177
Seats .......................................................... 162
Adjusting ................................................ 162
Front Seats.............................................. 162
Lumbar Support ...................................... 162
Rear Seats ............................................... 167
Seat Heaters ........................... 177, 178, 179
Security System ........................................ 137
Immobilizer System Indicator..................... 74
Security System Alarm Indicator ................ 75
SEL/RESET Button ....................................... 94
Select Lever ........................................ 16, 275
Operation ......................................... 16, 276
Releasing ................................................ 413
Won’t Move ........................................... 413 Selecting a Child Seat
................................. 54
Selector Knob (Audio) .............................. 190
Sequential Shift Mode ............................. 277
Setting the Clock ...................................... 118
Shift Lever ........................................... 16, 275
Shift Lever Position Indicator ............. 68, 276
Shifting (Transmission) ............................. 275
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Side Curtain Airbags ................................... 46
SiriusXM ® Radio ........................................ 200
SMS Text Message ............................ 236, 248
Snow Tires ................................................. 378
Spare Tire .......................................... 391, 427
Spark Plugs ................................................ 426
Specifications ............................................ 426
Specified Fuel .................................... 335, 426
Speedometer .............................................. 93
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 268
Does Not Start ......................................... 408
Jump Starting .......................................... 411
Remote Engine Start ................................ 270
Steering Wheel ......................................... 158
Adjusting ................................................. 158
Stopping .................................................... 326
Summer Tires ............................................ 378
Sunglasses Holder ..................................... 176
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering Wheel) ........ 4, 5, 144Synchronized Mode
................................. 182
System Message Indicator .......................... 75
T
Tachometer................................................. 93
Tailgate ..................................................... 131
Unable to Open....................................... 424
Temperature Outside Temperature Display ..................... 98
Temperature Gauge ................................... 93
Temperature Sensor ........................... 98, 183
Temporary Tire Repair Kit ....................... 398
Text Message .................................... 236, 248
Time (Setting) ........................................... 118
Tire Pressure Monitoring System
(TPMS) ..................................................... 310
Indicator............................................ 73, 419
Tire Repair Kit ........................................... 397
Tires ........................................................... 370
Air Pressure ..................................... 371, 427
Checking and Maintaining ...................... 370
Inspection ............................................... 370
Labeling .................................................. 371
Puncture (Flat Tire) .......................... 391, 397
Regulations ............................................. 373
Rotation .................................................. 377
Spare Tire ........................................ 391, 427
Summer .................................................. 378
Temporary Tire Repair Kit ........................ 398
Tire Chains .............................................. 378
