display ACURA RDX 2023 Owners Manual

460
uuWhen Driving uAcura Integrated Dynamics System
Driving
■Selecting the Dynamic Mode
SNOW mode
COMFORT mode
NORMAL mode
Changing modes alters
the screen on the multi-
information display.
Currently selected mode
is displayed in the right
bottom.
Audio/Information Screen
Turn
Currently selected
mode
Press the or button on the
True Touchpad Interface
2 Audio System Basic Operation P. 260
SPORT mode
Dynamic Mode

Switch
23 ACURA RDX-31TJB6400.book 460 ページ ２０２２年８月４日　木曜日　午後１時５１分

464
uuWhen Driving uAuto Idle Stop
Driving
Auto Idle Stop
To help maximize fuel econ omy, the engine automatica lly stops when the vehicle
comes to a stop, depending on environmen tal and vehicle operating conditions. The
indicator (green) comes on at this time.
The environmental and vehicle conditions that
impact Auto Idle Stop system operation are
varied.
2Auto Idle Stop Activates When:
P. 467, 468
The engine then restarts once the vehicle is
about to move again, and the indicator
(green) goes off.
2 The Engine Automatically Restarts When:
P. 469
If the driver’s door is opened while the
indicator (green) comes on, a buzzer sounds
to notify you that the Auto Idle Stop function
is in operation.
A message associated with Auto Idle Stop
appears on the multi-information display.
1 Auto Idle Stop
The 12-volt battery insta lled in this vehicle is
specifically designed for a m odel with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the 12-volt ba ttery life, and prevent
Auto Idle Stop from activati ng. If you need to replace
the 12-volt battery, make sure to select the specified
type. Ask a dealer for more details.
Auto Idle Stop Indicator
(Green)
23 ACURA RDX-31TJB6400.book 464 ページ ２０２２年８月４日　木曜日　午後１時５１分

465
uuWhen Driving uAuto Idle Stop
Continued
Driving
The Auto Idle Stop suspend indicator comes
on and a message appears on the multi-
information display. wh en the Auto Idle Stop
system cannot be activated.
2 Indicators P. 80
2 Auto Idle Stop System ON/OFF P. 466
Auto Idle Stop Suspend
Indicator
23 ACURA RDX-31TJB6400.book 465 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuWhen Driving uAuto Idle Stop
466
Driving
To turn the Auto Idle Stop system off, press
this button. The Auto Idle Stop system stops.
u Auto Idle Stop system will stop, the
indicator will come on and a message
appears on the multi-information
display.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
■Auto Idle Stop System ON/OFF1 Auto Idle Stop System ON/OFF
If you turn off the Auto Idle Stop system while it is
activated, the engine will restart.
2 Auto Idle Stop Activates When: P. 467
If you hold the Auto Idle Stop OFF button, you can
disable idle stop messages. 2 Indicators P. 80
Auto Idle Stop OFF
Indicator
Auto Idle Stop OFF
Button
23 ACURA RDX-31TJB6400.book 466 ページ ２０２２年８月４日　木曜日　午後１時５１分

475
uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
Continued
Driving
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
Monitors the tire pr essure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the multi-information display.
1 Tire Pressure Monitoring System (TPMS) with Tire Fill Assist
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come
on. 2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 676
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become overinflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of overinflation.
Only use genuine TPMS specified wheels since your
vehicle’s wheels are equipped with the low tire
pressure/TPMS sensor.
If you drive your vehicle without the genuine TPMS
specified wheels, the low tire pressure/TPMS
indicator blinks for one minutes and then stays on.
2 Tire and Wheel Replacement P. 620
The TPMS audibly and visually informs you of
changes in tire pressure of the individual tire that you
are adjusting using audibl e and visual indications.
If a change in tire pressure has been significant, the
system beeps and the hazard lights flash continuously
for five seconds when the specified tire pressure is
reached. Stop filling the tire.Low Tire Pressure/TPMS Indicator
23 ACURA RDX-31TJB6400.book 475 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
476
Driving
To select the tire pressure monitor, set the power
mode to ON, and roll the right selector wheel
until you see the tire pressure screen.
The pressure for each tire is displayed in psi
(U.S.) or kPa (Canada).
Tire Pressures Low is displayed when a tire
has significantly low pressure. The specific tire
is displayed on the screen.
■Tire Pressure Monitor1Tire Pressure Monitor
The pressure displayed on the multi-information
display can be slightly different from the actual
pressure as measured by a gauge. If there is a
significant di fference between the two values, or if
the low tire pressure/TPMS indicator and the message
on the multi-information di splay do not go off after
you have inflated the tire to the specified pressure,
have the system checked by a dealer.
Tire Pressure Monitor System Problem. Check
Tire Pressure. See Your Dealer. may appear if you
drive with the compact spare tire
*, or there is a
problem with the TPMS.
* Not available on all models
23 ACURA RDX-31TJB6400.book 476 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuWhen Driving uBlind Spot Information System
480
Driving
■When the system detects a vehicle
Blind spot information system alert indicator:
Located near the pillar on both sides.
Comes on when:
• A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).
• You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).
Blinks and a beeper sounds when:
You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
blind spot information system alert indicator is
on. u The beeper sounds three times.1Blind Spot Information System
For proper blind spot information system operation:
•Always keep the rear bumper and area around the
radar sensors clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:
•The blind spot informatio n system alert indicator
does not come on and the message Blind Spot
Information System Not Available appears on
the multi-information display.
•The blind spot informatio n system alert indicator
may come on even with the message displayed.
Comes On
Blinks
23 ACURA RDX-31TJB6400.book 480 ページ ２０２２年８月４日　木曜日　午後１時５１分

Continued481
uuWhen Driving uBlind Spot Information System
Driving
When you turn the blind spot information
system on and off, do the following.
1. Press the safety support switch.
2. Roll the right selector wheel to the
symbol and push it.
u The message appears on the multi-
information display when the system
turns on or off.
u A check mark appears in the box and the
color of the symbol changes green
when the system is on. The check mark
disappears and the color of the
symbol changes gray when the system is
off.
The blind spot information system is in the
previously selected on (checked) or off
(unchecked) setting eac h time you start the
engine.
■Blind Spot Information System On and Off1 Blind Spot Information System
You can also select the sa fety support content from
the multi-information display.
2 Multi-Information Display P. 137
You can change the settings for the blind spot
information system. 2 Customized Features P. 359
Safety Support Switch
Right Selector Wheel
23 ACURA RDX-31TJB6400.book 481 ページ ２０２２年８月４日　木曜日　午後１時５１分

485
uuAcuraWatchTMu
Driving
You can see the current state of ACC with
Low Speed Follow, and Lane Keeping Assist
System (LKAS).
You can have the head-up display show you the current state of each function.
2 Head-Up Display* P. 148
■Multi-Information Display Content
6
aIndicates that ACC with Low Speed Follow is ready to be activated.
•Green: The system is on.
• White: The system is standby.
• Amber: There is a problem with the system.
bIndicates that LKAS is ready to be activated.
•Green: The system is on.
• White: The system is standby.
• Amber: There is a problem with the system.
cIndicates that LKAS is activated and whether or not traffic lane lines are detected.
•Solid lane outlines: The system is on.
• Lane outlines: The system is in standby.
dIndicates whether or not ACC with Low Speed Follow detected the vehicle ahead.
eShows vehicle set speed in ACC with Low Speed Follow.
fShows set vehicle interval in ACC with Low Speed Follow.
Models with Head-up display
* Not available on all models
23 ACURA RDX-31TJB6400.book 485 ページ ２０２２年８月４日　木曜日　午後１時５１分

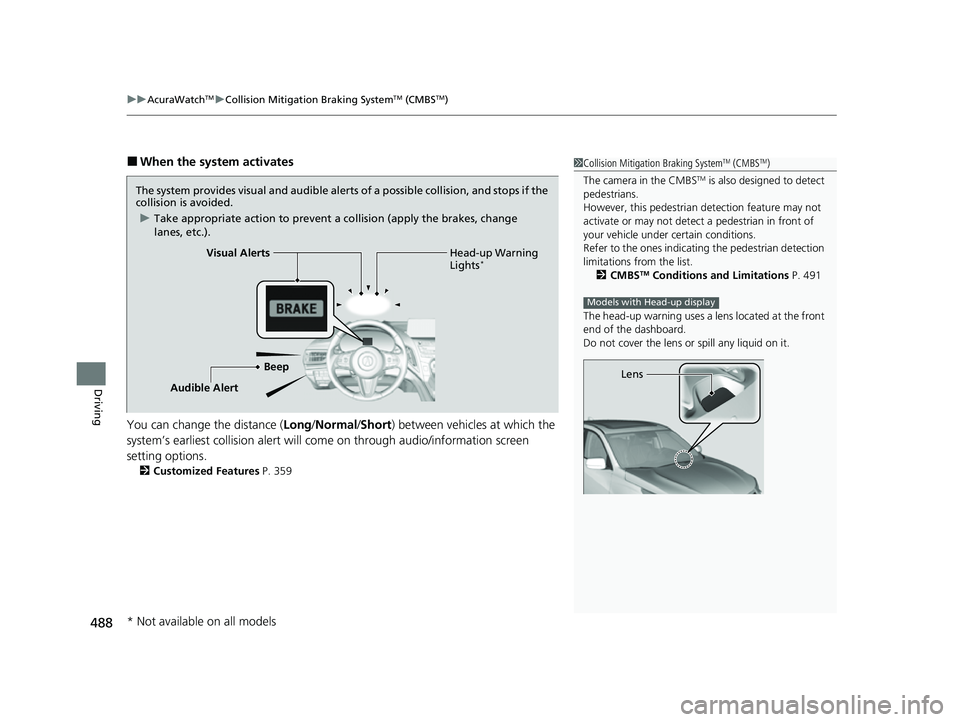

uuAcuraWatchTMuCollision Mitigation Braking SystemTM (CMBSTM)
488
Driving
■When the system activates
You can change the distance ( Long/Normal /Short ) between vehicles at which the
system’s earliest collision alert will co me on through audio/information screen
setting options.
2 Customized Features P. 359
1Collision Mitigation Braking SystemTM (CMBSTM)
The camera in the CMBS
TM is also designed to detect
pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list. 2 CMBS
TM Conditions and Limitations P. 491
The head-up warning uses a lens located at the front
end of the dashboard.
Do not cover the lens or spill any liquid on it.
Models with Head-up display
Lens
The system provides visual and audible alerts of a possible collisi on, and stops if the
collision is avoided.
u Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.).
Beep Head-up Warning
Lights
*Visual Alerts
Audible Alert
* Not available on all models
23 ACURA RDX-31TJB6400.book 488 ページ ２０２２年８月４日　木曜日　午後１時５１分
