turn signal bulb Acura RLX 2016 Owner's Manual

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink if you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2 Replacing Light Bulbs P. 484, 485, 486
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator●Comes on when the fog lights are
on.——
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.
●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the power system.
Set the power mode to VEHICLE OFF
(LOCK), then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
16 ACURA RLX E-AWD-31TY36200.book 85 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

484
Maintenance
Replacing Light Bulbs
Headlight Bulbs
Headlight bulbs are LED type. Have an authorized Acura dealer inspect and replace
the light assembly.
Fog Light Bulbs
Fog light bulbs are LED type. Have an auth orized Acura dealer inspect and replace
the light assembly.
Front Turn Signal/Parking Light Bulbs
Front turn signal/parking light bulbs are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
1 Headlight Bulbs
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
16 ACURA RLX E-AWD-31TY36200.book 484 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

485
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger’s side : Turn the steering wheel
to the left.
Driver’s side: Turn the steering wheel to
the right.
2. Remove the holding clips (A) and (B), pull
the inner fender back.
2 Engine Compartment Cover P. 474
3.Turn the socket to th e left and remove it,
then remove the old bulb.
4. Insert a new bulb.
Side Turn Signal/Emerge ncy Indicator Light Bulbs
Door mirrors have the side turn lights. Have an authorized Acura dealer inspect and
replace the light assembly.
Front Side Marker Light: 2 CP
1Front Side Marker Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Holding clip (B-type)
Clip
Push until the
pin is flat.
Inner Fender
Clip (A)Clips (B)
Bulb Socket
16 ACURA RLX E-AWD-31TY36200.book 485 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

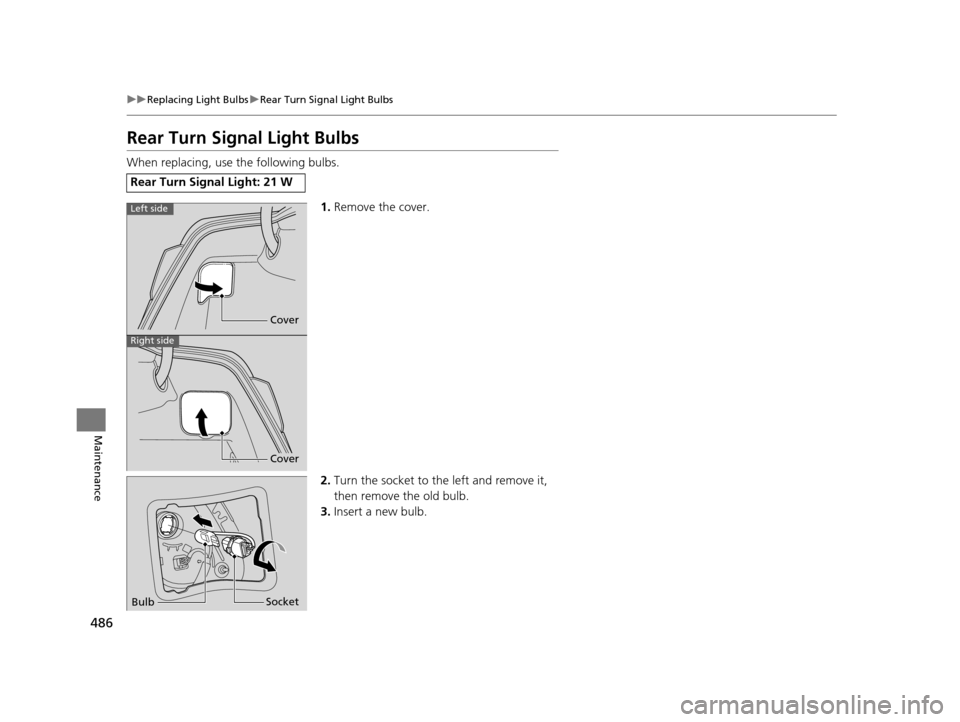

486
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
2. Turn the socket to the left and remove it,
then remove the old bulb.
3. Insert a new bulb.
Rear Turn Signal Light: 21 W
Left side
Cover
Cover
Right side
Bulb Socket
16 ACURA RLX E-AWD-31TY36200.book 486 ページ ２０１５年５月２２日　金曜日　午後３時
５０分

556
Information
Specifications
■Vehicle Specifications
ModelAcura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 5,379 lbs (2,440 kg)
Canada: 2,440 kg
Gross Axle Weight
Rating (Front)U.S.: 2,822 lbs (1,280 kg)
Canada: 1,280 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,590 lbs (1,175 kg)
Canada: 1,175 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 16.0 - 17.8 oz (455 - 505 g)
Lubricant Type ND-OIL 11
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.1 US gal (57 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.3 US qt (5.0 ℓ)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog LightsLED
Front Turn Signal/Parking Lights LED
Front Side Marker Lights2 CP
Side Turn Signal Lights
(on Door Mirrors) LED
Brake/Taillights/Rear Side Marker
LightsLED
Taillights LED
Back-Up Lights16 W
Rear Turn Signal Lights 21 W
High-Mount Brake LightLED
Rear License Plate Lights LED
Door Outer Handle Ambient LightsLEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights2.1 WFront Door Pocket LightsLEDCenter Pocket LightLEDBeverage Holder LightLEDDoor Courtesy Lights3.4 WConsole Compartment LightLEDGlove Box LightLEDFront and Rear*1 Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5 W
16 ACURA RLX E-AWD-31TY36200.book 556 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

571
Index
B
Battery12-Volt ................................................... 501
12-Volt Battery Charging System
Indicator ......................................... 79, 539
Charging (12-Volt Battery) ...................... 501
High Voltage........................................... 422
Jump Starting ......................................... 534
Maintenance (Checking the 12-Volt Battery) ................................................. 501
Maintenance (Replacing) ......................... 502
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 416
Bluetooth ® Audio ..................................... 275
Bluetooth ® HandsFreeLink ®.................... 313
Booster Seats (For Children) ...................... 69
Brake System ............................................ 423
Anti-lock Brake System (ABS) .................. 428
Automatic Brake Hold ............................. 426
Brake Assist System................................. 429
Fluid ....................................................... 483
Foot Brake .............................................. 425
Parking Brake.......................................... 423
Brake System (Amber) Indicator ................................................... 77
Brake System (Red)
Indicator ........................................... 74, 540
Brightness Control (Head-Up Display) .... 167Brightness Control (Instrument Panel)
.... 166
BSI (Blind Spot Information) System ....... 416
Bulb Replacement .................................... 484
Back-Up Lights ........................................ 487
Brake/Taillight s and Rear Side Marker
Lights .................................................... 487
Door Outer Handle Ambient Lights .......... 488
Fog Lights ................................................ 484
Front Side Marker Lights .......................... 485
Front Turn Signal/Parking Lights ............... 484
Headlights ............................................... 484
High-Mount Brake Light .......................... 488
Rear License Plate Lights .......................... 488
Rear Turn Signal Lights ............................ 486
Side Turn Signal/Em ergency Indicator
Lights .................................................... 485
Taillights .................................................. 487
Bulb Specifications ................................... 556
C
CAMERA Button....................................... 449
Carbon Monoxide Gas ................................ 70
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 361, 363
CD Player ................................................... 248
Center Pocket ........................................... 188
Certification Label .................................... 558
Changing Bulbs ......................................... 484
Charging System Indicator ....................... 539Child Safety
................................................. 58
Childproof Door Locks............................. 144
Child Seat .................................................... 58
Booster Seats ............................................ 69
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 65
Larger Children ......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 67
Childproof Door Locks ............................. 144
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Client Service Information ....................... 566
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 504
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 430
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 430
Compact Spare Tire (Optional) ........ 525, 557
16 ACURA RLX E-AWD-31TY36200.book 571 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

575
Index
L
Lane Keeping Assist System (LKAS)........ 405
Language (HFL) ........................................ 314
LATCH (Child Seats) ................................... 63
Lights ................................................ 159, 484
Automatic............................................... 160
Bulb Replacement ................................... 484
Daytime Running Lights .......................... 162
Fog Lights ............................................... 162
High Beam Indicator ................................. 85
Interior.................................................... 182
Light Switches......................................... 159
Lights On Indicator.................................... 85
Turn Signals ............................................ 158
Load Limits ............................................... 363
Locking/Unlocking ................................... 133
Auto Door Locking/Unlocking ................. 145
Childproof Door Locks ............................ 144
From Inside ............................................. 142
From Outside .......................................... 136
Keys........................................................ 133
Using a Key............................................. 140
Lockout Prevention System ..................... 140
Low Battery Charge (12-Volt) ................. 539
Low Fuel Indicator ..................................... 81
Low Keyless Access Remote Signal Strength .................................................. 135
Low Oil Pressure Indicator ................. 74, 539
Lower Anchors ........................................... 63
Luggage (Maximum Load Limit) ............. 363
Lumbar Support ....................................... 176
M
Maintenance............................................. 463
12-Volt Battery ........................................ 501
Brake Fluid .............................................. 483
Cleaning .................................................. 505
Climate Control System ........................... 504
Coolant ........................................... 480, 482
Maintenance Minder
TM............................ 467
Oil ........................................................... 476
Precautions .............................................. 464
Radiator .................................................. 481
Remote Transmitter ......................... 502, 503
Replacing Light Bulbs ............................... 484
Safety ...................................................... 465
Service Items ........................................... 470
Tires ........................................................ 492
Transmission Fluid ................................... 482
Under the Hood ...................................... 472
Malfunction Indicator Lamp .............. 79, 540
Map Lights ................................................ 183
Maximum Load Limit ............................... 363
Meters, Gauges ......................................... 106
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door ........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 461
Moonroof .................................................. 154 MP3
................................................... 248, 272
Multi-Information Display ....................... 108
Multi-View Rear Camera .......................... 447
N
Numbers (Identification).......................... 558
O
Odometer................................................. 110
Oil (Engine) ....................................... 475, 557
Adding .................................................... 477
Checking................................................. 476
Displaying Oil Life .................................... 468
Low Oil Pressure Indicator ................. 74, 539
Recommended Engine Oil ............... 475, 557
Viscosity .......................................... 475, 557
On Demand Multi-Use Display
TM............. 217
Opening
Trunk ...................................................... 552
Opening/Closing Hood....................................................... 473
Moonroof ............................................... 154
Power Windows ...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ...................................................... 155
Outside Temperature Display .................. 110
Overheating .............................................. 537
16 ACURA RLX E-AWD-31TY36200.book 575 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

577
Index
Shoulder Anchor........................................ 40
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
SiriusXM ® Radio ....................................... 245
Snow Tires ................................................ 500
Sounds Unique to the SPORT HYBRID SH-AWD® System...................................... 13
Spare Tire (Optional) ....................... 525, 557
Spark Plugs ............................................... 556
Specifications ........................................... 556
Specified Fuel ................................... 458, 556
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)....... 415
SPORT Mode ............................................. 380
SPORT Mode Indicator ....................... 86, 380
SRS Airbags (Airbags) ................................ 46
Steering Wheel
Adjusting ................................................ 171
Stopping ................................................... 438
Summer Tires ............................................ 500
Supplemental Restraint System (SRS) ....... 46
Surround View Camera System ............... 448
Switches (Around the Steering Wheel) ............................................ 4, 5, 155
System Message Indicator ......................... 84
T
Temperature
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83 Temperature Sensor
................................. 209
Temporary Tire Repair Kit ........................ 514
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 132
Tire Pressure Monitoring System
(TPMS) ..................................................... 418
Indicator ............................................ 84, 542
Tires ........................................................... 492
Air Pressure ..................................... 493, 557
Chains ..................................................... 500
Checking and Maintaining ....................... 492
Flat Tire (Puncture) ................................... 513
Inspection ................................................ 492
Labeling .................................................. 493
Regulations ............................................. 495
Rotation .................................................. 499
Spare (Optional) .............................. 525, 557
Summer .................................................. 500
Temporary Tire Repair Kit ........................ 514
Wear Indicators ....................................... 497
Winter ..................................................... 500
Tools .......................................................... 512
Towing a Trailer ....................................... 365
Towing Your Vehicle ................................ 365
Emergency .............................................. 550
TPMS (Tire Pressure Monitoring System) .................................................... 418
Transmission ....................................... 23, 373
Dual Clutch ............................... 23, 372, 373
Fluid ........................................................ 482
Gear Position Indicator ...................... 80, 375 Number................................................... 558
Sequential Mode ..................................... 378
TRIP Button ............................................... 109
Trip Meter ................................................. 110
Troubleshooting ....................................... 511
Blown Fuse.............................. 544, 546, 548
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door.......... 28
Emergency Towing .................................. 550
Flat Tire/Puncture ............................ 513, 525
Noise When Braking .................................. 29
Overheating ............................................ 537
Power System Won’t Start ....................... 531
Premium Gasoline ........................... 458, 556
Rear Door Won’t Open...................... 28, 144
Warning Indicators .................................... 74
Trunk ......................................................... 146
Lid........................................................... 146
Light Bulbs .............................................. 556
Release Handle ........................................ 552
Unable to Open....................................... 552
Turn Signals .............................................. 158
Indicators (Instrument Panel) ..................... 85
Turn-by-Turn Directions ................... 111, 127
Turning on the Power .............................. 366
Does Not Activate ................................... 531
Jump Starting .......................................... 534
Remote Engine Start................................ 368
Two-way Keyless Access Remote ..... 141, 368
16 ACURA RLX E-AWD-31TY36200.book 577 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
